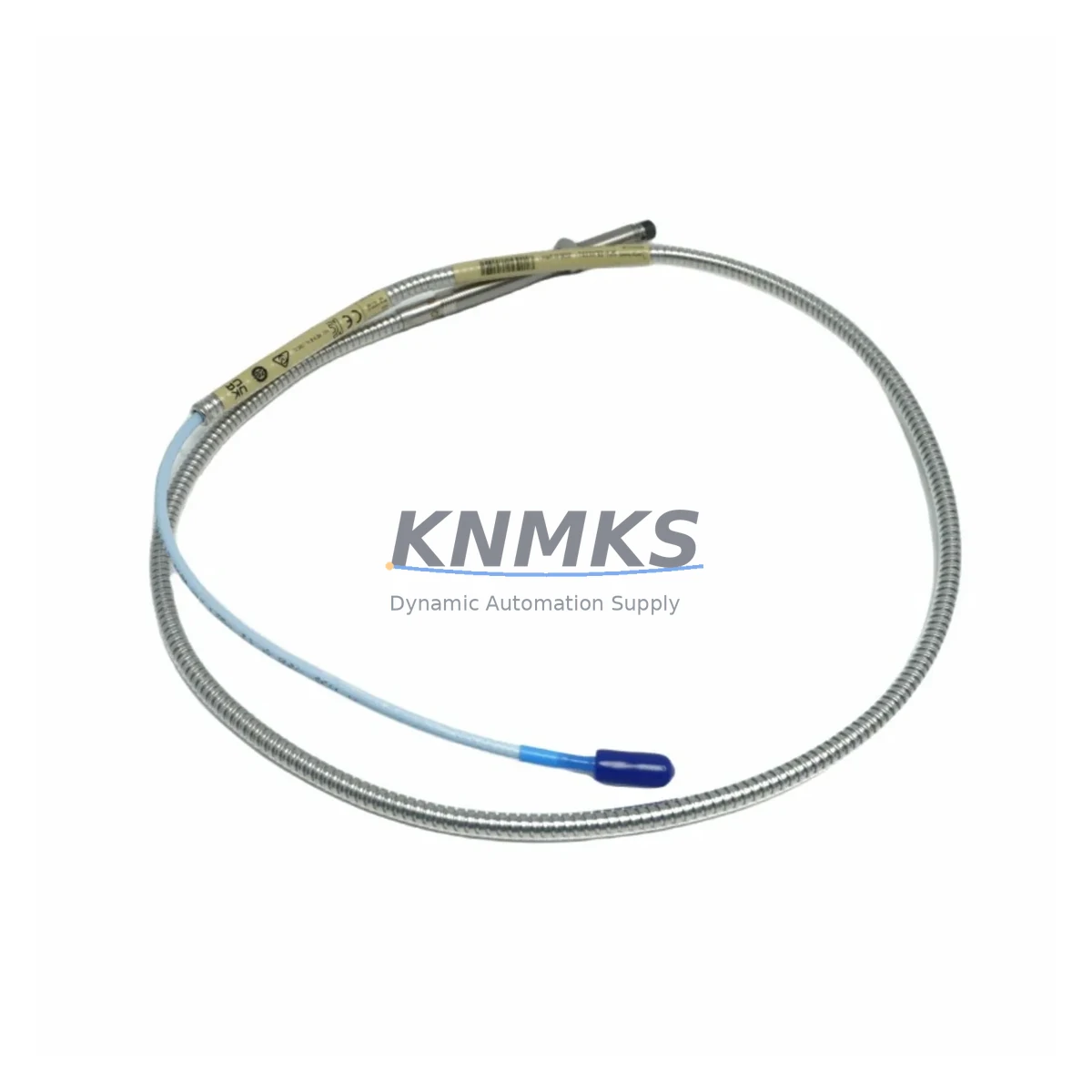

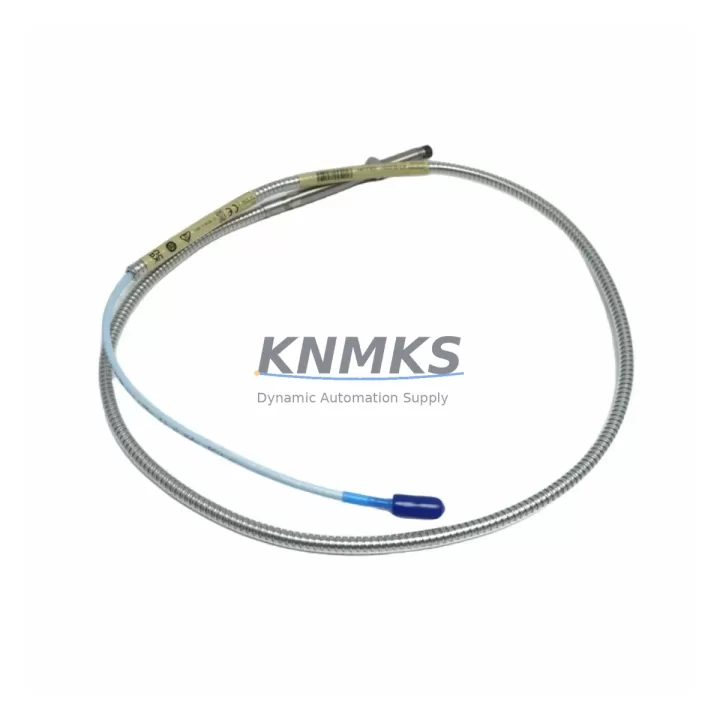

Bently Nevada 330102-00-80-10-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330102-00-80-10-02-05 Fail-Safe Proximity Transducer: Industrial Control Reliability & Fault Protection

The Bently Nevada 330102-00-80-10-02-05 is an 8mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and airborne contamination — making it a cornerstone component in critical safety instrumented systems (SIS) and machinery protection loops worldwide.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical complexes, port machinery, and marine propulsion systems — unplanned machinery downtime is not merely a financial loss; it is a safety event. The 330102-00-80-10-02-05 is purpose-built to eliminate the root causes of such events: signal drift under thermal stress, false trips from EMI-induced noise, transducer failure from moisture ingress, and measurement gaps caused by cable or connector degradation. Its robust stainless-steel housing and hermetically sealed construction provide IP67-class environmental protection, ensuring reliable operation in dusty, humid, and chemically aggressive atmospheres.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-00-80-10-02-05 proximity transducer does not operate in isolation — its fail-safe performance depends on the integrity of the entire signal chain and control cabinet ecosystem. In a properly engineered machinery protection architecture, this transducer interfaces directly with the Bently Nevada 3300 XL Proximitor Seismic Monitor (such as the 3300/16 or 3300/20 monitor modules), which conditions the raw transducer signal into a calibrated vibration measurement used by the protection system to trigger alarms and shutdowns.

Within the control cabinet, power supply stability is critical. Transient voltage spikes and power rail fluctuations are among the leading causes of false trips and measurement errors in proximity monitoring loops. Pairing this transducer system with a Bently Nevada 3300/05 Power Supply or an equivalent redundant DC power module ensures that the -24 VDC supply rail remains clean and stable, even during grid disturbances or switchgear operations nearby. For installations in high-surge environments — such as substations, compressor stations, or heavy motor control centers — additional surge protection devices on the signal and power lines are strongly recommended.

In safety instrumented systems where the proximity transducer feeds a Triconex TRICON or Rockwell Allen-Bradley GuardLogix safety PLC, signal integrity between the Proximitor output and the SIS input card must be maintained with shielded, twisted-pair cabling and proper grounding discipline. The Bently Nevada 3500/42M Proximitor/Seismic Monitor, used in larger 3500 Series racks, provides an alternative integration path for facilities already standardized on the 3500 platform, offering enhanced diagnostics and self-test capabilities that further reduce the probability of dangerous undetected failures (PFD).

For installations in outdoor enclosures or field junction boxes subject to wide temperature swings, condensation, and vibration, the transducer’s armored extension cable should be routed with appropriate cable glands and strain relief fittings. Complementary components such as the Bently Nevada 330130 Extension Cable and 330180 Proximitor Sensor complete the standard 3300 XL transducer system, ensuring that every element of the measurement chain — from probe tip to monitor input — is rated and tested for the same harsh-environment performance standard.

Critical Industrial Safety Applications

The 330102-00-80-10-02-05 proximity transducer is deployed across the full spectrum of heavy industrial and process-critical machinery protection applications:

Petrochemical & Refinery: In centrifugal compressors, turbines, and pumps handling hydrocarbons, continuous shaft vibration and radial position monitoring is a mandatory safety requirement under API 670. This transducer provides the real-time displacement data that allows the machinery protection system to initiate an emergency shutdown before a bearing failure escalates into a catastrophic seal breach or fire event.

Power Generation: Steam turbines and gas turbines in power plants operate at speeds exceeding 3,000 RPM under enormous mechanical loads. The 330102-00-80-10-02-05 monitors shaft eccentricity and differential expansion with the sub-micron resolution required to detect early-stage rotor instability, enabling planned maintenance rather than forced outages.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust, and moisture. The IP67-rated construction of this transducer ensures reliable signal output even when the control environment is far from ideal, reducing the risk of undetected mechanical degradation in equipment that is difficult and costly to access for inspection.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities require continuous condition monitoring to prevent bearing failures that could interrupt critical public infrastructure. The transducer’s stable, low-drift output ensures that alarm setpoints remain accurate over extended service intervals without frequent recalibration.

Metallurgy & Steel: Rolling mills, continuous casters, and large induction furnace drives operate in environments with intense electromagnetic fields and thermal radiation. The shielded coaxial cable construction of the 330102-00-80-10-02-05 provides robust EMI rejection, preventing spurious trips that would disrupt production and cause costly material losses.

Port & Marine: Ship propulsion systems, crane drives, and offshore platform machinery require vibration monitoring solutions that can withstand salt spray, humidity, and the mechanical shock loads inherent in marine operations. This transducer’s hermetically sealed design and wide operating temperature range make it suitable for both topside and below-deck machinery protection installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-80-10-02-05?
Every unit supplied by KNMKS carries a support terms confirmed by quotation against manufacturing defects and functional failure. If the transducer fails to perform within its published specifications during the confirmed support period under normal operating conditions, we will provide a replacement or documented resolution support. Our support terms reflects our confidence in the quality of every unit we ship.

Q2: How is each unit tested before shipment?
Prior to dispatch, every 330102-00-80-10-02-05 unit undergoes a comprehensive pre-shipment inspection that includes electrical continuity verification, output signal calibration check against Bently Nevada 3300 XL system specifications, insulation resistance testing, and physical inspection of the probe tip, cable, and connector. A test report is available upon request for customers with documentation requirements for safety-critical installations.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL monitoring systems?
Yes. The 330102-00-80-10-02-05 is a direct OEM-equivalent replacement for the standard Bently Nevada 3300 XL 8mm proximity transducer system. It is fully compatible with all 3300 XL monitor modules, Proximitor sensors, and extension cables without requiring system reconfiguration or recalibration, provided the installation follows the standard Bently Nevada gap voltage and scale factor settings.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains dedicated inventory of the 330102-00-80-10-02-05 and related 3300 XL Series components to support both planned maintenance schedules and emergency breakdown situations. We understand that machinery protection spares are often needed urgently to minimize downtime in critical facilities. Our team can confirm stock availability, arrange expedited shipping, and provide technical support for installation and commissioning queries. Contact us at [email protected] or +86 18359268345 for immediate assistance.
