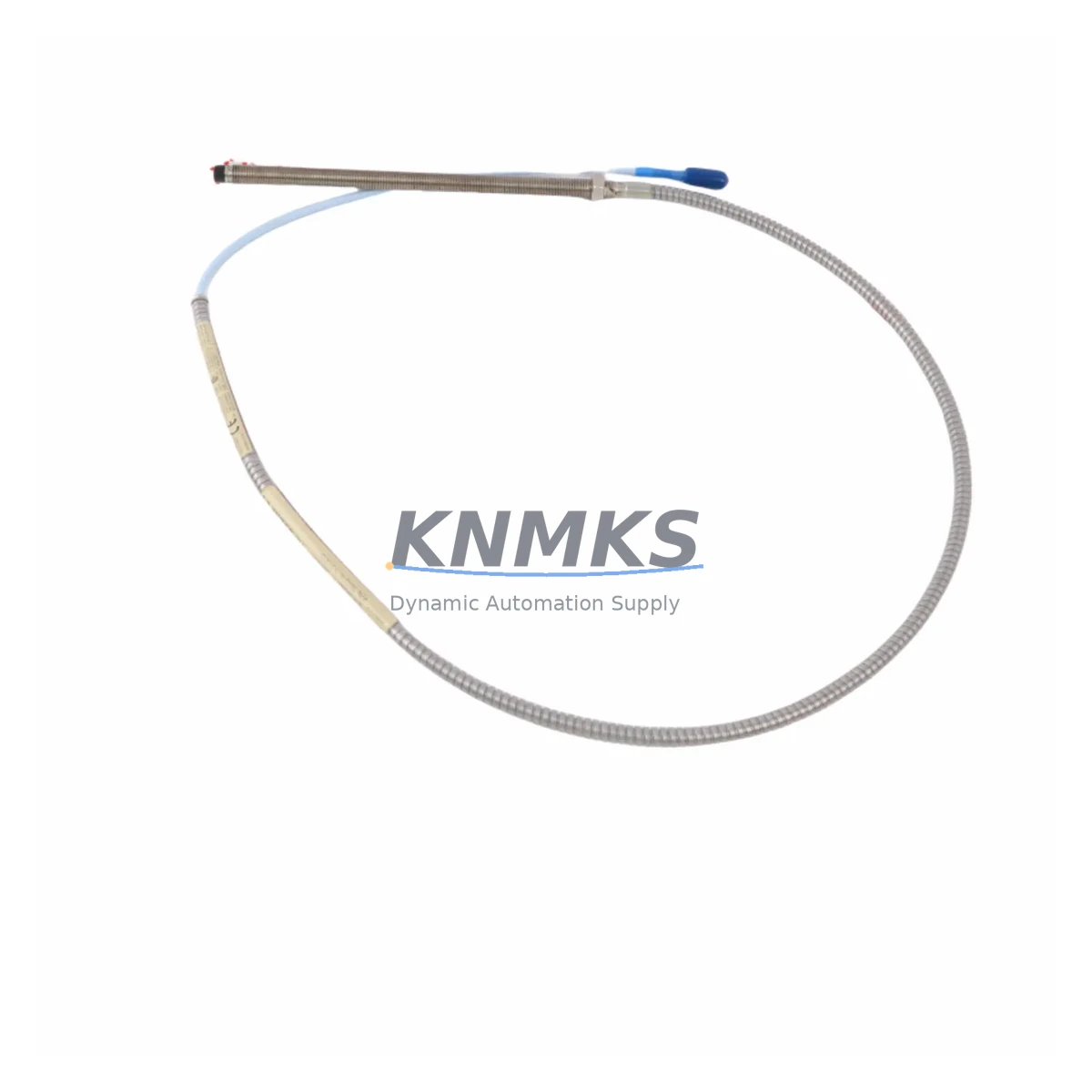

Bently Nevada 330102-00-70-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-70-10-02-05 Fail-Safe Proximity Probe: Industrial Control Reliability for Critical Field Operations

The Bently Nevada 330102-00-70-10-02-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered to deliver continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed for rotating machinery protection, this probe provides the real-time shaft displacement data that safety interlock systems, turbine protection panels, and critical control loops depend on to prevent catastrophic equipment failure and unplanned downtime.

In continuous production facilities — petrochemical plants, power generation stations, offshore platforms, and metallurgical processing lines — even a momentary lapse in vibration signal integrity can trigger false trips, mask developing faults, or allow machinery to run beyond safe operating limits. The 330102-00-70-10-02-05 addresses these risks through its robust eddy-current sensing principle, which operates without physical contact, eliminating wear-related signal degradation and ensuring measurement accuracy across the full service life of the probe.

The probe is fully compatible with the Bently Nevada 3300 XL Proximitor/Seismic Transducer System, including the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor. When integrated with the System 1 condition monitoring platform or a 3500 Series Machinery Protection System rack, the 330102-00-70-10-02-05 forms a complete, SIL-capable vibration monitoring chain that feeds directly into safety instrumented functions (SIF) and emergency shutdown (ESD) logic. This architecture ensures that shaft radial vibration, axial position, and differential expansion data are continuously available to the control system — even under high electromagnetic interference, ground loop noise, or power supply fluctuation conditions.

For control cabinet integrators and reliability engineers, the probe’s standardized -18.4 VDC supply compatibility and 200 mV/mil (7.87 V/mm) scale factor simplify integration with existing DCS and SIS infrastructure. The 330102-00-70-10-02-05 is rated for operation in environments with ambient temperatures from -35°C to +121°C, making it suitable for high-temperature turbine bearing housings, outdoor compressor skids, and enclosed motor control centers where thermal cycling and condensation are persistent concerns.

In high-vibration, high-dust, and high-humidity field installations — such as coal mill drives, cement kiln main drives, and marine propulsion systems — the probe’s stainless steel housing and hermetically sealed tip provide IP67-equivalent protection against particulate ingress and moisture intrusion. This physical robustness, combined with the non-contact measurement principle, makes the 330102-00-70-10-02-05 a preferred choice for long-interval maintenance strategies where probe replacement must be minimized between scheduled outages.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring in a critical control cabinet environment requires more than a single probe — it demands a coordinated protection architecture. The 330102-00-70-10-02-05 is typically deployed alongside the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05), which conditions the raw probe signal into a calibrated voltage output suitable for direct input to a 3500/40M Proximitor/Seismic Monitor module. Within the 3500 Series rack, the monitor card performs continuous OK status checking, gap voltage verification, and alarm/danger setpoint comparison — ensuring that any probe cable fault, target loss, or signal dropout is immediately flagged to the safety PLC or DCS.

To protect the signal chain from power supply disturbances and ground loops — common in heavy industrial switchgear rooms and variable frequency drive (VFD) environments — engineers frequently pair the proximitor system with a dedicated 3500 Power Supply module and isolated signal conditioners. In installations where the 330102-00-70-10-02-05 feeds into a Triconex or Yokogawa ProSafe-RS safety instrumented system, proper cable shielding, grounding discipline, and surge protection devices at the cabinet entry point are essential to maintain signal integrity and prevent nuisance trips caused by transient overvoltage events.

For multi-machine protection panels covering steam turbines, gas compressors, or boiler feed pumps, the probe is often installed in X-Y configuration per bearing, with each channel routed to an independent monitor card to eliminate single-point failure risk. The 3300 XL Extension Cable — available in lengths from 1.0 m to 9.0 m — bridges the distance between the probe and the proximitor, maintaining the calibrated system impedance and ensuring measurement accuracy is not compromised by cable substitution or field splicing. For installations requiring temperature-rated cabling in high-heat zones, the 3300 XL High Temperature Extension Cable provides an engineered solution that preserves system calibration integrity up to the probe’s rated thermal limit.

Critical Industrial Safety Applications

The Bently Nevada 330102-00-70-10-02-05 is deployed across a wide spectrum of critical industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery operations, the probe monitors shaft radial vibration on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors. Continuous vibration data feeds into the emergency shutdown system, enabling automatic trip before bearing failure can escalate to a seal breach or process release event.

In power generation — including coal-fired, gas turbine, and combined-cycle plants — the 330102-00-70-10-02-05 is installed on turbine-generator shaft lines to monitor rotor dynamics, detect rotor bow during startup, and provide axial position feedback to the thrust bearing protection system. Loss of this signal in a turbine protection system is treated as a dangerous failure, triggering a controlled shutdown to prevent catastrophic rotor-stator contact.

In mining and mineral processing, the probe is used on SAG mill pinion drives, slurry pump motors, and conveyor head pulley bearings — environments characterized by extreme vibration, heavy dust loading, and wide ambient temperature swings. The probe’s sealed construction and non-contact measurement principle ensure reliable operation without the signal drift or mechanical wear that would affect contact-type sensors in these conditions.

In water and wastewater treatment, large vertical turbine pumps and blower trains rely on proximity probes for shaft centerline monitoring and bearing condition assessment. Early detection of rotor imbalance or misalignment allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures that disrupt treatment capacity.

In port and marine applications, the probe monitors propulsion shaft vibration and thruster motor bearings on vessels and offshore loading platforms, where access for manual inspection is limited and unplanned downtime carries severe operational and safety consequences.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330102-00-70-10-02-05?
The support terms confirmed by quotation cover all manufacturing defects, calibration failures, and functional non-conformances identified under normal operating conditions consistent with the 3300 XL system specifications. Support requests are supported with direct technical assistance and expedited replacement dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330102-00-70-10-02-05 unit undergoes full functional verification prior to shipment, including gap voltage linearity check across the specified linear range, scale factor confirmation at 200 mV/mil, OK status output verification, and physical inspection of the probe tip, cable jacket, and connector. A test record is available upon request.

Q3: Is the 330102-00-70-10-02-05 compatible with existing 3300 XL system components?
Yes. The probe is a direct fit within the Bently Nevada 3300 XL 8mm Proximity Transducer System and is compatible with all standard 3300 XL Proximitor Sensors, Extension Cables, and 3500 Series monitor cards without requiring recalibration of the system, provided the target material and gap setting conform to the original system design.

Q4: Can long-term supply agreements be arranged for this part?
Yes. For customers with scheduled maintenance programs, turnaround outages, or multi-site fleet standardization requirements, we support blanket purchase orders and reserved stock arrangements. Multi-region inventory is maintained to support emergency dispatch and planned outage kitting for the 330102-00-70-10-02-05 and compatible 3300 XL system components.
