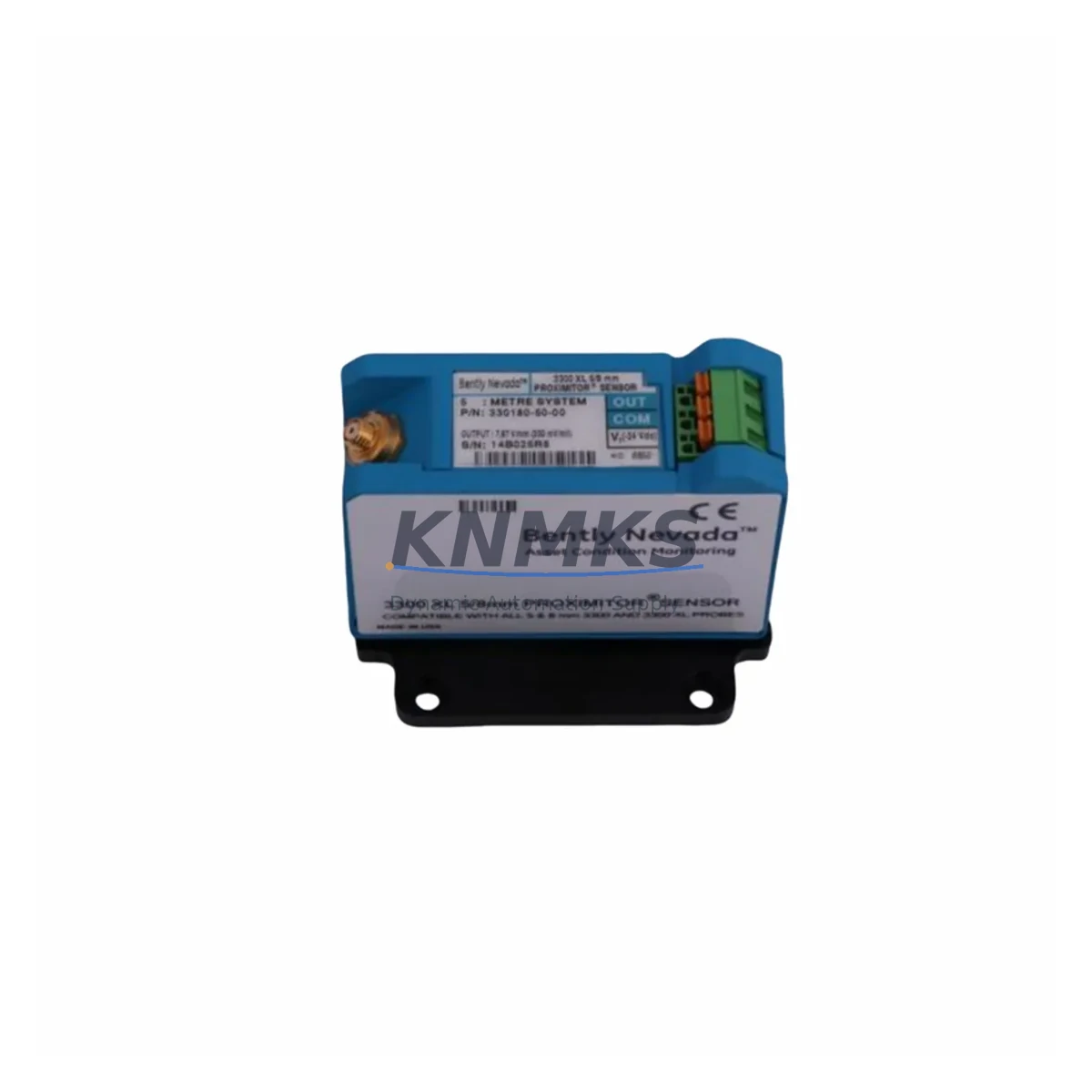

Bently Nevada 330102-00-60-05-02-05 Migration-Ready Transducer

Overview

Bently Nevada 330102-00-60-05-02-05 Migration-Ready Transducer: Legacy System Upgrade & Compatible Replacement

The Bently Nevada 330102-00-60-05-02-05 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Series monitoring platform. As legacy vibration monitoring systems approach end-of-support milestones, maintenance engineers and reliability teams face increasing pressure to source verified drop-in replacements that preserve existing wiring, signal conditioning, and alarm setpoint configurations. This transducer is stocked as a migration-ready spare, pre-tested against 3300 XL system specifications, and dispatched globally with a support terms confirmed by quotation covering both parts and workmanship.

The 330102-00-60-05-02-05 operates on the standard Bently Nevada proximity system architecture: a 5 mm tip diameter probe paired with a compatible extension cable and a 3300 XL proximitor/driver module. The probe outputs a linear DC voltage proportional to the gap between the probe tip and the observed target surface, typically a rotating shaft. Signal range, sensitivity (200 mV/mil), and gap voltage (-10 VDC nominal) are fully consistent with the 3300 XL platform’s input requirements, eliminating the need for recalibration of existing monitor cards or alarm relay modules when performing a like-for-like swap.

For facilities managing aging turbomachinery protection systems, the 330102-00-60-05-02-05 is a critical component in sustaining continuous vibration monitoring without triggering a full system overhaul. It is directly compatible with the 3300 XL 16-channel monitor, the 3300 XL 8-channel monitor, and associated I/O terminal blocks. Engineers replacing worn or damaged probes should verify the existing extension cable length and connector type — the -05-02-05 suffix designates a 5-meter cable assembly with standard armored jacket — to ensure the replacement matches the installed configuration without requiring re-routing or junction box modifications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330102-00-60-05-02-05 into an operating turbomachinery protection system requires a structured pre-outage review. Begin by auditing the existing 3300 XL proximitor module — typically a 3300 XL Proximitor/Velomitor — to confirm it is powered and providing the correct bias voltage to the probe circuit. If the proximitor module shows signs of drift or output instability, it is advisable to replace it concurrently with the probe to avoid masking a secondary fault after the outage window closes.

Terminal wiring at the I/O terminal block should be documented before disconnection. The 330102-00-60-05-02-05 uses a standard three-conductor shielded cable (shield, center conductor, outer conductor), and the shield must be grounded at one end only — typically at the proximitor — to prevent ground loop interference on the vibration signal. If the existing 3300 XL 16-channel monitor is also being serviced, confirm that the channel’s OK relay and alarm relay outputs are inhibited in the DCS or safety system before breaking the probe circuit, to prevent spurious trips.

For facilities simultaneously upgrading from a 3300/20 Series platform to the 3300 XL architecture, the migration scope expands to include the 3300 XL rack and power supply module, the 3300 XL I/O module, and potentially the 3300 XL communication gateway if the existing DCS interface relies on a proprietary serial link. In these cases, the HMI faceplate displays and historian tag mappings for vibration channels will also require updating to reflect the new channel addresses and engineering unit scaling. Coordinating probe replacement with the rack migration minimizes the number of separate outage windows required.

Signal isolation requirements should also be reviewed: if the vibration signal is shared between the 3300 XL monitor and a third-party condition monitoring system, a signal isolator or buffer amplifier may be needed to prevent loading effects on the probe output. Similarly, if the installation involves long cable runs exceeding the standard 5-meter assembly, a junction box with a field-installable extension cable — matched to the 330102-00-60-05-02-05 connector type — must be specified to maintain signal integrity.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity transducer replacement begins with pre-staging all replacement components before the maintenance window opens. For the 330102-00-60-05-02-05, this means having the replacement probe, the matched extension cable assembly, and a verified spare 3300 XL proximitor module on-site and bench-tested before the unit is taken offline. Pre-shipment functional testing — performed on every unit dispatched — confirms that the probe’s output voltage, sensitivity, and OK status indicator are within specification, reducing the risk of discovering a defective part after the machine is already shut down.

During the outage, the original program logic in the DCS or safety instrumented system (SIS) should not be modified unless the migration specifically requires a channel address change. Preserving the existing logic blocks, alarm setpoints, and interlock configurations ensures that the system can be returned to service immediately after the probe is installed and the gap voltage is verified. If the 3300 XL monitor requires a channel configuration download — for example, after replacing a monitor card — use the System 1 configuration software to restore the saved channel setup rather than re-entering parameters manually, which reduces the risk of transcription errors.

Post-installation commissioning for the 330102-00-60-05-02-05 should include a static gap check using a calibrated gap voltage reference, a dynamic signal check with the machine at operating speed, and a confirmation that the OK relay is energized and the vibration reading is within the expected baseline range. These steps, completed within the maintenance window, allow the protection system to be returned to fully armed status before the machine is restarted, maintaining continuous protection throughout the transition.

Retrofit Support FAQ

Q: Is the 330102-00-60-05-02-05 a direct replacement for the 330100-90-60-05-02-05?
A: The 330102 and 330100 series share the same 5 mm probe tip geometry and 200 mV/mil sensitivity, making the 330102-00-60-05-02-05 a functionally compatible replacement in most 3300 XL installations. However, the 330102 series incorporates updated connector and cable specifications. Verify the connector type at the proximitor end before installation to confirm compatibility with the existing extension cable or junction box.

Q: What wiring checks are required before installing this transducer?
A: Confirm that the proximitor module is de-energized before disconnecting the probe. Document the existing terminal assignments at the I/O terminal block — typically labeled COM, –, and shield — and verify that the shield drain wire is grounded only at the proximitor end. After installation, measure the gap voltage with the probe at the nominal operating gap (typically 50 mil / 1.27 mm) and confirm it reads approximately –10 VDC before re-energizing the monitor channel.

Q: Can this unit be used with a 3300/20 Series monitor instead of the 3300 XL?
A: The 330102-00-60-05-02-05 is optimized for the 3300 XL proximitor and monitor platform. While the probe’s electrical characteristics are broadly compatible with earlier 3300/20 Series drivers, signal conditioning differences between the 3300/05 proximitor and the 3300 XL proximitor module may affect OK status thresholds and output linearity. Use with 3300/20 Series hardware should be validated against the system’s acceptance criteria before deployment in a protection-critical application.

Q: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
A: Every 330102-00-60-05-02-05 unit is functionally tested prior to dispatch, covering output voltage, sensitivity, cable continuity, and connector integrity. The support terms confirmed by quotation cover manufacturing defects and workmanship failures under normal operating conditions. Units are dispatched with a test record on request. For emergency replacement requirements, expedited dispatch is available with same-day processing for in-stock units.
