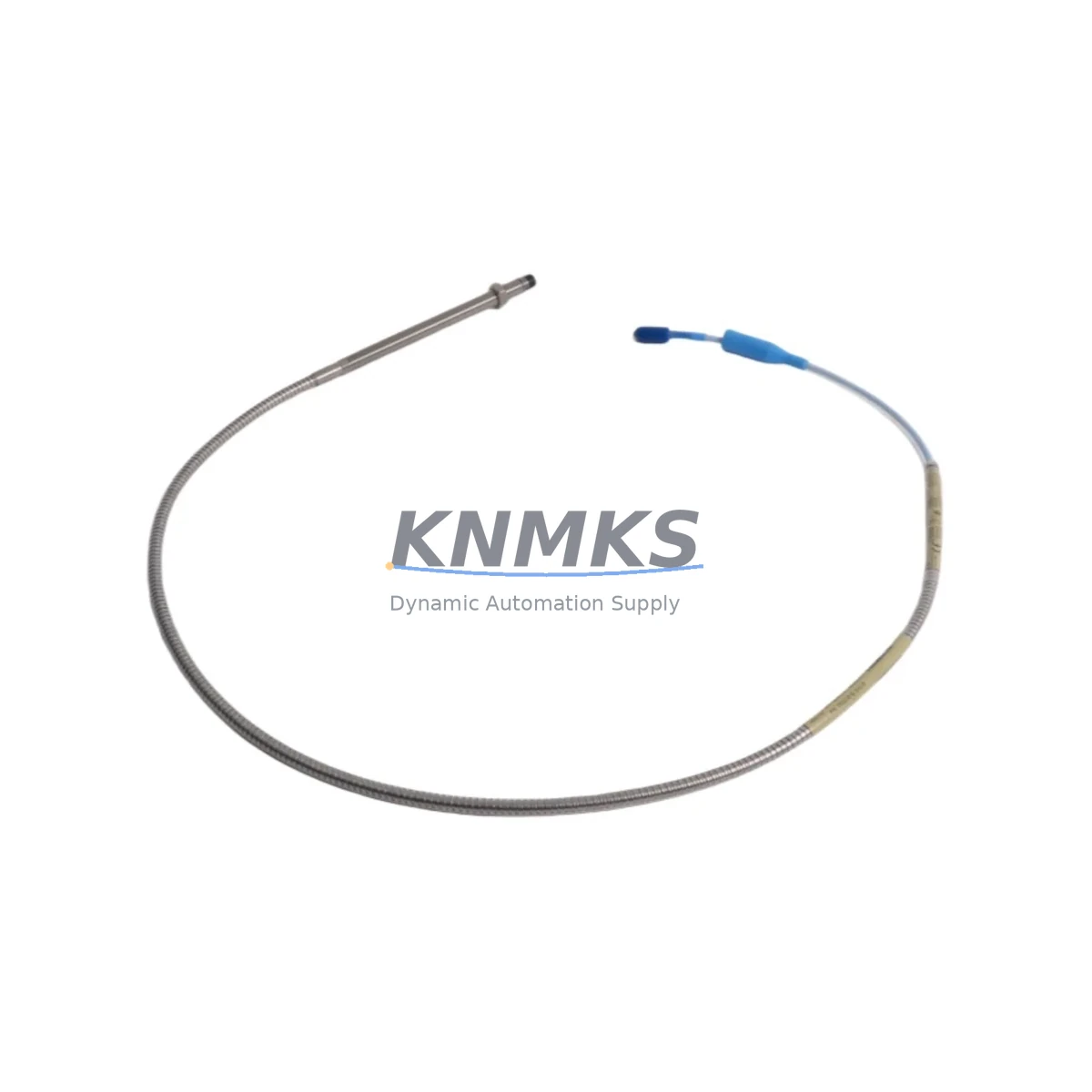

Bently Nevada 330102-00-50-10-02-05 Migration-Ready Extension Cable

Overview

Bently Nevada 330102-00-50-10-02-05 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330102-00-50-10-02-05 is a 5-meter proximity transducer extension cable engineered for direct integration into Bently Nevada 3300 XL vibration monitoring systems. As legacy rotating machinery protection platforms approach end-of-life and OEM spare part availability tightens, this extension cable serves as a critical link in retrofit, upgrade, and system restoration projects across power generation, petrochemical, and heavy industrial facilities. Whether you are replacing a failed cable in an operating train or rebuilding a control cabinet around a decommissioned 3300 XL rack, the 330102-00-50-10-02-05 provides the dimensional, electrical, and signal-integrity specifications required for drop-in compatibility without re-engineering the transducer loop.

In legacy system migration projects, the extension cable is rarely evaluated in isolation. Engineers planning a 3300 XL retrofit must simultaneously confirm that the paired proximity probe — typically a Bently Nevada 330101 or 330103 series — and the proximitor/oscillator module, such as the 330180 or 330130 series, are dimensionally and electrically matched to the replacement cable. The 330102-00-50-10-02-05 uses a standard armored coaxial construction with TNC-style connectors at both ends, maintaining the 200 mV/mil (7.87 V/mm) sensitivity standard that the 3300 XL monitor cards expect. Any deviation in cable length, connector type, or impedance will shift the DC gap voltage and trigger false alerts or trip events on the 3300 XL monitor module.

When integrating this cable into a control cabinet upgrade, installers must verify available conduit routing space and confirm that the cable’s armor jacket is properly grounded at one end only — typically at the proximitor housing — to prevent ground loops that corrupt vibration signal baselines. In multi-shaft machinery trains where several 3300 XL channels are being replaced simultaneously, it is common to also replace the 3300 XL rack backplane connectors and terminal blocks to eliminate contact resistance that has accumulated over years of operation. Failure to address backplane connector integrity during a cable swap can introduce intermittent signal faults that are difficult to distinguish from genuine machinery anomalies.

For facilities migrating from the 3300 XL platform to a newer Bently Nevada 3500 series rack, the 330102-00-50-10-02-05 may be retained in the transducer loop if the new 3500/42M or 3500/40M monitor module is configured for the same probe system sensitivity. However, the communication protocol migration from the 3300 XL’s hardwired relay outputs to the 3500 series’ Modbus TCP or PROFIBUS DP interface requires a separate gateway or I/O mapping exercise in the DCS or safety instrumented system. In these hybrid migration scenarios, the extension cable itself is not the constraint — the constraint is the control system integration layer, including the HMI screen updates, historian tag remapping, and alarm rationalization that must accompany the hardware swap.

Downtime planning for a 330102-00-50-10-02-05 replacement in an operating plant should account for the full transducer loop verification sequence: gap voltage measurement at the proximitor, signal conditioning check at the 3300 XL monitor card, and a slow-roll vibration baseline comparison before returning the machinery train to service. In facilities where the 3300 XL rack also monitors axial position via a 330105 thrust position cable assembly, the axial channel should be verified independently, as a cable swap on an adjacent radial channel can disturb connector seating on shared backplane slots. Pre-shipment functional testing of the 330102-00-50-10-02-05 against a reference proximitor is performed prior to dispatch to confirm signal integrity and connector continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330102-00-50-10-02-05 retrofit begins well before the cable arrives on site. The engineering review should confirm the full transducer loop bill of materials: the proximity probe (330101-00-18-10-02-05 or equivalent), the proximitor module (330180-X1-05 or 330130-040-00-00), the 3300 XL monitor card slot assignment, and the terminal block wiring schedule in the junction box. In facilities where the original Bently Nevada installation documentation is no longer available, the gap voltage reading at the proximitor output — typically between −10 VDC and −18 VDC at operating clearance — provides a reliable baseline for verifying that the replacement cable has been correctly installed.

For control cabinets undergoing broader upgrades, the 330102-00-50-10-02-05 cable replacement is often performed alongside a 3300 XL rack power supply inspection, since aging power supply modules can introduce ripple noise that mimics vibration signals. If the facility is also upgrading its HMI platform, the historian tags associated with the 3300 XL vibration channels — typically mapped as 4–20 mA analog inputs at the DCS I/O card — must be re-verified after the cable swap to ensure that the engineering unit scaling (in mils peak-to-peak or µm) remains consistent with the new HMI display configuration. Signal isolators installed between the 3300 XL output and the DCS analog input card should also be inspected for drift, as these components are frequently overlooked during cable-focused maintenance windows.

In multi-train facilities where several machinery protection loops are being upgraded in parallel, a phased replacement schedule — replacing one channel at a time while maintaining monitoring on adjacent channels — is strongly recommended. This approach allows the maintenance team to validate each replacement cable’s gap voltage and signal baseline before proceeding to the next channel, reducing the risk of a simultaneous multi-channel outage that could mask a genuine machinery fault during the transition period.

Downtime Control During System Migration

Minimizing unplanned downtime during a 330102-00-50-10-02-05 replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement cable should be staged and pre-tested, the 3300 XL monitor card bypass or inhibit function should be confirmed operational, and the DCS alarm suppression list should be updated to prevent nuisance trips during the cable swap. The original program logic in the safety instrumented system — particularly any vibration-based shutdown interlocks — should be documented and backed up before any hardware is disturbed.

During the swap, the sequence should follow: inhibit the affected 3300 XL channel at the monitor card, disconnect the old cable at both the probe and proximitor ends, install the 330102-00-50-10-02-05, verify connector seating and armor ground continuity, measure gap voltage at the proximitor output, and compare against the pre-outage baseline before releasing the channel inhibit. This sequence protects the original control logic from false trip events and ensures that the machinery protection function is restored to a verified state before the inhibit is lifted. Total field time for a single-channel cable replacement, including gap voltage verification, is typically 45–90 minutes for an experienced technician.

Post-replacement, a slow-roll vibration trend comparison — capturing at least 15 minutes of data at reduced speed before full-load operation — provides confidence that the new cable has not introduced any signal artifacts. This data should be archived in the plant historian alongside the maintenance record to support future reliability analysis and support terms documentation.

Retrofit Support FAQ

Q: Is the 330102-00-50-10-02-05 a direct replacement for the original Bently Nevada cable?
A: Yes. The 330102-00-50-10-02-05 is manufactured to the original Bently Nevada dimensional and electrical specification, providing a direct drop-in replacement for the 3300 XL transducer loop without modification to the probe, proximitor, or monitor card settings.

Q: What pre-shipment testing is performed on each cable?
A: Each 330102-00-50-10-02-05 unit undergoes functional continuity testing and signal integrity verification against a reference proximitor before dispatch. Test records are available upon request for quality documentation purposes.

Q: Can this cable be used with the Bently Nevada 3500 series monitor?
A: Yes, provided the 3500 series monitor card is configured for the same 200 mV/mil sensitivity as the original 3300 XL system. No cable modification is required; the sensitivity match is configured at the monitor card level.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, improper grounding, or mechanical abuse during cable routing. Support requests are supported with the original invoice and, where applicable, the pre-shipment test record.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-50-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-50-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
