Bently Nevada 330102-00-50-10-01-05 Maintenance Spare Part

Overview

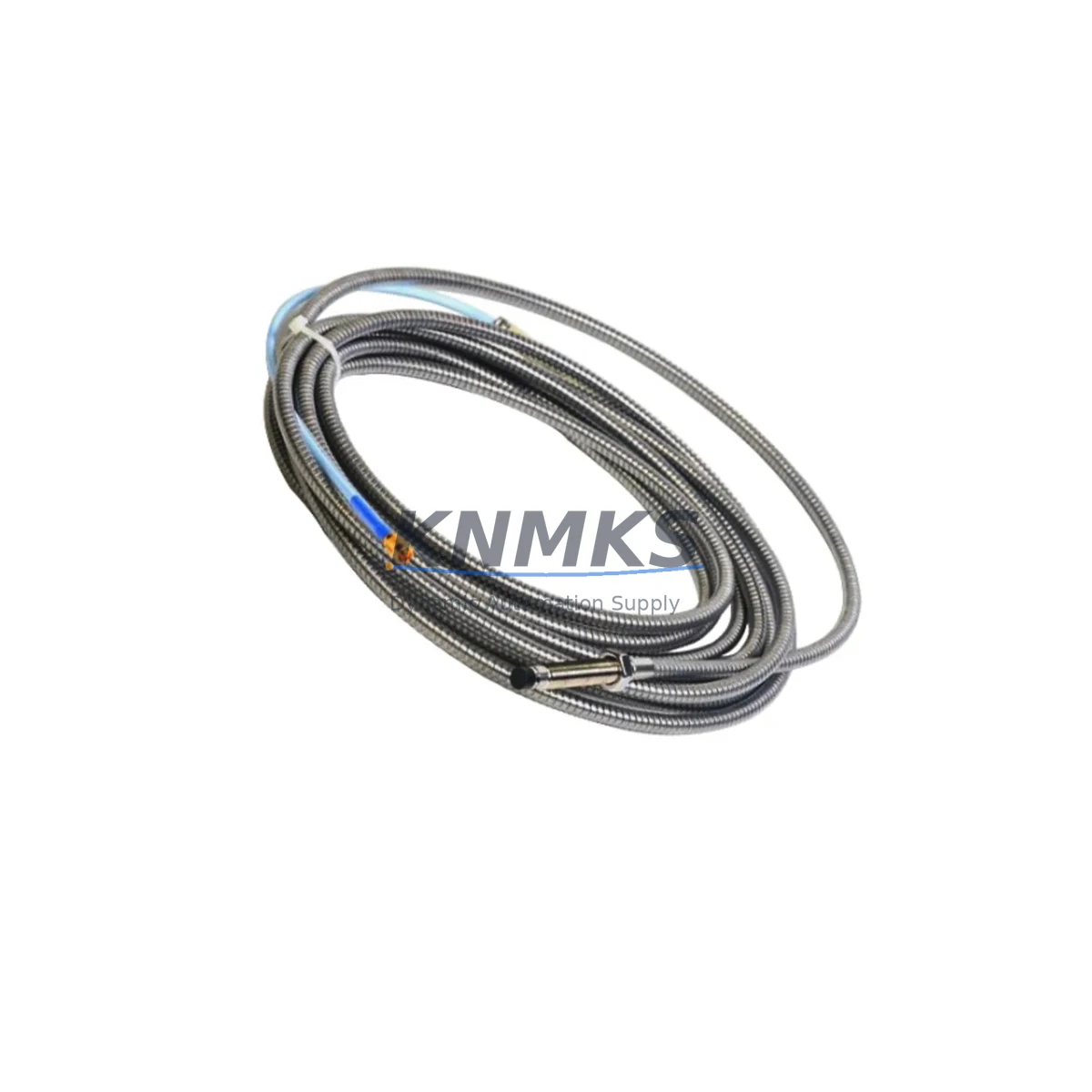

Bently Nevada 330102-00-50-10-01-05 Maintenance Spare Part: Proximity Probe for Factory Uptime

The Bently Nevada 330102-00-50-10-01-05 is an 8mm proximity probe from the industry-trusted 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. As a maintenance-proven spare part, it is widely deployed in turbines, compressors, pumps, and other critical rotating equipment across power generation, oil & gas, petrochemical, and heavy manufacturing facilities. Sourced as an original Bently Nevada component, this probe delivers the measurement accuracy and long-term reliability that maintenance engineers and procurement teams depend on to sustain factory uptime and prevent unplanned shutdowns.

When a proximity probe fails or degrades, the consequences extend beyond a single sensor replacement. Vibration monitoring gaps can mask developing bearing faults, shaft misalignment, or rotor instability — all of which escalate rapidly into costly machinery failures. Stocking the 330102-00-50-10-01-05 as a ready-to-deploy spare ensures that your maintenance team can execute a rapid swap during a planned outage or emergency response, restoring full monitoring coverage with minimal downtime. Every unit shipped by KNMKS is individually tested and verified before dispatch, backed by a support terms confirmed by quotation to support your spare parts governance program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330102-00-50-10-01-05 proximity probe is rarely an isolated task. In a properly maintained 3300 XL monitoring loop, the probe works in conjunction with a matched 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 series) and a dedicated extension cable (typically 330130 series) to form a calibrated measurement chain. If the probe is being replaced due to signal drift, output noise, or physical damage, maintenance engineers should simultaneously inspect the Proximitor sensor for gap voltage deviation and verify the extension cable for continuity, insulation resistance, and connector integrity — a degraded cable is a frequent root cause of probe system faults that is often overlooked during reactive maintenance.

At the rack level, the Bently Nevada 3500/40M Proximitor/Seismic Monitor or equivalent 3300 series monitor card should be checked for alarm setpoint integrity and channel calibration after any probe replacement. If the control cabinet also houses a 3500/20 Power Supply module, verify output voltage stability under load — an aging power supply can introduce measurement offsets that mimic probe degradation. For facilities running integrated machinery protection systems, the 3500/92 Communication Gateway or Modbus/TCP interface module should be confirmed operational to ensure that vibration data is correctly transmitted to the DCS or SCADA layer following maintenance.

Annual inspection cycles for rotating machinery should also include a review of terminal blocks and field wiring within the junction box, particularly in high-vibration or high-temperature zones where terminal loosening and insulation fatigue are common. Where signal integrity is critical, signal isolators installed between the Proximitor output and the monitor input can prevent ground loop interference from corrupting vibration readings. Procurement teams building a 12-month spare parts buffer for 3300 XL-equipped machinery should consider stocking at minimum one probe, one extension cable, and one Proximitor sensor per monitored shaft position to enable full-loop replacement without waiting on lead times.

Site Replacement Workflow

The 330102-00-50-10-01-05 is a direct replacement for earlier 3300 XL 8mm probe configurations. Before installation, confirm the replacement probe’s part number suffix matches the original cable length and connector type specified in your machinery protection system documentation. The standard site replacement procedure involves: (1) de-energizing the monitoring channel at the rack, (2) removing the existing probe from its mounting bracket while recording the installed gap distance, (3) installing the new probe and setting the gap to the OEM-specified value (typically 1.0–1.5mm for most shaft materials), (4) re-energizing the channel and verifying the gap voltage output at the Proximitor, and (5) confirming alarm and danger setpoints are active before returning the machine to service.

For legacy installations where the original 3300 XL probe is being retired due to obsolescence rather than failure, the 330102-00-50-10-01-05 provides a compatible upgrade path that preserves system calibration and avoids the cost and complexity of a full monitoring system migration. This approach is particularly valuable in facilities where the 3300 XL system is integrated with a Bently Nevada 3500 Series rack, as the probe’s output characteristics are fully compatible with 3500 monitor inputs when used with the correct driver configuration. Maintaining original OEM components in the monitoring loop eliminates compatibility risk and supports regulatory compliance for machinery protection in API 670-governed applications.

Spare Parts Support FAQ

Q1: Is the 330102-00-50-10-01-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330102-00-50-10-01-05 is designed for the 3300 XL 8mm proximity system and is compatible with 3500 Series monitor inputs when paired with the appropriate Proximitor sensor and extension cable. Always verify the full system configuration — probe, extension cable, and Proximitor — against your monitor’s input specifications before installation.

Q2: How does KNMKS verify the condition of spare proximity probes before shipment?
Every 330102-00-50-10-01-05 unit undergoes functional output testing prior to dispatch. We verify gap voltage output, cable continuity, and connector integrity. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional performance.

Q3: What is the recommended spare parts stocking strategy for 3300 XL proximity probe systems?
For critical rotating machinery, we recommend maintaining a minimum of one probe per monitored shaft position as an on-site hot spare, with a secondary buffer of one probe per machine train held at the central maintenance store. Given OEM lead times for Bently Nevada components, a 12-month forward stock position is advisable for facilities with multiple 3300 XL-equipped machines. KNMKS supports long-term supply agreements to stabilize procurement costs and ensure availability.

Q4: Can the 330102-00-50-10-01-05 be used as a long-term replacement for discontinued or obsolete 3300 XL probe variants?
Yes. The 330102-00-50-10-01-05 is an active part number within the Bently Nevada 3300 XL 8mm system and serves as a compatible replacement for several earlier probe configurations within the same series. KNMKS maintains stock of this and related 3300 XL components to support facilities extending the operational life of legacy machinery protection systems. Contact our technical team to confirm cross-reference compatibility for your specific installation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-50-10-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-50-10-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
