Bently Nevada 330102-00-42-05-02-00 Migration-Ready Proximity Probe

Overview

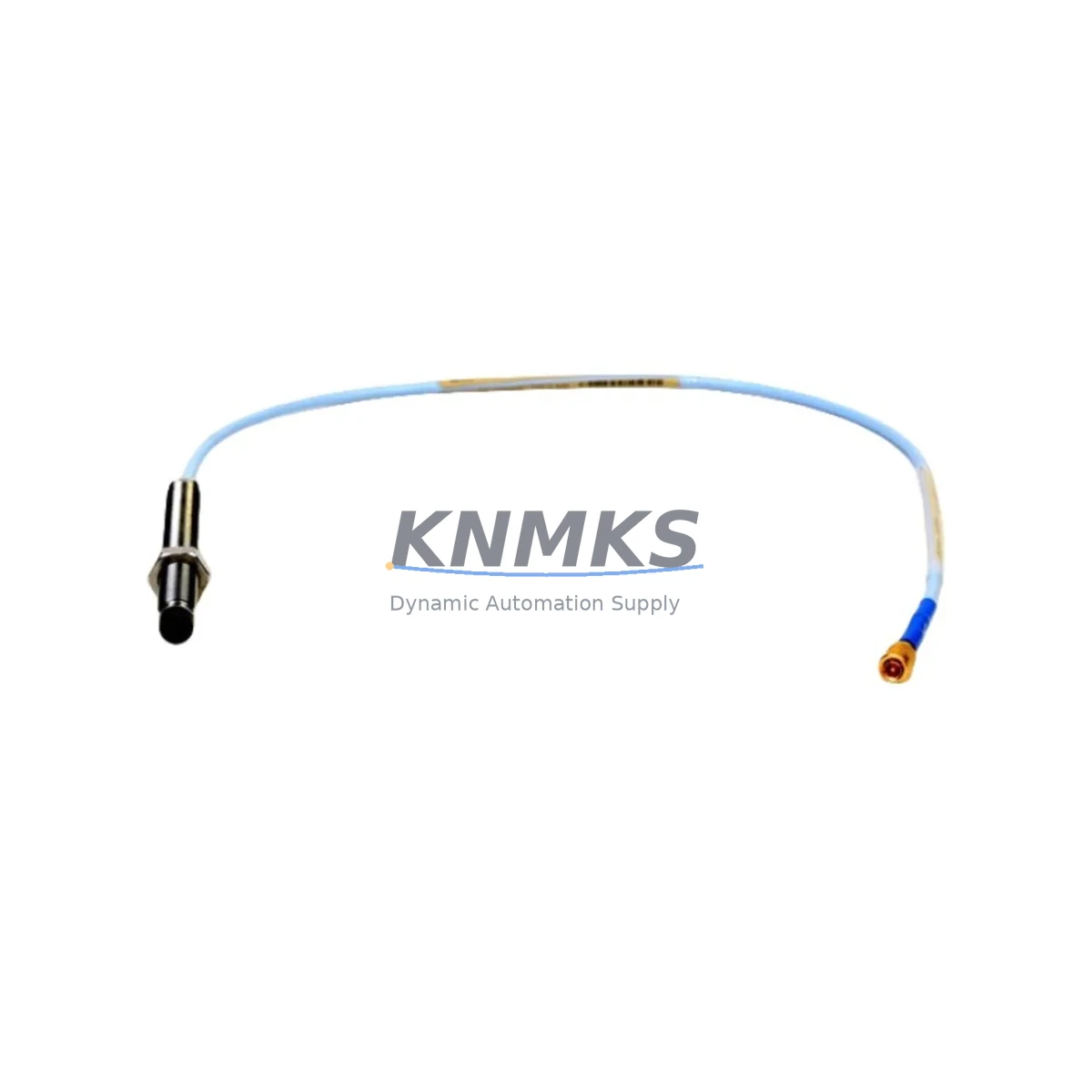

Bently Nevada 330102-00-42-05-02-00 Migration-Ready Proximity Probe for Legacy Vibration Monitoring Systems

The Bently Nevada 330102-00-42-05-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL series vibration monitoring platform. As legacy Bently Nevada 3300 series installations approach end-of-support milestones, maintenance engineers and reliability teams face increasing pressure to source verified replacement probes that maintain signal chain integrity without requiring full system overhauls. This unit is stocked, tested, and ready for immediate deployment as a drop-in retrofit replacement in existing 3300 XL rack configurations.

Whether you are managing a planned outage window, responding to an unplanned probe failure, or executing a phased migration from an older 3300 series installation to a current-generation monitoring architecture, the 330102-00-42-05-02-00 delivers the dimensional, electrical, and signal-output compatibility required to restore continuous machinery protection with minimal downtime exposure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful probe replacement within a live 3300 XL monitoring system requires careful coordination across several interdependent components. Before removing the failed probe, technicians should document the existing gap voltage reading from the 3300 XL Proximitor® Sensor output and record the vibration baseline trend from the connected monitor channel. This baseline serves as the acceptance criterion during post-installation commissioning.

The 330102-00-42-05-02-00 probe is designed to work within the complete 3300 XL transducer chain. The extension cable — typically a 330130 series unit — must be inspected for continuity and connector integrity before reuse. Total system cable length (probe cable plus extension cable) directly affects the driver gap voltage calibration curve; any change in cable length requires recalibration of the 330180 Proximitor® Sensor gap voltage setpoints. If the existing extension cable is damaged or its length has been modified, replacement with a matched 330130 series extension cable of the correct length is mandatory before proceeding.

At the monitor rack level, the 3300 XL monitor module — such as a 3300/16 or 3300/20 series vibration monitor card — receives the analog gap voltage signal from the Proximitor® Sensor. No reconfiguration of the monitor card is required for a like-for-like probe replacement, but technicians should verify that the OK/Not-OK relay thresholds and alert/danger setpoints remain appropriate for the machinery being monitored after re-gapping. If the installation is part of a broader migration from an older 3300 (non-XL) platform to the 3300 XL architecture, the monitor rack backplane and power supply module must also be confirmed as XL-compatible, since the 3300 XL system uses a different backplane pinout and power distribution scheme than the earlier 3300 series.

For installations where the control cabinet also houses a Bently Nevada 3500 series rack as part of a parallel or upgraded monitoring layer, the probe signal wiring must be clearly segregated to avoid cross-connection between the 3300 XL and 3500 series input channels. In mixed-platform cabinets, labeling and wiring documentation should be updated to reflect the probe replacement and any associated channel reassignments. Signal isolators or barriers may be required if the probe signal is also routed to a DCS analog input card for process historian integration.

Where the machinery protection system interfaces with a DCS or SCADA platform — for example, via a 4–20 mA output from the 3300 XL monitor to a DCS I/O module — the engineering team should confirm that the vibration channel scaling and engineering unit configuration in the DCS remain consistent with the re-gapped probe output. HMI faceplate displays showing vibration trend data should be reviewed after commissioning to confirm that the displayed values align with the physical measurement after probe replacement and re-calibration.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330102-00-42-05-02-00 probe should be bench-inspected for physical damage, connector integrity, and cable continuity. Having the replacement unit on-site and pre-verified eliminates the most common source of extended outage — discovering a defective replacement only after the original probe has been removed.

During the replacement, the original program logic in the connected safety or control system should not be modified. The 3300 XL monitor rack continues to execute its configured protection logic throughout the probe swap; the only expected system response is a transient OK/Not-OK relay state change as the probe is disconnected and reconnected. If the machinery protection system is interlocked with a PLC or safety controller, the maintenance team should coordinate a temporary bypass of the vibration trip channel through the appropriate management-of-change procedure before beginning work, and restore the interlock immediately after commissioning is complete.

Re-gapping the 330102-00-42-05-02-00 to the correct air gap — typically 1.0mm to 1.5mm depending on the shaft material and surface finish — is the most time-sensitive step in the replacement process. Using a calibrated gap voltage meter and referencing the Proximitor® Sensor output voltage against the probe system calibration curve ensures that the replacement probe is operating within its linear range before the machinery is returned to service. A post-installation vibration baseline run at no-load and full-load conditions confirms that the replacement probe is tracking shaft motion correctly and that no mechanical issues were introduced during the maintenance activity.

Stocking a verified spare 330102-00-42-05-02-00 unit on-site as part of a critical spare parts program is the most effective strategy for reducing mean time to repair on future probe failures. Given the long lead times associated with sourcing legacy Bently Nevada components through standard distribution channels, maintaining a local inventory buffer of one to two units per critical machine train significantly reduces the risk of extended production loss due to probe unavailability.

Retrofit Support FAQ

Q1: Is the 330102-00-42-05-02-00 a direct replacement for earlier 330102 series probes used in non-XL 3300 systems?
The 330102-00-42-05-02-00 is designed for the 3300 XL transducer system. If your existing installation uses an older 3300 (non-XL) Proximitor® Sensor, compatibility must be verified against the driver input specification before installation. In many cases, a full transducer system upgrade — including the Proximitor® Sensor — is required when migrating from the non-XL to the XL platform.

Q2: What commissioning steps are required after installing the replacement probe?
After physical installation, re-gap the probe to the manufacturer-specified air gap for your shaft diameter and material. Verify the Proximitor® Sensor output gap voltage against the calibration curve. Confirm OK relay status on the 3300 XL monitor channel. Run a vibration baseline at operating speed and compare against pre-failure trend data. Document all readings in the maintenance record before returning the machine to service.

Q3: Does the replacement probe require any changes to the connected DCS or HMI configuration?
A like-for-like probe replacement with correct re-gapping should not require changes to DCS scaling, HMI displays, or historian tag configurations, provided the Proximitor® Sensor output voltage is restored to its pre-failure calibration state. If the gap voltage setpoints were adjusted during the replacement, verify that the 4–20 mA output scaling from the monitor to the DCS I/O card still reflects the correct vibration engineering units.

Q4: What does the support terms confirmed by quotation cover, and how is the unit tested before shipment?
Each 330102-00-42-05-02-00 unit is functionally tested prior to shipment to verify electrical continuity, connector integrity, and probe body condition. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units showing physical damage resulting from improper installation, incorrect gapping, or operation outside the specified environmental range are not covered under support terms. Contact our sales team for support terms claim procedures and return authorization.
