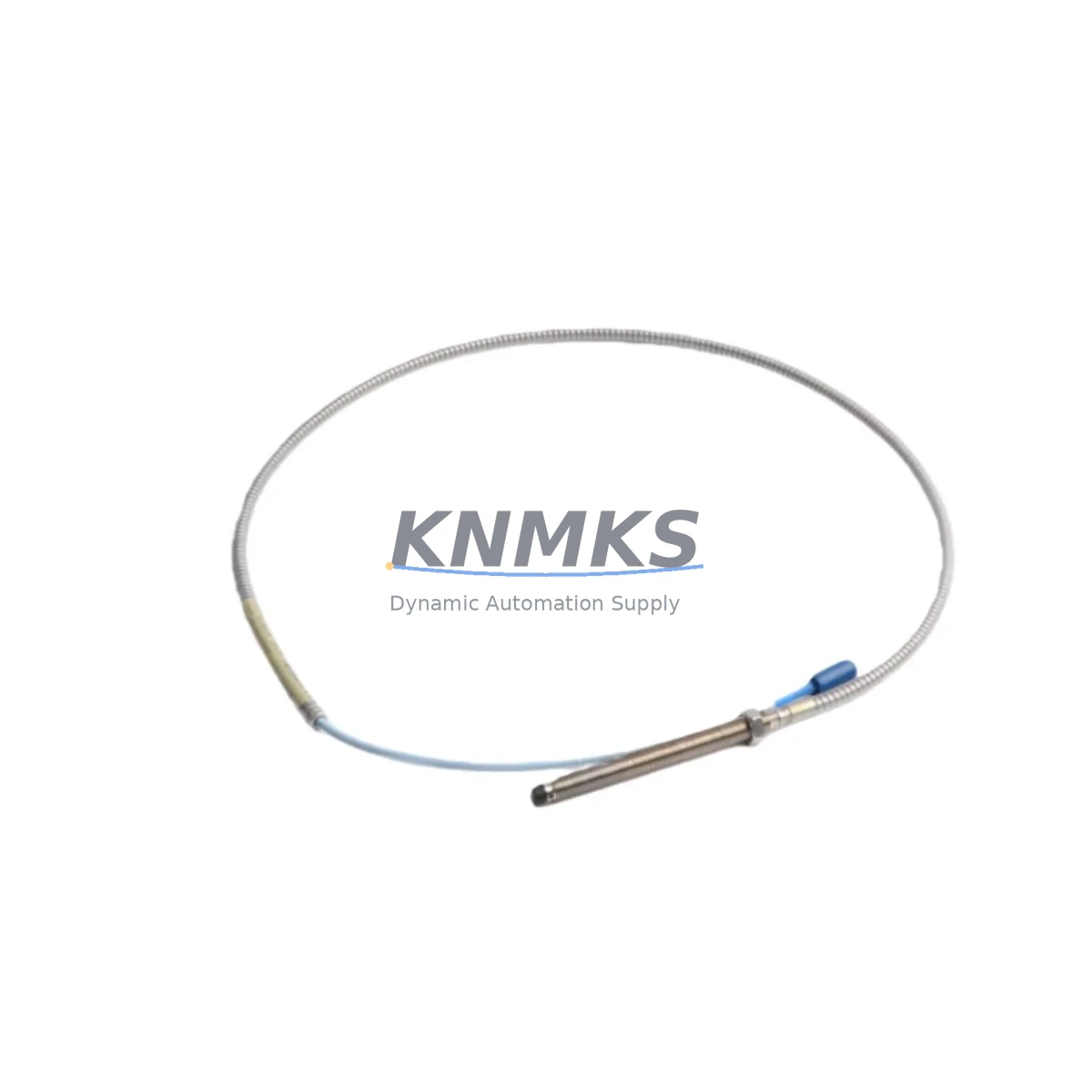

Bently Nevada 330102-00-40-10-11-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-40-10-11-05 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330102-00-40-10-11-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to deliver fail-safe, uninterrupted position and vibration measurement in the most demanding industrial environments, this probe is a critical component in rotating machinery protection systems across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities. Its robust construction and precision signal output make it the preferred choice for engineers who cannot afford control interruptions, signal drift, or unplanned downtime.

In critical industrial applications — where a single measurement failure can cascade into a full plant shutdown or a safety interlock trip — the 330102-00-40-10-11-05 provides the measurement integrity that protection systems demand. Its eddy-current sensing principle operates without physical contact, eliminating mechanical wear and ensuring long-term signal stability even under continuous high-speed shaft rotation. The probe is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions the raw probe signal into a calibrated DC voltage output for direct interface with the 3500 Series Machinery Protection System rack — a platform widely deployed in turbine, compressor, and pump protection loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330102-00-40-10-11-05 probe does not operate in isolation. It functions as the field-sensing element within a tightly integrated measurement chain. The probe connects via a Bently Nevada TK-3 Extension Cable (3300 XL series, matched length) to the 3300 XL Proximitor® Sensor (330180 series), which is typically DIN-rail or panel-mounted inside the control cabinet. The Proximitor converts the probe’s oscillator signal into a buffered, calibrated voltage that feeds directly into the Bently Nevada 3500/40M Proximitor Monitor module within the 3500 rack.

For power supply integrity — a frequent source of measurement error in high-noise industrial environments — the 3500 rack relies on a stable, isolated DC supply. Engineers often pair the monitoring rack with a Bently Nevada 3500/15 Power Supply Module to ensure clean, regulated power free from switching transients and ground loops that could induce false vibration readings or nuisance trips. In facilities with high electromagnetic interference from variable frequency drives (VFDs), arc furnaces, or large motor starters, additional shielding and proper cable routing practices are essential to preserve the probe’s signal integrity.

Where the protection system interfaces with a plant DCS or safety PLC, the 3500 rack’s System 1 Evolution software or a dedicated Bently Nevada 3500/92 Communication Gateway provides Modbus or Ethernet/IP connectivity, enabling real-time vibration data to be integrated into the plant-wide safety instrumented system (SIS). This architecture ensures that a bearing wear event or shaft displacement anomaly detected by the 330102-00-40-10-11-05 probe is immediately communicated to the control room, triggering the appropriate alarm or shutdown response before catastrophic failure occurs.

Critical Industrial Safety Applications

The Bently Nevada 330102-00-40-10-11-05 is deployed across a wide range of critical industrial sectors where rotating machinery reliability is non-negotiable:

Petrochemical & Refining: Installed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors. In these applications, an undetected bearing failure or shaft rub can result in process fluid release, fire, or explosion. The probe’s continuous, non-contact measurement provides the early warning necessary to initiate a controlled shutdown before a safety event occurs.

Power Generation: Used on steam turbine shaft monitoring systems at coal, gas, and nuclear power plants. Turbine shaft displacement monitoring is a mandatory requirement under IEC 61511 and API 670 standards. The 330102-00-40-10-11-05, when integrated into a 3500 Series protection system, supports compliance with these critical safety standards.

Mining & Mineral Processing: Applied to large ball mill drives, SAG mill pinion bearings, and slurry pump shafts. Mining environments present extreme challenges — high dust loading, moisture ingress, and severe mechanical vibration. The probe’s sealed construction and eddy-current principle ensure reliable operation where optical or contact-based sensors would fail.

Water & Wastewater Treatment: Monitors high-speed centrifugal pumps and blower shafts in water treatment facilities. Pump failure in a water treatment plant can disrupt municipal supply or cause environmental discharge violations. Continuous vibration monitoring with the 330102-00-40-10-11-05 enables predictive maintenance scheduling, eliminating unplanned outages.

Metallurgy & Steel Production: Deployed on rolling mill drive shafts, continuous caster pinch rolls, and blast furnace blower trains. The high-temperature capability of the probe tip (up to 177°C) makes it suitable for installation near hot process equipment where standard sensors cannot survive.

Port & Marine Applications: Used on ship propulsion shaft monitoring systems and port crane hoist motor bearings. Marine environments combine high humidity, salt spray, and vibration — conditions that the 330102-00-40-10-11-05 is specifically designed to withstand.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-40-10-11-05?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, signal output accuracy, and cable integrity. In the event of a support terms claim, replacement units are dispatched with priority to minimize any impact on your machinery protection system availability.

Q2: What pre-shipment testing is performed on each probe?
Every 330102-00-40-10-11-05 unit undergoes functional verification prior to shipment, including oscillator frequency check, output voltage linearity test across the full measurement range, and cable continuity and insulation resistance testing. A test report is available upon request for critical installation documentation requirements.

Q3: Is this probe compatible with existing 3300 XL Proximitor sensors and 3500 Series racks?
Yes. The 330102-00-40-10-11-05 is a direct OEM-equivalent replacement for the Bently Nevada 3300 XL probe series. It is fully compatible with all 3300 XL Proximitor® Sensor models (330180 series) and integrates seamlessly with the 3500 Series Machinery Protection System rack without requiring recalibration of the Proximitor or monitor module, provided the extension cable length is matched correctly.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We support long-term supply agreements for critical spare parts programs, including scheduled stock reservations, consignment inventory arrangements, and priority dispatch for emergency replacement requirements. Contact our technical sales team to discuss a supply commitment tailored to your plant’s maintenance strategy and shutdown schedule.
