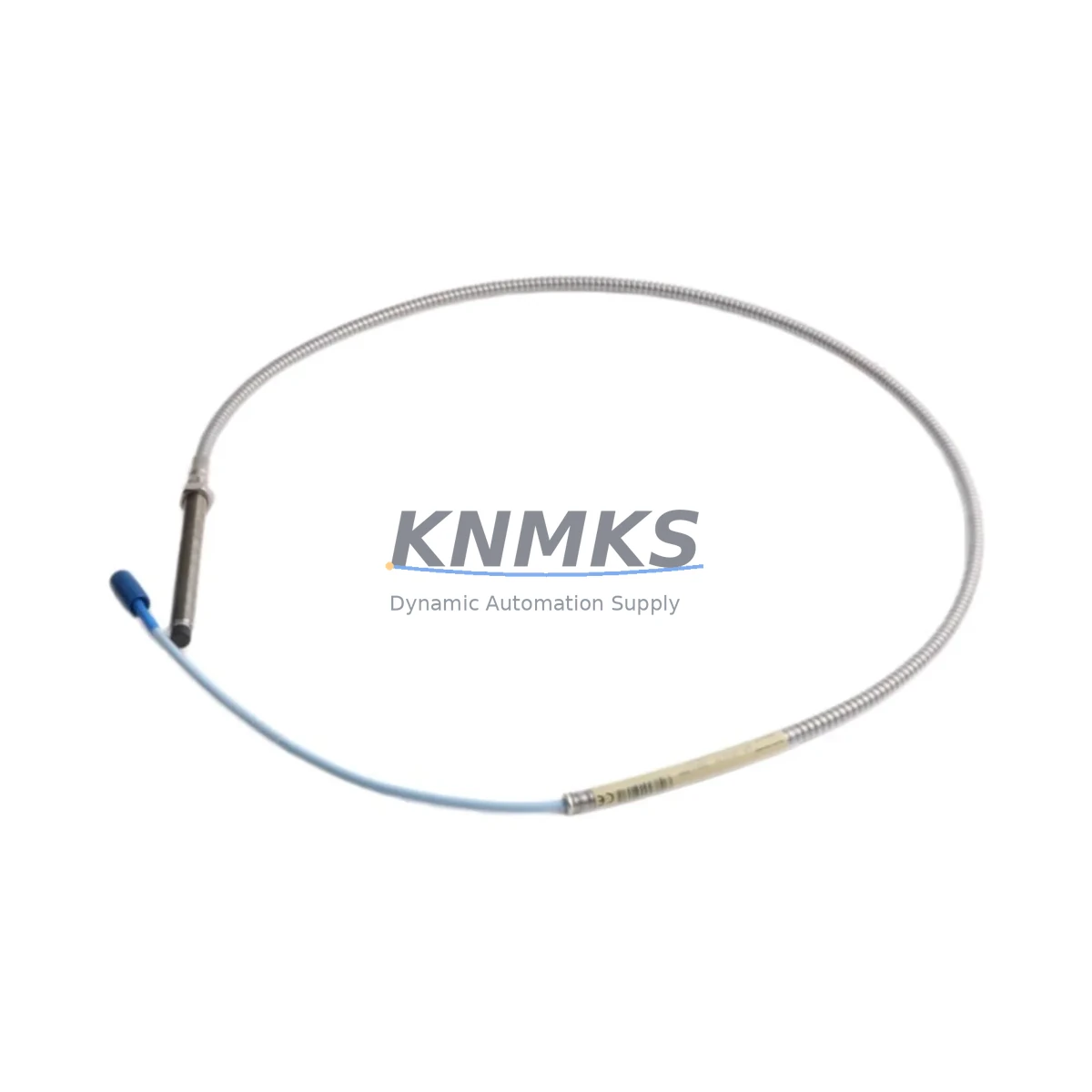

Bently Nevada 330102-00-40-10-02-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330102-00-40-10-02-05 is an 8mm eddy current proximity probe from the renowned 3300 XL Series, engineered specifically for fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across continuous production lines, critical interlock circuits, and high-load control cabinets, this proximity probe is a cornerstone component for any facility where unplanned downtime carries severe operational and safety consequences.

In rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the 330102-00-40-10-02-05 provides real-time radial shaft vibration measurement with exceptional linearity and repeatability. Its eddy current sensing principle operates without physical contact, eliminating mechanical wear and ensuring long-term measurement stability even under sustained high-speed shaft rotation. This non-contact design is fundamental to fail-safe operation: the probe continues to deliver accurate displacement data regardless of shaft surface condition, lubrication state, or thermal expansion.

Signal drift is one of the most insidious threats to control loop integrity in industrial automation. The 330102-00-40-10-02-05 addresses this through its tightly controlled sensitivity specification of 7.87 V/mm (200 mV/mil), maintained across its full operating temperature range. When paired with the Bently Nevada 3300 XL Extension Cable and a compatible 3300 XL Proximitor Sensor (such as the 330180 series), the complete measurement chain delivers a calibrated, temperature-compensated output that feeds directly into safety-rated vibration monitors and PLC analog input modules without requiring field recalibration under normal service conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330102-00-40-10-02-05 does not operate in isolation. Its signal output feeds into a Bently Nevada 3500/42M Proximitor / Seismic Monitor or equivalent rack-mounted monitor, which processes the raw proximity voltage into trip and alarm relay outputs. These relay outputs connect directly to the facility’s safety PLC — often a Rockwell Automation GuardLogix or Siemens S7-300F safety controller — where they are evaluated against configured vibration trip setpoints within the safety instrumented function (SIF).

Power supply stability is equally critical. The Proximitor sensor powering the 330102-00-40-10-02-05 requires a regulated -24 VDC supply. In high-reliability installations, this is sourced from a redundant Phoenix Contact QUINT-PS or Siemens SITOP series DIN-rail power supply with integrated surge protection and diagnostic output. Upstream of the power supply, a Belden or Lapp Group shielded instrumentation cable run in a dedicated cable tray — separated from power conductors — ensures that the coaxial signal path from probe to Proximitor remains free from capacitive and inductive interference generated by variable frequency drives (VFDs), motor starters, and high-current bus bars sharing the same control room infrastructure.

For installations in environments with elevated surge risk — such as outdoor substations, petrochemical plants with frequent lightning exposure, or facilities with large motor switching loads — a Phoenix Contact TRABTECH surge protection device installed at the cabinet entry point provides an additional layer of transient voltage suppression, protecting both the Proximitor electronics and the analog input cards of the safety PLC from surge-induced damage that could cause spurious trips or, more dangerously, masked faults.

Cabinet thermal management also directly affects probe system reliability. Excessive ambient temperature inside the control enclosure accelerates insulation degradation on signal cables and can shift the operating point of Proximitor electronics. Specifying a Rittal TopTherm cabinet cooler or equivalent forced-air cooling unit, sized to maintain internal cabinet temperature below 45°C, preserves the calibration integrity of the entire 3300 XL measurement chain over its service life.

Critical Industrial Safety Applications

The 330102-00-40-10-02-05 is deployed across a broad spectrum of critical industrial sectors where rotating machinery failure carries catastrophic consequences:

Petrochemical and Refining: In hydrocarbon processing plants, this probe monitors the radial vibration of centrifugal compressors and reactor feed pumps. An undetected bearing failure or rotor imbalance in these machines can result in seal failure, process fluid release, and fire or explosion hazard. The fail-safe measurement provided by the 330102-00-40-10-02-05, integrated into an API 670-compliant protection system, enables automatic machine trip before mechanical damage propagates to a catastrophic level.

Power Generation: Steam turbine-generators in thermal power plants rely on proximity probe arrays to monitor shaft eccentricity, differential expansion, and radial vibration simultaneously. The 3300 XL probe’s wide operating temperature range makes it suitable for installation close to turbine bearing housings where ambient temperatures routinely exceed 100°C.

Mining and Mineral Processing: Large ball mills, SAG mills, and slurry pumps in mining operations operate in environments characterized by extreme vibration, heavy dust loading, and intermittent water ingress. The IP67 rating of the 330102-00-40-10-02-05 ensures continued measurement integrity even when the probe body is exposed to wash-down water or process slurry splash.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt municipal water supply. The non-contact eddy current principle eliminates the risk of probe contamination affecting measurement accuracy in humid, chemically aggressive pump environments.

Metallurgy and Steel Production: Rolling mill drives, continuous casting machine drives, and large induction furnace cooling pumps operate under severe electromagnetic interference from high-current bus systems and induction heating equipment. The coaxial shielded construction of the 330102-00-40-10-02-05 and its extension cable provides robust rejection of this interference, maintaining clean signal transmission to the monitoring system.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane hoist drives benefit from the probe’s resistance to vibration and its ability to operate reliably in salt-air environments when properly installed with appropriate cable sealing.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-40-10-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch to minimize field downtime.

Q2: How is each unit tested before shipment?
Every 330102-00-40-10-02-05 undergoes a full pre-shipment functional test including sensitivity verification at the rated 7.87 V/mm output, cable continuity and insulation resistance check, and connector integrity inspection. Test records are available upon request for quality-critical installations.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL system installations?
Yes. The 330102-00-40-10-02-05 is fully interchangeable within the Bently Nevada 3300 XL system architecture. It is compatible with all 3300 XL Proximitor sensors, extension cables, and rack-mounted monitors without requiring system reconfiguration, provided the target material and gap setting are consistent with the original installation specification.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
KNMKS maintains dedicated inventory of the 330102-00-40-10-02-05 and related 3300 XL series components to support planned maintenance schedules, emergency spare requirements, and multi-unit procurement for new installations. Customers with ongoing maintenance contracts are encouraged to contact our team to establish a reserved stock arrangement that ensures availability without lead-time risk.
