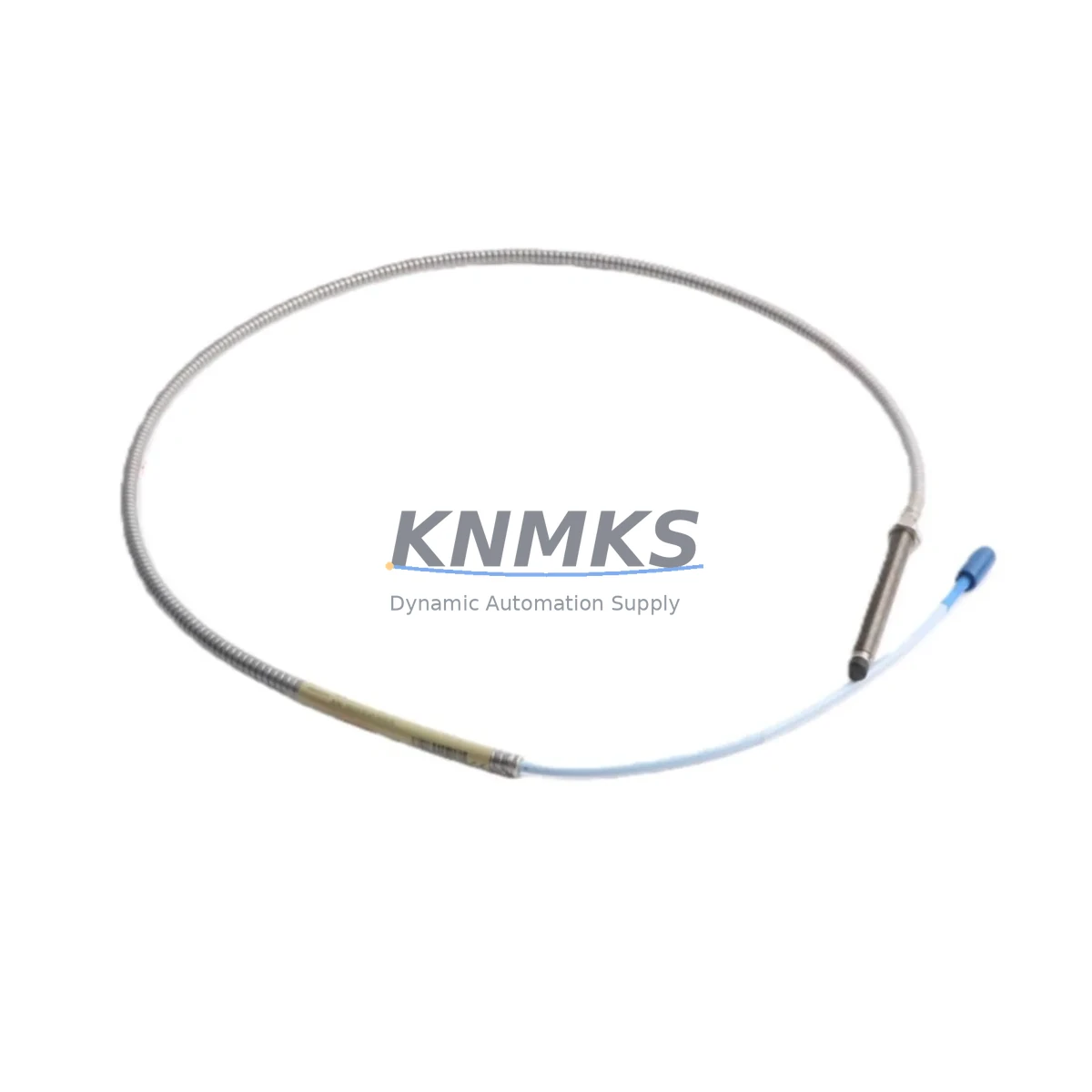

Bently Nevada 330102-00-40-10-01-00 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330102-00-40-10-01-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s 3300 XL monitoring system architecture, this probe delivers high-accuracy, non-contact measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for rotating machinery protection in petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In critical interlock loops and safety instrumented systems (SIS), signal integrity is non-negotiable. The 330102-00-40-10-01-00 is built with a hardened coaxial cable assembly and precision-wound sensing coil that maintains stable output even under high electromagnetic interference (EMI), strong magnetic fields, and ground loop conditions common in heavy industrial switchgear rooms and motor control centers. Its robust stainless steel housing resists corrosion, mechanical vibration, and thermal cycling, ensuring reliable performance in environments with ambient temperatures ranging from -35°C to +120°C and IP67-rated ingress protection against dust and moisture ingress.

When integrated with the Bently Nevada 3300 XL proximitor/seismic transducer (such as the 330180-X1-05 proximitor) and the 3500 Series machinery protection system rack, this probe forms a complete, certified vibration monitoring chain. The system supports API 670 machinery protection standards, providing the redundancy and diagnostic coverage required for turbine, compressor, pump, and fan protection in safety-critical applications. Paired with the Bently Nevada 3300 XL extension cable (330130-045-00-00) and the appropriate proximitor, the probe delivers a calibrated output of -18 VDC at the gap center, with a linear range of 0.25 mm to 2.25 mm — ensuring precise, repeatable measurement across the full operating life of the machine.

For control cabinet integrators and reliability engineers, the 330102-00-40-10-01-00 is a direct, drop-in replacement for legacy 3300 XL probe assemblies. Its standardized 8mm tip diameter and M10 x 1 thread mounting ensure mechanical compatibility with existing probe holders and armored conduit fittings. The probe’s low-noise signal output minimizes false trips and nuisance alarms in DCS and PLC-based control systems, reducing unplanned shutdowns and protecting production continuity. When used alongside Bently Nevada 3500/42M proximity I/O modules and 3500/22M transient data interface cards, the system provides full API 670 channel redundancy and online diagnostics without interrupting machine operation.

In high-vibration, high-temperature environments such as steam turbine bearing housings, gas compressor trains, and boiler feed pump assemblies, the 330102-00-40-10-01-00 maintains measurement accuracy within ±0.5% of full scale, even when subjected to shaft runout, electrical runout, and thermally induced shaft growth. Its armored cable jacket provides mechanical protection against abrasion and crush loads in congested cable trays, while the integral connector boot seals against oil mist, process vapors, and cleaning solvents. This level of environmental robustness directly reduces the risk of sensor-induced false trips, control loop interruptions, and undetected machinery faults that can escalate to catastrophic failure in continuous process plants.

Every 330102-00-40-10-01-00 unit supplied by KNMKS undergoes pre-shipment functional verification, including gap voltage linearity check, insulation resistance test, and cable continuity verification, ensuring the probe arrives ready for immediate installation and commissioning. Stock is maintained for rapid dispatch, supporting planned maintenance outages, emergency replacements, and long-term spare parts programs for rotating machinery fleets. A support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level. The 330102-00-40-10-01-00 proximity probe anchors the vibration monitoring chain in the control cabinet, feeding calibrated shaft displacement signals to the Bently Nevada 3500/42M proximity I/O module. Within the 3500 rack, the 3500/20 rack interface module manages power distribution and communication, while the 3500/22M transient data interface captures high-resolution waveform data for machinery diagnostics and event recording. For plants operating redundant safety loops, the probe signal is typically routed through a Bently Nevada 3500/32 4-channel relay module, which executes automatic trip and alarm actions based on configurable danger and alert setpoints — eliminating reliance on manual operator intervention during surge or overload events.

In the power supply section of the machinery protection cabinet, a dedicated 24 VDC or 28 VDC instrument power supply with surge protection and voltage regulation ensures the proximitor receives stable excitation voltage, preventing measurement drift caused by supply fluctuations common in facilities with large variable-frequency drives or arc furnace loads. Supplementary EMI filtering on the signal cable entry points further reduces noise coupling from adjacent power cables, protecting the integrity of the −18 VDC proximity output signal. For installations in classified hazardous areas (Zone 1 or Zone 2), the probe assembly is used in conjunction with Bently Nevada-approved intrinsic safety barriers or galvanic isolators, maintaining the safety integrity level (SIL) of the overall protection loop.

Critical Industrial Safety Applications

The Bently Nevada 330102-00-40-10-01-00 is deployed across a wide range of critical industrial applications where continuous, uninterrupted machinery monitoring is essential to process safety and production reliability. In petrochemical and refinery facilities, it monitors centrifugal compressor and steam turbine shaft vibration in API 670-compliant protection systems, providing early warning of rotor imbalance, bearing wear, and surge events that could escalate to catastrophic mechanical failure or process release. In power generation plants — including coal-fired, gas turbine, and combined-cycle units — the probe monitors boiler feed pump, induced draft fan, and generator bearing vibration, supporting predictive maintenance programs that reduce forced outage rates and extend equipment life.

In mining and mineral processing operations, where high dust loading, moisture, and mechanical shock are constant challenges, the IP67-rated stainless steel housing of the 330102-00-40-10-01-00 ensures reliable operation on crusher drives, ball mill pinion bearings, and slurry pump assemblies. Water treatment and desalination plants rely on this probe for continuous monitoring of high-speed centrifugal pump and blower shaft vibration, where undetected bearing failure can result in process interruption and environmental non-compliance. In metallurgical and steel mill environments, the probe’s high-temperature tolerance and EMI resistance make it suitable for monitoring rolling mill drive train components and continuous casting machine drives, where electromagnetic noise from large DC drives and induction furnaces would compromise less robust sensors.

Safety and Quality FAQ

Q: What support terms coverage is provided for the 330102-00-40-10-01-00?
A: Every unit is covered by a support terms confirmed by quotation against manufacturing defects and deviations from published performance specifications. Support requests are supported with replacement dispatch and technical documentation to minimize machinery downtime.

Q: What pre-shipment testing is performed on each probe?
A: Each 330102-00-40-10-01-00 undergoes gap voltage linearity verification across the full measurement range, insulation resistance testing of the cable assembly, and end-to-end cable continuity check before dispatch. Test records are available upon request for quality-critical installations.

Q: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
A: Yes. The 330102-00-40-10-01-00 is a direct replacement for 3300 XL 8mm probe assemblies. It is mechanically and electrically compatible with all 3300 XL proximitors (330180 Series) and the full range of Bently Nevada 3500 Series proximity I/O modules, requiring no recalibration of the monitoring system when replacing a like-for-like unit.

Q: Can long-term supply and spare parts support be arranged?
A: KNMKS maintains stock of the 330102-00-40-10-01-00 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and long-term spare parts agreements. Contact our team to discuss inventory reservation, lead time commitments, and multi-unit procurement for rotating machinery fleets.
