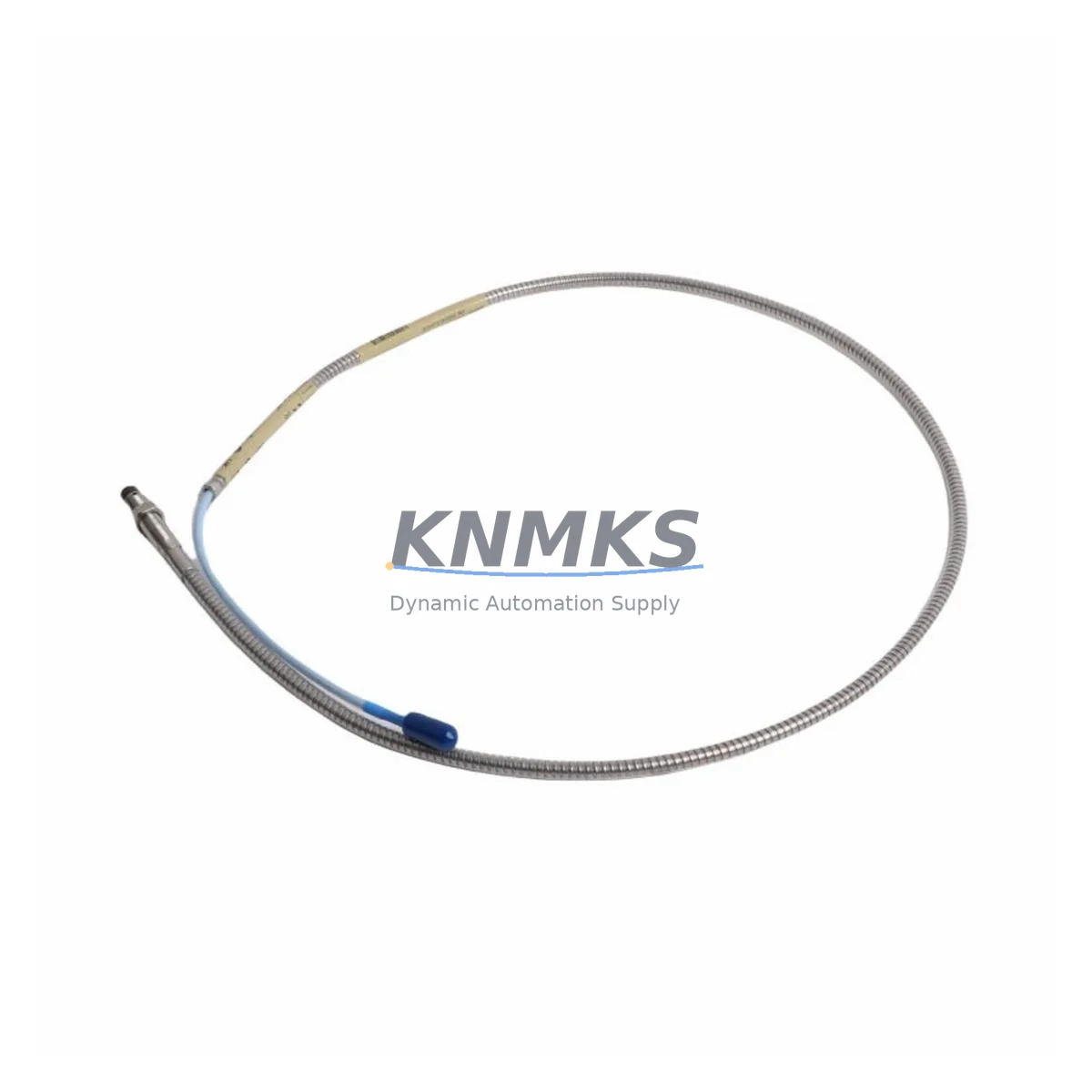

Bently Nevada 330102-00-40-05-02-CN Fail-Safe Proximity Transducer

Overview

Bently Nevada 330102-00-40-05-02-CN Fail-Safe Proximity Transducer: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330102-00-40-05-02-CN is an 8mm proximity transducer from the industry-proven 3300 XL Series, engineered to deliver fail-safe vibration and position monitoring in the most demanding industrial environments. Designed for continuous operation in critical machinery protection systems, this transducer provides the signal integrity and fault-detection capability that rotating equipment monitoring demands — from petrochemical compressors to power generation turbines.

In high-stakes industrial facilities, a single point of signal failure in a vibration monitoring loop can cascade into unplanned shutdowns, equipment damage, or safety incidents. The 330102-00-40-05-02-CN addresses this risk through its eddy-current sensing principle, which operates without physical contact, eliminating mechanical wear and ensuring long-term measurement stability even under continuous shaft rotation at high speeds. Its non-contacting design makes it inherently resistant to the mechanical fatigue that plagues conventional sensing technologies in heavy-duty rotating machinery applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-00-40-05-02-CN proximity transducer does not operate in isolation — its reliability is inseparable from the integrity of the complete monitoring chain within the control cabinet. In a properly configured machinery protection system, this probe works in conjunction with the Bently Nevada 330130-040-00-00 extension cable, which maintains signal fidelity across the distance between the probe tip and the proximitor driver. Signal degradation along this cable path — caused by connector corrosion, mechanical stress, or electromagnetic coupling — is one of the most common sources of false trips and missed alarms in rotating equipment protection systems.

The proximitor driver, typically the Bently Nevada 330180-X1-05 or equivalent 3300 XL series driver, converts the raw oscillator signal into a calibrated DC voltage proportional to the gap between the probe tip and the rotating shaft. This driver must be mounted in a clean, thermally stable section of the control cabinet, away from high-current contactors and variable frequency drives that generate significant electromagnetic interference. In cabinets housing both the monitoring system and power control equipment, the use of shielded cable trays and proper grounding of the Bently Nevada 3500/22M Transient Data Interface module is essential to prevent ground loops that corrupt vibration waveform data.

For facilities operating Bently Nevada 3500 Series rack-based monitoring systems, the 330102-00-40-05-02-CN integrates directly with the 3500/40M Proximitor Monitor module, enabling continuous OK/Not OK status monitoring, alarm setpoint management, and relay output for automatic machinery trip. In safety-instrumented systems (SIS) where the vibration monitor output feeds into a Triconex TRICON or similar safety PLC, proper signal isolation between the monitoring rack and the SIS input card is critical to prevent common-cause failures. Surge protection devices installed at the cabinet entry point protect the entire monitoring chain from transient overvoltages caused by nearby lightning strikes or large motor switching events.

Power supply stability is equally critical. The 3300 XL proximitor requires a stable -24 VDC supply, and fluctuations caused by shared power rails with high-inrush loads can introduce measurement offsets. Dedicated power conditioning modules or isolated DC/DC converters within the cabinet ensure that the proximitor driver maintains its calibrated output even during plant-wide power disturbances.

Critical Industrial Safety Applications

The 330102-00-40-05-02-CN proximity transducer is deployed across the full spectrum of critical rotating machinery in heavy industry. In petrochemical and refinery facilities, it monitors the radial vibration of centrifugal compressors and pumps handling hydrocarbons under high pressure, where an undetected bearing failure or rotor imbalance can result in catastrophic seal failure and fire risk. The transducer’s ability to operate continuously at elevated temperatures — up to 177°C — makes it suitable for hot-section monitoring near process heat exchangers and fired heaters.

In power generation plants, both thermal and combined-cycle, the 330102-00-40-05-02-CN is used for shaft eccentricity and differential expansion monitoring on steam turbines and gas turbines. These measurements are part of the turbine protection system’s first line of defense against rotor-stator rub events, which can cause catastrophic blade damage within seconds of onset. The transducer’s fast frequency response — DC to 10,000 Hz — ensures that high-frequency vibration signatures associated with early-stage bearing defects are captured before they escalate.

In mining and mineral processing operations, where large ball mills, SAG mills, and crusher drives operate in environments saturated with dust, moisture, and mechanical shock, the non-contacting eddy-current principle of the 330102-00-40-05-02-CN provides a significant reliability advantage over contact-type sensors that are vulnerable to contamination and mechanical wear. The transducer’s robust coaxial cable construction resists the abrasion and chemical exposure common in mineral processing environments.

Water and wastewater treatment facilities rely on this transducer for monitoring large vertical turbine pumps and blower trains, where vibration anomalies often indicate impeller wear, cavitation, or bearing degradation. Early detection through continuous proximity monitoring allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures that disrupt treatment capacity.

In metallurgical and steel production facilities, the transducer monitors rolling mill drive trains and continuous casting machine drives, where the combination of high load, thermal cycling, and electromagnetic interference from large DC drives creates one of the most challenging environments for instrumentation reliability. The 330102-00-40-05-02-CN’s shielded construction and proven 3300 XL system architecture provide the measurement stability required for effective condition monitoring in these environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-40-05-02-CN?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm sensitivity, linearity, and connector integrity before dispatch. Support requests are supported with direct technical assistance and replacement unit coordination.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-00-40-05-02-CN unit is subject to outgoing quality inspection prior to shipment. Testing includes verification of the probe tip condition, coaxial cable continuity and shielding integrity, connector pin condition, and dimensional checks on the mounting thread. Units that do not meet Bently Nevada’s published specification tolerances are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is this transducer compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330102-00-40-05-02-CN is designed for use within the Bently Nevada 3300 XL transducer system and is fully compatible with the 3500 Series rack-based monitoring platform when used with the appropriate 3300 XL extension cable and proximitor driver. The -CN suffix designates the connector type and cable configuration for this variant. Always verify the complete system configuration — probe, extension cable, and proximitor — to ensure matched sensitivity and gap voltage calibration before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated inventory of the 330102-00-40-05-02-CN and related 3300 XL series components to support planned maintenance, turnaround projects, and emergency replacement requirements. For facilities with multi-year maintenance contracts or large installed bases of Bently Nevada monitoring systems, standing supply agreements and consignment stock arrangements are available. Contact our technical sales team to discuss inventory reservation and priority dispatch options for your facility’s specific requirements.
