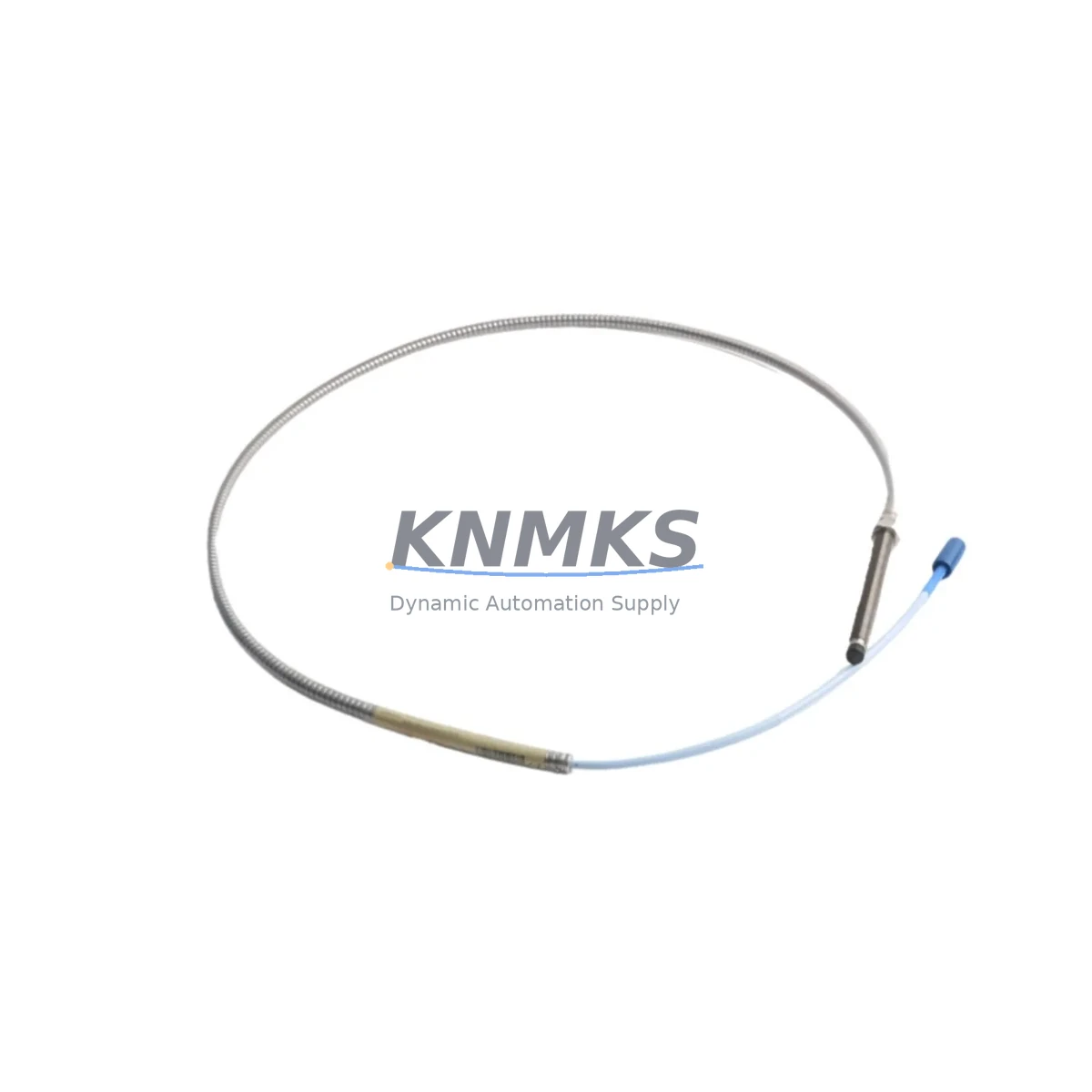

Bently Nevada 330102-00-40-05-02-00 Spare Part

Overview

Bently Nevada 330102-00-40-05-02-00 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330102-00-40-05-02-00 is an original eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for permanent installation in rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this probe delivers reliable shaft displacement and vibration measurements that are critical to predictive maintenance programs and unplanned downtime prevention. Maintenance engineers and reliability teams worldwide rely on the 330102-00-40-05-02-00 as a front-line spare to ensure continuous operation of critical rotating assets.

Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts inventory for your control room, the 330102-00-40-05-02-00 is a direct OEM-equivalent replacement that requires no recalibration of the monitoring system when installed correctly. Its 40 mm probe length, 5 mm tip diameter, and standard 02-00 cable configuration make it compatible with the full range of 3300 XL proximitor/seismic monitors and associated junction boxes used in process industries globally.

At KNMKS, every unit is sourced from verified supply channels, individually inspected, and dispatch-tested before shipment. We maintain long-term stock to support both emergency procurement and scheduled maintenance cycles, backed by a support terms confirmed by quotation on all spare parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-40-05-02-00 in the field, a thorough inspection of the surrounding measurement chain is essential to avoid repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the 3300 XL Proximitor module (typically the 330180 or 330130 series), which conditions the probe signal and converts it to a DC voltage proportional to gap distance. A faulty proximitor will produce erratic readings even with a new probe installed.

Next, inspect the extension cable assembly — commonly the 330130-045-00-00 or equivalent armored cable — for insulation damage, connector corrosion, or mechanical stress at the conduit entry points. The probe, extension cable, and proximitor must be used as a matched system; mixing components from different sensitivity ranges will introduce calibration errors that can trigger false alarms or mask real vibration events.

At the monitor rack level, confirm that the 3300 XL rack power supply is delivering stable –24 VDC to all proximitor slots. Power supply degradation is a common root cause of intermittent probe faults that are misdiagnosed as probe failures. If the control cabinet houses a 3500 Series rack alongside the 3300 XL system, verify that the backplane communication modules and I/O terminal blocks are seated correctly and free of oxidation.

For plants running integrated vibration and process monitoring, also check the 3300 XL I/O module and any associated signal isolators or barriers in the intrinsically safe circuit — particularly in hazardous area installations where Zener barriers or galvanic isolators protect the field wiring. Fuse ratings on the power distribution board should be verified against the system’s original design documentation. Finally, if the machine train includes a Keyphasor module (such as the 3300 XL Keyphasor), confirm that the once-per-revolution reference signal is clean and properly phased, as this directly affects vibration vector calculations derived from the proximity probe data.

Site Replacement Workflow

Replacing the 330102-00-40-05-02-00 on-site follows a structured sequence to minimize downtime and maintain system compatibility. Begin with a controlled shutdown of the affected monitoring channel at the 3300 XL monitor, documenting the current gap voltage and vibration baseline before disconnecting the probe. Remove the probe from the bearing housing using the appropriate spanner, taking care not to damage the probe tip or the target shaft surface.

Install the new 330102-00-40-05-02-00 and set the air gap to the manufacturer-specified value (typically 1.0 mm for a –10 VDC output at mid-range). Reconnect the extension cable and verify continuity and insulation resistance before re-energizing the proximitor. Power up the monitoring channel and confirm that the gap voltage falls within the linear range specified in the 3300 XL system documentation. Compare the new baseline vibration readings against historical trend data to validate correct installation.

This workflow is equally applicable when upgrading from older 330100 series probes to the 330102 platform, as the mechanical and electrical interfaces are backward-compatible within the 3300 XL ecosystem. Proper documentation of the replacement — including the new probe serial number, installation date, and gap setting — supports long-term reliability tracking and simplifies future maintenance planning.

Spare Parts Support FAQ

Q1: Is the 330102-00-40-05-02-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
The 330102-00-40-05-02-00 is natively designed for the 3300 XL Proximity Transducer System. It can be used with the 3500 Series in certain configurations with appropriate adapter hardware and system verification. Always confirm the target system’s input specifications before installation.

Q2: How do you verify the probe is functioning correctly before installation?
Every unit shipped by KNMKS undergoes pre-dispatch electrical testing, including tip impedance verification and cable continuity checks. On-site, use a calibrated gap simulator or the proximitor’s built-in diagnostics to confirm the probe output voltage is within the specified linear range before the machine is returned to service.

Q3: What is your lead time and can you support emergency procurement?
KNMKS maintains standing inventory of the 330102-00-40-05-02-00 to support both planned maintenance schedules and emergency shutdowns. Standard lead time is 2–5 business days for international shipments. Emergency orders can be expedited — contact our team directly for urgent requirements.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and electrical performance failures under normal operating conditions as specified by Bently Nevada. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the rated environmental parameters. KNMKS provides full after-sales support for the confirmed support period, including replacement dispatch if a defect is confirmed.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-40-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-40-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
