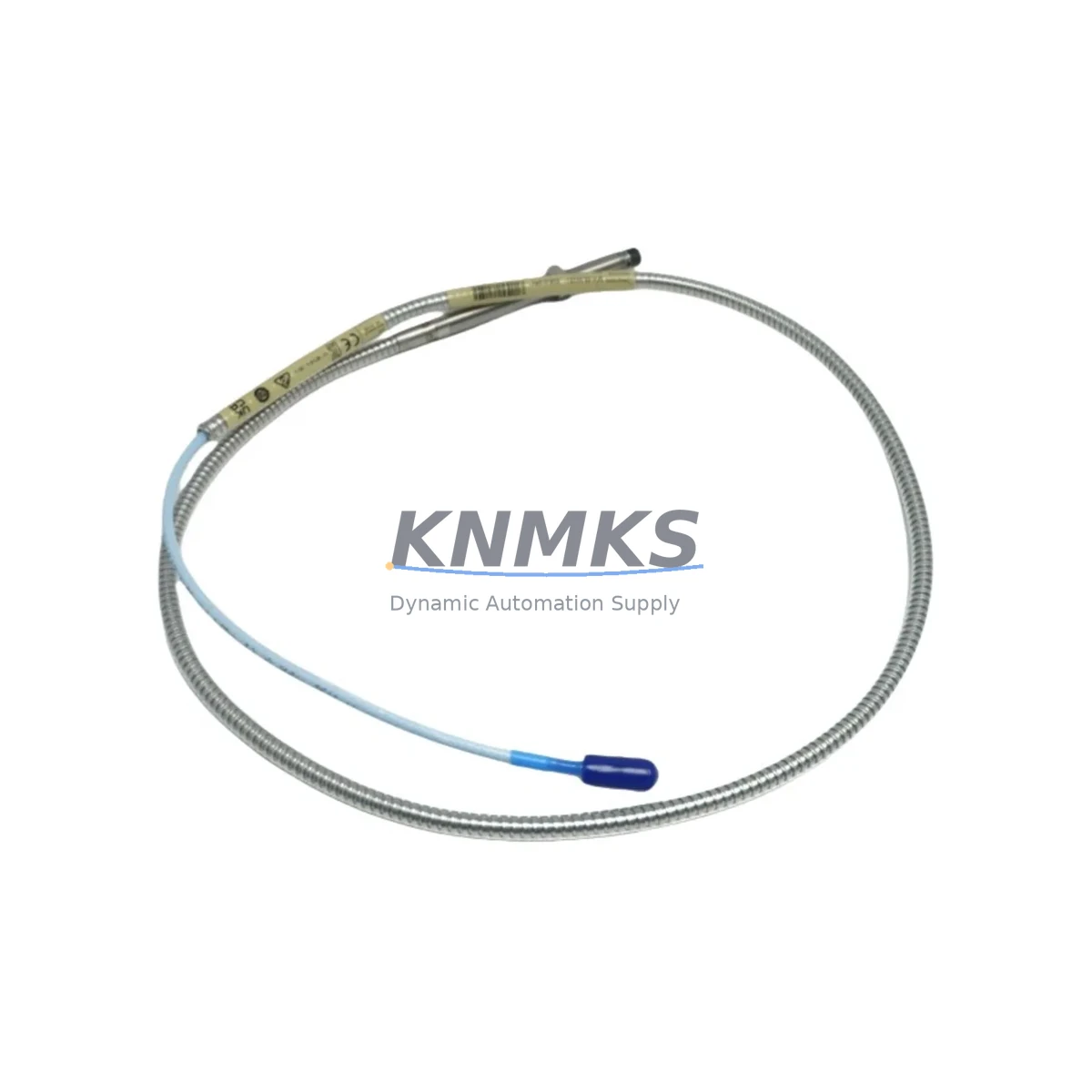

Bently Nevada 330102-00-35-10-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-00-35-10-02-CN is a 3300 XL Series eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 and 7200 Series monitoring systems approach end-of-life, this probe serves as a validated, drop-in replacement that preserves existing signal chain integrity without requiring full rack replacement. It is widely deployed in turbine protection panels, compressor monitoring cabinets, and pump vibration systems across energy, petrochemical, and heavy manufacturing sectors.

When planning a migration from an older 3300 Series installation to a current 3500 Series rack or a third-party vibration monitoring platform, the 330102-00-35-10-02-CN is frequently the starting point for compatibility verification. Its 5-metre cable length, standard 8 mm tip diameter, and -24 VDC bias voltage output align with the signal conditioning requirements of the Bently Nevada 3300 XL 8mm Proximitor Sensor (330180-91-00), making it straightforward to validate probe-to-proximitor pairing before committing to a broader system upgrade.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330102-00-35-10-02-CN into an existing vibration monitoring loop requires a structured review of the surrounding system components. Begin by confirming the Proximitor Sensor model installed in the field — the 330180-91-00 3300 XL 8mm Proximitor is the standard pairing for this probe, and its power supply input (typically -24 VDC from a dedicated Proximitor power supply or from the monitor rack’s internal supply) must be verified before probe replacement. If the Proximitor itself is also being replaced as part of a broader 3300-to-3500 Series migration, the Bently Nevada 3500/40M Proximitor I/O Module provides the appropriate input card within the 3500 rack architecture.

Terminal wiring at the junction box or marshalling cabinet should be documented before removal of the existing probe. The probe cable shield grounding point, the extension cable (typically a 330130-Series armoured extension), and the Proximitor output wiring to the monitor input terminal all require verification. In installations where the 3300 XL Monitor (such as the 3300/16 or 3300/20) is being retained while only the probe is replaced, confirm that the monitor’s OK relay setpoints and gap voltage alarm thresholds remain valid for the replacement probe’s sensitivity curve.

Where the retrofit extends to the control system level — for example, migrating vibration trip signals from a legacy relay-based panel to a modern DCS or safety PLC — signal isolators or I/O interface modules may be required to bridge the analogue output from the Proximitor to the new control system’s input cards. In such cases, the Bently Nevada 3500/22M Transient Data Interface or a compatible signal conditioning module can be used to maintain data continuity during the transition. HMI screens displaying shaft vibration trends should be updated to reflect the new channel addressing if the monitor rack slot assignment changes during the upgrade.

For installations involving multiple probes on a single shaft — such as X-Y proximity probe pairs for radial vibration measurement — both probes should be replaced simultaneously to maintain matched sensitivity and consistent gap voltage readings. The companion probe in an X-Y pair is typically a second 330102-Series unit with identical cable length and tip configuration. Replacing only one probe in a matched pair can introduce measurement asymmetry that triggers nuisance alarms during commissioning.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires pre-staging all replacement components before the maintenance window opens. The 330102-00-35-10-02-CN should be bench-tested for gap voltage output and OK status prior to installation, using a portable Proximitor test kit or a bench-mounted Proximitor connected to a calibrated target disc. This pre-installation verification confirms probe and cable integrity before the machine is taken offline, reducing the risk of discovering a secondary fault during the maintenance window.

During the replacement, the original probe’s gap setting — typically 1.0 mm for 8 mm probes operating on steel targets — should be re-established using a digital gap voltage meter referenced to the Proximitor’s output. The target gap voltage for the 330102-00-35-10-02-CN at 1.0 mm on AISI 4140 steel is approximately -10.0 VDC. Deviating from this gap by more than ±0.25 mm will shift the operating point on the probe’s linear range and may cause the monitor’s OK channel to report a fault condition.

Once the probe is installed and gapped, the monitor’s OK relay should be verified to reset cleanly before the machine is returned to service. If the installation involves a 3500 Series rack, the rack’s configuration should be reviewed in the System 1 software or the 3500 Rack Configuration Software to confirm that the channel is assigned to the correct probe type and that the full-scale range and alarm setpoints match the plant’s vibration protection philosophy. Original program logic in the associated safety PLC or DCS — particularly any cross-channel voting logic for turbine trip — must be verified to remain intact after the probe replacement. A function test of the trip circuit, including a simulated high-vibration condition, is recommended before returning the machine to normal operation.

Retrofit Support FAQ

Q1: Is the 330102-00-35-10-02-CN a direct replacement for earlier 3300 Series proximity probes?
Yes. The 330102-00-35-10-02-CN is dimensionally and electrically compatible with earlier 3300 Series 8 mm proximity probes. The probe tip diameter, cable length, connector type, and sensitivity are identical to the original specification, allowing direct substitution without modification to the probe holder, extension cable, or Proximitor wiring. Confirm the extension cable part number (typically 330130-Series) is compatible before installation.

Q2: Can this probe be used with a Bently Nevada 3500 Series monitor rack?
Yes, with configuration. The 330102-00-35-10-02-CN is compatible with the 3500/40M and 3500/42M Proximitor I/O modules when configured for 8 mm probe input. The 3500 rack must be configured in the 3500 Rack Configuration Software to recognise the probe type and sensitivity. Gap voltage and alarm setpoints should be re-entered to match the plant’s protection requirements.

Q3: What pre-shipment testing is performed on this probe?
Each 330102-00-35-10-02-CN unit undergoes functional verification including gap voltage output measurement, OK status confirmation, cable continuity check, and connector integrity inspection before shipment. A test report is available on request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.

Q4: What support terms and supply terms apply?
All units are covered by a support terms confirmed by quotation against manufacturing defects and signal performance deviations under specified operating conditions. Stock is maintained for immediate dispatch. For volume requirements, long-term supply agreements and consignment stock arrangements are available. Contact our team to discuss lead times and inventory commitments for planned maintenance programmes.
