Bently Nevada 330102-00-35-10-02-00 Fail-Safe Proximity Probe

Overview

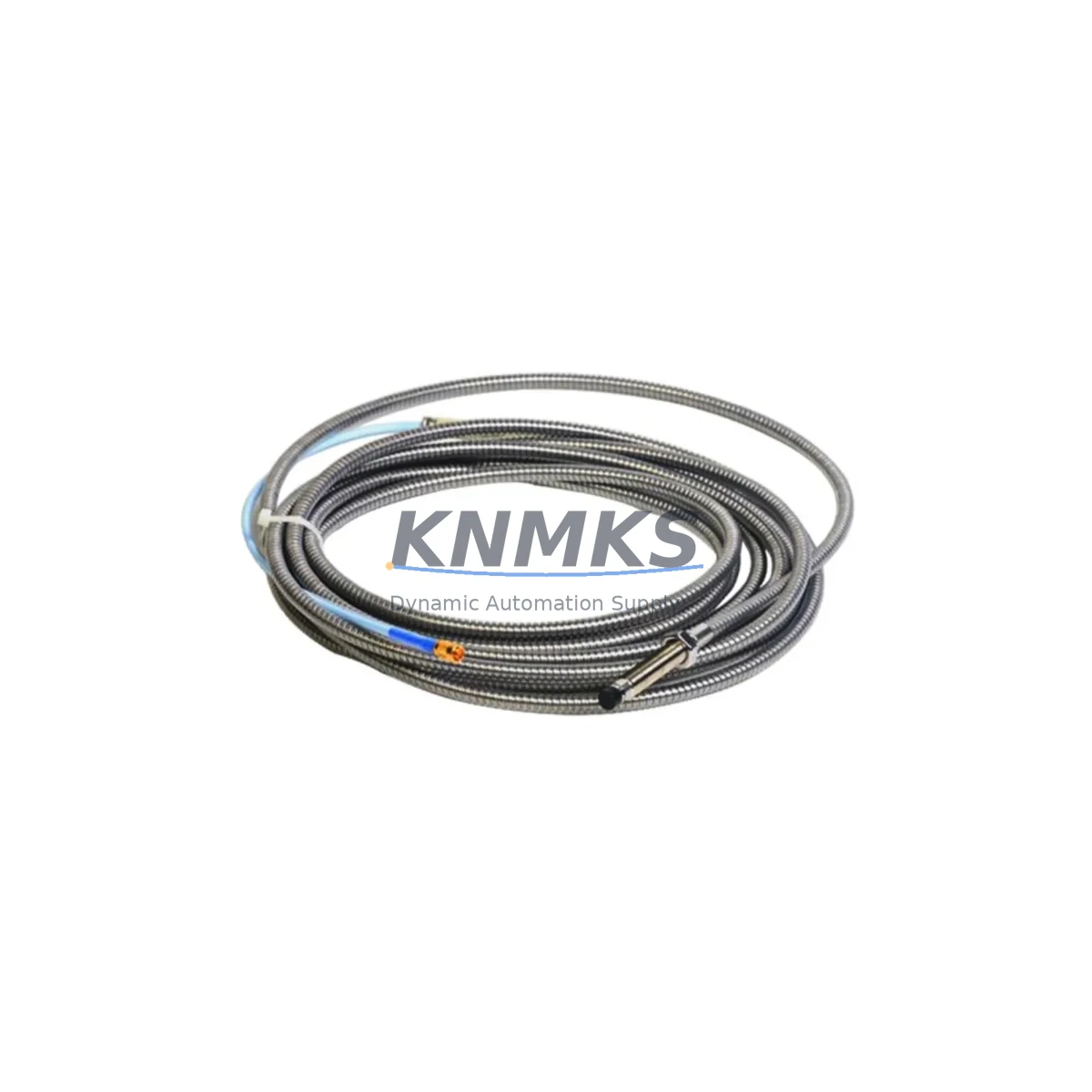

Bently Nevada 330102-00-35-10-02-00 Fail-Safe Proximity Probe for Critical Industrial Machinery Protection

The Bently Nevada 330102-00-35-10-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft displacement and vibration monitoring in the most demanding industrial environments. Designed to operate reliably in high electromagnetic interference, elevated temperature, mechanical vibration, and moisture-laden atmospheres, this probe is a cornerstone component in machinery protection systems across rotating equipment-intensive industries.

In critical production facilities — refineries, power stations, mining concentrators, water treatment plants, and continuous steel mills — unplanned machinery downtime is not merely a cost event; it is a safety hazard. The 330102-00-35-10-02-00 delivers the signal integrity and mechanical durability required to keep protection systems armed and responsive at all times. Its eddy-current sensing principle is inherently immune to contamination by oil mist, dust, and condensation, making it the preferred choice for turbine bearing housings, compressor shafts, pump trains, and gearbox monitoring points where conventional contact sensors would degrade or fail.

When integrated into a complete Bently Nevada 3300 XL monitoring loop, this probe pairs directly with the 330130 extension cable and the 330180 proximitor / signal conditioner to form a calibrated, end-to-end measurement chain. The proximitor converts the probe’s raw impedance signal into a clean, linear DC voltage output — typically –24 VDC at gap — that feeds directly into the 3500 Series Machinery Protection System rack. Within that rack, modules such as the 3500/42M Proximitor / Seismic Monitor process the displacement signal and trigger relay-based safety shutdowns or alarms when vibration or eccentricity thresholds are exceeded, preventing catastrophic bearing failure or rotor rub events.

In high-voltage switchgear rooms and motor control centers where electromagnetic interference from variable frequency drives and bus bars can corrupt sensor signals, the shielded coaxial construction of the 330102-00-35-10-02-00 and its matched extension cable maintains signal fidelity without additional filtering hardware. This is critical in applications where a false trip or missed alarm carries equal operational risk. Facilities running Bently Nevada TK-3 or TK-81 calibration standards will find this probe fully compatible with existing calibration fixtures, reducing commissioning time and ensuring traceability to factory specifications.

For control cabinet integrators specifying protection loops for large induction motors or steam turbines, the probe’s compact 8mm tip diameter allows installation in tight bearing housing geometries without machining modifications. Its stainless steel housing and PTFE-jacketed cable resist chemical attack from lubricating oil, hydraulic fluid, and cleaning solvents routinely present in heavy industrial environments. The armored cable option available within the 3300 XL probe family further protects against mechanical abrasion in high-traffic maintenance corridors.

Every 330102-00-35-10-02-00 unit supplied by KNMKS undergoes pre-shipment functional verification, including gap-versus-output linearity checks and insulation resistance testing, ensuring the probe arrives on-site ready for immediate installation without incoming inspection delays. Stock is maintained to support both planned maintenance schedules and emergency replacement requirements, minimizing the window between fault detection and corrective action in safety-critical rotating machinery fleets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330102-00-35-10-02-00 probe extends well beyond the sensor itself. In a typical turbine or compressor control cabinet, the probe signal is conditioned by the Bently Nevada 330180 proximitor, which provides the –24 VDC bias supply and converts gap distance to a calibrated voltage. This signal is then routed to a Bently Nevada 3500/42M monitor module housed in a 3500 rack, where dual-channel redundancy and OK relay logic ensure that a single probe or cable fault does not cause a spurious shutdown — a critical requirement in continuous process plants where a false trip can itself trigger a safety incident during emergency restart.

Power supply integrity for the monitoring rack is equally important. Facilities typically specify a Phoenix Contact QUINT or TRIO series 24 VDC power supply with redundant feed and active current limiting to protect the 3500 rack backplane from voltage transients generated by motor starts or bus faults on the same distribution panel. Surge protection devices rated for the instrument bus — such as those from the Phoenix Contact TRABTECH range — are installed at the cabinet entry point to clamp lightning-induced and switching surges before they reach the proximitor input circuitry.

For facilities operating in ATEX or IECEx classified zones, the probe loop is completed with Bently Nevada 3300 XL barriers or equivalent Zener barriers to maintain intrinsic safety ratings, ensuring the eddy-current probe can be installed in Zone 1 or Zone 2 hazardous areas without additional enclosure upgrades. Communication from the 3500 rack to the plant DCS or safety PLC is typically handled via Modbus RTU or Ethernet/IP gateway modules, providing real-time vibration trend data to the control room for predictive maintenance decision-making.

Critical Industrial Safety Applications

The 330102-00-35-10-02-00 proximity probe is deployed across a broad spectrum of safety-critical rotating machinery applications:

Petrochemical and Refinery: Installed on centrifugal compressor shafts and boiler feed pump trains, where continuous shaft displacement monitoring is mandated by API 670 machinery protection standards. Early detection of rotor instability or bearing wear prevents catastrophic seal failures that could release flammable or toxic process fluids.

Power Generation: Used on steam turbine journal bearings and generator shaft extensions in coal, gas, and combined-cycle plants. The probe’s high-temperature tolerance and EMI immunity are essential in generator halls where strong magnetic fields from the rotor winding can interfere with lesser-quality sensors.

Mining and Mineral Processing: Applied to large SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes in environments with extreme dust loading, water spray, and structural vibration. The PTFE-jacketed cable resists abrasion and chemical attack from process reagents.

Water and Wastewater Treatment: Monitors vertical turbine pump shafts and blower bearings in facilities where continuous operation is required for public health compliance. The non-contact sensing principle eliminates wear-related drift that would compromise alarm setpoint accuracy over multi-year service intervals.

Metallurgy and Steel: Deployed on rolling mill drive spindles and continuous caster pinch roll drives, where high radiant heat, scale, and coolant spray create a hostile environment for conventional sensors. The 3300 XL probe’s robust construction maintains calibration stability across wide thermal cycles.

Port and Marine: Used in ship propulsion shaft monitoring systems and port crane slewing ring drives, where saltwater ingress resistance and vibration tolerance are primary selection criteria for long-term reliability without scheduled recalibration.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330102-00-35-10-02-00?
All units supplied by KNMKS carry a support terms confirmed by quotation from the shipment date, covering manufacturing defects and performance deviations from Bently Nevada factory specifications. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Each 330102-00-35-10-02-00 probe undergoes gap-versus-output linearity verification against the matched 330180 proximitor, insulation resistance testing of the cable jacket, and visual inspection of the probe tip and connector. Test records are available upon request for quality documentation requirements.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330102-00-35-10-02-00 is a direct fit for all standard 3300 XL monitoring loops using 330180 proximitors and 3500 Series monitor racks. It is also compatible with legacy 7200 Series systems when used with the appropriate signal conditioner. No firmware or hardware modifications to the existing rack are required for replacement installations.

Q4: Can long-term or scheduled spare parts supply be arranged?
KNMKS maintains standing inventory of the 330102-00-35-10-02-00 and related 3300 XL Series components to support both emergency replacement and planned maintenance programs. Customers operating large rotating machinery fleets can arrange framework supply agreements to guarantee availability and fixed pricing across 12–36 month maintenance cycles, reducing procurement risk for safety-critical spare parts.
