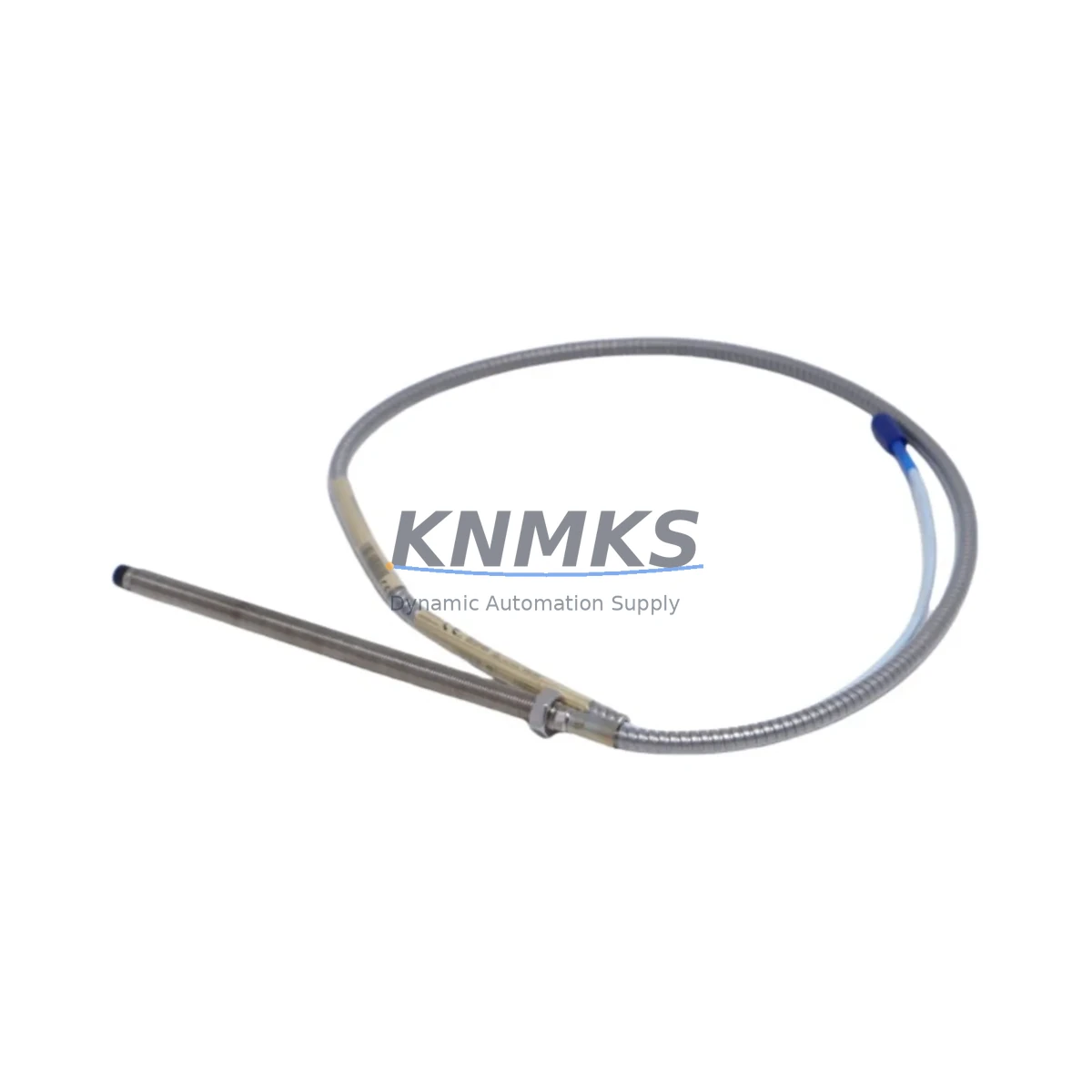

Bently Nevada 330102-00-28-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-28-10-02-00 Fail-Safe Proximity Probe for Critical Industrial Control Reliability

The Bently Nevada 330102-00-28-10-02-00 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered to deliver fail-safe, continuous vibration and position monitoring in the most demanding industrial environments. Designed for rotating machinery protection, critical interlock circuits, and high-availability control systems, this probe is a cornerstone component wherever unplanned downtime, signal drift, or measurement failure carries serious safety and operational consequences.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, port crane systems, and marine propulsion platforms — the integrity of shaft vibration and axial position signals is non-negotiable. The 330102-00-28-10-02-00 delivers stable, high-resolution proximity measurement with exceptional immunity to electromagnetic interference (EMI), mechanical vibration, thermal cycling, and moisture ingress, ensuring that your machinery protection system receives accurate, uninterrupted data at all times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330102-00-28-10-02-00 probe operates as the primary sensing element within a complete 3300 XL transducer chain. The probe connects via a matched Bently Nevada 330130 Series extension cable to a 330180 Series 3300 XL Proximitor Sensor, which conditions the raw eddy current signal into a calibrated DC voltage output suitable for direct input to a Bently Nevada 3500 Series Machinery Protection Rack. This rack-level system provides real-time alarm and trip logic, protecting turbines, compressors, pumps, and motors from catastrophic bearing failure or rotor contact.

To ensure signal integrity across the full measurement chain, the cabinet design should incorporate Bently Nevada 3500/42M Proximitor / Velomitor Input Module cards, which provide channel-level OK status monitoring and automatic fault annunciation. In high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large motor starters, or arc furnace control panels — proper cable routing, grounded conduit, and separation from power conductors are essential. Supplementing the vibration monitoring system with a Bently Nevada 3500/22M Transient Data Interface enables waveform capture for predictive maintenance analysis, reducing the risk of undetected mechanical degradation between scheduled inspections.

For power supply redundancy within the protection cabinet, pairing the 3500 rack with a Bently Nevada 3500/15 Power Supply Module featuring dual-input redundancy ensures that a single power source failure does not compromise the machinery protection function — a critical requirement in SIL-rated safety instrumented systems (SIS). Surge protection devices on all field cable entries further guard against transient overvoltage events from lightning strikes or switching surges in outdoor or substation-adjacent installations.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In fluid catalytic cracking (FCC) units, compressor trains, and boiler feed pump systems, the 330102-00-28-10-02-00 provides continuous shaft radial vibration monitoring to detect bearing wear, rotor imbalance, and misalignment before they escalate to catastrophic failure. API 670-compliant installations require dual-redundant proximity probe pairs on each bearing journal, making reliable spare availability essential for maintenance turnaround planning.

Power Generation — Steam and Gas Turbines: Turbine shaft eccentricity, differential expansion, and thrust position monitoring depend on the precision and long-term stability of eddy current probes. The 330102-00-28-10-02-00’s wide operating temperature range and high-frequency response make it suitable for both HP turbine bearing pedestals and LP exhaust end monitoring, where thermal gradients and vibration amplitudes are most severe.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pump drives operate in environments with extreme dust loading, high ambient vibration, and frequent electrical transients from crusher motor starts. The robust shielded construction of the 3300 XL probe series resists signal corruption in these conditions, supporting continuous operation monitoring and reducing unplanned mill stoppages that carry significant production cost penalties.

Water and Wastewater Treatment: High-service pump stations and blower systems in water treatment facilities require long-term, low-maintenance vibration monitoring. The 330102-00-28-10-02-00 supports predictive maintenance programs that extend mean time between failures (MTBF) and reduce emergency repair costs in facilities where redundant pump capacity may be limited.

Metallurgy and Steel Production: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate under extreme mechanical loading and thermal stress. Proximity probe systems in these applications must maintain calibration accuracy across wide temperature swings and resist contamination from metallic dust and cooling water spray — conditions the 3300 XL series is specifically rated to handle.

Port, Marine, and Offshore: Shipboard propulsion turbines, offshore platform gas compression trains, and port crane hoist motors require vibration monitoring systems that meet marine classification society requirements. The 330102-00-28-10-02-00, as part of a certified 3300 XL system, supports compliance with DNV, ABS, and Lloyd’s Register machinery monitoring guidelines.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-28-10-02-00?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional verification including output voltage linearity check, cable continuity test, and visual inspection of the probe tip and connector. Support requests are supported with direct technical assistance and expedited replacement dispatch.

Q2: How is outgoing quality verified before shipment?
Every 330102-00-28-10-02-00 unit is tested against Bently Nevada 3300 XL system specifications prior to dispatch. Testing includes scale factor verification, gap voltage output check across the full measurement range, and cable shield integrity confirmation. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for critical installation documentation requirements.

Q3: Is the 330102-00-28-10-02-00 compatible with existing 3300 XL system installations?
Yes. The 330102-00-28-10-02-00 is a direct replacement for existing 3300 XL 8mm probe installations using 330130 series extension cables and 330180 series Proximitor Sensors. No recalibration of the Proximitor is required when replacing a like-for-like probe on a standard AISI 4140 steel target. For non-standard target materials or modified gap settings, recalibration per Bently Nevada TN-13 guidelines is recommended.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains standing inventory of the 330102-00-28-10-02-00 and related 3300 XL series components to support both planned maintenance shutdowns and emergency breakdown replacements. For facilities with critical spare requirements, blanket order arrangements and reserved stock programs are available. Contact our technical sales team to discuss supply continuity agreements tailored to your maintenance planning cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-28-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-28-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
