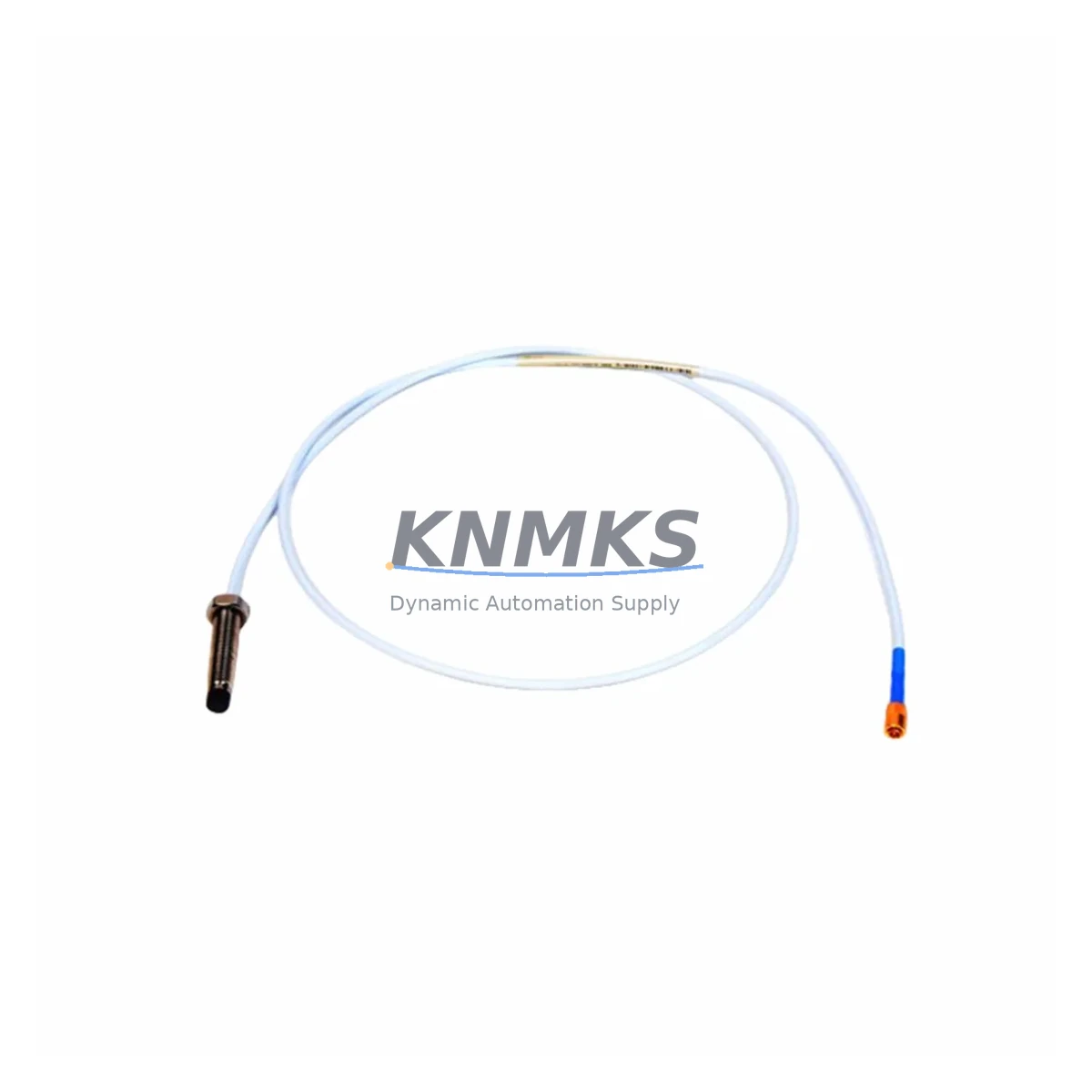

Bently Nevada 330102-00-28-05-02-05 Maintenance-Proven Spare for Factory Uptime

The Bently Nevada 330102-00-28-05-02-05 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring within the 3300 XL Series machinery protection system. Widely deployed across turbines, compressors, pumps, and rotating machinery in oil & gas, power generation, petrochemical, and heavy industrial facilities, this probe is a critical front-line sensor in any predictive maintenance and condition monitoring program. When this component reaches end-of-service or fails during operation, rapid replacement with a verified OEM-compatible spare is essential to restore protection coverage and prevent unplanned downtime.

KNMKS maintains ready stock of the 330102-00-28-05-02-05 with pre-shipment electrical testing, support terms confirmed by quotation coverage, and multi-region dispatch capability to support both emergency replacements and scheduled outage restocking. Each unit is verified for sensitivity, gap voltage linearity, and cable integrity before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

In a 3300 XL machinery protection loop, the 330102-00-28-05-02-05 proximity probe does not operate in isolation. Maintenance engineers performing a probe replacement or annual calibration check should treat the entire measurement chain as a system. The 3300 XL Proximitor® Sensor (driver module, typically mounted in the junction box or field enclosure) must be inspected for output voltage drift, connector corrosion, and housing integrity — a degraded proximitor will produce erroneous gap readings even with a new probe installed.

The extension cable connecting the probe to the proximitor is equally critical. Extension cables in the 3300 XL system are impedance-matched to the probe; substituting a non-matched cable will shift the sensitivity and gap voltage calibration. During any probe swap, inspect the extension cable for jacket cracking, connector pin damage, and shield continuity. If the probe has been in service for more than three years in a high-temperature or high-vibration zone, replacing the extension cable concurrently is strongly recommended.

At the rack level, the 3300/16-channel monitor card or equivalent 3300 XL monitor module receives the proximitor output. Verify that the monitor channel is correctly configured for 8mm probe sensitivity (7.87 V/mm) and that alarm and danger setpoints are within API 670 guidelines for the machine class. A channel that has been in service through multiple probe replacements may accumulate configuration drift — a full channel verification using a calibrated gap simulator is best practice during planned outages.

Power supply integrity is another maintenance checkpoint. The 3300 XL system power supply module provides the regulated -24 VDC required by the proximitor. Measure supply voltage at the proximitor terminals under load; voltage outside the -23.5 to -25.5 VDC range will affect probe linearity and trigger nuisance alarms. Spare power supply modules should be held in the maintenance inventory alongside proximity probes for critical machinery trains.

For facilities running turbine or compressor trains with multiple measurement planes, the 3300/55 Keyphasor® module provides the once-per-revolution reference signal used for phase and speed measurements. If the Keyphasor probe (often a separate 3300 XL 8mm or 5mm probe) is approaching its service interval, scheduling its replacement during the same outage window as the 330102-00-28-05-02-05 minimizes total downtime exposure. Similarly, thermocouple or RTD temperature sensors mounted on the bearing housing should be inspected during proximity probe maintenance, as bearing temperature and vibration data are often correlated in the DCS historian for fault diagnosis.

Procurement engineers should maintain a minimum buffer stock of two 330102-00-28-05-02-05 probes per critical machinery train, supplemented by at least one matched extension cable set and one spare proximitor module. For facilities with long lead-time constraints or remote locations, a standing supply agreement with KNMKS ensures priority allocation and consistent pre-tested stock availability.

Site Replacement Workflow

1. Pre-Replacement Verification: Confirm the replacement probe SKU (330102-00-28-05-02-05) matches the installed probe label and the system configuration record. Verify the extension cable part number for impedance compatibility with the 3300 XL 8mm system.

2. Safe Isolation: Place the affected monitor channel in bypass mode via the 3300 XL monitor or DCS to suppress spurious alarms during the swap. Do not de-energize the proximitor supply unless required by site safety procedures — maintaining supply voltage allows immediate output verification after probe installation.

3. Probe Removal: Loosen the probe locknut and back the probe out of the bracket. Note the installed gap (typically 1.0–1.5 mm for 8mm probes on steel targets). Inspect the probe tip for impact damage, contamination, or corrosion that may indicate a bearing or seal issue requiring further investigation.

4. New Probe Installation: Thread the replacement 330102-00-28-05-02-05 into the bracket and set the gap to the system-specified value using a calibrated feeler gauge or gap voltage measurement (-10 VDC ± 0.5 VDC at nominal gap for most 3300 XL 8mm installations). Torque the locknut to specification and secure the cable routing to prevent vibration-induced fatigue.

5. System Verification: Remove the channel bypass and confirm the proximitor output voltage is within the linear range. Check the monitor channel for correct gap, direct vibration (Xpp), and 1X/2X vector readings if a Keyphasor reference is available. Log the as-found and as-left gap voltages in the maintenance management system.

6. Documentation: Record the replaced probe serial number, installation date, gap setting, and post-installation readings. Update the spare parts inventory to trigger restocking of the consumed 330102-00-28-05-02-05 unit.

Spare Parts Support FAQ

Q1: Is the 330102-00-28-05-02-05 compatible with older 3300 Series (non-XL) systems?
The 330102-00-28-05-02-05 is designed and calibrated for the 3300 XL 8mm system. While the physical connector may be similar to earlier 3300 Series probes, sensitivity and impedance characteristics differ. Using this probe with a non-XL proximitor may result in calibration errors. Always verify the proximitor model number before substitution.

Q2: What is included in KNMKS pre-shipment testing for this probe?
Each 330102-00-28-05-02-05 unit dispatched by KNMKS undergoes electrical continuity verification, coil resistance measurement, sensitivity check against a reference target, and gap voltage linearity confirmation across the full linear range. A test record is available upon request.

Q3: Can KNMKS supply matched extension cables and proximitor modules alongside the probe?
Yes. KNMKS stocks compatible 3300 XL extension cables and Proximitor® Sensor modules to support complete measurement chain replacement. Ordering the probe, extension cable, and proximitor as a matched set from a single source eliminates compatibility risk and simplifies site documentation.

Q4: What lead time and support terms terms apply to the 330102-00-28-05-02-05?
In-stock units are dispatched within 1–3 business days with global shipping options including express freight for emergency requirements. All units carry a support terms confirmed by quotation from the dispatch date covering manufacturing defects and electrical performance. Long-term supply agreements with priority allocation are available for facilities with recurring maintenance schedules.
