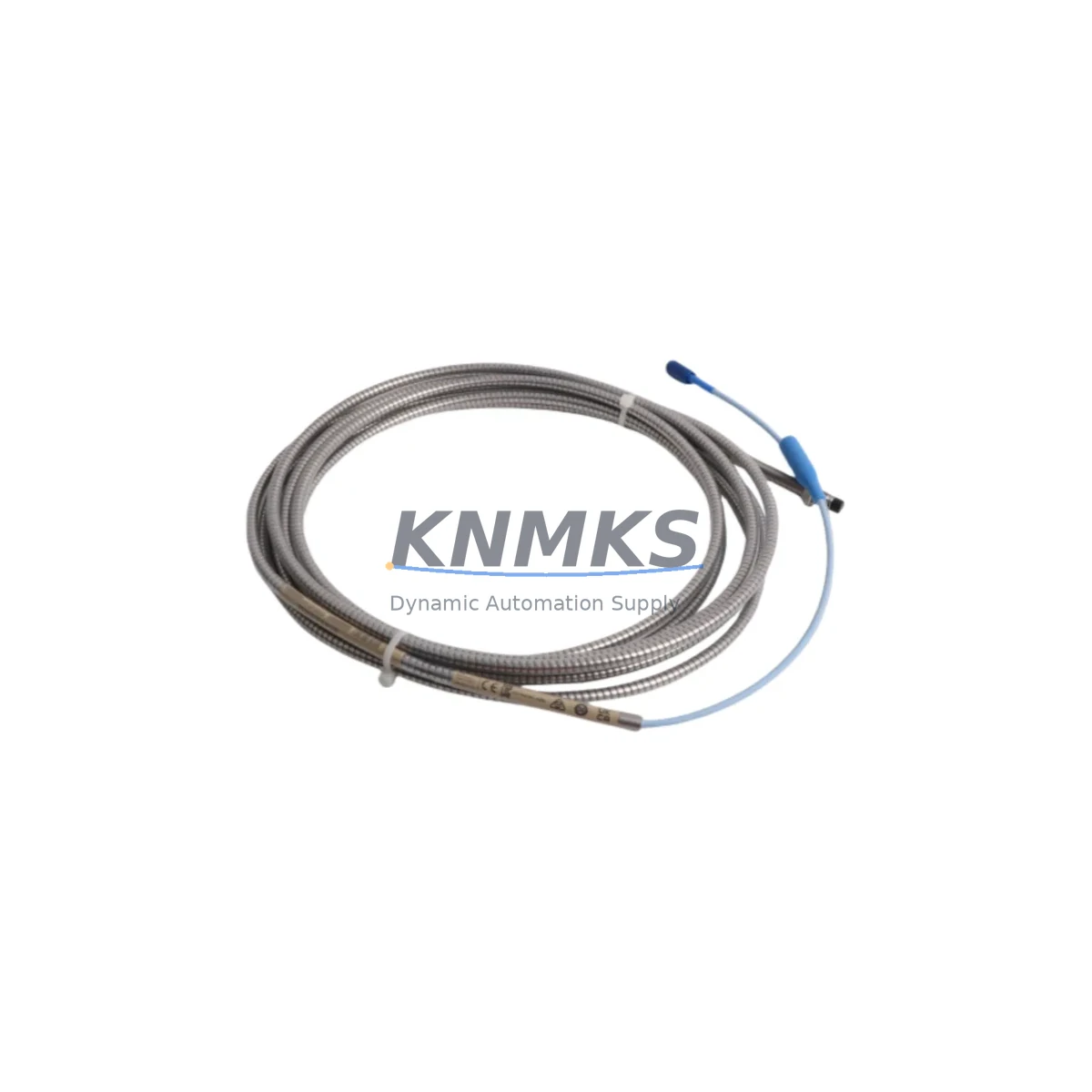

Bently Nevada 330102-00-28-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-28-05-02-00 Fail-Safe Proximity Probe: Critical Fault Protection for Industrial Control Reliability

The Bently Nevada 330102-00-28-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers stable, drift-free output signals even under sustained exposure to high electromagnetic interference, mechanical vibration, thermal cycling, and process-area contamination — conditions that routinely compromise lesser sensing components and trigger unplanned shutdowns.

In critical industrial facilities — petrochemical complexes, power generation stations, mining concentrators, water treatment plants, metallurgical mills, port crane systems, and continuous-process manufacturing lines — control interruption is never an acceptable outcome. The 330102-00-28-05-02-00 is purpose-built to eliminate the failure modes that cause it: signal drift under temperature excursion, false trips from EMI-induced noise, probe gap instability from vibration-induced connector loosening, and output degradation from moisture ingress or chemical exposure. Its hermetically sealed stainless steel housing and armored cable assembly maintain measurement integrity across the full operating envelope, ensuring that the machinery protection system receives a clean, reliable signal at all times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-00-28-05-02-00 proximity probe does not operate in isolation — its reliability is a function of the entire signal chain and cabinet environment in which it is installed. In a properly engineered machinery protection loop, the probe pairs with the Bently Nevada 3300 XL Proximitor Sensor (typically the 330180-X1-05 or 330130-040-00-00 series) to convert the raw eddy-current signal into a conditioned DC voltage that the monitoring system can process. Signal integrity between probe and Proximitor depends critically on matched cable impedance and correct gap setting — deviations of even 0.1 mm can introduce measurement error that propagates through the entire protection decision chain.

Within the control cabinet, power supply stability is equally critical. Fluctuations on the –24 VDC rail that powers the Proximitor directly affect probe output linearity. Pairing the monitoring loop with a Bently Nevada 3500/15 Power Supply or an equivalent regulated, low-ripple DC source eliminates this vulnerability. For installations in high-EMI environments — near variable-frequency drives, large motor starters, or arc furnace controls — additional shielding of the coaxial cable run and proper grounding of the cable armor at a single point prevent ground loops that would otherwise appear as low-frequency noise on the vibration channel.

In multi-channel rack configurations using the Bently Nevada 3500 Series monitoring framework, the 330102-00-28-05-02-00 integrates directly with 3500/42M or 3500/40M proximity monitor modules, enabling relay output to safety PLC inputs or DCS interlock logic. For installations requiring SIL 2 loop integrity, the probe’s stable output characteristics support the diagnostic coverage calculations required by IEC 61511. Surge protection devices — such as transient voltage suppressors installed at the cabinet entry point — further protect the signal path from lightning-induced or switching transients that could damage the Proximitor input stage or corrupt the vibration reading during a critical machinery event.

Cabinet thermal management is a frequently overlooked reliability factor. In enclosed panels where the 3500 rack, power supplies, and relay modules share space, ambient temperatures can exceed 55°C during summer peak loads. The 330102-00-28-05-02-00’s rated operating range of –35°C to +177°C at the probe tip provides ample margin, but the associated 3300 XL Proximitor electronics require cabinet cooling to remain within their own rated envelope. Proper ventilation design, combined with temperature monitoring via a Bently Nevada 3500/62 process variable monitor, ensures the complete protection system remains within its validated operating range.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 330102-00-28-05-02-00 is deployed on compressor trains, turbine expanders, and boiler feed pumps where shaft vibration and axial position monitoring are mandatory under API 670. A single undetected bearing failure in these applications can result in catastrophic equipment loss, process release, and personnel safety incidents. The probe’s fail-safe output behavior — driving to a known out-of-range value on loss of power or cable fault — ensures that the protection system responds correctly to a probe failure rather than masking it.

In power generation facilities, steam turbine and gas turbine protection systems rely on proximity probes for both radial vibration and thrust position measurement. The 330102-00-28-05-02-00’s high sensitivity (7.87 V/mm) and low noise floor make it suitable for detecting the early-stage sub-synchronous vibration signatures that precede bearing instability — providing operators with actionable warning before a trip event occurs. This early-warning capability is equally valuable in mining and mineral processing plants, where SAG mill pinion bearings, crusher eccentric shafts, and slurry pump impellers operate under high radial loads and benefit from continuous proximity-based condition monitoring.

In water and wastewater treatment infrastructure, large vertical turbine pumps and blower trains in aeration basins present challenging monitoring environments: high humidity, chemical aerosols, and variable load cycles. The sealed construction of the 330102-00-28-05-02-00 resists moisture ingress that would otherwise cause probe tip corrosion and sensitivity drift. For metallurgical and steel mill applications — rolling mill main drives, continuous caster pinch rolls, and converter vessel tilting drives — the probe’s resistance to magnetic interference from high-current bus bars and induction heating equipment ensures measurement stability in environments where lesser sensors produce erratic outputs.

Port and marine terminal crane applications present a combination of salt-air corrosion, high-cycle mechanical fatigue, and wide temperature swings. The 330102-00-28-05-02-00’s stainless steel construction and armored cable assembly are well-suited to these conditions, providing reliable shaft monitoring on hoist motor drives and slew ring bearing assemblies where unplanned downtime directly impacts cargo throughput and vessel scheduling.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330102-00-28-05-02-00?
The support terms confirmed by quotation cover all defects in materials and workmanship from the date of shipment. If the probe exhibits sensitivity drift, cable insulation failure, connector damage attributable to manufacturing defect, or output non-linearity outside the published specification, KNMKS will provide a replacement unit or documented resolution support. The support terms applies to both new and tested-surplus units that have passed pre-shipment functional verification.

Q2: What pre-shipment testing is performed before dispatch?
Every 330102-00-28-05-02-00 unit undergoes functional verification prior to shipment: output sensitivity is confirmed against the 7.87 V/mm specification using a calibrated gap-setting fixture, cable continuity and insulation resistance are checked, and connector integrity is inspected. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q3: Is the 330102-00-28-05-02-00 compatible with existing 3300 XL Proximitor installations?
Yes. The 330102-00-28-05-02-00 is a direct replacement for all 3300 XL Series 8mm probe assemblies with matching cable length and connector configuration. It is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and integrates without modification into existing 3500 Series monitoring racks. No recalibration of the Proximitor is required provided the replacement probe is installed at the same gap distance as the original.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
KNMKS maintains regional buffer stock of the 330102-00-28-05-02-00 and related 3300 XL Series components to support blanket-order and scheduled-release programs for customers with planned maintenance intervals. For facilities operating under a critical spare parts strategy, we recommend establishing a standing stock agreement to eliminate lead-time risk associated with spot-market procurement. Contact our team to discuss allocation, consignment, or annual supply agreements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-28-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-28-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
