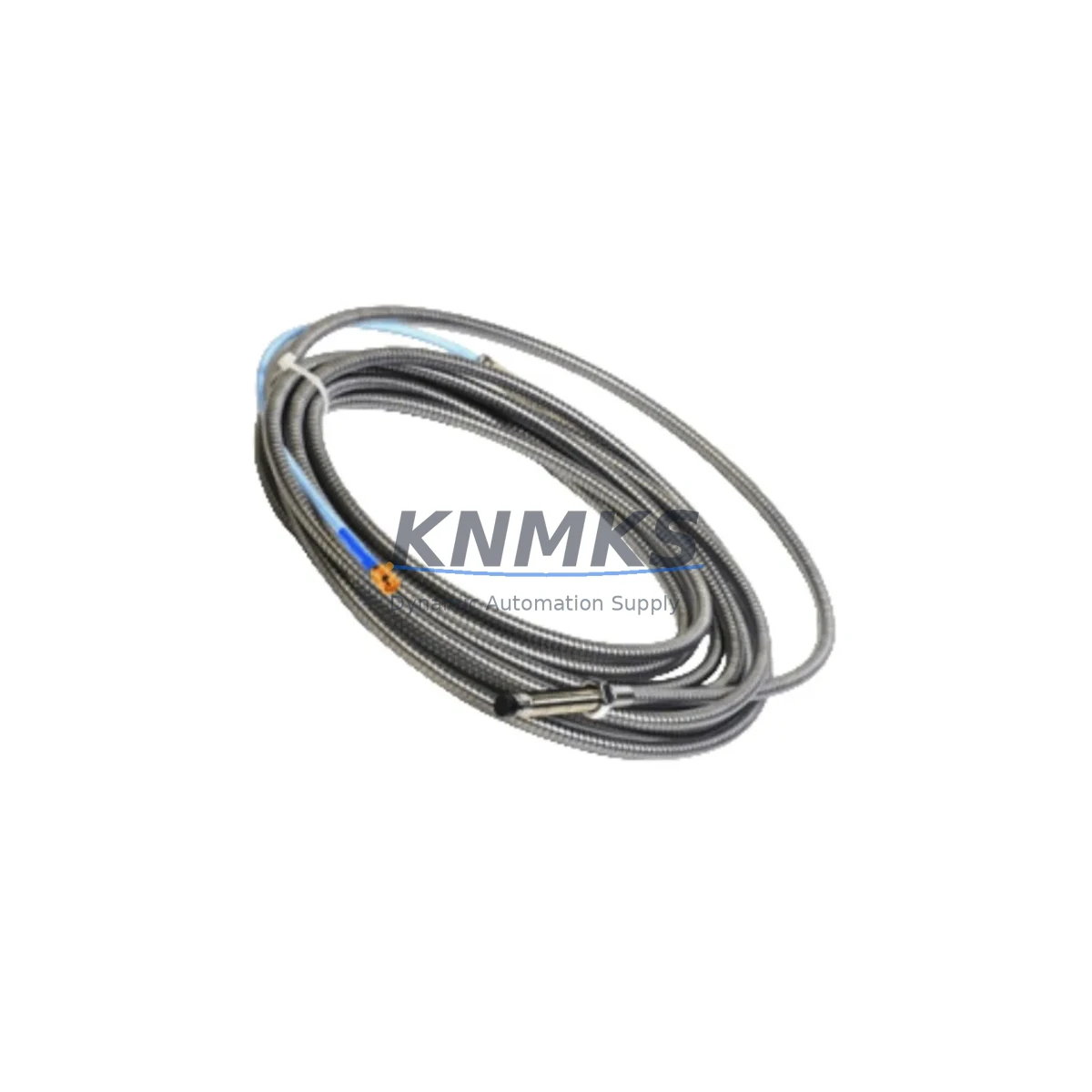

Bently Nevada 330102-00-25-50-11-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-00-25-50-11-00 is a 25mm (50 mil gap) eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada 3300 Series systems approach end-of-support, this probe serves as a verified drop-in replacement and migration-ready component for facilities undertaking control system modernization, rotating machinery protection upgrades, and predictive maintenance infrastructure overhauls. Whether you are replacing a discontinued 330102-00-25-50-05-00 variant, retrofitting an older 3300/16 monitor rack, or migrating to a 3500 Series platform, this probe is pre-tested and ready for immediate deployment.

Each unit ships with a full support terms confirmed by quotation and undergoes pre-shipment functional verification to confirm output linearity, gap sensitivity, and cable integrity — minimizing the risk of field failures during critical commissioning windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-00-25-50-11-00 into an aging machinery protection system requires a structured approach that accounts for both the probe itself and the surrounding signal chain. Before removing the existing probe, technicians should document the current oscillator/driver output voltage at the nominal gap — typically between -10 VDC and -18 VDC for a healthy 3300 XL channel — and record this as the baseline for post-installation verification.

The probe pairs directly with the Bently Nevada 330130 series oscillator/driver (proximitor), which converts the raw eddy-current signal into a calibrated voltage output readable by the 3300 XL monitor. If the existing proximitor shows signs of drift or has exceeded its recommended service interval, replacing it alongside the probe eliminates a common source of false alarms and nuisance trips. In installations where the 3300/16 monitor rack is being retained, confirm that the rack’s power supply module — such as the 3300/05 or equivalent — can sustain the additional current draw if multiple channels are being refreshed simultaneously.

For facilities migrating from the 3300 platform toward the Bently Nevada 3500 Series, the 330102-00-25-50-11-00 remains compatible with 3500/42 proximity monitor modules, provided the channel is configured for the correct probe type and gap range via the 3500 Rack Configuration Software. This migration path avoids the need to re-machine probe bosses or re-route conduit, significantly reducing installation labor and downtime exposure. During the transition, the existing Keyphasor module and its associated probe should also be inspected; a degraded Keyphasor signal will corrupt phase reference data across all monitored channels regardless of probe condition.

Where I/O expansion is part of the modernization scope — for example, adding radial vibration channels to a previously unmonitored bearing — the 3500/42M four-channel proximity monitor provides a scalable path without requiring a new rack. Signal isolation between the new channels and existing PLC or DCS inputs should be verified using the plant’s signal isolator standard; Bently Nevada’s TK-3 series termination boards simplify this wiring task and reduce the risk of ground loops that can mask real vibration events.

HMI screen updates are frequently overlooked during probe replacements. If the control room display references the old probe tag or channel number, operators may misread alarm states during the post-commissioning period. Coordinate with the DCS or SCADA team to update tag descriptors and alarm setpoints before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all components — probe, extension cable, proximitor, and termination hardware — before the maintenance window opens. The 330102-00-25-50-11-00 is supplied pre-assembled and tested, eliminating the need for field cable fabrication and reducing the risk of connector damage during installation.

Where a hot-swap is not possible and the machine must be taken offline, the replacement sequence should follow a channel-by-channel approach: isolate the channel at the monitor, remove the old probe, install and gap the new probe, reconnect the signal chain, and verify the output voltage before re-enabling the channel. This approach preserves the protection function on all other channels throughout the procedure and allows the control system to maintain its normal alarm logic without requiring a full rack bypass.

Original program logic stored in the 3300 XL or 3500 monitor does not require modification for a like-for-like probe replacement. Alarm setpoints, danger thresholds, and time-delay parameters remain valid provided the replacement probe is gapped to the same nominal value as the original. If the gap is adjusted — for example, to compensate for shaft runout or bearing wear — setpoints should be recalculated and documented before the machine is returned to service.

For facilities with redundant monitoring architectures, the replacement can often be performed with the machine running by switching protection responsibility to the redundant channel, replacing the primary probe, verifying its output, and then restoring the primary channel. This approach requires coordination with the operations team and a clear rollback plan, but it eliminates the need for a planned shutdown entirely in many cases.

Retrofit Support FAQ

Q: Is the 330102-00-25-50-11-00 a direct replacement for the 330102-00-25-50-08-00?
A: The primary difference between these two part numbers is the total cable length — 11 meters versus 8 meters. If your conduit run and junction box location are compatible with the longer cable, the 330102-00-25-50-11-00 is a functional drop-in replacement with no changes required to the monitor configuration or alarm setpoints.

Q: What pre-shipment testing is performed on each unit?
A: Each 330102-00-25-50-11-00 is tested for output linearity across the full gap range, cable continuity and insulation resistance, connector integrity, and compliance with Bently Nevada’s published sensitivity specification (200 mV/mil ±10%). A test record is available upon request. All units carry a support terms confirmed by quotation from the date of shipment.

Q: Can this probe be used with a Bently Nevada 3500/42 monitor without reconfiguration?
A: Yes, provided the 3500/42 channel is configured for the 3300 XL probe type using the 3500 Rack Configuration Software. The analog output characteristics of the 330102 series are compatible with the 3500/42 input range. Confirm the proximitor supply voltage and verify the gap voltage at the nominal 50 mil position before enabling the channel.

Q: What is the lead time and stock availability?
A: The 330102-00-25-50-11-00 is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 1–3 business days. For bulk orders or long-term supply agreements (12–36 months), contact our sales team to discuss reserved inventory arrangements and volume pricing.
