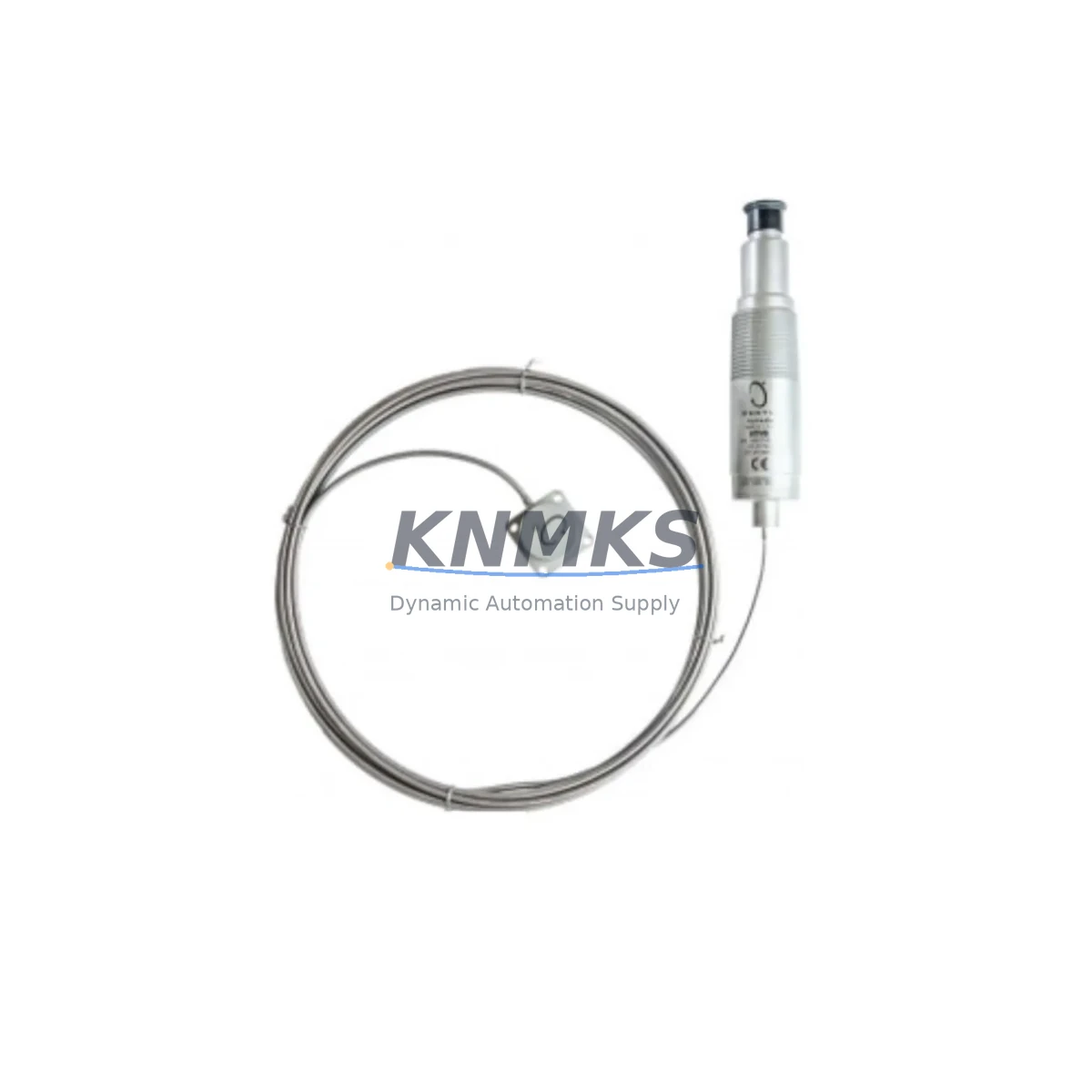

Bently Nevada 330102-00-25-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-25-10-02-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330102-00-25-10-02-05 is an 8mm eddy current proximity probe from the 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s 3300 XL monitoring system architecture, this probe delivers stable, high-resolution output signals even under conditions of extreme electromagnetic interference, mechanical vibration, thermal cycling, and moisture ingress — conditions that routinely compromise lesser sensing components and trigger unplanned shutdowns.

In critical rotating machinery protection — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — signal integrity is not optional. The 330102-00-25-10-02-05 maintains consistent gap voltage linearity across its full operating range, ensuring that the connected Bently Nevada 3300 XL Proximitor® sensor and the plant’s vibration monitoring system receive accurate, uninterrupted data. Any drift, noise spike, or signal loss at the probe level can cascade into false trips, missed fault detection, or — in worst-case scenarios — catastrophic machinery failure. This probe is built to eliminate that risk.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-00-25-10-02-05 probe does not operate in isolation — its reliability is inseparable from the integrity of the surrounding monitoring and protection architecture. In a properly configured 3300 XL system, the probe connects via a matched Bently Nevada 330130 Extension Cable to a 3300 XL 8mm Proximitor® Sensor, which conditions the raw eddy current signal into a calibrated DC voltage for the monitoring rack. Any mismatch in cable length, connector type, or Proximitor model will degrade linearity and introduce measurement error — a risk that is eliminated when all three components are sourced as a matched set.

Within the control cabinet, the Bently Nevada 3500/42M Proximitor®/Seismic Monitor module processes the conditioned signal and enforces alarm and trip setpoints. For plants operating under API 670 machinery protection standards, the entire signal chain — from probe tip to monitor output relay — must maintain calibrated accuracy. Surge and transient protection at the cabinet entry point, such as a Bently Nevada 3500/05 Power Supply with integrated surge suppression, prevents voltage spikes from propagating into the monitoring rack and corrupting probe signal readings.

In high-EMI environments — common in heavy motor control centers, variable frequency drive (VFD) enclosures, and arc furnace control rooms — the shielded coaxial construction of the 330102-00-25-10-02-05 cable provides a critical first line of defense. Supplementing this with proper cable routing, grounding discipline, and the use of Bently Nevada 3300 XL Series armored extension cables further reduces induced noise. Where the probe is installed near high-voltage bus bars or large transformer banks, additional ferrite choke suppression on the extension cable is recommended to maintain signal integrity below the 1mV noise floor required for precision vibration analysis.

For plants managing multiple measurement points on a single shaft — radial vibration (X and Y planes), axial position, and differential expansion — a complete probe set including a paired Bently Nevada 330104 (25mm) proximity probe for axial duty alongside the 330102 radial probes ensures full API 670 coverage without signal chain inconsistencies introduced by mixed-brand sensing components.

Critical Industrial Safety Applications

The 330102-00-25-10-02-05 is deployed across the full spectrum of continuous process and heavy industrial facilities where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery environments, this probe monitors critical compressor trains and pump sets in hydrocarbon service. A single undetected bearing failure or rotor imbalance event in these applications can result in seal failure, process fluid release, and fire or explosion risk. The probe’s sealed, oil-resistant tip construction and high-temperature rating make it suitable for installation in hot, vapor-laden machinery spaces where standard sensors would degrade rapidly.

In power generation — both thermal and combined-cycle plants — the probe is used on steam turbine shaft monitoring systems where axial thrust and radial vibration must be tracked continuously. Turbine trip systems rely on the probe’s signal to initiate emergency shutdown before blade-to-casing contact occurs. Any signal interruption or calibration drift in this application is treated as a safety-critical fault.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme vibration and dust loading. The 330102-00-25-10-02-05’s robust mechanical construction and sealed probe tip maintain reliable operation in these environments, providing early warning of bearing wear and shaft misalignment before catastrophic mechanical failure occurs.

In water and wastewater treatment facilities, high-reliability pump monitoring using this probe reduces unplanned outages that would otherwise interrupt municipal water supply. In metallurgical and steel plant applications, the probe monitors rolling mill drive motors and continuous caster drives in high-temperature, high-vibration, and high-EMI conditions. Port and marine applications — including shipboard propulsion monitoring and crane drive systems — benefit from the probe’s corrosion-resistant construction and wide operating temperature range.

Safety and Quality FAQ

Q1: Does the 330102-00-25-10-02-05 come with a support terms confirmed by quotation?
Yes. Every unit supplied carries a support terms confirmed by quotation covering manufacturing defects and functional performance. Support terms support includes replacement or repair, with documentation provided upon request for maintenance records and audit compliance.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Each 330102-00-25-10-02-05 probe undergoes functional verification and calibration check prior to dispatch. Test records confirming output linearity and insulation integrity are available upon request, supporting your incoming inspection and quality assurance process.

Q3: Is this probe compatible with existing 3300 XL Proximitor® sensors and extension cables already installed in the field?
Yes, provided the existing Proximitor® sensor is the 3300 XL 8mm model and the extension cable is a matched 3300 XL series cable. The 330102-00-25-10-02-05 is a direct form-fit-function replacement for the original Bently Nevada part. Mixed-series installations (e.g., pairing with a 3300 5mm Proximitor®) are not compatible and will produce calibration errors.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. This part is maintained availability confirmed by RFQ for immediate dispatch and is supported as a long-term supply item for planned maintenance, annual turnaround, and emergency replacement programs. Multi-unit orders and scheduled blanket supply arrangements are available — contact the sales team to discuss your site’s ongoing requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-25-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-25-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
