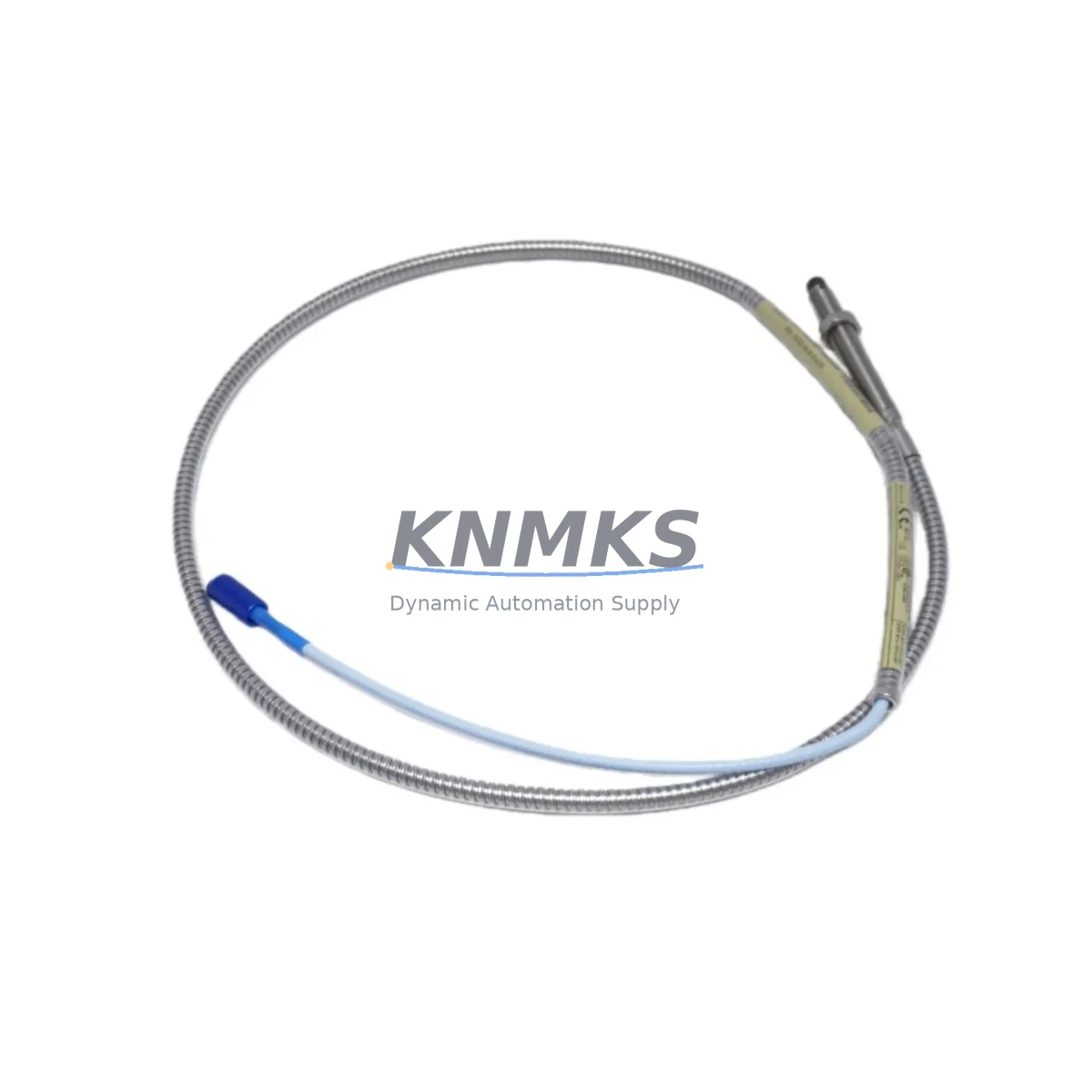

Bently Nevada 330102-00-24-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-24-10-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability and Critical Field Protection

The Bently Nevada 330102-00-24-10-02-00 is an 8mm eddy-current proximity probe from the renowned 3300 XL Series, engineered to deliver fail-safe vibration and position monitoring in the most demanding industrial environments. Designed for continuous operation in critical rotating machinery protection systems, this probe provides the measurement accuracy and signal integrity that safety-critical control loops depend on — from petrochemical compressor trains to power generation turbines and heavy-duty mining equipment.

In industrial facilities where unplanned downtime carries six-figure hourly costs, the reliability of every sensor in the protection chain is non-negotiable. The 330102-00-24-10-02-00 is built to maintain stable output under conditions that defeat lesser sensors: high electromagnetic interference from variable frequency drives and large motor starters, ambient temperatures exceeding standard operating ranges, mechanical vibration transmitted through structural steel, and the corrosive, moisture-laden atmospheres common in coastal refineries and underground mining galleries. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring that the probe’s calibration remains stable across years of continuous service without physical degradation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-00-24-10-02-00 proximity probe does not operate in isolation — its safety value is realized as part of a coordinated protection architecture. In a typical critical machinery protection cabinet, this probe connects to the Bently Nevada 330130-040-00-00 Proximitor® Sensor, which conditions the raw eddy-current signal into a clean DC voltage proportional to gap distance. The Proximitor output feeds directly into a Bently Nevada 3500/40M Proximitor®/Seismic Monitor module, where configurable alert and danger setpoints trigger protective relay outputs before shaft displacement reaches destructive levels.

Power supply integrity is equally critical. The 3300 XL system requires a stable –24 VDC bias supply; any fluctuation caused by inadequate power conditioning can introduce signal drift that mimics real shaft movement, triggering spurious trips or — more dangerously — masking genuine vibration events. Pairing the monitoring system with a Bently Nevada 3500/15 Power Supply Module or an equivalent redundant DC power conditioner eliminates this risk. For installations in high-surge environments such as substations or motor control centers, adding a dedicated surge protection device (SPD) on the instrument power rail prevents transient overvoltage from corrupting probe output or damaging the Proximitor front-end circuitry.

In cabinets where multiple protection channels share a common enclosure with PLC I/O modules — such as a Rockwell Automation ControlLogix or Siemens S7-400H safety controller — proper cable segregation and grounding discipline are essential. Routing the 330102-00-24-10-02-00 coaxial cable away from high-current motor leads and ensuring a single-point instrument ground prevents ground loops that degrade signal-to-noise ratio. Where cabinet temperatures rise above 40°C due to high component density, supplementary forced-air cooling or thermal management panels protect both the monitoring electronics and the probe’s integral cable from accelerated insulation aging.

Critical Industrial Safety Applications

The 330102-00-24-10-02-00 is deployed across the full spectrum of rotating machinery protection in safety-critical industries:

Petrochemical and Refining: Installed on centrifugal compressors, boiler feed pumps, and reactor agitators where API 670 machinery protection standards mandate continuous shaft vibration and position monitoring. A single undetected bearing failure in a hydrocracker feed pump can trigger a process shutdown costing millions; the 3300 XL probe provides the early-warning sensitivity to detect developing faults before they escalate.

Power Generation: Used on steam turbine shaft monitoring systems at thermal and combined-cycle power plants. The probe’s wide operating temperature range accommodates the high-temperature environments adjacent to turbine casings, while its EMI resistance ensures clean signal transmission despite the intense electromagnetic fields generated by large generators and excitation systems.

Mining and Mineral Processing: Applied to SAG mill trunnion bearing monitors, slurry pump shaft monitors, and conveyor drive gearbox protection systems. The probe’s robust construction withstands the dust, moisture, and structural vibration inherent in underground and open-cut mining operations.

Water and Wastewater Treatment: Monitors shaft position on large vertical turbine pumps and blower units in water treatment facilities, where continuous operation is a public safety requirement and unplanned outages affect municipal water supply.

Metallurgy and Steel Production: Protects rolling mill drive trains, continuous caster pinch roll drives, and blast furnace blower systems — applications characterized by extreme thermal cycling, heavy shock loads, and aggressive airborne particulates.

Port and Marine: Installed on ship propulsion shaft monitoring systems and port crane hoist motor protection panels, where saltwater corrosion resistance and vibration immunity are primary design requirements.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-24-10-02-00?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, calibration failures, and functional non-conformance under normal operating conditions. Support requests are processed promptly with replacement or repair at no additional cost.

Q2: How is each probe tested before shipment?
All 330102-00-24-10-02-00 units undergo full functional verification prior to dispatch, including sensitivity calibration check, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for quality-critical installations.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330102-00-24-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor and integrates directly with the 3500 Series Machinery Protection System. It meets the electrical and mechanical specifications required for drop-in replacement of existing 3300 XL probes without system reconfiguration.

Q4: Can long-term supply and spare parts support be arranged?
Yes. We maintain standing inventory of the 330102-00-24-10-02-00 and can support scheduled maintenance programs, annual spare parts agreements, and emergency replacement orders with same-day or next-day dispatch. Contact our team to discuss long-term supply commitments tailored to your plant’s maintenance cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-24-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-24-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
