Bently Nevada 330102-00-20-50-02-00 Migration-Ready Proximity Probe

Overview

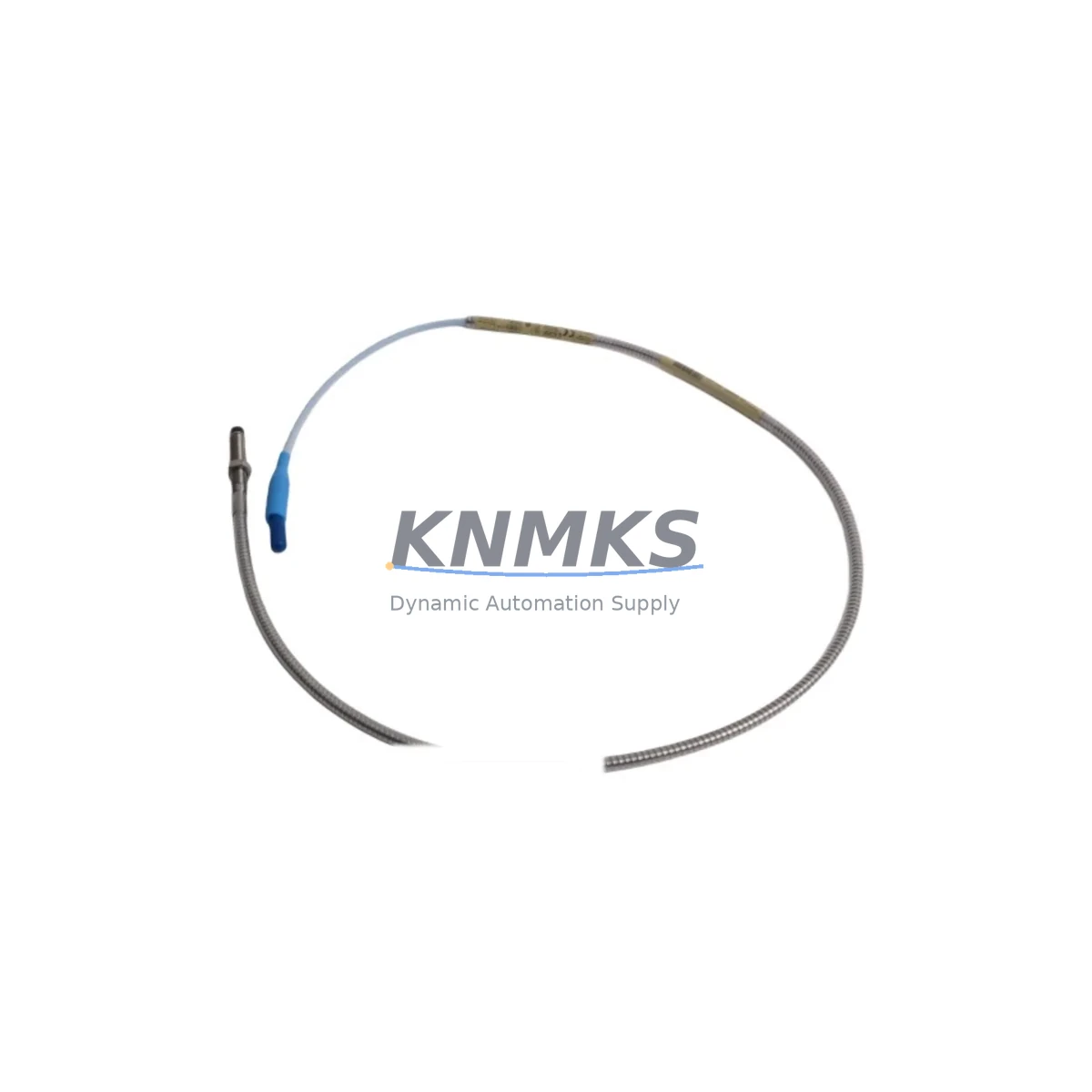

Bently Nevada 330102-00-20-50-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-00-20-50-02-00 is an 8mm proximity probe designed for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued spare parts availability, this migration-ready replacement provides a verified drop-in solution for maintenance engineers managing turbine, compressor, pump, and motor protection applications. Whether you are executing a planned outage upgrade or responding to an unplanned failure, the 330102-00-20-50-02-00 is stocked and ready for immediate dispatch with a support terms confirmed by quotation covering manufacturing defects and functional performance.

The 3300 XL proximity probe system operates as a three-component assembly: the probe itself (330102-00-20-50-02-00), an extension cable, and a proximitor/oscillator driver module. When replacing this probe in an existing installation, engineers must verify the total system cable length to ensure the proximitor driver — typically a 3300 XL 8mm Proximitor such as the 330180-91-00 — is calibrated for the correct gap voltage range. Mismatched cable lengths between the probe and extension cable will shift the output voltage curve and introduce measurement error, which can trigger false alarms or mask genuine shaft displacement events.

Before installation, confirm the existing probe mounting hardware, thread size (M10 x 1 standard for 8mm probes), and bracket clearance. The 330102-00-20-50-02-00 uses a standard 5-metre integral cable configuration, and the replacement must match the original cable length or be paired with a compatible 330130-series extension cable to maintain the calibrated system length. Verify the proximitor driver output is within the –10 VDC to –18 VDC linear range at the nominal air gap (typically 1.0 mm to 2.0 mm for 8mm probes) before returning the machine to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330102-00-20-50-02-00 into an existing vibration monitoring installation requires a structured pre-outage review. Begin by auditing the full probe-to-monitor signal chain. In a typical 3300 XL or 3500 Series rack installation, the signal path runs from the proximity probe through the extension cable to the proximitor driver, then via a shielded signal cable to the monitor input card. Any break or mismatch in this chain — including a degraded 330130-series extension cable or a proximitor driver with a drifted output — will compromise the accuracy of the replacement probe.

For installations where the existing 3300 XL monitor cards are also approaching end-of-life, consider a parallel upgrade path to the 3500/42M Proximitor/Seismic Monitor, which accepts the same 8mm probe family and provides enhanced diagnostics, Modbus RTU and TCP/IP communication options, and improved integration with modern DCS platforms such as Emerson DeltaV or Honeywell Experion PKS. This upgrade path avoids the need to re-engineer the field wiring while delivering a significant improvement in system reliability and remote monitoring capability.

During retrofit planning, also assess the condition of the 3500 Series rack backplane and power supply modules. A failing 3500 Power Supply (such as the 3500/15 Power Supply module) can introduce noise into the proximity measurement channel, causing erratic vibration readings that are often misdiagnosed as a probe or proximitor fault. Replacing the probe without addressing a marginal power supply will not resolve the underlying measurement instability. Similarly, if the installation includes a 3500/20 Rack Interface Module for communication with the plant DCS, verify that the firmware version is compatible with the updated monitor configuration after the probe replacement.

Where the retrofit involves a control cabinet upgrade, confirm available DIN rail space and cable tray routing for the new probe cable. The 330102-00-20-50-02-00 integral cable is 5 metres; if the machine-to-cabinet distance requires a longer run, a 330130-series extension cable must be selected to achieve the correct calibrated system length. Document the final installed cable length and record the gap voltage at the nominal air gap in the maintenance log for future reference during planned outage inspections.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires pre-staging all replacement components before the maintenance window opens. For the 330102-00-20-50-02-00, this means having the replacement probe, the correct extension cable, and a verified spare proximitor driver on-site before the machine is taken offline. A pre-tested spare proximitor — confirmed to produce the correct output voltage at a known air gap on a bench fixture — eliminates the risk of discovering a second faulty component after the machine is already shut down.

To protect the existing program logic and alarm configuration in the 3500 Series rack, export the full rack configuration using System 1 Evolution or the 3500 Rack Configuration Software before beginning any hardware work. This configuration backup preserves all channel assignments, alarm setpoints, transducer scale factors, and communication parameters. If the monitor card must be replaced as part of the retrofit, the saved configuration can be restored in minutes, avoiding the need to manually re-enter setpoints from paper records.

During the probe installation, maintain field control continuity by keeping adjacent monitoring channels active where possible. In a dual-channel monitor configuration (such as the 3300/16), replacing one probe channel while the second channel remains in service allows the protection system to maintain partial coverage during the maintenance window. Coordinate with the control room to acknowledge the expected alarm state on the channel under maintenance and confirm that the bypass is logged in the safety management system before proceeding.

After installation, perform a slow-roll runout check at low shaft speed to establish the mechanical and electrical runout baseline for the new probe position. Compare this baseline against the historical runout record for the previous probe. A significant deviation may indicate a probe mounting position error or a residual magnetism issue on the shaft surface that requires demagnetisation before the machine is returned to full-speed operation. Once the runout baseline is accepted, confirm all alarm setpoints are reinstated and the bypass is cleared before handing the machine back to operations.

Retrofit Support FAQ

Q1: Is the 330102-00-20-50-02-00 a direct drop-in replacement for the original Bently Nevada probe in my 3300 XL installation?
Yes, provided the replacement probe matches the original cable length and thread specification. The 330102-00-20-50-02-00 is an 8mm, 5-metre integral cable probe with M10 x 1 thread, compatible with the 3300 XL proximitor driver family. Verify the total system cable length (probe + extension cable) matches the calibrated length for your installed proximitor driver before energising the system.

Q2: What commissioning checks are required after installing the replacement probe?
After mechanical installation, verify the air gap voltage at the nominal gap distance using a calibrated DC voltmeter at the proximitor output terminals. The reading should fall within the linear range specified for your proximitor driver (typically –10 VDC to –18 VDC). Record the slow-roll runout baseline and confirm all alarm setpoints are active before returning the machine to service. Any deviation from the expected gap voltage should be investigated before proceeding.

Q3: How do I confirm compatibility with my existing 3500 Series rack and monitor cards?
The 330102-00-20-50-02-00 is compatible with the 3500/42M Proximitor/Seismic Monitor and other 3500 Series monitor cards that accept 8mm proximity probe inputs. Confirm the monitor card firmware version supports the probe configuration and that the rack configuration software reflects the correct transducer scale factor for the 8mm probe family. If upgrading from an older 3300 Series monitor, a monitor card replacement may be required to interface with the 3500 rack backplane.

Q4: What support terms and stock availability does KNMKS provide for the 330102-00-20-50-02-00?
KNMKS supplies the 330102-00-20-50-02-00 with a support terms confirmed by quotation covering manufacturing defects and functional performance from the date of shipment. Each unit undergoes pre-shipment functional testing to verify output characteristics before dispatch. Stock is maintained in regional warehouses to support urgent maintenance requirements. Contact our team for lead time confirmation and bulk order pricing.
