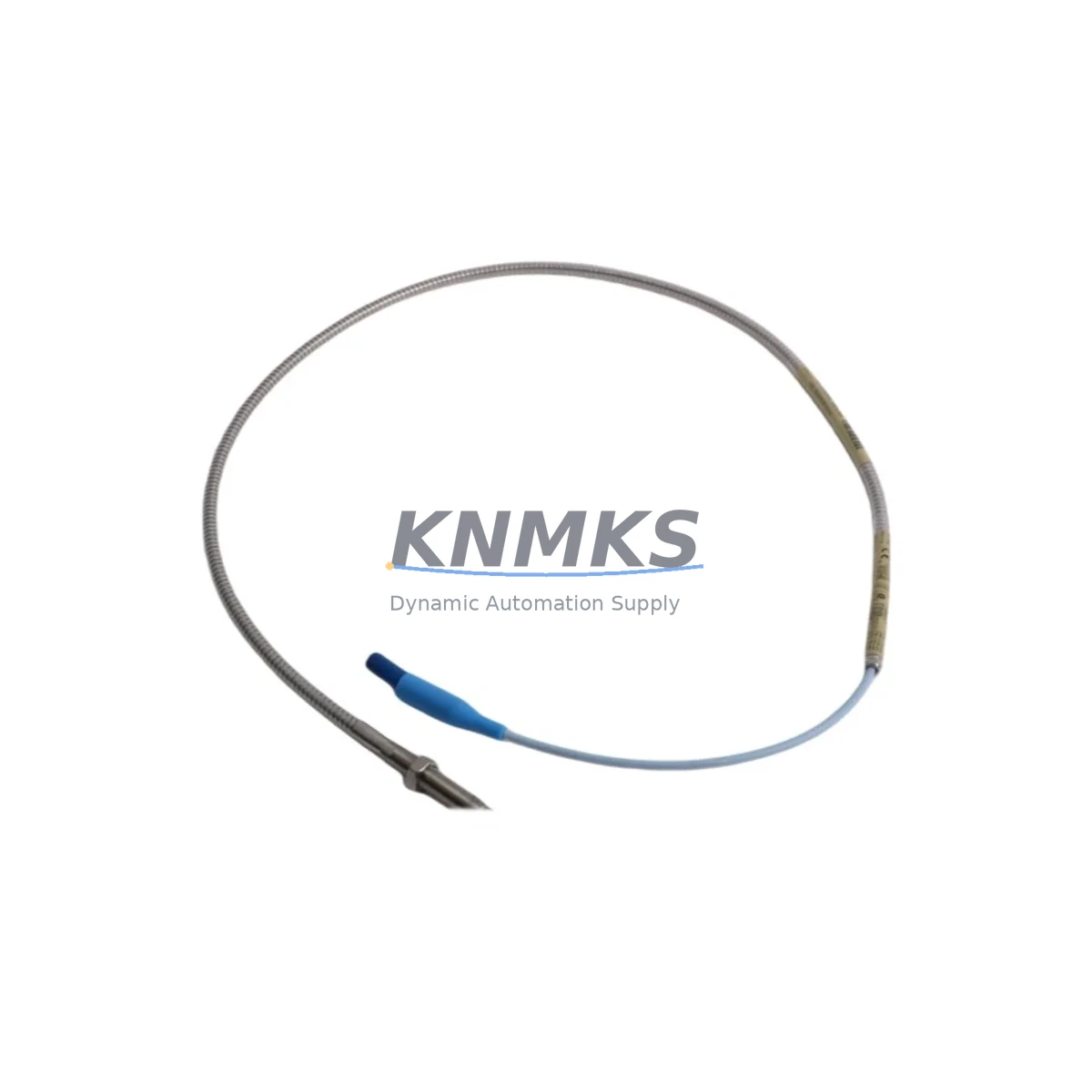

Bently Nevada 330102-00-20-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-20-10-02-05 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330102-00-20-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous monitoring system — one of the most widely deployed vibration and position measurement platforms in rotating machinery protection worldwide. Designed to deliver fail-safe, uninterrupted signal output in the most demanding industrial environments, this probe is a cornerstone component for machinery protection systems where control interruption, signal drift, or measurement failure carries direct safety and production consequences.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port or marine propulsion systems — rotating machinery such as compressors, turbines, pumps, and fans must be monitored without compromise. The 330102-00-20-10-02-05 provides the precise, low-noise gap voltage signal required by the Bently Nevada 3300 XL proximitor/driver to detect shaft radial vibration, axial position, and differential expansion in real time. Any degradation in probe performance — whether from electromagnetic interference, thermal stress, mechanical vibration, or power supply fluctuation — can trigger false trips, missed alarms, or undetected rotor excursions, all of which represent unacceptable risk in safety-critical loops.

This probe is rated for operation across a wide temperature range and is constructed with a stainless steel housing and armored cable assembly that resists mechanical abuse, oil contamination, and chemical exposure common in heavy industrial cabinets and field installations. Its shielded coaxial cable minimizes signal corruption in high electromagnetic interference environments — particularly important in control cabinets co-located with variable frequency drives, high-current motor starters, and power bus bars. When paired with the Bently Nevada 3300 XL 8mm Extension Cable (330130 series) and the corresponding 3300 XL Proximitor Sensor (330180 series), the complete measurement chain maintains calibrated sensitivity and linearity, ensuring that the monitoring system’s alarm and trip setpoints remain accurate over the full service life of the installation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330102-00-20-10-02-05 proximity probe does not operate in isolation. Its signal integrity depends on the quality of the entire measurement chain and the stability of the surrounding electrical environment. The Bently Nevada 3300 XL Proximitor Sensor (330180-51-00) conditions the probe’s raw eddy-current signal into a calibrated DC output, and any mismatch between probe and driver — whether due to counterfeit components, incorrect gap setting, or cable damage — will produce erroneous readings that can mask real machinery faults or generate nuisance trips.

Power supply stability is equally critical. The 3300 XL system requires a clean, regulated -24 VDC supply. Installations that use a dedicated DIN-rail power supply module — such as those from the Phoenix Contact QUINT or TRIO series — with integrated surge protection and output filtering provide the stable voltage baseline that prevents measurement drift during grid disturbances or generator switchovers. In facilities where the control bus is shared with high-inductive loads, a transient voltage surge suppressor (TVSS) module installed upstream of the monitoring rack is standard practice to protect both the proximitor and the probe cable from surge-induced damage.

For installations in hazardous areas or where intrinsic safety barriers are required, the probe’s signal loop must be routed through a certified Zener barrier or galvanic isolator — such as the MTL 787 series or equivalent — before entering the safe-area monitoring rack. This ensures that the fail-safe design intent of the machinery protection system is maintained end-to-end, from the probe tip in the bearing housing to the alarm output in the control room. Alongside the proximity probe, the Bently Nevada 3500/42M Proximitor I/O Module provides the rack-level interface for multi-channel vibration and position monitoring, enabling coordinated trip logic across multiple measurement points on the same machine train. For complete rotor dynamics coverage, the 330102-00-20-10-02-05 is typically deployed in sets of two per bearing — one for X-axis and one for Y-axis radial vibration — complemented by a Bently Nevada 330400 series thrust probe for axial position monitoring.

Critical Industrial Safety Applications

The 330102-00-20-10-02-05 proximity probe is deployed across the full spectrum of rotating machinery protection applications where continuous, unattended monitoring is a safety and regulatory requirement.

In petrochemical and refinery environments, it monitors centrifugal compressors and process pumps in API 670-compliant machinery protection systems, providing the real-time vibration data that enables operators to detect bearing wear, rotor imbalance, and oil whirl before they escalate to catastrophic failure. In power generation — both thermal and hydroelectric — it is installed on steam turbine and generator bearing housings, where axial position monitoring of the thrust bearing is a critical safety function that prevents rotor-stator contact during load transients.

In mining and mineral processing, where equipment operates in high-dust, high-vibration, and often high-temperature conditions, the stainless steel housing and armored cable of the 330102-00-20-10-02-05 provide the mechanical durability required for long service intervals between maintenance shutdowns. Water and wastewater treatment facilities rely on this probe for pump and blower protection, where unplanned downtime directly impacts public health infrastructure. In metallurgical and steel mill applications, the probe’s resistance to thermal cycling and electromagnetic interference from large induction furnaces and rolling mill drives makes it the preferred choice for continuous caster and rolling mill drive train monitoring. Port and marine propulsion systems — including diesel generator sets and main propulsion shafting — use the 3300 XL system with this probe for classification society-compliant shaft monitoring.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-20-10-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions and includes replacement or repair support. Support requests are processed directly through our technical team at [email protected].

Q2: How is each unit tested before shipment?
Every 330102-00-20-10-02-05 proximity probe undergoes outgoing functional inspection prior to dispatch. This includes verification of cable continuity, coil impedance within specification, and connector integrity. Units that do not pass inspection are quarantined and not shipped. A test record is available upon request for critical installations.

Q3: Is this probe compatible with existing 3300 XL system installations?
Yes. The 330102-00-20-10-02-05 is a direct replacement for the standard Bently Nevada 3300 XL 8mm probe with 2.0m integral cable. It is compatible with all 330180 series proximitor sensors and 3300 XL rack-mounted I/O modules. No recalibration of the monitoring system is required provided the replacement probe is installed at the same gap distance as the original.

Q4: Can KNMKS support long-term or blanket order supply for maintenance programs?
Yes. KNMKS maintains standing inventory of the 330102-00-20-10-02-05 and related 3300 XL series components to support planned maintenance shutdowns, annual turnarounds, and critical spare parts programs. Blanket purchase orders and scheduled release agreements are available for facilities that require guaranteed supply continuity. Contact [email protected] or +86 18359268345 to discuss your program requirements.
