Bently Nevada 330102-00-20-10-01-05 Spare Part for Uptime: Maintenance-Proven Proximity Probe for Continuous Factory Operation

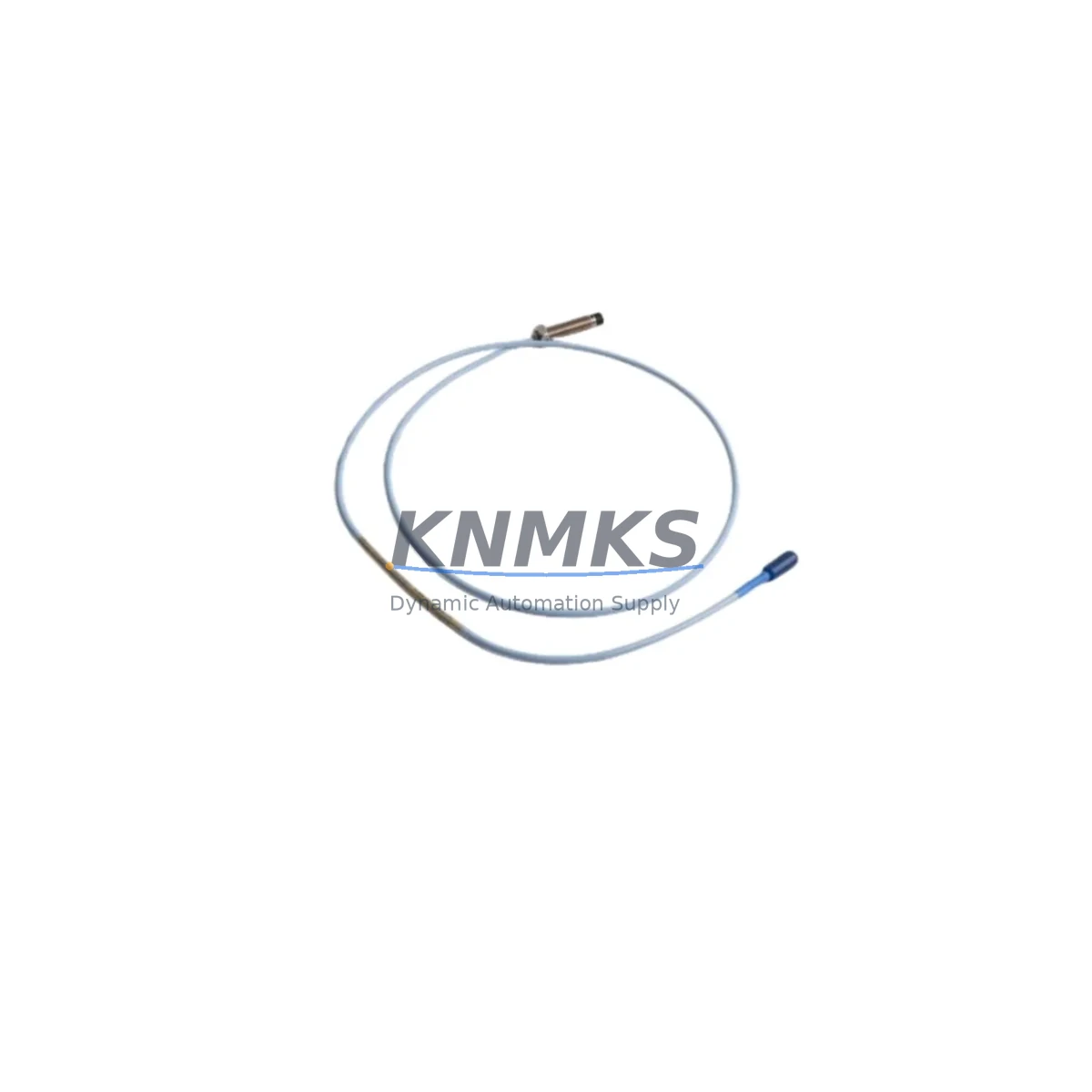

The Bently Nevada 330102-00-20-10-01-05 is an 8mm eddy-current proximity probe designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unscheduled shutdown, or building a resilient spare parts inventory for a critical turbine, compressor, or pump train, this probe is a direct original-specification replacement that restores system integrity without recalibration or signal chain rework.

Maintenance engineers and reliability teams operating Bently Nevada 3300 XL systems depend on the 330102-00-20-10-01-05 as a first-line spare. Its 8mm sensing tip, standard 5-metre extension cable compatibility, and -24 VDC bias voltage output make it a drop-in replacement for worn or damaged probes across a broad range of installation environments — from petrochemical turbine decks to power generation bearing housings. Every unit shipped by KNMKS is tested against OEM electrical specifications before dispatch, ensuring that the probe you install performs identically to the original factory-fitted component.

For procurement engineers managing long-cycle MRO contracts, the 330102-00-20-10-01-05 represents a low-risk, high-availability spare. KNMKS maintains buffer stock to support emergency orders, and all units are covered by a support terms confirmed by quotation from the date of shipment. Lead times are confirmed at order placement, and documentation packages including test reports and certificates of conformance are available on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated task. When the 330102-00-20-10-01-05 is removed from service — whether during a planned outage or an emergency callout — the surrounding signal chain and protection architecture should be inspected concurrently to avoid repeat failures and to maximise the value of the access window.

Begin with the 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the probe signal and provides the -24 VDC excitation. A probe that has been operating in a high-temperature or high-vibration environment may have stressed the Proximitor’s internal circuitry; verify gap voltage and output linearity before closing the bearing housing. If the Proximitor is more than five years old or shows output drift, replace it alongside the probe to eliminate a latent failure point.

Next, inspect the extension cable assembly (330130 series, 5 m standard). Coaxial cable integrity is frequently overlooked during probe replacements; micro-fractures in the cable jacket or connector corrosion at the junction box introduce noise that mimics shaft runout and can trigger spurious trips. Continuity and insulation resistance checks take less than ten minutes and can prevent a costly false alarm during restart.

At the 3500 Series rack or 3300 XL monitor card level, confirm that the channel configuration — gap setpoints, alert and danger thresholds, and OK relay logic — matches the replacement probe’s sensitivity. If the installation uses a 3500/42M Proximitor Monitor or a 3300 XL 16-channel monitor, verify that firmware revision and channel scaling are consistent with the 7.87 V/mm sensitivity of the 330102-00-20-10-01-05.

For installations where the proximity probe feeds a Keyphasor signal into a 3500/25 or 3300 XL Keyphasor module, confirm phase reference integrity after probe replacement. A misaligned or incorrectly gapped Keyphasor probe will corrupt vector data across all channels referencing that trigger, affecting both vibration analysis and balancing records.

Finally, review the terminal block and field wiring in the junction box. Loose terminations, moisture ingress, and corroded ferrules are common root causes of intermittent probe faults that are misdiagnosed as probe failures. Torque all terminals to specification and apply conformal coating if the junction box is exposed to condensation or process fluid splash.

Maintaining a minimum stock of two 330102-00-20-10-01-05 probes per critical machine train — alongside one spare Proximitor sensor and one extension cable set — is a widely adopted practice in reliability-centred maintenance programmes for rotating equipment. This buffer supports same-shift replacement without waiting for expedited freight, which is particularly important for machines with no installed spare or bypass capability.

Site Replacement Workflow

Step 1 — Isolation and de-energisation: Follow site LOTO procedures. Confirm the 3300 XL monitor channel is in bypass or that the machine is safely shut down before disconnecting the probe.

Step 2 — Gap measurement of the outgoing probe: Record the final gap voltage of the probe being removed. Compare against the installation baseline. A significant deviation from the original -10.0 VDC nominal gap indicates either shaft wear, probe tip damage, or Proximitor drift — each requiring separate investigation.

Step 3 — Mechanical installation of the 330102-00-20-10-01-05: Thread the probe into the bracket to the correct gap distance (typically 1.0 mm / 40 mil for standard shaft applications). Use a non-metallic feeler gauge. Apply thread-locking compound per OEM torque specification. Do not over-torque — the probe body is precision-machined and susceptible to thread damage.

Step 4 — Signal verification: With the Proximitor energised, measure gap voltage at the monitor terminal. Confirm the reading falls within the linear range (-10.0 VDC ±0.5 VDC at 1.0 mm gap). Check OK relay status on the monitor card.

Step 5 — System restart and trend baseline: After machine restart, allow one full operating cycle before accepting vibration trend data. Log the new baseline gap voltage and 1X/2X vibration amplitude for future reference. Update the CMMS record with the replacement date, probe serial number, and gap voltage.

This workflow applies equally to legacy 3300 XL installations and to hybrid sites where 3300 XL probes feed into a 3500 Series rack via signal conditioning adapters. The 330102-00-20-10-01-05 is compatible with both architectures, making it a versatile spare for sites managing mixed-generation Bently Nevada infrastructure.

Spare Parts Support FAQ

Q1: Is the 330102-00-20-10-01-05 a direct replacement for older 330102 variants without suffix changes?
The 330102-00-20-10-01-05 is a specific configuration within the 330102 family. The suffix digits define cable length, connector type, and temperature rating. Before substituting a different suffix variant, confirm that the replacement matches the installed Proximitor’s input specification and the bracket’s mechanical clearance. KNMKS technical support can assist with cross-reference verification prior to order placement.

Q2: How does KNMKS verify probe condition before shipment?
Every 330102-00-20-10-01-05 unit is bench-tested for bias voltage output, sensitivity linearity, and cable continuity before dispatch. Units that do not meet OEM electrical specifications are quarantined and not shipped. A test report is available upon request and can be included in the shipment documentation package.

Q3: What is the recommended spare parts holding strategy for a site with six critical machine trains?
Industry practice for rotating equipment protection systems suggests holding a minimum of one probe per monitored position per critical machine, plus a 20% buffer for emergency use. For a six-train site with an average of four radial and axial positions per machine, this equates to approximately 28–30 probes availability confirmed by RFQ. KNMKS offers volume pricing and consignment stock arrangements for sites with large installed bases.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects, electrical performance deviations from OEM specification, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, over-torquing, chemical exposure beyond rated limits, or mechanical impact. To initiate a support terms claim, contact [email protected] with the order reference, installation date, and a description of the observed fault. KNMKS will arrange return shipping and provide a replacement or credit within the agreed lead time.
