Bently Nevada 330102-00-18-90-02-00 Maintenance-Proven Spare

Overview

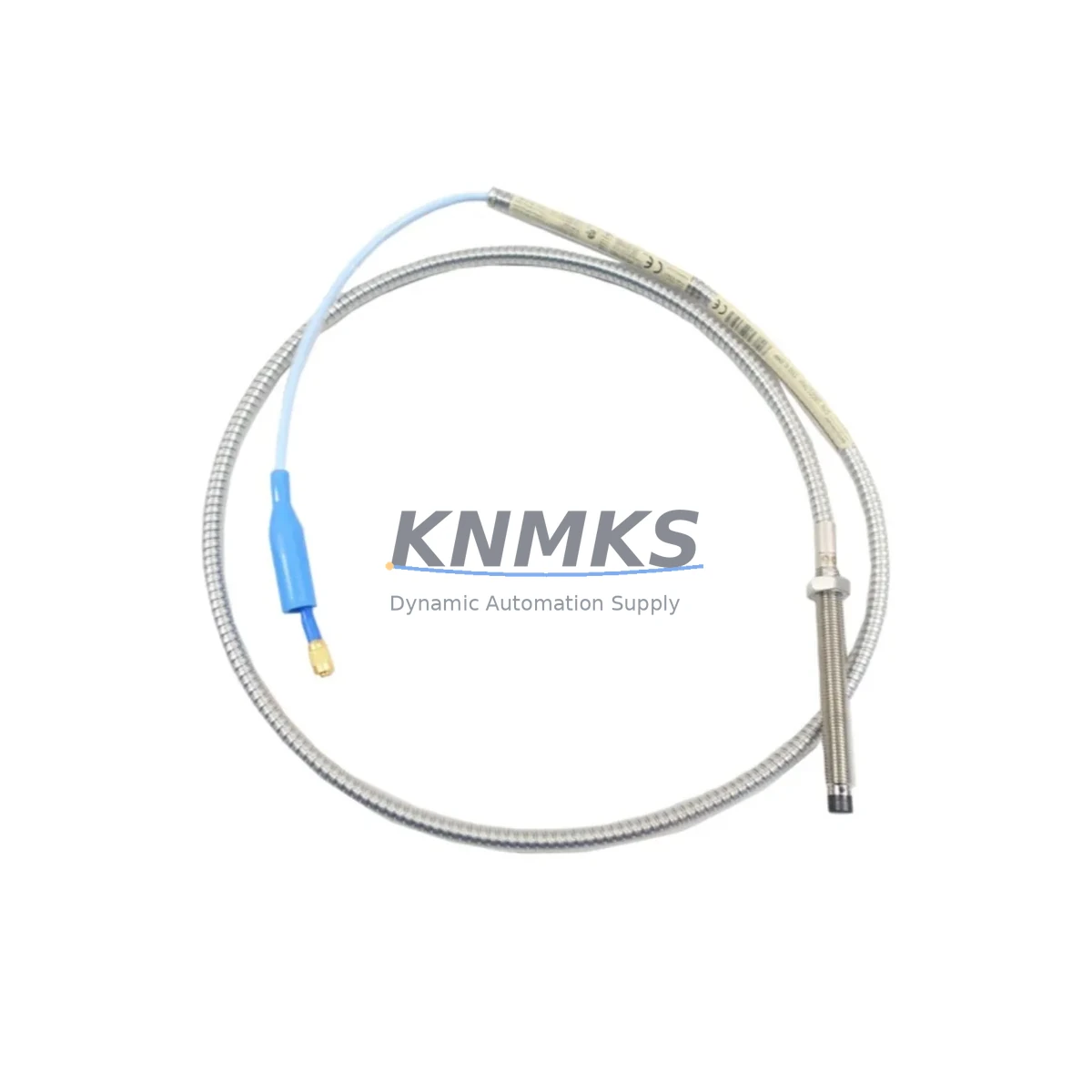

Bently Nevada 330102-00-18-90-02-00 Maintenance-Proven Spare: Proximity Probe for Factory Uptime

The Bently Nevada 330102-00-18-90-02-00 is an 8mm proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-proven spare part, it is widely deployed in turbines, compressors, pumps, and motors across energy, petrochemical, and heavy manufacturing facilities. Stocking this probe as a verified spare is a fundamental step in any predictive maintenance or emergency replacement strategy aimed at minimizing unplanned downtime.

This original spare is sourced, inspected, and tested prior to shipment. Each unit is verified for dimensional accuracy, cable integrity, and output sensitivity before dispatch. A support terms confirmed by quotation is included, covering manufacturing defects and performance deviations under normal operating conditions. Long-term supply commitments are available for facilities managing multi-unit fleets or annual maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-18-90-02-00 proximity probe during scheduled or emergency maintenance, a thorough inspection of the surrounding measurement chain is essential to ensure system integrity and avoid repeat failures. The probe operates as part of a three-component eddy current system: the probe itself, the extension cable, and the driver (proximitor). The 3300 XL proximitor/driver module — typically a 330180 or 330130 series unit — should be checked for output voltage stability and calibration drift before the new probe is commissioned. A faulty driver will cause incorrect gap readings even with a new probe installed.

The 3300 XL extension cable (such as the 330130 series) connecting the probe to the driver is a frequent source of signal degradation due to connector corrosion, mechanical damage, or impedance mismatch. Inspect and replace as a matched set where possible. At the monitor level, verify that the 3500/40M or 3500/42M vibration monitor module is reading within expected voltage windows and that alarm setpoints have not drifted. I/O terminal blocks and field wiring should be checked for loose connections, moisture ingress, and ground loops — all of which can introduce noise into the proximity signal.

For facilities running API 670-compliant protection systems, the 3500 rack backplane and power supply module (3500/15 or equivalent) should be included in the inspection cycle. A degraded rack power supply can cause intermittent monitor faults that are misdiagnosed as probe failures. Additionally, review the signal conditioning and barrier modules in the field junction box — Zener barriers or galvanic isolators used in hazardous area installations can introduce impedance changes that affect probe calibration. Fuse integrity on the -24 VDC supply rail should be confirmed, and any terminal blocks or marshalling panels in the signal path should be torqued to specification and inspected for oxidation.

Procurement engineers should consider stocking the 330102-00-18-90-02-00 alongside matched extension cables and at least one spare proximitor driver to ensure a complete replacement kit is available for emergency callouts. This reduces mean time to repair (MTTR) and eliminates the risk of sourcing delays during critical outages.

Site Replacement Workflow

1. Pre-replacement verification: Confirm the replacement probe part number matches the installed unit exactly — cable length, connector angle, and probe diameter must be identical to maintain calibration. The 330102-00-18-90-02-00 uses an 18-inch cable with a 90° connector; substituting a straight-connector variant will affect installation geometry and gap setting.

2. Safe isolation: De-energize the -24 VDC supply to the proximitor before disconnecting the probe. Confirm with a multimeter. Do not disconnect the probe under live voltage as this can damage the driver output stage.

3. Gap setting: After mechanical installation, set the probe gap to the OEM-specified range (typically 1.0–1.5mm for 8mm probes) using a non-conductive feeler gauge or by monitoring the driver output voltage (target: -10 to -12 VDC at nominal gap). Record the as-found and as-left gap values in the maintenance log.

4. System verification: Re-energize the system and confirm the monitor is reading within the expected voltage window. Perform a slow-roll check if the machine can be safely rotated. Verify that vibration and position readings are stable and within baseline before returning the machine to service.

5. Documentation: Update the equipment history record with the replacement date, new probe serial number, gap setting, and post-installation readings. This supports future predictive maintenance trending and support requests.

Spare Parts Support FAQ

Q: Is the 330102-00-18-90-02-00 a direct replacement for older 3300 series probes?
A: The 3300 XL series probes are designed to be backward compatible with earlier 3300 series drivers and monitors in most installations. However, always verify the driver model and system configuration before installation, as some legacy systems may require recalibration after substitution.

Q: How is each unit tested before shipment?
A: Every 330102-00-18-90-02-00 unit is tested for output sensitivity (200 mV/mil), cable continuity, and connector integrity prior to dispatch. A test report is available upon request. Units that do not meet OEM specification are not shipped.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects, premature failure under normal operating conditions, and performance deviations from published specifications. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Support requests are processed within 5 business days of receipt of the returned unit.

Q: Can long-term supply agreements be arranged for fleet maintenance programs?
A: Yes. KNMKS supports long-term supply commitments for facilities managing multiple rotating machines or annual turnaround schedules. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time guarantees tailored to your maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-00-18-90-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-00-18-90-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
