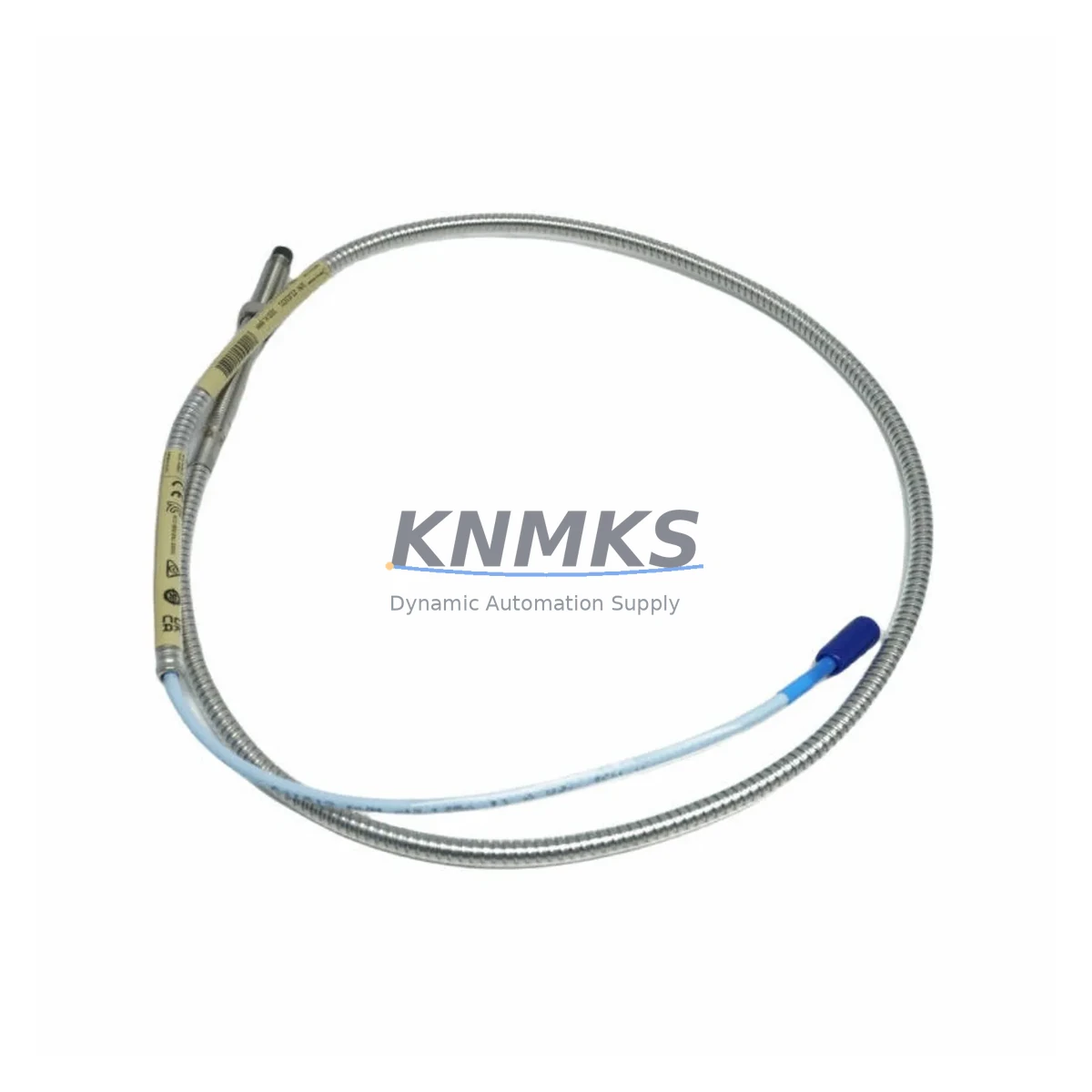

Bently Nevada 330102-00-13-90-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-00-13-90-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330102-00-13-90-02-00 is an 8mm eddy-current proximity probe engineered for the Bently Nevada 3300 XL Series continuous vibration monitoring system. Designed to deliver fail-safe, uninterrupted shaft displacement and vibration measurement in the most demanding industrial environments, this probe is a cornerstone component for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, marine propulsion systems, and continuous process manufacturing lines.

In critical interlock loops and safety instrumented systems (SIS), signal integrity is non-negotiable. The 330102-00-13-90-02-00 utilizes a precision-wound eddy-current sensing coil encapsulated in a ruggedized stainless-steel housing, providing stable, drift-free output across wide temperature ranges and in the presence of heavy electromagnetic interference (EMI). Its shielded cable assembly and robust connector design suppress signal noise from variable-frequency drives, high-voltage switchgear, and adjacent power cabling — common sources of measurement corruption in heavy industrial control cabinets.

Unplanned shutdowns in rotating machinery — compressors, turbines, pumps, and fans — are among the most costly events in industrial operations. The 330102-00-13-90-02-00 probe, when paired with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 series), delivers a continuous, linear 4–20 mA or voltage output that feeds directly into the machinery protection system. This closed-loop architecture ensures that any shaft excursion beyond safe operating limits triggers an immediate, deterministic protective response — eliminating the risk of delayed reaction due to signal dropout or sensor drift.

In high-dust, high-humidity, and high-vibration environments — such as coal handling conveyors, cement kiln drives, or offshore platform compressor trains — sensor reliability is the first line of defense against catastrophic mechanical failure. The probe’s IP67-rated housing and chemically resistant tip material resist ingress from process fluids, lubricating oils, and corrosive atmospheres, maintaining measurement accuracy without recalibration over extended service intervals. When installed alongside the Bently Nevada 3300/16-24-01-01-00-00-00 I/O Module and the 3500/22M Transient Data Interface, the complete monitoring chain provides real-time vibration trending, alarm annunciation, and trip relay actuation — all from a single, coherent safety architecture.

For control cabinet builders and system integrators specifying protection for large rotating assets, the 330102-00-13-90-02-00 is fully compatible with the Bently Nevada 3500 Series Machinery Protection System rack infrastructure. The probe’s standardized 5-meter or 9-meter extension cable options (such as the 330130-045-00-00 extension cable) allow flexible installation across large machine trains without signal degradation. Surge protection at the cabinet entry point — using dedicated transient voltage suppressors on the proximitor power supply lines — further safeguards the measurement loop from lightning-induced surges and switching transients common in outdoor substations and remote pump stations.

Thermal stability is another critical safety parameter. In environments where ambient temperatures inside control enclosures can exceed 55°C due to inadequate ventilation or high-density component packing, the 330102-00-13-90-02-00 maintains its calibrated sensitivity factor (typically 7.87 V/mm for the standard range) without thermal drift compensation. This characteristic is essential for turbine overspeed protection and compressor surge detection, where even a 1% measurement error can mean the difference between a controlled shutdown and a destructive mechanical event.

KNMKS maintains verified stock of the Bently Nevada 330102-00-13-90-02-00 with full pre-shipment functional testing performed on each unit using a calibrated Proximitor test bench. Every probe is verified for gap voltage linearity, sensitivity factor, and insulation resistance before dispatch. A support terms confirmed by quotation covers all units against manufacturing defects and performance deviation from published specifications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the Bently Nevada 330102-00-13-90-02-00 proximity probe demands a carefully coordinated set of components to ensure fail-safe operation from sensor to trip relay. The probe interfaces directly with the Bently Nevada 3300 XL Proximitor Sensor (330180 series), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the protection rack. This signal is then processed by the Bently Nevada 3500/40M Proximitor Monitor, which provides dual-channel vibration and position monitoring with configurable alarm and danger setpoints, relay outputs, and buffered transducer outputs for DCS integration.

Power supply integrity within the protection cabinet is maintained by a dedicated Bently Nevada 3500/15 Power Supply Module, which provides regulated -24 VDC to the Proximitor sensors and ensures that a single power supply fault does not compromise the entire monitoring loop. For installations requiring redundant power, dual power supply configurations with automatic changeover are standard practice in API 670-compliant systems.

Communication between the 3500 Series rack and the plant DCS or safety PLC is typically handled via the Bently Nevada 3500/22M Transient Data Interface, which supports Modbus TCP, Ethernet/IP, and other industrial protocols. This ensures that vibration data, alarm states, and trip events are transmitted in real time to the control room — enabling operators to make informed decisions before a minor vibration anomaly escalates into a forced shutdown. In high-EMI environments, the use of fiber-optic communication links between the protection rack and the DCS further eliminates ground loop interference and surge coupling risks.

For installations in hazardous classified areas (Zone 1 or Zone 2 per IEC 60079), the proximity probe system is complemented by Bently Nevada Zener barrier assemblies or galvanic isolators installed at the cabinet boundary, ensuring that the intrinsically safe energy limits required by the area classification are maintained throughout the measurement loop. This complete protection architecture — from the 330102-00-13-90-02-00 probe tip to the safety relay output — provides a deterministic, auditable safety chain that satisfies both functional safety (IEC 61511) and machinery protection (API 670) requirements.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 330102-00-13-90-02-00 is deployed on centrifugal compressors, reactor feed pumps, and steam turbine-driven generators where continuous shaft vibration monitoring is mandated by API 670 and process safety management (PSM) regulations. A single undetected bearing failure in a high-pressure compressor train can result in a catastrophic release of flammable or toxic process gas — making the reliability of the proximity probe system a direct process safety requirement.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe monitors shaft displacement on turbine-generator sets operating at 3000 or 3600 RPM. At these speeds, the margin between normal operation and destructive vibration is measured in micrometers, and the 330102-00-13-90-02-00’s sub-micron resolution and low noise floor ensure that early-stage rotor imbalance, misalignment, or oil whirl instability is detected before it reaches trip amplitude.

In mining and mineral processing environments — characterized by extreme dust loading, high ambient vibration from blasting and crushing operations, and wide temperature swings — the probe’s IP67 rating and stainless-steel construction provide the environmental robustness required for reliable long-term service on ball mill drives, SAG mill pinion bearings, and slurry pump shafts. Planned maintenance intervals can be extended significantly when vibration trending data from the 330102-00-13-90-02-00 is integrated into a predictive maintenance program.

In water and wastewater treatment facilities, the probe is used on large vertical turbine pumps and blower trains where shaft position monitoring provides early warning of impeller wear, bearing degradation, and hydraulic instability. In metallurgical and steel mill applications, the probe operates reliably in the presence of intense electromagnetic fields from arc furnaces and induction heating equipment — environments where lesser sensors exhibit signal drift or complete measurement failure.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 330102-00-13-90-02-00?
The support terms confirmed by quotation cover all manufacturing defects and any deviation from published performance specifications, including sensitivity factor accuracy, linear range, and insulation resistance. If a unit fails to perform within specification during the confirmed support period under normal operating conditions, KNMKS will provide a replacement unit at no additional cost. Support requests are processed promptly to minimize any impact on your production continuity.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-00-13-90-02-00 unit dispatched by KNMKS undergoes a full functional test on a calibrated Proximitor test bench. This includes verification of gap voltage linearity across the full linear range, confirmation of the 7.87 V/mm sensitivity factor, insulation resistance measurement between the coil and housing, and cable continuity and shield integrity checks. A test record is available upon request for quality documentation purposes.

Q3: Is the 330102-00-13-90-02-00 compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330102-00-13-90-02-00 is a direct-fit replacement for all Bently Nevada 3300 XL 8mm proximity probe system installations. It is fully compatible with the 330180 series Proximitor Sensors and the complete 3500 Series Machinery Protection System rack, including the 3500/40M monitor and 3500/22M communication interface. No recalibration of the Proximitor or monitor is required when replacing a like-for-like probe of the same part number.

Q4: Can KNMKS support long-term or repeat supply of this part for ongoing maintenance programs?
KNMKS maintains a dedicated inventory of Bently Nevada proximity probe system components, including the 330102-00-13-90-02-00, to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. We can provide scheduled delivery agreements and reserve stock allocations for customers with high-volume or time-critical maintenance requirements. Contact our technical sales team to discuss your specific supply continuity needs.
