Bently Nevada 330102-00-13-15-02-05 Maintenance-Proven Spare Part for Factory Uptime

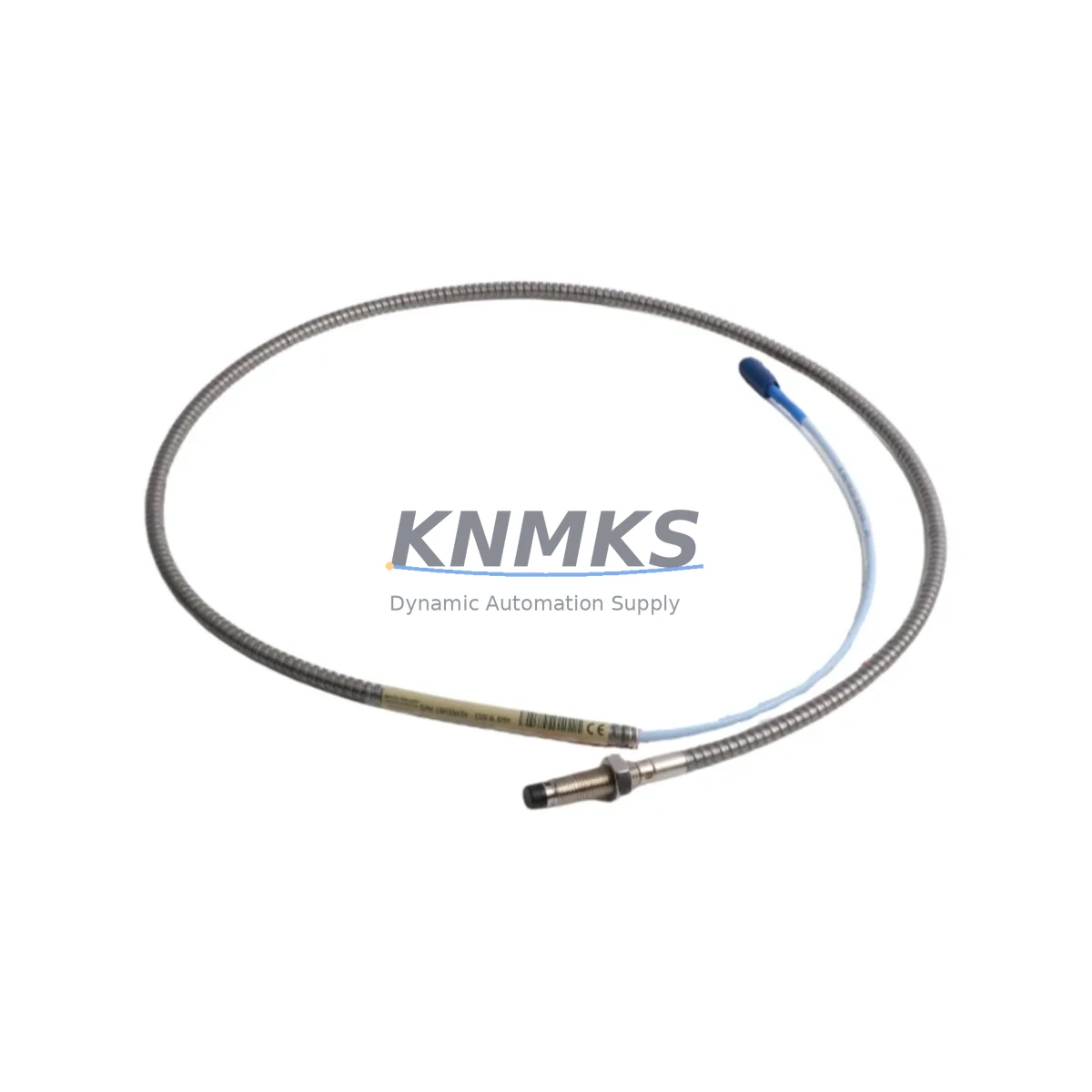

The Bently Nevada 330102-00-13-15-02-05 is an 8mm proximity transducer engineered for continuous vibration and position monitoring in rotating machinery applications. As a core component of the Bently Nevada 3300 XL Series monitoring system, this transducer delivers reliable non-contact measurement of shaft displacement, radial vibration, and axial position — critical parameters for turbines, compressors, pumps, and motors operating in demanding industrial environments. Maintaining a verified spare of the 330102-00-13-15-02-05 in your cabinet inventory is a fundamental step in any predictive maintenance or emergency recovery plan.

For maintenance engineers managing aging DCS or machinery protection systems, the 330102-00-13-15-02-05 represents a high-priority line item on any annual inspection checklist. Signal drift, cable degradation, or connector corrosion can cause false trips or missed alarms — both of which carry significant production risk. Having a tested, original-specification replacement on hand eliminates the lead-time gap that turns a minor sensor fault into an extended unplanned shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-13-15-02-05 during a scheduled outage or emergency callout, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL measurement chain is a system — and each element must be verified to restore full monitoring integrity.

Begin with the 330180 Series Proximitor Sensor (the signal conditioning driver paired with this transducer). Check the driver housing for moisture ingress, verify the gap voltage output is within the -18 VDC ±1 VDC window, and confirm the LED status indicators are normal. A faulty Proximitor will produce erroneous readings even with a new transducer installed.

Next, inspect the 330130 Series extension cable connecting the transducer to the Proximitor. Extension cables are a frequent failure point in high-vibration or high-temperature zones — look for jacket cracking, connector pin corrosion, and continuity loss. Replace the cable assembly if any anomaly is found; reusing a degraded cable with a new transducer defeats the purpose of the replacement.

At the rack level, verify the 3300/16 or 3500/42 monitor module input channel. Confirm the channel is not in bypass or inhibit mode, and that the OK relay output is functioning correctly. If the monitor has been in service for more than five years, consider scheduling a full module calibration or swap during the next planned outage.

Check the 24 VDC or 28 VDC field power supply feeding the Proximitor. Voltage sag or ripple on the supply rail can introduce noise into the vibration signal and cause nuisance trips. A dedicated, regulated DIN-rail power supply with adequate current margin is recommended for each monitoring loop.

For systems integrated with a DCS or safety PLC via 4–20 mA or relay outputs, verify the I/O card termination at the marshalling cabinet. Loose terminal screws, oxidized contacts, or incorrect loop resistance can corrupt the analog signal before it reaches the control system historian. Use a calibrated loop tester to confirm end-to-end signal integrity after transducer replacement.

Finally, review the barrier or isolator modules (if installed in hazardous-area applications). Zener barriers and galvanic isolators associated with the 3300 XL loop should be tested for correct voltage clamping and isolation resistance. A degraded isolator can allow ground loops that mask real vibration events or generate false alarms.

Site Replacement Workflow

The 330102-00-13-15-02-05 is a direct replacement for earlier 330102 Series variants used in legacy 3300 XL installations. Before installation, confirm the gap setting specification from the original system documentation — typically 1.0 mm to 2.25 mm for 8mm probes, yielding a -10 VDC to -18 VDC output range. Use a non-conductive gap-setting tool and a calibrated DC voltmeter to set the probe gap precisely before tightening the locknut.

Power down the Proximitor driver before disconnecting the transducer. Label all cables before removal to prevent mis-wiring during reinstallation. After installing the new 330102-00-13-15-02-05, restore power and verify the OK output, gap voltage, and channel status at the monitor before returning the machine to service. Document the replacement in the equipment maintenance log with the new part serial number and gap voltage reading.

For sites managing multiple identical machines (e.g., parallel compressor trains), consider a staggered replacement strategy — replacing transducers on one train during a planned window while keeping the parallel train in service. This approach eliminates the risk of simultaneous sensor failures across redundant assets and keeps production continuity intact.

Procurement engineers should note that the 330102-00-13-15-02-05 is subject to OEM end-of-life and long lead-time risk as Bently Nevada transitions customers to newer platform architectures. Securing a buffer stock of 2–4 units per critical machine train is a prudent inventory strategy, particularly for facilities operating under long-term service agreements or in remote locations where expedited freight is cost-prohibitive.

Spare Parts Support FAQ

Q1: Is the 330102-00-13-15-02-05 compatible with both 3300 XL and older 3300 Series monitors?
The 330102-00-13-15-02-05 is designed and specified for the 3300 XL 8mm system. While the physical connector and gap voltage characteristics are similar to earlier 3300 Series probes, full compatibility with non-XL monitors should be verified against the original system documentation or Bently Nevada application engineering guidance before installation in legacy racks.

Q2: What pre-shipment testing is performed on this spare part?
Each unit undergoes functional verification including output voltage check, cable continuity, and connector integrity inspection prior to dispatch. Units are shipped with individual test records and are packaged in anti-static, moisture-resistant packaging to preserve condition during transit and storage.

Q3: How should this transducer be stored if not immediately installed?
Store in a dry, temperature-controlled environment (0°C to 40°C), away from strong magnetic fields and mechanical vibration. Keep in original packaging with desiccant. Inspect the connector and cable jacket annually if held in long-term storage. The support terms confirmed by quotation period begins from the shipment date, not the installation date.

Q4: Can long-term supply be arranged for facilities with multiple 3300 XL installations?
Yes. Blanket order arrangements and scheduled release programs are available for facilities requiring ongoing supply of the 330102-00-13-15-02-05 and associated 3300 XL components. Contact our sales team to discuss volume pricing, consignment stock options, and multi-site supply agreements tailored to your maintenance cycle.
