Bently Nevada 330102-00-10-10-01-05 Fail-Safe Proximity Probe

Overview

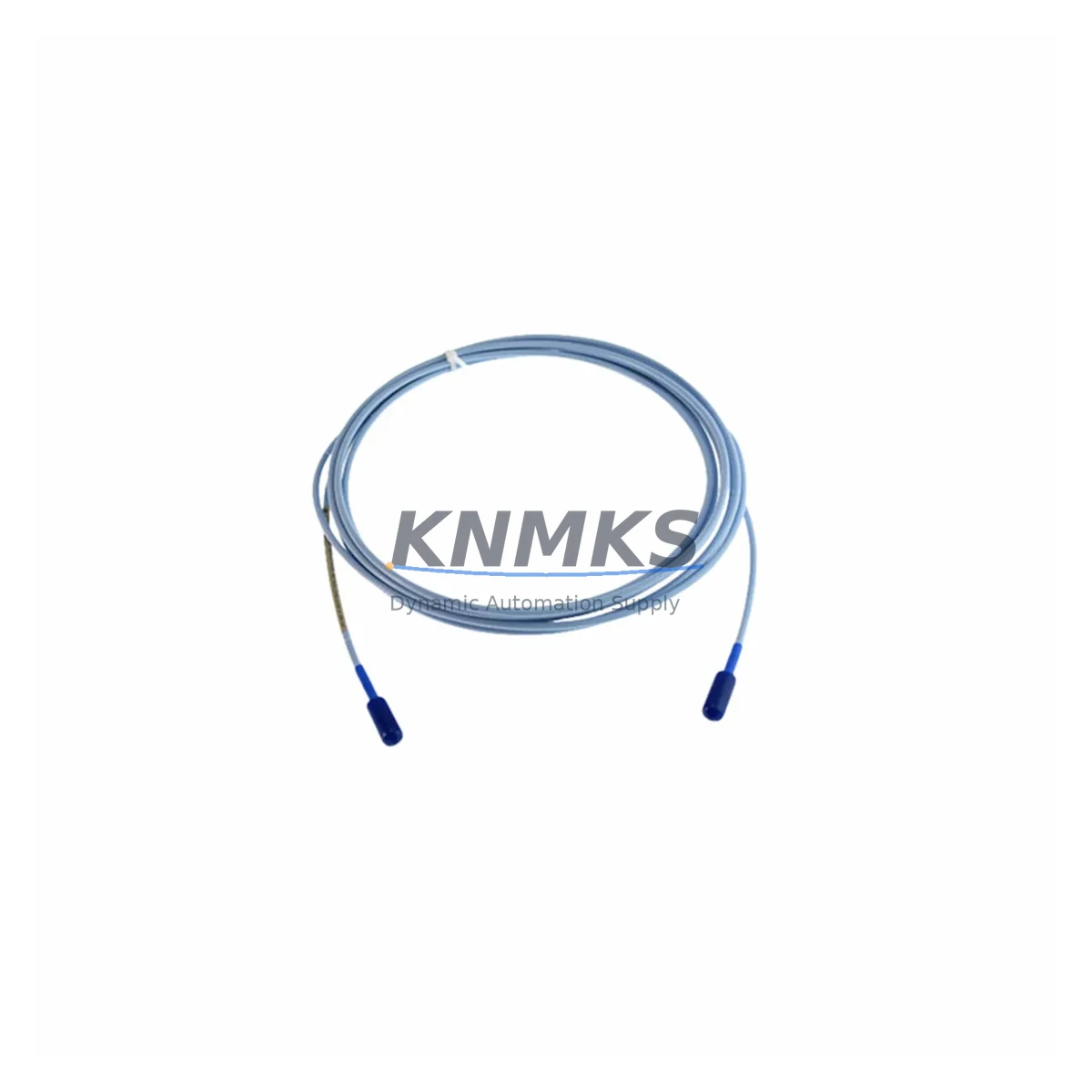

Bently Nevada 330102-00-10-10-01-05 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330102-00-10-10-01-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed to deliver fail-safe, continuous shaft position and vibration measurement in the most demanding industrial environments, this probe is a critical component in rotating machinery protection strategies across petrochemical, power generation, mining, metallurgy, and continuous manufacturing facilities. Its robust construction and precision signal output make it an indispensable element of any safety-critical control loop where unplanned downtime carries severe operational and financial consequences.

In high-stakes industrial settings — including gas turbine trains, centrifugal compressors, steam turbines, and large motor-driven pump systems — shaft displacement monitoring is not optional. The 330102-00-10-10-01-05 provides the real-time radial vibration and position data that enables the 3300 XL monitoring system to trigger protective shutdown sequences before mechanical damage escalates. This fail-safe architecture ensures that even in the event of signal loss or cable fault, the system defaults to a safe state, preventing catastrophic bearing failure, seal damage, or rotor contact.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-00-10-10-01-05 proximity probe does not operate in isolation — its reliability is directly tied to the integrity of the surrounding monitoring and protection architecture. In a properly configured 3300 XL system, the probe interfaces with the Bently Nevada 3300 XL proximitor / seismic transducer (such as the 330180 series), which conditions the raw eddy current signal into a clean DC voltage output for the monitoring rack. Signal integrity between the probe tip and the proximitor is maintained through matched 3300 XL extension cables, which must be verified for continuity and shielding integrity during any replacement procedure.

Within the control cabinet, the 3300 XL monitoring rack — including Bently Nevada 3500 series rack modules for facilities running integrated machinery protection systems — relies on stable, regulated DC power supply rails. Power supply disturbances, including voltage sags, surges, and high-frequency switching noise from adjacent variable frequency drives or soft starters, can introduce measurement offsets or false trip conditions. Pairing the monitoring system with a dedicated Bently Nevada 3500/15 power supply module or equivalent isolated DC supply ensures that transient events on the plant power bus do not propagate into the vibration measurement chain.

In cabinets where the 3300 XL system shares enclosure space with PLC I/O modules, relay output cards, or communication gateways, proper grounding and cable segregation are essential. Shielded cable trays, ferrite cores on signal cables, and physical separation from high-current motor control wiring all contribute to maintaining the sub-millivolt signal fidelity that the 330102-00-10-10-01-05 is designed to deliver. For facilities also running Bently Nevada 3500/42M position monitor modules, the same probe series supports axial position monitoring on thrust bearings, providing a complete shaft dynamic picture within a unified rack architecture.

Where redundant monitoring is required — as mandated in SIL 2 or SIL 3 safety instrumented systems — dual-probe configurations using two 330102-00-10-10-01-05 units at 90° orientation provide XY vibration vectors for full orbital analysis. This configuration, combined with a Bently Nevada 3500/25 keyphasor module, enables phase-referenced vibration analysis critical for balancing diagnostics and early fault detection in high-speed rotating equipment.

Critical Industrial Safety Applications

The 330102-00-10-10-01-05 is deployed across a wide spectrum of safety-critical industrial applications where continuous, uninterrupted shaft monitoring is a regulatory and operational requirement.

In petrochemical and refinery facilities, this probe monitors radial vibration on centrifugal compressors handling flammable or toxic process gases. A bearing failure in these machines without adequate early warning can result in seal breach, process gas release, and fire or explosion risk. The fail-safe signal architecture of the 3300 XL system ensures that any probe or cable fault is immediately flagged, preventing a monitoring blind spot from masking developing mechanical faults.

In power generation plants — both thermal and combined-cycle — steam turbine and gas turbine shaft monitoring is governed by API 670 machinery protection standards. The 330102-00-10-10-01-05 meets the measurement requirements for API 670-compliant radial vibration channels, providing the sub-millisecond response time needed to initiate turbine trip sequences before rotor-to-stator contact occurs.

In mining and mineral processing environments, large ball mills, SAG mills, and crusher drives operate under extreme mechanical loading with high levels of structural vibration and airborne dust. The 8mm probe format of the 330102-00-10-10-01-05, combined with its high-temperature rating and shielded cable construction, maintains reliable measurement even in these harsh conditions, supporting predictive maintenance programs that reduce unplanned mill stoppages.

In water treatment and pumping stations, large vertical turbine pumps and horizontal split-case pumps benefit from continuous shaft monitoring to detect impeller imbalance, cavitation-induced vibration, and bearing wear before they progress to catastrophic failure. The non-contact measurement principle of the eddy current probe eliminates wear-related drift that affects contact-type sensors in these wet, corrosive environments.

In metallurgical and steel plant applications, rolling mill main drives, continuous caster pinch rolls, and ID fan systems operate in environments with intense electromagnetic interference from large DC drives and arc furnace equipment. The shielded coaxial construction of the 330102-00-10-10-01-05 cable system provides the EMI rejection necessary to maintain measurement integrity in these electrically noisy environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-00-10-10-01-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects, calibration drift beyond specification, and component failure under normal operating conditions. Support requests are supported with replacement dispatch and technical documentation to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330102-00-10-10-01-05 unit undergoes full functional verification prior to shipment, including sensitivity calibration check (7.87 V/mm ± tolerance), cable continuity and shield integrity test, connector inspection, and linear range verification. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL proximitor and extension cable assemblies?
Yes. The 330102-00-10-10-01-05 is designed for direct compatibility with the Bently Nevada 3300 XL proximitor series and matched extension cables. It is critical that the probe, extension cable, and proximitor are used as a matched system to maintain calibrated sensitivity. Mixing components from different series or manufacturers will invalidate the calibration and may produce measurement errors.

Q4: Can long-term supply agreements be arranged for this SKU?
Yes. KNMKS maintains multi-region stock of the 330102-00-10-10-01-05 to support both emergency replacement requirements and scheduled outage spare parts programs. Long-term supply agreements with defined lead times, pricing, and stock reservation are available for facilities with ongoing maintenance contracts or multi-unit fleet requirements. Contact our technical sales team to discuss your supply continuity needs.
