Bently Nevada 330101-XX-XX-20-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-XX-XX-20-02-CN Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Control

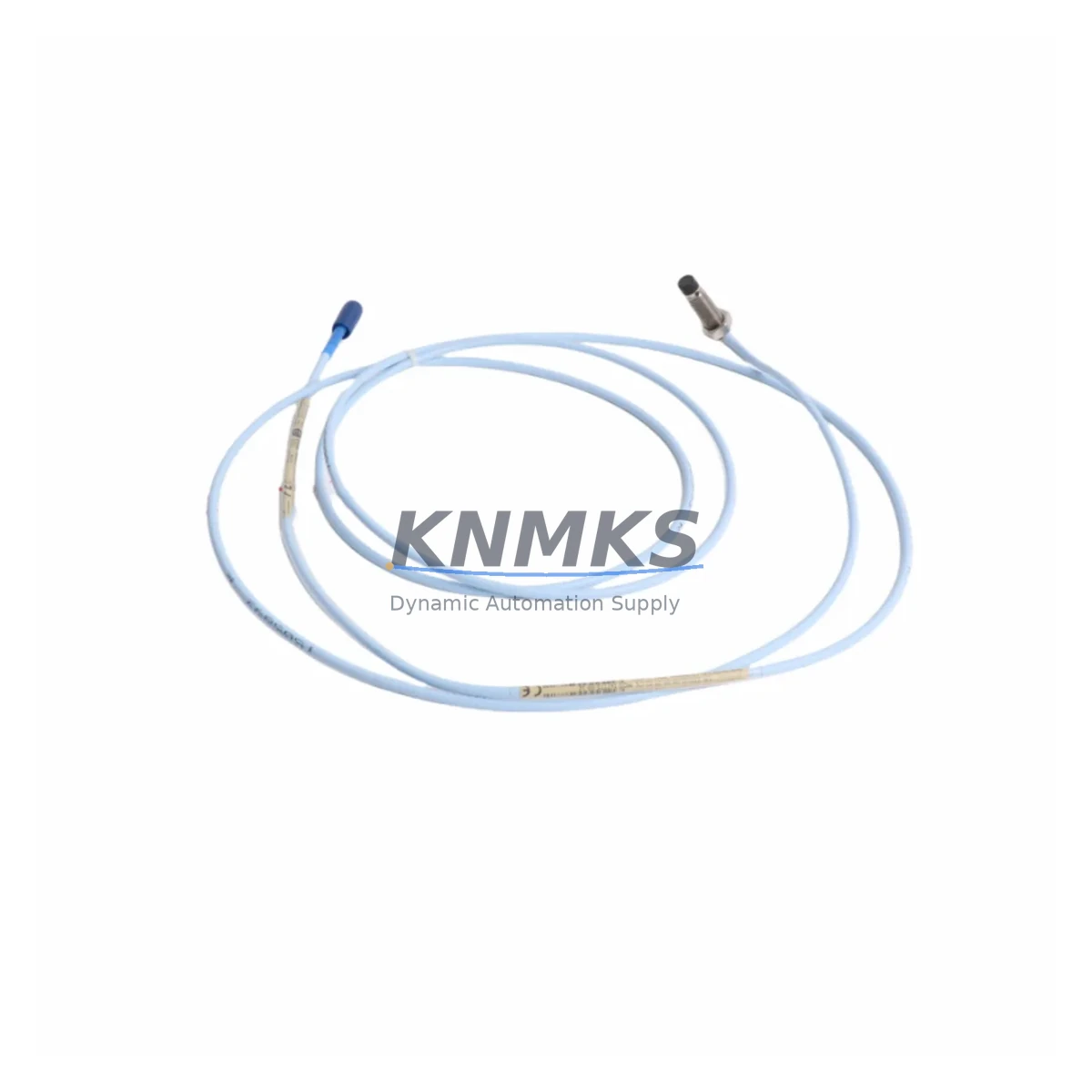

The Bently Nevada 330101-XX-XX-20-02-CN is an 8mm eddy-current proximity probe engineered for continuous, fail-safe shaft vibration and position monitoring within the Bently Nevada 3300 XL Series machinery protection system. Designed to operate reliably in the harshest industrial environments — including high electromagnetic interference, elevated temperature, mechanical vibration, condensation, and airborne particulate — this probe delivers the signal integrity and measurement stability that safety-critical rotating machinery demands. Whether deployed in a petrochemical compressor train, a power generation turbine, a mining hoist drive, or a continuous steel rolling mill, the 330101-XX-XX-20-02-CN provides the real-time proximity data that prevents catastrophic bearing failure, shaft rub, and unplanned shutdown.

In high-stakes control environments, signal drift and probe failure are not acceptable. The 330101-XX-XX-20-02-CN addresses this with a precision-wound sensing coil, hermetically sealed stainless steel housing, and a shielded coaxial cable assembly that maintains calibrated output across the full operating range. Its eddy-current sensing principle is inherently immune to contamination by oil mist, steam, and conductive dust — conditions that routinely compromise optical or capacitive alternatives. The probe integrates directly with the Bently Nevada 3300 XL proximitor/seismic transducer and is fully compatible with the 3500 Series machinery protection rack, enabling seamless migration from legacy 3300 systems to modern 3500 platforms without rewiring the field sensor layer.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-XX-XX-20-02-CN does not operate in isolation. Its signal chain begins at the probe tip and terminates at the Bently Nevada 3300 XL proximitor (typically a 330180-X1-05 or 330130-040-00-00 extension cable assembly), which conditions the raw eddy-current signal into a calibrated DC voltage before passing it to the 3500/40M proximitor I/O module for alarm and trip processing. Surge transients on the field cable — common in switchgear rooms and motor control centers — are suppressed by dedicated Bently Nevada transient protection barriers installed at the cabinet entry point, preventing voltage spikes from corrupting the proximity measurement or damaging the proximitor input circuitry.

Power supply stability is equally critical. The 3300 XL system requires a clean, regulated -24 VDC supply; fluctuations caused by large motor starts or capacitor bank switching can introduce measurement noise. A dedicated Bently Nevada 3500/15 power supply module with redundant input capability ensures uninterrupted probe excitation even during grid disturbances. For installations in classified hazardous areas (Zone 1 / Division 1), Zener safety barriers or galvanic isolators are inserted between the proximitor and the I/O module to maintain intrinsic safety compliance without degrading signal bandwidth. Communication of trip and alarm states to the plant DCS is handled via the 3500/92 communication gateway, which supports Modbus TCP and OPC-DA protocols — ensuring that vibration data reaches the control room in real time, even during partial network degradation.

Critical Industrial Safety Applications

The 330101-XX-XX-20-02-CN is deployed across the full spectrum of rotating machinery in safety-critical industries. In petrochemical and refinery environments, it monitors centrifugal compressor shaft vibration and axial thrust position, providing the early-warning data that prevents seal failure and process gas release. In power generation — both thermal and combined-cycle — it tracks steam turbine and gas turbine shaft displacement, feeding the overspeed and high-vibration trip logic that protects multi-hundred-megawatt assets. In mining and mineral processing, it is installed on ball mill pinion bearings and SAG mill trunnion shafts, where bearing deterioration under heavy cyclic load must be detected weeks before mechanical failure.

In water and wastewater treatment facilities, the probe monitors large vertical pump shafts in humid, chemically aggressive environments — conditions where its IP67 rating and stainless steel housing provide a decisive reliability advantage. In metallurgy and steel production, it operates on rolling mill drive spindles and continuous caster pinch roll drives, where high-frequency vibration from roll pass impacts must be distinguished from genuine bearing defects. In port and marine applications, it monitors propulsion shaft alignment and thruster bearing condition on vessels where unplanned downtime means loss of maneuverability in confined waterways. Across all these applications, the 330101-XX-XX-20-02-CN delivers the non-contact, continuous, fail-safe measurement that modern machinery protection philosophy demands.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-XX-XX-20-02-CN?
The support terms confirmed by quotation cover manufacturing defects, calibration drift beyond published specification, and premature failure under normal operating conditions. It runs from the date of shipment and includes technical support for installation and commissioning. Support requests are processed with priority to minimize your equipment downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-XX-XX-20-02-CN unit undergoes functional verification including scale factor calibration check, insulation resistance test, and cable continuity verification before shipment. Units that do not meet Bently Nevada published specifications are quarantined and not dispatched. A test record is available upon request.

Q3: Is this probe compatible with both 3300 XL and 3500 Series systems?
Yes. The 330101-XX-XX-20-02-CN is designed for the Bently Nevada 3300 XL proximitor system and is also compatible with 3500 Series I/O modules when used with the appropriate extension cable and proximitor. This makes it a preferred choice for phased migration projects where field sensors are retained while the rack system is upgraded.

Q4: Can long-term supply agreements be arranged for this part number?
Yes. We maintain multi-region stock of the 330101-XX-XX-20-02-CN to support both emergency replacement and scheduled maintenance programs. Long-term supply agreements with defined lead times, reserved stock allocation, and fixed pricing are available. Contact [email protected] or +86 18359268345 to discuss your annual volume requirements.
