Bently Nevada 330101-XX-XX-10-02-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-XX-XX-10-02-05 Spare Part for Factory Uptime

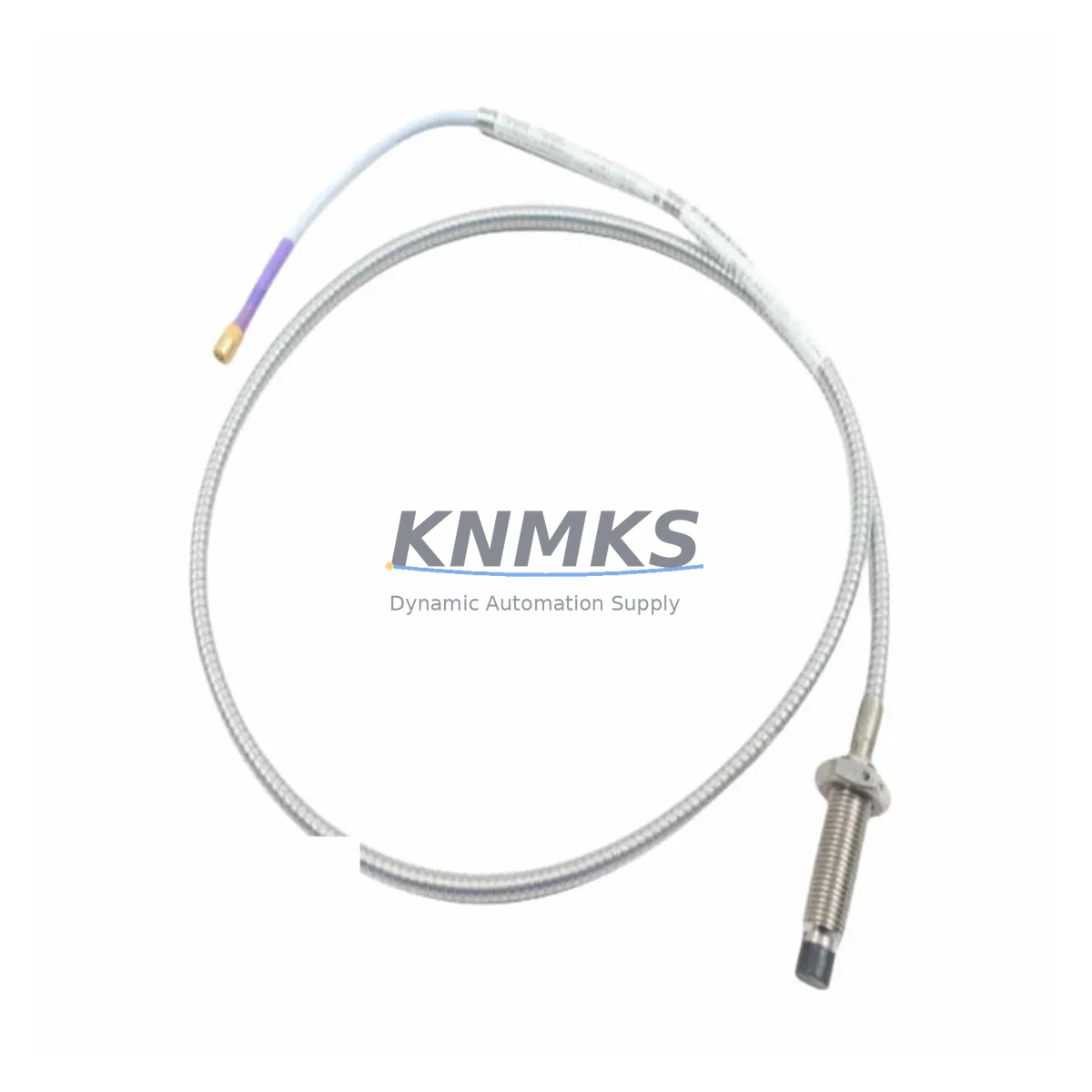

The Bently Nevada 330101-XX-XX-10-02-05 is an original eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery environments. As a core sensing element within the 3300 XL Series monitoring system, this probe delivers precise non-contact displacement measurements critical to turbine, compressor, pump, and motor protection strategies. Sourced from verified supply channels, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, ensuring procurement engineers can confidently integrate it into both active production lines and long-term spare parts inventories.

For maintenance engineers managing aging machinery or executing planned overhauls, the 330101-XX-XX-10-02-05 represents a direct, drop-in replacement for worn or failed proximity probes without requiring system reconfiguration. Its compatibility with the Bently Nevada 3300 XL signal conditioning architecture means no firmware changes, no recalibration of the monitor rack, and no disruption to existing alarm setpoints — a critical advantage when minimizing mean time to repair (MTTR) during unplanned shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-XX-XX-10-02-05 proximity probe during a scheduled or emergency maintenance event, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity. Begin by verifying the condition of the 330130-XX-XX-05-00 extension cable — the coaxial cable connecting the probe to the Proximitor sensor is a frequent wear point in high-vibration environments and should be replaced as a matched set whenever probe replacement is performed.

Next, inspect the 330180-X1-05 Proximitor sensor (driver), which conditions the probe signal before it reaches the monitor rack. A degraded Proximitor can produce erratic gap voltage readings even with a new probe installed, leading to false alarms or missed fault detection. Confirm the DC gap voltage falls within the –10 VDC to –18 VDC window specified for the 3300 XL system.

At the monitor rack level, check the 3300/16 or 3300/20 monitor module for alarm relay integrity, OK status LED behavior, and any signs of connector corrosion on the backplane. The 3300 XL backplane interconnects are a known long-term reliability concern in humid or chemically aggressive environments; cleaning and re-seating module connectors during each major overhaul is recommended practice.

For plants running parallel protection channels, verify that the 3500/42M Proximitor/Seismic Monitor (if installed as a redundant channel) is receiving consistent signals from both probes. Discrepancies between channels should trigger a full probe-and-cable audit before returning the machine to service.

Procurement engineers should also maintain buffer stock of 330103-XX-XX-10-02-05 (8 mm probe variant) and 330106-XX-XX-10-02-05 (14 mm probe variant) to cover multi-shaft configurations within the same facility. Standardizing on a single-vendor, multi-SKU proximity probe inventory reduces lead time risk and simplifies technician training across sites.

Finally, confirm that the Bently Nevada 3300 XL power supply module supplying the Proximitor is delivering stable –24 VDC. Power supply degradation is a root cause of intermittent probe OK dropouts that are frequently misdiagnosed as probe failures, resulting in unnecessary component replacement and extended downtime.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitor channel is bypassed or inhibited to prevent spurious trips during probe removal.

Step 2 — Gap Measurement & Documentation: Record the existing probe gap distance (typically 50 mil / 1.27 mm for most shaft configurations) before removal. This baseline is required to set the replacement probe to the same operating point.

Step 3 — Probe Removal: Unthread the probe from the bracket using the appropriate spanner. Inspect the bracket threads and probe tip for mechanical damage. Replace the bracket if thread wear is detected.

Step 4 — Cable Inspection: Inspect the full length of the extension cable for kinking, abrasion, or connector damage. A damaged cable will corrupt the signal even with a new probe — replace the cable if any doubt exists.

Step 5 — New Probe Installation: Thread the 330101-XX-XX-10-02-05 into the bracket. Set gap to the documented baseline using a non-ferrous feeler gauge. Verify DC gap voltage at the Proximitor output with a calibrated multimeter.

Step 6 — System Verification: Remove the channel bypass. Confirm OK status on the monitor module. Verify alarm setpoints are active and that the vibration reading is within normal baseline range before returning the machine to service.

Step 7 — Documentation: Log the replacement in the CMMS with the new probe serial number, gap setting, and gap voltage. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 330101-XX-XX-10-02-05 compatible with both the 3300 XL and 3500 Series monitor systems?
The 330101-XX-XX-10-02-05 is natively designed for the 3300 XL Proximity Transducer System. It can interface with the 3500 Series platform when used with the appropriate Proximitor sensor and verified cable set. Confirm the target monitor module’s input specifications before installation in a 3500 Series rack.

Q2: What does the XX suffix in the part number indicate, and how do I select the correct variant?
The XX fields in the 330101-XX-XX-10-02-05 part number encode cable length and connector configuration. The suffix 10-02-05 specifies a 5-foot (1.5 m) armored cable with standard MIL-spec connector. Verify your existing installation’s cable length and connector type before ordering to ensure a direct drop-in fit.

Q3: How is each unit tested before shipment, and what does the support terms confirmed by quotation cover?
Each 330101-XX-XX-10-02-05 unit undergoes functional verification including DC gap voltage output check, sensitivity calibration confirmation, and cable continuity test prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Units damaged by incorrect installation, overvoltage, or mechanical impact are excluded.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts programs?
Yes. We support scheduled delivery agreements, blanket POs, and consignment stock arrangements for maintenance programs requiring consistent supply of the 330101-XX-XX-10-02-05 and related 3300 XL components. Contact our sales team to discuss lead time commitments, volume pricing, and multi-site delivery coordination.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330101-XX-XX-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330101-XX-XX-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
