Bently Nevada 330101-55-75-10-02-00 Migration-Ready Proximity Probe

Overview

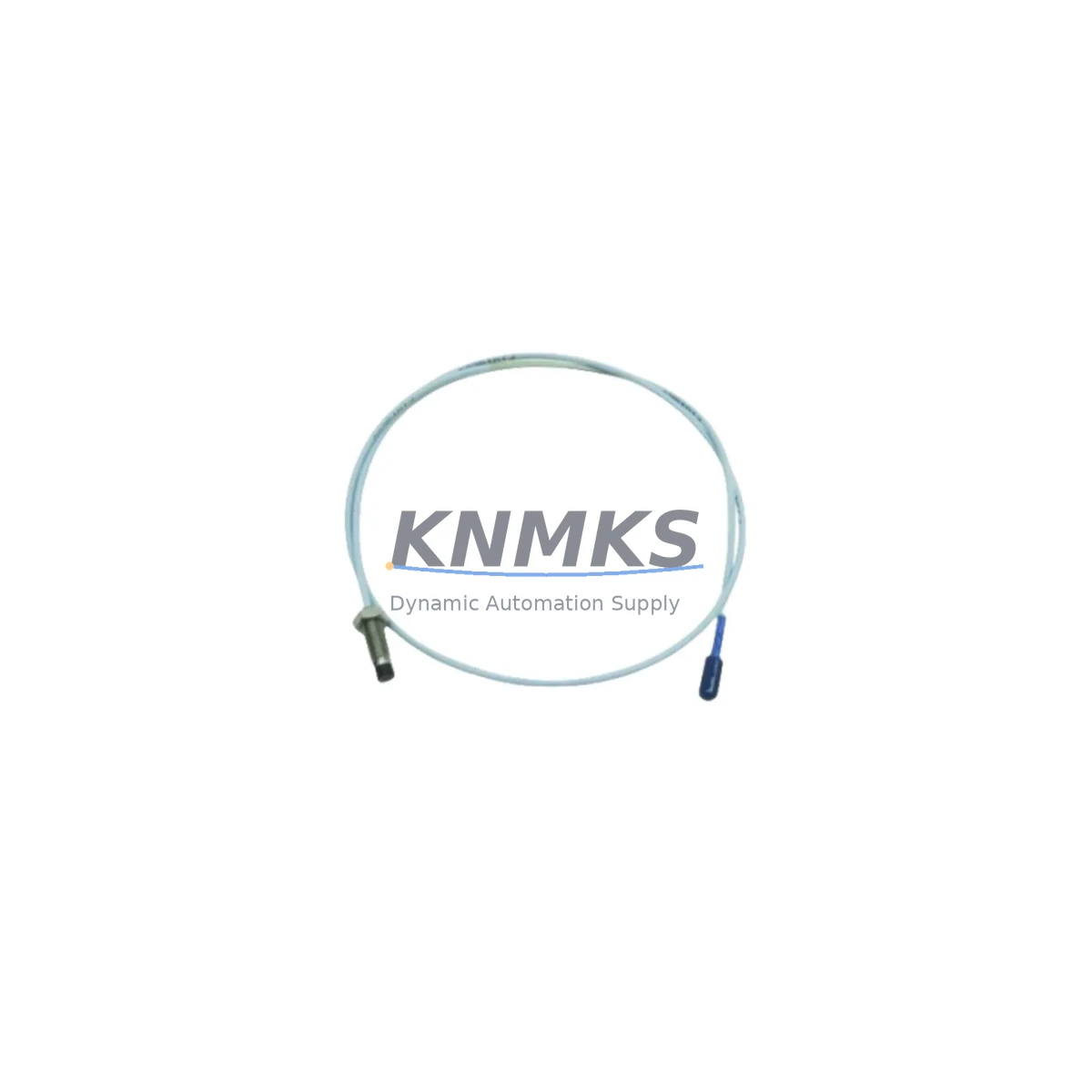

Bently Nevada 330101-55-75-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-55-75-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. Designed as a migration-ready replacement for legacy 3300 XL Series installations, this probe delivers direct mechanical and electrical compatibility with existing field wiring, extension cables, and Proximitor® sensor assemblies — enabling facilities to restore or upgrade their condition monitoring infrastructure with minimal disruption to ongoing operations.

Industrial sites operating aging turbomachinery protection systems frequently encounter obsolescence challenges: OEM discontinuation notices, extended lead times on original components, and the growing difficulty of sourcing calibrated spare parts that meet original specification tolerances. The 330101-55-75-10-02-00 addresses these challenges directly. Its 55 mm probe body length, 75-inch (approximately 1905 mm) integral cable, and -10 to +02 gap voltage range are factory-matched to the 3300 XL Proximitor® sensor, ensuring that replacement does not require recalibration of the monitoring system or modification of existing terminal wiring at the junction box or monitor rack.

When planning a retrofit or spare parts replenishment for a 3300 XL-based protection loop, engineers must verify several interdependent parameters before committing to a replacement probe. Power supply capacity at the Proximitor® sensor — typically -24 VDC — must be confirmed stable, as voltage fluctuations outside the rated range will shift the output scale factor and introduce measurement error. Terminal wiring at the field junction box should be inspected for conductor gauge compatibility and shield continuity, particularly in installations where the original armored extension cable has been spliced or re-terminated over years of service. The 330101-55-75-10-02-00 uses a standard coaxial connector interface consistent with the 3300 XL extension cable family, so existing 3300 XL Extension Cable assemblies can be retained without modification.

Backplane and rack-level integration is equally important. The 3300 XL Monitor — whether a radial vibration, thrust position, or differential expansion variant — must be confirmed to accept the probe’s output voltage range. In multi-channel rack configurations, module address settings and channel assignment jumpers should be documented before removal of the legacy probe to ensure the replacement is mapped to the correct monitoring channel. Where the protection system interfaces with a DCS or safety instrumented system via 4–20 mA or relay outputs, the signal chain should be verified end-to-end after probe installation to confirm that trip setpoints and alarm thresholds remain correctly calibrated.

Program logic compatibility is a frequent concern during probe replacement in systems where the vibration monitor feeds a PLC-based interlock or a dedicated machinery protection controller. If the existing ladder logic or function block diagram references specific analog input scaling for the 3300 XL output, no changes to the control program are required when replacing with the 330101-55-75-10-02-00, as the output characteristics are identical to the original specification. HMI faceplate displays showing vibration trend data, gap voltage, and alarm status will continue to function without screen modification, provided the replacement probe is installed within the same gap range as the original.

For facilities undertaking broader control system modernization — migrating from legacy 3300 XL racks to a newer Bently Nevada 3500 Series platform — the 330101-55-75-10-02-00 can serve as an interim solution to maintain protection continuity on existing machinery while the new monitoring rack is commissioned in parallel. The 3500 Series Proximitor® I/O Module accepts the same probe family with appropriate adapter cabling, and the 3500/42M Proximitor®/Seismic Monitor supports direct channel-by-channel migration from 3300 XL configurations. During this transition period, maintaining a calibrated spare of the 330101-55-75-10-02-00 in the site storeroom ensures that any probe failure on the legacy system can be addressed immediately without waiting for procurement lead times.

Installation space confirmation is required before ordering. The 55 mm probe body must clear the machinery casing and any adjacent instrumentation brackets. The integral 75-inch cable routing should be planned to avoid contact with hot surfaces, rotating components, or areas subject to mechanical vibration that could fatigue the cable jacket. Where the original probe was mounted using a standard 3300 XL probe holder, the replacement mounts directly without modification to the holder or the target area surface finish requirements.

Firmware version compatibility at the monitor level should be reviewed if the 3300 XL Monitor has been field-upgraded. Certain firmware revisions introduced changes to gap voltage acceptance windows; confirming that the installed firmware version supports the -10 to +02 VDC gap range of the 330101-55-75-10-02-00 prevents false gap alarms after installation. Field commissioning should include a static gap check using a calibrated gap tool or a precision shim set to verify that the probe is positioned within the linear range of the Proximitor® sensor before the machinery is returned to service.

All units are supplied with a support terms confirmed by quotation covering manufacturing defects and calibration conformance. Pre-shipment functional testing is performed on each unit to verify output linearity, connector integrity, and cable continuity. Stock is maintained across regional distribution hubs to support urgent spare parts requirements with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-55-75-10-02-00 into an existing 3300 XL protection loop requires a structured review of the surrounding system components. The Proximitor® sensor — typically a 3300 XL 8mm Proximitor® — must be confirmed serviceable, as probe replacement alone will not resolve issues originating from a degraded sensor. If the Proximitor® is also due for replacement, sourcing a matched 3300 XL 8mm Proximitor® assembly alongside the probe ensures that the entire measurement chain is restored to specification in a single maintenance window.

The 3300 XL Extension Cable connecting the probe to the Proximitor® should be inspected for jacket integrity, connector corrosion, and shield continuity. In installations where the extension cable passes through conduit or cable trays shared with power conductors, induced noise can affect measurement accuracy; replacing a degraded extension cable during the same outage as the probe minimizes future troubleshooting risk.

At the monitor rack level, the 3300 XL Monitor module — whether configured for radial vibration, axial position, or eccentricity measurement — should have its channel configuration documented before the probe is removed. In racks also housing 3300 XL Power Supply modules, confirming that the power supply output is within specification prevents voltage-related measurement errors after the new probe is installed. Where the rack includes a 3300 XL Keyphasor® module for phase reference, the Keyphasor® signal should be verified independently to ensure that overall vibration and 1X/2X vector data remain accurate after the probe swap.

For sites planning a phased migration to the Bently Nevada 3500 Series, the 330101-55-75-10-02-00 can be installed on the legacy rack while the new 3500/20 Rack Interface I/O Module and associated 3500/42M monitor are staged for parallel commissioning. Signal isolators may be required at the interface between the legacy 3300 XL output and any new DCS input cards to prevent ground loops during the transition period. Programming cable access to the 3500 Series rack for configuration upload should be planned as part of the commissioning schedule.

Downtime Control During System Migration

Minimizing unplanned downtime during probe replacement requires pre-staging all replacement components, tools, and documentation before the maintenance window begins. A pre-outage checklist should confirm that the 330101-55-75-10-02-00 has passed pre-shipment functional testing, that the gap tool or shim set is available on-site, and that the monitor channel configuration has been recorded for post-installation verification.

The original program logic in the PLC or safety controller does not require modification when replacing with the 330101-55-75-10-02-00, as the output characteristics are identical to the original probe specification. This eliminates the need for a program download or function test of the interlock logic, reducing the scope of the maintenance window to mechanical installation, gap setting, and signal verification.

HMI displays showing vibration trend, gap voltage, and alarm status will resume normal operation immediately after the replacement probe is installed and the Proximitor® is powered. No screen configuration changes are required. Communication links between the 3300 XL Monitor and the DCS or historian should be monitored for the first 30 minutes of operation after restart to confirm that analog output values and alarm states are transmitting correctly.

Where machinery cannot be taken offline for an extended period, a cold-standby spare of the 330101-55-75-10-02-00 held in the site storeroom enables a rapid swap within a single shift. Maintaining at least one calibrated spare per critical machine train is recommended as part of a proactive spare parts lifecycle program, particularly for rotating equipment where vibration monitoring is required by functional safety standards.

Retrofit Support FAQ

Q: Is the 330101-55-75-10-02-00 a direct replacement for the original Bently Nevada part of the same number?
A: Yes. The 330101-55-75-10-02-00 is a direct drop-in replacement with identical mechanical dimensions, cable length, gap voltage range, and connector interface. No modifications to the probe holder, extension cable, or Proximitor® sensor are required.

Q: What commissioning steps are required after installation?
A: After mechanical installation, perform a static gap check to confirm the probe is positioned within the linear measurement range of the Proximitor® sensor. Verify the gap voltage reading at the monitor matches the expected value for the installed air gap. Confirm that vibration and position readings on the HMI and DCS are within normal operating range before returning the machine to service.

Q: Can this probe be used with the Bently Nevada 3500 Series monitoring system?
A: The 330101-55-75-10-02-00 is designed for the 3300 XL platform. Compatibility with the 3500 Series depends on the specific Proximitor® I/O module and may require an adapter cable. Contact our technical team to confirm compatibility for your specific 3500 Series configuration before ordering.

Q: What support terms and stock availability does KNMKS provide?
A: All units carry a support terms confirmed by quotation covering manufacturing defects and calibration conformance. Each unit undergoes pre-shipment functional testing before dispatch. Stock is maintained across regional distribution hubs to support urgent requirements. Contact our team for current lead times and regional availability.
