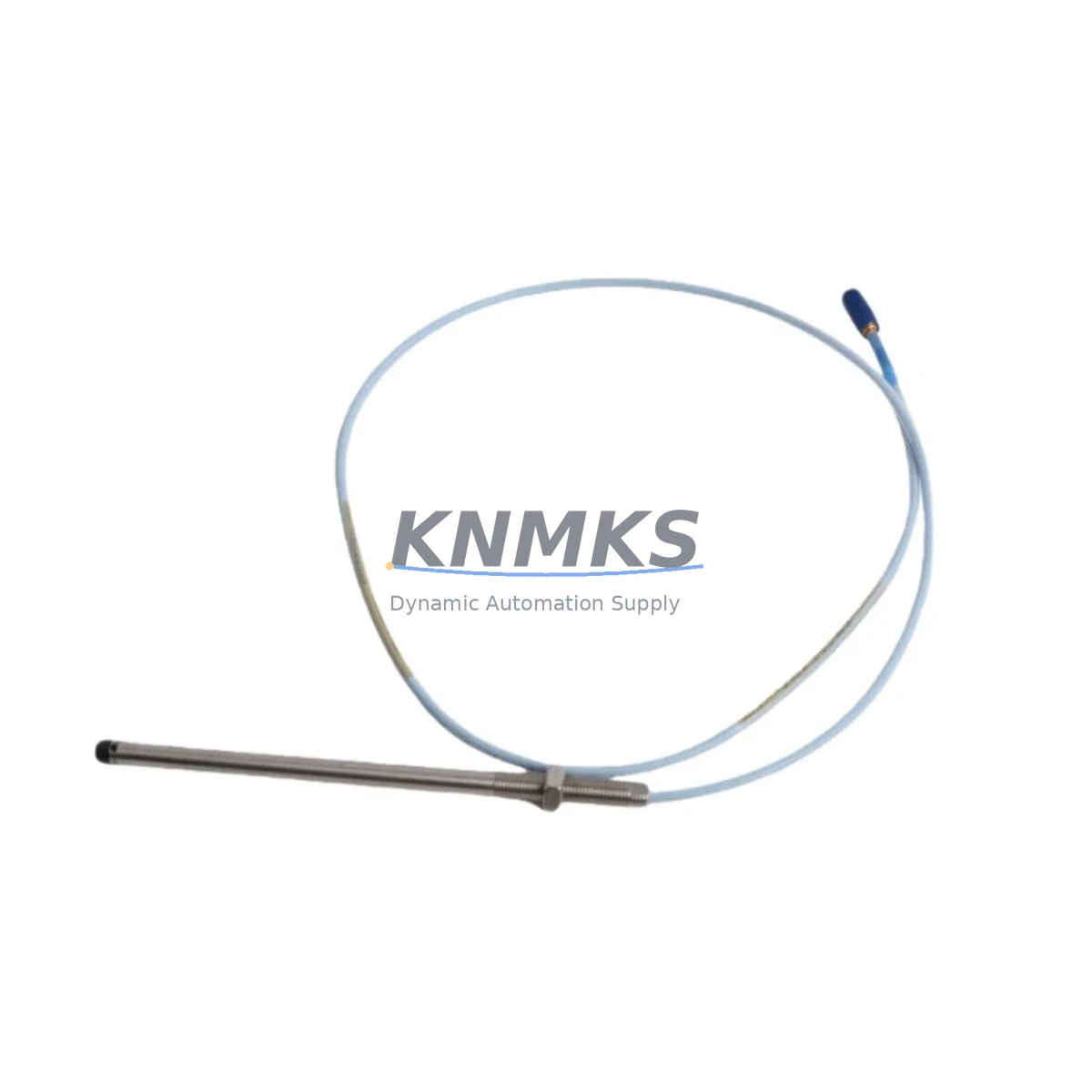

Bently Nevada 330101-48-71-20-02-CN Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330101-48-71-20-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s tightly integrated measurement chain — including the 3300 XL extension cable and 3300 XL proximitor sensor — this probe delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature gradients, mechanical vibration, and moisture-laden atmospheres.

In critical rotating machinery protection systems — turbines, compressors, pumps, fans, and gearboxes — undetected shaft vibration or displacement anomalies can escalate within seconds from a minor deviation to a catastrophic failure event. The 330101-48-71-20-02-CN is purpose-built to eliminate that risk. Its eddy-current sensing principle requires no physical contact with the target shaft, eliminating mechanical wear and ensuring measurement integrity across the full service life of the machine. The probe’s robust stainless-steel housing and hermetically sealed tip resist oil mist, process gases, condensation, and particulate contamination — conditions routinely encountered in petrochemical reactors, power generation turbine halls, mining ventilation drives, and offshore compressor platforms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring is never a standalone function — it is the result of a carefully coordinated measurement chain and a well-protected control cabinet architecture. The 330101-48-71-20-02-CN probe operates as the field-sensing element within a system that typically includes the Bently Nevada 330130-045-00-00 extension cable, which maintains signal integrity over long cable runs between the probe and the proximitor. The Bently Nevada 330180-X1-05 3300 XL Proximitor Sensor conditions the raw probe signal into a calibrated DC voltage output, which is then fed directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module for real-time vibration and position alarming.

Within the control cabinet, power supply stability is critical. Voltage fluctuations or transient surges on the 24 VDC instrument bus can introduce signal noise or cause false trips in the monitoring system. Pairing the measurement chain with a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply provides regulated, surge-protected DC power with built-in diagnostics. For cabinets installed in high-EMI environments — near variable frequency drives, large motor starters, or high-current bus bars — additional shielding and the use of Bently Nevada 02619788 coaxial connector assemblies ensures that the probe signal path remains free from induced interference. Thermal management within the enclosure, achieved through proper ventilation or a Rittal SK 3105 cabinet cooling unit, prevents ambient temperature rise from affecting proximitor calibration and probe sensitivity drift over extended operating cycles.

Critical Industrial Safety Applications

The 330101-48-71-20-02-CN is deployed across a wide spectrum of safety-critical industrial sectors where rotating machinery protection is non-negotiable:

Petrochemical and Refinery Plants: In centrifugal compressor trains and reactor feed pumps, this probe monitors radial shaft vibration and provides the primary input to API 670-compliant trip systems. Any exceedance of the vibration danger setpoint triggers an automatic shutdown before bearing damage or seal failure can propagate to a process safety event.

Power Generation: Steam turbine and gas turbine protection systems rely on eddy-current proximity probes for both vibration monitoring and differential expansion measurement. The 330101-48-71-20-02-CN’s wide operating temperature range makes it suitable for installation close to turbine bearing housings where ambient temperatures are elevated.

Mining and Mineral Processing: Ball mills, SAG mills, and large ventilation fan drives operate in environments with extreme dust loading, moisture, and structural vibration. The probe’s sealed stainless-steel construction and non-contact measurement principle ensure continuous operation without maintenance intervention between planned shutdown windows.

Water and Wastewater Treatment: High-speed pump and blower protection in water treatment facilities demands reliable, low-maintenance vibration sensing. The 330101-48-71-20-02-CN provides continuous shaft monitoring that enables condition-based maintenance scheduling, reducing unplanned outages in critical pumping infrastructure.

Metallurgy and Steel Production: Rolling mill drives, continuous casting machine drives, and large induction furnace cooling pumps all benefit from proximity probe-based vibration protection. The probe’s resistance to electromagnetic interference is particularly valuable in the high-EMI environment of electric arc furnace facilities.

Port and Marine Applications: Shipboard propulsion machinery, cargo pump drives, and port crane hoisting drives require vibration monitoring systems that can withstand salt-laden air, humidity, and continuous mechanical shock. The 330101-48-71-20-02-CN’s robust construction meets these demands without compromise.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-48-71-20-02-CN?
The support terms confirmed by quotation cover all manufacturing defects, material failures, and functional performance deviations from the Bently Nevada 3300 XL Series specification. If the probe fails to meet its published sensitivity, linearity, or operating range within the confirmed support period under normal installation and operating conditions, we will provide a replacement unit at no charge. Support requests are processed with priority to minimize machinery downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-48-71-20-02-CN unit undergoes a full functional verification before dispatch, including sensitivity calibration check (200 mV/mil ±10%), linear range confirmation, cable continuity and insulation resistance test, and connector integrity inspection. A test record is available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL system installations?
Yes. The 330101-48-71-20-02-CN is a direct form-fit-function replacement for all Bently Nevada 3300 XL Series 8mm proximity probe installations. It is fully compatible with 3300 XL Proximitor Sensors, 3300 XL extension cables, and the 3500 Series rack monitoring system without requiring recalibration of the proximitor or adjustment of monitor setpoints, provided the target material and gap distance remain unchanged.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We support plant-level critical spares programs with scheduled stock reservations, blanket order arrangements, and priority dispatch commitments. For facilities operating multiple 3300 XL measurement chains, we recommend maintaining a minimum of two spare probes per critical machine train. Contact our technical sales team to discuss a tailored supply agreement that aligns with your planned maintenance intervals and shutdown schedules.
