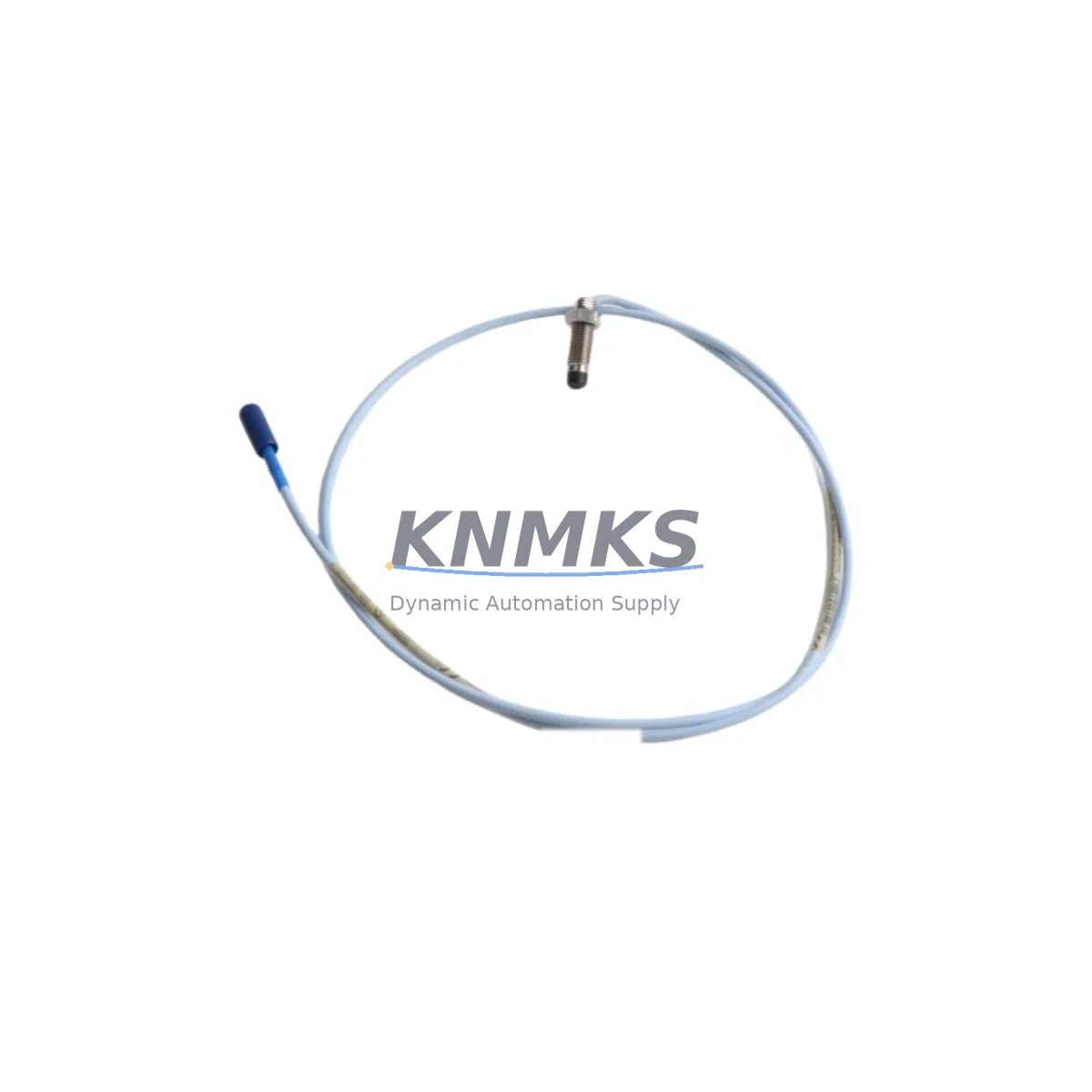

Bently Nevada 330101-40-60-05-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-40-60-05-02-CN is an 8mm proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 Series installations approach end-of-support milestones, this probe serves as a migration-ready, drop-in replacement that preserves existing wiring infrastructure, driver compatibility, and monitoring logic without requiring a full system overhaul.

For maintenance engineers managing aging turbine protection panels, compressor monitoring racks, or pump vibration systems, the 330101-40-60-05-02-CN provides a validated upgrade path that minimizes engineering rework. The probe is fully compatible with the 3300 XL 8mm Proximitor® Sensor (330180 series) and integrates directly into existing Bently Nevada 3500 Series rack-based monitoring systems, making it a preferred choice for facilities transitioning from older 3300 Series hardware to the current 3500 platform.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-40-60-05-02-CN into a legacy vibration monitoring system requires a structured pre-installation review. Before removing the existing probe, engineers should document the current gap voltage reading (typically –10 VDC to –18 VDC), confirm the mounting thread specification, and photograph the existing terminal block wiring to preserve the field connection map.

In most 3300 Series retrofit scenarios, the 330130-05-00 extension cable (5m) is retained from the original installation, reducing cable replacement costs and preserving conduit routing. The new probe connects to the existing extension cable at the junction box, and the opposite end feeds into the 330180 Series Proximitor Sensor mounted in the instrument enclosure or junction box. If the Proximitor Sensor is also being replaced as part of a broader 3500 rack migration, the 3500/42M Proximitor I/O Module should be pre-configured with the correct channel sensitivity and alarm thresholds before the probe is installed.

For facilities upgrading from a standalone 3300 Series panel to a full 3500 Series rack-based system, the migration typically involves replacing the 3300/20 Dual Proximitor Monitor card with the 3500/42M module. During this transition, the 330101-40-60-05-02-CN probe can be installed and gap-set while the old monitor card is still active, allowing a hot-cutover approach that reduces unplanned downtime. The 3500 rack’s System 1 software interface enables engineers to verify channel health, review historical trend data, and confirm alarm logic before the old system is decommissioned.

Where HMI screens reference legacy channel tags from the 3300 Series, the control room team should update the DCS or SCADA tag mapping to reflect the new 3500 rack channel addresses. This is particularly important in facilities using Modbus RTU or FOUNDATION Fieldbus communication links between the vibration monitoring rack and the plant DCS. Confirming that the 3500 rack’s communication gateway module is correctly addressed and that the HMI polling rate matches the new rack’s data update interval prevents false alarms during the commissioning window.

Power supply capacity should also be verified before installation. The 3500 rack requires a stable –24 VDC supply, and adding new Proximitor channels may increase the total current draw on the rack power supply module. If the existing power supply is operating near its rated capacity, a supplemental 3500/15 Power Supply Module should be added to the rack before the new probe channels are activated.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement or vibration monitoring system upgrade requires careful sequencing of mechanical, electrical, and software tasks. The recommended approach is to complete all pre-installation checks — gap voltage documentation, wiring photography, terminal labeling, and software backup — during a planned maintenance window before the actual probe swap begins.

Where process conditions allow, the 330101-40-60-05-02-CN can be installed and gap-set while the machine is at rest, with the monitoring system temporarily bypassed at the rack level. The 3500 rack’s channel inhibit function allows individual channels to be placed in bypass mode without affecting adjacent channels or triggering a system-wide alarm, preserving control continuity across the rest of the monitoring network.

Original program logic stored in the 3500 rack’s non-volatile memory is not affected by probe replacement. Alarm setpoints, danger limits, and time-delay parameters remain intact unless deliberately modified. Engineers should export a full rack configuration backup using System 1 software before beginning any hardware work, ensuring that the original logic can be restored within minutes if an unexpected issue arises during commissioning.

After the new probe is installed and the gap voltage is confirmed within the linear range (typically –10 VDC to –18 VDC at the Proximitor output), the channel inhibit is released and the system is returned to normal monitoring mode. A 30-minute observation period is recommended to confirm stable vibration readings and verify that no spurious alarms are generated before the maintenance team clears the work permit and returns the machine to full production load.

Retrofit Support FAQ

Q1: Is the 330101-40-60-05-02-CN a direct replacement for the original Bently Nevada 3300 Series 8mm proximity probe?
Yes. The 330101-40-60-05-02-CN is a 3300 XL Series 8mm probe that is backward-compatible with existing 3300 Series Proximitor Sensors and extension cables. It is also forward-compatible with the 3500 Series rack system when used with the 330180 Series Proximitor Sensor. No mechanical modifications to the mounting boss or conduit are required in most standard installations.

Q2: What commissioning checks are required after installation?
After mechanical installation, verify the gap voltage at the Proximitor output (nominal –12 VDC at mid-range gap), confirm the sensitivity reading (200 mV/mil), check the linearity range across the full measurement span, and validate alarm and danger setpoints against the original engineering specification. A channel-by-channel functional test using System 1 software or the rack front panel display is recommended before returning the machine to service.

Q3: Can the existing field wiring and terminal blocks be reused?
In most cases, yes. The 330101-40-60-05-02-CN uses the same three-conductor cable configuration (coaxial inner conductor, shield, and outer jacket) as the legacy 3300 Series probes. Existing terminal block connections can be reused provided the wiring is in good condition and the shield grounding arrangement meets the 3300 XL installation requirements. Always verify polarity and shield continuity before powering the Proximitor Sensor.

Q4: What support terms and supply assurance does KNMKS provide?
All 330101-40-60-05-02-CN units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Units are pre-tested prior to shipment to confirm gap sensitivity and cable integrity. KNMKS maintains stock of this SKU and related 3300 XL Series components to support urgent replacement and planned maintenance schedules. For volume orders or blanket purchase agreements, contact the sales team directly.
