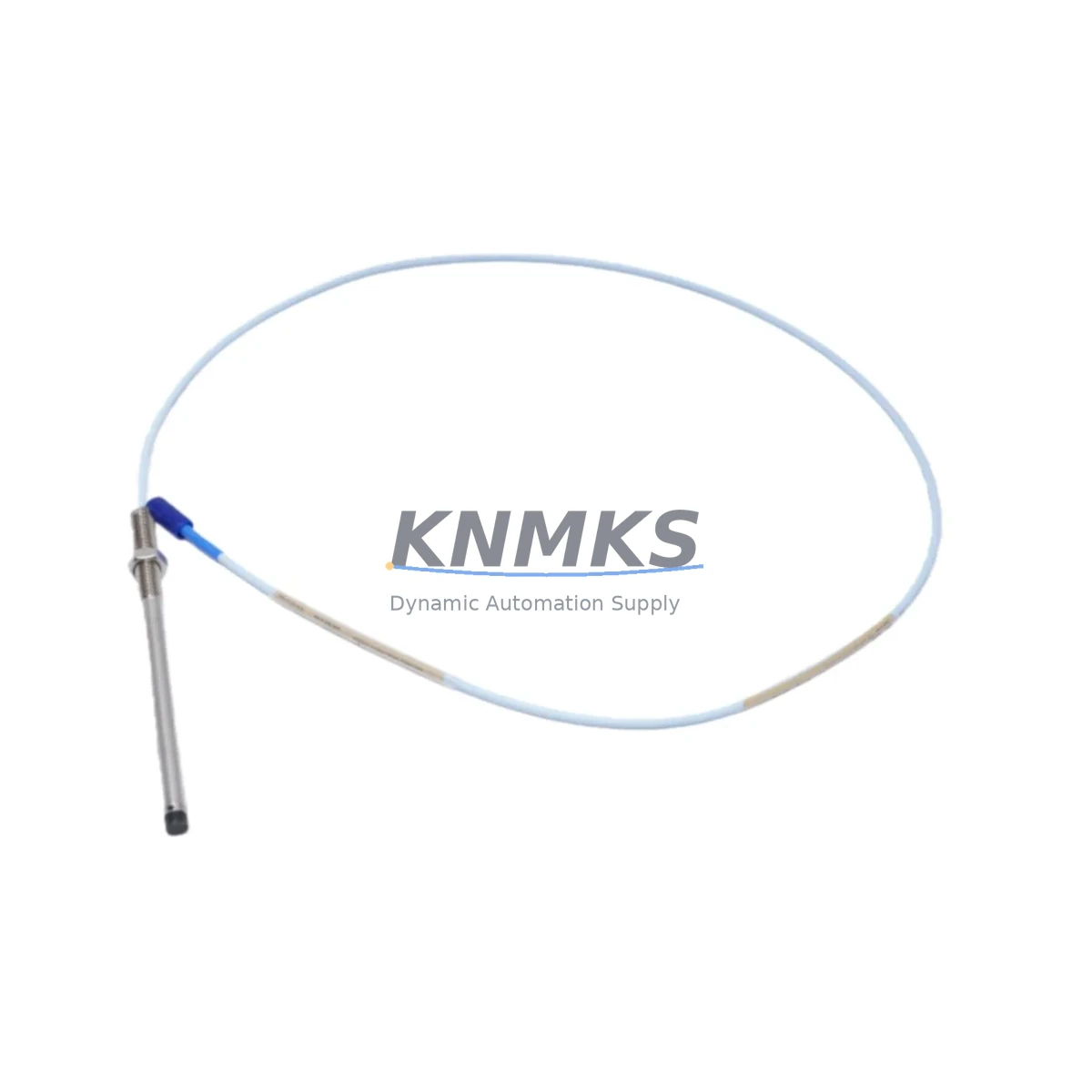

Bently Nevada 330101-39-67-10-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-39-67-10-12-05 is an 8mm proximity probe engineered for direct retrofit into existing 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations approach end-of-support milestones, plant engineers and reliability teams face increasing pressure to source verified drop-in replacements that preserve signal integrity, maintain existing wiring infrastructure, and avoid costly reprogramming of vibration monitoring software. This probe is stocked, tested, and shipped with a support terms confirmed by quotation to support planned and emergency replacement scenarios across energy, petrochemical, power generation, and heavy manufacturing facilities.

The 330101-39-67-10-12-05 carries a 39-inch (1 metre) probe cable, 67-inch (1.7 metre) extension cable, and a 10-foot (3 metre) driver cable, with a standard 5mm gap voltage of -10 VDC and a sensitivity of 200 mV/mil. These electrical parameters are fully compatible with the Bently Nevada 3300 XL Proximitor® sensor ecosystem, meaning no recalibration of the 3300 XL monitor rack is required when performing a like-for-like swap. Before installation, engineers should confirm the existing Proximitor® driver — typically a 3300 XL 8mm driver — is within its own service life, as probe replacement without driver inspection is a common source of post-retrofit signal drift.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a 3300 XL vibration monitoring system requires a structured review of the entire measurement chain — not just the probe itself. The 330101-39-67-10-12-05 interfaces with the 3300 XL 8mm Proximitor® driver, which in turn feeds the 3300 XL monitor module housed in a standard 19-inch rack. Before scheduling a maintenance window, reliability engineers should pull the existing loop drawing and verify the terminal block wiring at the field junction box, confirming that the coaxial connector type on the extension cable matches the driver input. In many aging installations, the extension cable connector has been field-modified, and a replacement probe with a factory-standard connector may require a short adapter or a new extension cable — such as the Bently Nevada 330130 series extension cables — to restore a clean signal path.

Power supply integrity is equally critical. The 3300 XL Proximitor® driver requires a stable -24 VDC supply, typically sourced from a dedicated power supply module within the monitor rack. If the rack power supply is original equipment from the early installation, it is advisable to test output voltage under load before the probe swap, as a marginal power supply will produce erratic gap voltage readings that can be misdiagnosed as a faulty probe. In parallel, the 3300 XL monitor module’s channel configuration — including full-scale range, alert and danger setpoints, and time-constant settings — should be documented and backed up before any physical work begins, since some older monitor firmware versions do not retain configuration through a power cycle.

For facilities running a DCS or safety instrumented system that receives 4–20 mA or relay outputs from the 3300 XL monitor, the I/O mapping at the DCS marshalling cabinet should be confirmed against the existing loop diagram. The 3300 XL monitor’s output terminals connect to the DCS analog input cards via standard twisted-pair wiring, and no changes to the DCS configuration are expected for a like-for-like probe replacement. However, if the retrofit is part of a broader upgrade that includes replacing the 3300 XL monitor module with a newer 3500 Series rack, the signal scaling and channel addressing will require reconfiguration in the 3500 rack software, and the HMI trend displays — whether running on a GE Cimplicity, Wonderware, or similar SCADA platform — will need tag remapping to reflect the new rack address structure.

Where the retrofit scope includes I/O expansion or the addition of new measurement points, the 3300 XL system supports additional monitor modules within the same rack, provided backplane slot capacity is available. Engineers should audit the existing rack for available slots before specifying additional 3300 XL monitor modules or considering a migration to the 3500 Series platform, which offers higher channel density and Ethernet-based communication to the System 1 condition monitoring software.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a running machine train requires careful pre-work and a clearly defined isolation procedure. For non-redundant monitoring loops, the replacement window must be coordinated with operations to ensure the machine is either shut down or that a temporary bypass is authorized through the safety management system. The existing probe should be removed only after the gap voltage has been recorded at the monitor front panel or via the System 1 software trend, providing a baseline for post-installation verification.

Once the 330101-39-67-10-12-05 is installed and the gap is set to the nominal 50 mil (1.27 mm) using a non-ferrous gap-setting tool, the gap voltage should be measured at the driver output and compared against the -10 VDC nominal. A reading within ±0.5 VDC of nominal confirms correct installation. The monitor channel should then be taken out of bypass, and the vibration trend should be observed for a minimum of 15 minutes at steady-state operating speed to confirm signal stability before returning the loop to normal protective service.

To protect the original program logic and control continuity, no changes to the 3300 XL monitor configuration should be made during the probe swap unless a documented discrepancy is found. All pre-swap configuration values — setpoints, time constants, and output relay assignments — should be restored exactly as documented. If the retrofit is being performed as part of a scheduled turnaround, it is good practice to perform a functional trip test of the monitor output relay after the probe is reinstalled, confirming that the protective shutdown chain remains intact before the machine is returned to service.

Retrofit Support FAQ

Q1: Is the 330101-39-67-10-12-05 a direct replacement for the original Bently Nevada part of the same number?
Yes. This unit is manufactured to the same dimensional and electrical specification as the original Bently Nevada 330101-39-67-10-12-05. It is a direct drop-in replacement requiring no modification to the existing probe bracket, extension cable connector, or monitor configuration, provided the existing 3300 XL 8mm Proximitor® driver is serviceable.

Q2: What pre-shipment testing is performed, and is documentation provided?
Each unit undergoes a functional output test prior to shipment. A test report confirming gap voltage linearity and sensitivity is available upon request. Units are shipped in anti-static packaging with a support terms confirmed by quotation covering manufacturing defects from the date of delivery.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack if we are upgrading from 3300 XL?
The 330101-39-67-10-12-05 probe is physically compatible with the 3500/42M Proximitor® I/O module, which accepts standard 8mm Bently Nevada probes. However, the 3500 rack requires reconfiguration of channel scaling and address mapping, and the System 1 software database will need to be updated to reflect the new rack topology. Consult the 3500 rack configuration guide and verify driver compatibility before proceeding.

Q4: What is the lead time, and do you maintain stock for emergency replacement orders?
We maintain ready stock of the 330101-39-67-10-12-05 to support both planned maintenance and emergency breakdown scenarios. Standard orders ship within 1–3 business days. For urgent requirements, contact our team directly to confirm same-day dispatch availability. All units are covered by a support terms confirmed by quotation from the date of shipment.
