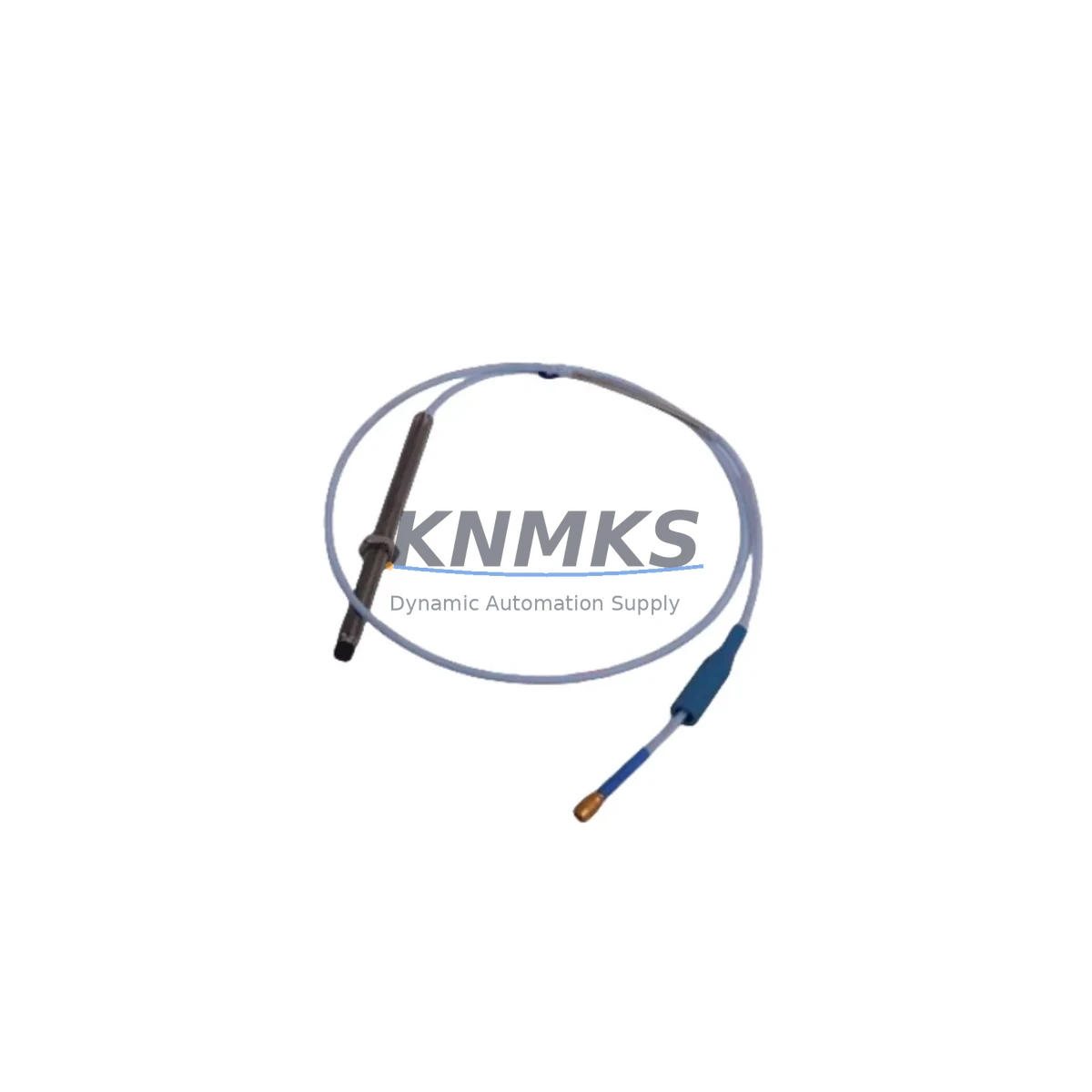

Bently Nevada 330101-37-57-10-02-05 Spare Part for 3300 XL

Overview

Bently Nevada 330101-37-57-10-02-05 Spare Part for 3300 XL: Precision Extension Cable for Continuous Factory Uptime

The Bently Nevada 330101-37-57-10-02-05 is an original proximity transducer extension cable engineered for the 3300 XL series vibration monitoring system. Designed to bridge the gap between the proximitor/oscillator and the eddy-current probe, this extension cable is a critical link in the signal chain for rotating machinery protection in turbines, compressors, pumps, and generators. Maintaining a verified spare of this cable in your parts inventory is a fundamental practice for any maintenance team responsible for continuous plant operation.

In industrial facilities where vibration monitoring is safety-critical, a degraded or failed extension cable can trigger false trips, mask real faults, or cause complete loss of machinery protection. The 330101-37-57-10-02-05 is a direct OEM replacement that preserves the calibrated system gap voltage and signal integrity required by the 3300 XL monitor. Unlike generic cables, this part is manufactured to Bently Nevada’s exacting impedance and shielding specifications, ensuring compatibility with the full 3300 XL measurement chain without recalibration of the proximitor.

Every unit shipped from KNMKS undergoes pre-shipment electrical testing — including continuity, insulation resistance, and shield integrity verification — and is backed by a support terms confirmed by quotation. Global stock availability supports fast dispatch to maintenance teams in Asia, Europe, the Middle East, and the Americas.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-37-57-10-02-05 extension cable during a scheduled outage or emergency callout, a disciplined maintenance engineer will treat the cable replacement as an opportunity to audit the entire proximity measurement loop. The extension cable does not operate in isolation — it is one segment of a three-component measurement chain that includes the eddy-current probe (such as the Bently Nevada 330101 series probe tip) and the proximitor/oscillator (such as the 330180 or 330130 Proximitor Sensor). If the cable has degraded due to mechanical abrasion, connector corrosion, or thermal cycling, the probe and proximitor should be inspected for matching wear patterns.

Beyond the measurement chain itself, the 3300 XL monitor rack should be checked during the same maintenance window. The 3300 XL monitor cards — including the 3300/16 or 3300/20 vibration monitor modules — rely on clean, stable signal inputs. Loose or corroded terminal connections on the I/O terminal block can introduce noise that mimics cable faults. The rack power supply module (typically a 3300/05 or equivalent) should be verified for output voltage stability, as undervoltage conditions can affect proximitor bias voltage and produce erroneous gap readings.

For facilities running integrated machinery protection systems, the 3500 Series rack is often installed alongside 3300 XL systems. If your plant is in a migration phase, confirm that the extension cable length and impedance characteristics are compatible with the 3500/42M or 3500/40M monitor modules before installation. Relay output modules and communication gateway cards (such as the 3500/92 Ethernet module) should also be confirmed operational after any cable swap, as a system restart may reset relay latches.

Maintenance teams managing large rotating equipment fleets should consider stocking the 330101-37-57-10-02-05 alongside complementary consumables: spare proximitor sensors, probe tip assemblies, armored conduit fittings, and terminal block connectors. A well-structured spare parts kit reduces mean time to repair (MTTR) from hours to minutes during an unplanned trip event.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow your site LOTO procedure. De-energize the 3300 XL monitor channel associated with the faulty cable. Note the current gap voltage reading before disconnection — this serves as your baseline for post-installation verification.

Step 2 — Cable Removal: Disconnect the extension cable at both the probe end and the proximitor end. Inspect connectors for corrosion, bent pins, or damaged threads. If connector damage is found, replace the probe or proximitor as appropriate rather than reinstalling a new cable into a damaged mating connector.

Step 3 — New Cable Installation: Route the 330101-37-57-10-02-05 replacement cable following the original cable path. Avoid sharp bends below the minimum bend radius. Secure with appropriate cable clamps — do not use steel tie-wraps directly on the cable jacket. Torque connectors to the specified value to ensure proper shielding continuity.

Step 4 — System Verification: Re-energize the monitor channel. Verify gap voltage is within the specified linear range (typically -10 VDC ±0.5 V for standard 8mm systems). Confirm the 3300 XL monitor is displaying a valid, stable reading with no alert or danger alarms. Document the as-left gap voltage in your maintenance management system.

Step 5 — Functional Test: Perform a slow-roll check or bump test as applicable to confirm the vibration channel is responding correctly. Clear any latched alarms and return the machine to service per your site operating procedure.

This workflow applies equally to planned annual turnaround maintenance and emergency replacement scenarios. Using an original Bently Nevada 330101-37-57-10-02-05 eliminates the compatibility risk associated with aftermarket cables and avoids the need for system recalibration, minimizing total downtime.

Spare Parts Support FAQ

Q: Is the 330101-37-57-10-02-05 compatible with both 3300 XL and 3500 Series monitors?
A: The 330101-37-57-10-02-05 is designed and specified for the 3300 XL proximity transducer system. Compatibility with 3500 Series monitors depends on the specific monitor module and probe configuration. We recommend verifying the cable length, impedance, and connector type against your 3500 Series system documentation before installation. Our technical team can assist with compatibility confirmation prior to order.

Q: What pre-shipment testing is performed on each unit?
A: Every 330101-37-57-10-02-05 unit shipped by KNMKS undergoes electrical continuity testing, insulation resistance measurement, and shield integrity verification before dispatch. Units that do not meet OEM electrical specifications are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q: What is the support terms coverage and what does it include?
A: All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside the specified environmental ratings. Support requests are processed directly through KNMKS with replacement or refund options.

Q: Can KNMKS support long-term or blanket purchase orders for this part?
A: Yes. KNMKS maintains ongoing stock of the 330101-37-57-10-02-05 and can support scheduled delivery programs, blanket purchase orders, and annual maintenance contract supply agreements. For facilities with multiple 3300 XL installations, consolidated procurement reduces per-unit cost and ensures parts availability ahead of planned outages. Contact our sales team to discuss volume pricing and delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-37-57-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-37-57-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
