Bently Nevada 330101-36-80-10-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-36-80-10-02-05 Fail-Safe Proximity Transducer: Critical Industrial Control Reliability

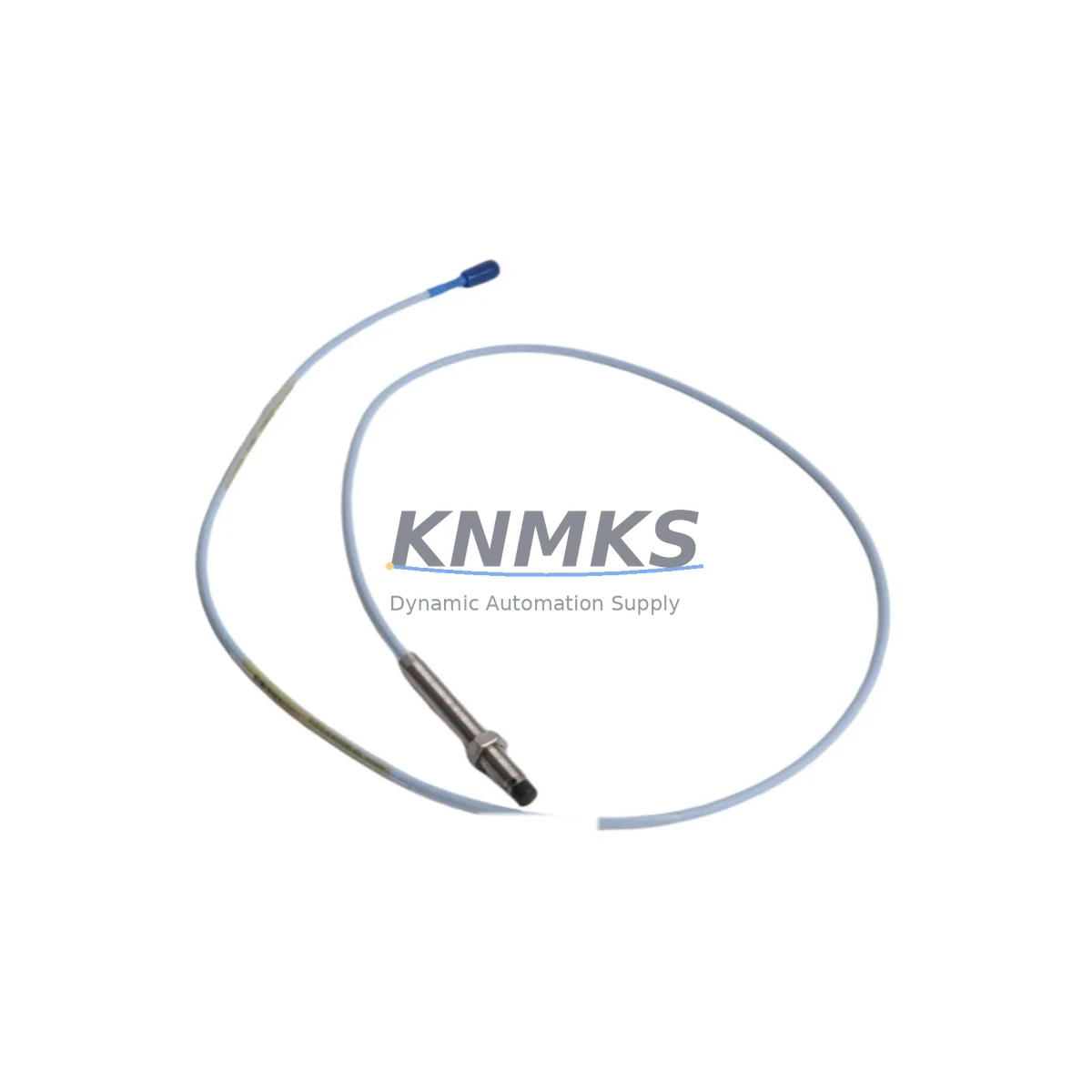

The Bently Nevada 330101-36-80-10-02-05 is an 8mm eddy-current proximity transducer engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this transducer delivers the signal integrity and mechanical robustness required for critical machinery protection systems in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, marine propulsion systems, and continuous process manufacturing lines.

Designed to operate reliably where conventional sensors fail, the 330101-36-80-10-02-05 maintains stable output across wide temperature swings, high-vibration structures, moisture-laden atmospheres, and environments with intense electromagnetic interference. Its eddy-current sensing principle is inherently non-contact, eliminating mechanical wear and ensuring long-term measurement accuracy without drift — a critical requirement for safety interlock loops and machinery protection systems that must never produce false trips or missed alarms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-36-80-10-02-05 proximity transducer is never deployed in isolation. It operates as part of a tightly integrated signal chain that begins at the machine bearing housing and terminates at the safety relay or DCS input card. The transducer’s armored integral cable connects to a Bently Nevada 330130 Extension Cable, which routes the –24 VDC signal to a Bently Nevada 3300 XL Driver mounted inside the control enclosure. The driver conditions the raw eddy-current signal into a calibrated voltage output that feeds directly into a Bently Nevada 3500/42M Proximitor I/O Module within the 3500 Series rack — the backbone of API 670-compliant machinery protection.

To protect the signal integrity inside the cabinet, the wiring harness is segregated from high-voltage power conductors and routed through dedicated cable trays. A Phoenix Contact TRABTECH surge protection device is recommended at the cabinet entry point to absorb transient surges from lightning strikes or switching events on long field cable runs, preventing damage to the driver input stage. For cabinets operating in high-EMI zones — such as those adjacent to variable frequency drives or large motor starters — additional shielding via Pepperl+Fuchs isolated signal conditioners can further suppress common-mode noise before the signal reaches the monitor rack.

Power supply stability is equally critical. The 3300 XL driver requires a clean –24 VDC supply; a Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that a single power source failure does not interrupt the protection loop. In safety-critical applications, a secondary UPS-backed 24 VDC rail provides ride-through during utility disturbances, maintaining continuous vibration monitoring even during plant power events. This layered protection architecture — transducer, extension cable, driver, surge protection, conditioned power, and redundant monitor rack — is the industry standard for eliminating unplanned shutdowns caused by instrumentation failure.

Critical Industrial Safety Applications

The 330101-36-80-10-02-05 is specified and deployed across the full spectrum of heavy industrial and process-critical environments:

Petrochemical and Refinery Plants: Monitoring radial vibration and axial position on centrifugal compressors, boiler feed pumps, and reactor agitators where an undetected bearing failure can trigger a catastrophic process upset. The transducer’s chemical-resistant construction and wide temperature tolerance make it suitable for installation in classified hazardous areas.

Power Generation: Steam turbine and gas turbine shaft monitoring in combined-cycle and coal-fired power stations. The 330101-36-80-10-02-05 feeds real-time vibration data to the turbine protection system, enabling automatic trip before a developing fault escalates to a destructive overspeed or bearing seizure event.

Mining and Mineral Processing: Ball mill trunnion bearing monitoring, crusher drive shaft surveillance, and conveyor head pulley vibration detection in environments with extreme dust loading, water spray, and structural vibration. The armored cable construction resists abrasion and mechanical damage in these harsh field conditions.

Water and Wastewater Treatment: Large vertical turbine pump and blower shaft monitoring in pump stations and aeration basins. Continuous vibration trending enables predictive maintenance scheduling, avoiding emergency pump failures that would disrupt treatment capacity and regulatory compliance.

Metallurgy and Steel Mills: Rolling mill drive train monitoring, continuous caster roll bearing surveillance, and blast furnace blower protection. The transducer’s high-frequency response (DC to 10 kHz) captures both low-speed imbalance and high-frequency gear mesh defects in a single measurement point.

Port and Marine Applications: Crane hoist motor bearing monitoring and marine propulsion shaft vibration measurement on vessels and offshore platforms, where access for manual inspection is restricted and unplanned downtime carries severe operational and safety consequences.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-36-80-10-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Support requests are supported with direct technical assistance and expedited replacement dispatch.

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-36-80-10-02-05 unit undergoes a full functional verification prior to shipment, including output voltage linearity check across the calibrated gap range, sensitivity confirmation at 7.87 V/mm, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for critical installation projects.

Q3: Is this transducer compatible with existing Bently Nevada 3500 Series monitor racks?
Yes. The 330101-36-80-10-02-05 is fully compatible with the Bently Nevada 3500 Series rack system when used with the appropriate 3300 XL driver and extension cable. It meets the signal conditioning requirements of the 3500/42M Proximitor I/O Module and is interchangeable with other 3300 XL 8mm probes of the same configuration code, simplifying spare parts management and reducing field replacement time.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
KNMKS maintains dedicated inventory of the 330101-36-80-10-02-05 and related 3300 XL Series components to support blanket order agreements, annual maintenance contracts, and emergency breakdown supply requirements. Multi-unit orders for plant spare parts programs are accommodated with lead time commitments and priority allocation for critical safety applications. Contact our technical sales team to discuss long-term supply arrangements tailored to your plant’s maintenance strategy.
