Bently Nevada 330101-36-80-10-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-36-80-10-02-00 Migration-Ready Proximity Probe: Legacy System Retrofit and Compatible Upgrade

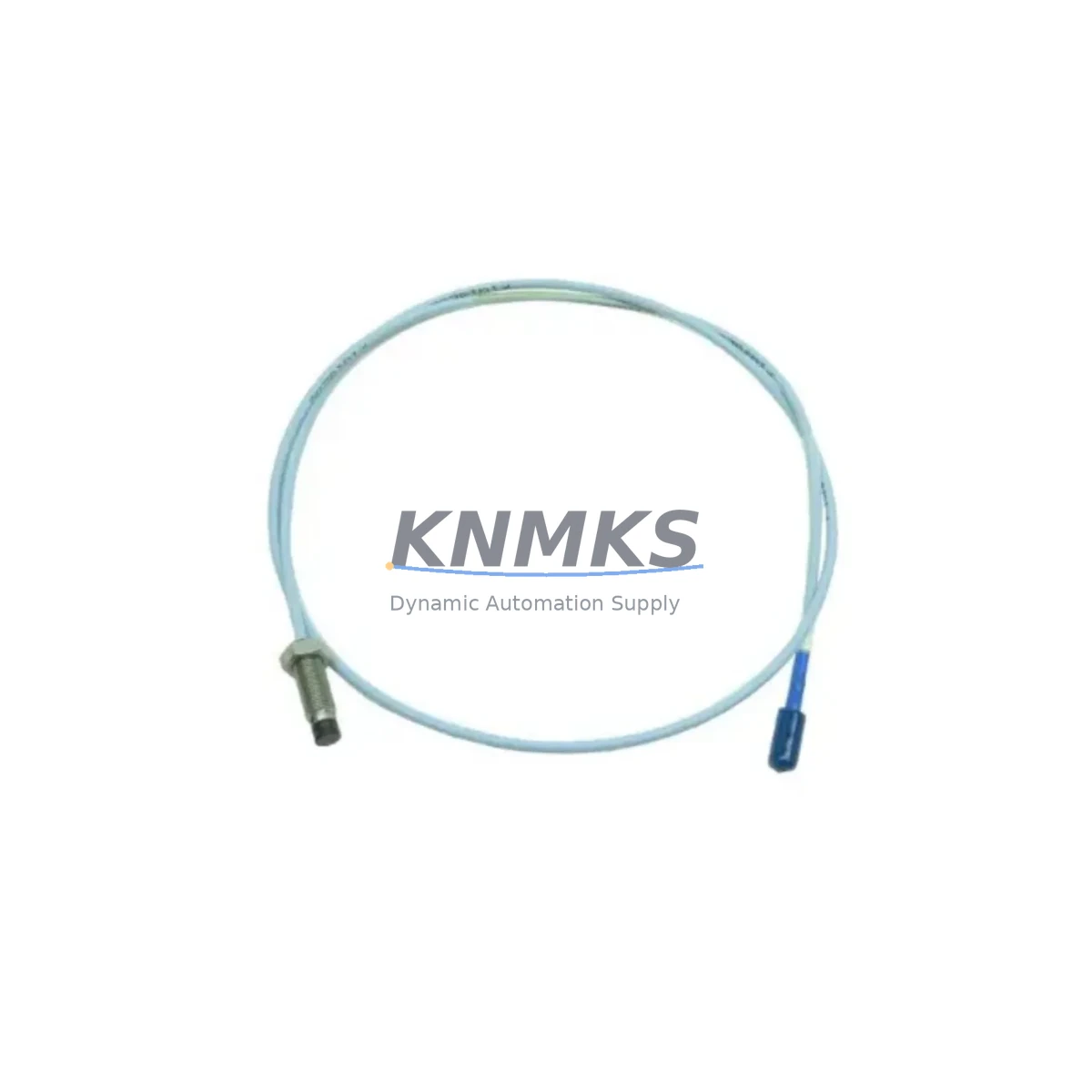

The Bently Nevada 330101-36-80-10-02-00 is an 8mm eddy-current proximity probe designed for the 3300 XL Series continuous machinery monitoring platform. As legacy Bently Nevada 3300 and 7200 Series systems reach end-of-support milestones, plant engineers and reliability teams are increasingly tasked with sourcing verified replacement probes that maintain signal integrity, dimensional fit, and system compatibility without triggering full platform migrations. This unit is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation — making it a dependable choice for both emergency spares and planned retrofit programs.

Whether you are maintaining an aging turbine monitoring rack, replacing a failed probe on a compressor train, or executing a phased upgrade from a 3300 Series to a 3300 XL architecture, the 330101-36-80-10-02-00 delivers the dimensional and electrical characteristics required for drop-in installation. The probe features a 36-inch (approximately 914 mm) armored cable, standard 8mm tip geometry, and is calibrated for use with the Bently Nevada 3300 XL proximitor/seismic transducer — ensuring that existing Keyphasor reference signals, gap voltage settings, and vibration alarm thresholds remain valid after replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-36-80-10-02-00 into an operating machinery protection system requires more than a physical swap. Plant teams should begin by auditing the full measurement chain: from the probe tip through the armored cable, into the 3300 XL Proximitor (such as the 330180-X1-05), and terminating at the 3500 Series monitor rack. Each element in this chain must be verified for compatibility before the machine is taken offline.

Start with the 3500 rack configuration. Export the current channel configuration using the Bently Nevada 3500 Rack Configuration Software and save it to a secure location. This file preserves alarm setpoints, full-scale ranges, Keyphasor assignments, and transducer scale factors — all of which must be restored identically after the probe replacement to avoid nuisance trips or missed alarms. If the rack is running firmware earlier than v3.xx, schedule a firmware update during the same maintenance window to reduce future downtime exposure.

Next, inspect the proximitor mounting and terminal wiring. The 3300 XL Proximitor connects to the 3500 monitor via a dedicated I/O module — commonly the 3500/40M Proximitor I/O Module or the 3500/42M Proximitor/Seismic I/O Module. Confirm that terminal block wiring (typically a three-wire shielded cable carrying power, common, and output signal) is undamaged and that shield grounding follows OEM recommendations. Improper shield termination is a leading cause of noise-induced false alarms after probe replacement.

For plants operating mixed-generation monitoring architectures — for example, a 3300 Series rack alongside a newer 3500 Series rack — pay close attention to proximitor model compatibility. The 3300 XL 8mm Proximitor is not electrically interchangeable with the older 7200 Series proximitor without recalibration of the scale factor in the monitor. If the existing proximitor is a legacy 7200 model, plan to replace it with a 3300 XL-compatible unit during the same outage to avoid a second shutdown.

Where installation space is constrained — particularly in compact control cabinets or skid-mounted compressor packages — verify that the 36-inch cable length of the 330101-36-80-10-02-00 reaches the proximitor junction box without excessive bending radius. If additional reach is required, the Bently Nevada extension cable (330130-080-00-00) provides a standardized, impedance-matched solution that preserves system calibration. Avoid field-spliced cables, which introduce impedance discontinuities and invalidate the probe’s calibration certificate.

Finally, confirm that the Keyphasor signal source — typically a dedicated Keyphasor probe such as the 330104-00-06-10-02-00 — remains functional and correctly phased. Phase reference errors introduced during a probe swap can corrupt vector data in the 3500/42M and cause incorrect orbit plots in the System 1 condition monitoring software, leading to misdiagnosis of rotor dynamics.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a live machinery protection system requires a structured, pre-planned approach. The following sequence is recommended for plants operating under continuous production constraints:

Pre-outage preparation: Export and archive the 3500 rack configuration file. Photograph existing terminal wiring before disconnection. Verify that the replacement 330101-36-80-10-02-00 has been pre-shipment tested and that the test certificate accompanies the unit. Confirm that the 3300 XL Proximitor is within its calibration interval — if not, replace it concurrently to avoid a repeat outage.

During the outage: Place the affected 3500 monitor channel in bypass mode before disconnecting the probe to prevent spurious shutdown signals from propagating to the control system. Disconnect the probe cable at the proximitor junction box first, then remove the probe from the bracket. Install the replacement probe, torque to specification, and reconnect the cable. Restore the channel from bypass only after gap voltage has been verified with a calibrated meter.

Post-installation verification: Confirm gap voltage is within the OEM-specified range (typically −10 VDC ± 0.5 VDC at the nominal gap). Observe the vibration signal on the 3500 monitor front panel or via System 1 software to confirm a clean, noise-free waveform. Check that Keyphasor triggering is stable and that 1X and 2X vector readings are consistent with pre-outage baseline data. Document all readings in the plant maintenance management system before returning the machine to service.

By following this sequence, most probe replacements on 3500 Series racks can be completed within a two-to-four-hour maintenance window, preserving production continuity and reducing the risk of post-maintenance trips.

Retrofit Support FAQ

Q1: Is the 330101-36-80-10-02-00 a direct replacement for the older 330101-36-80-10-01-00?
A: Yes. The -02-00 revision supersedes the -01-00 and is backward compatible with all 3300 XL 8mm Proximitor models. No recalibration of the monitor is required when replacing -01-00 with -02-00 in the same bracket position. Confirm the revision level on the probe label before installation.

Q2: Can this probe be used with a 3500/45 Position Monitor?
A: Yes, provided the 3500/45 is configured for the 3300 XL 8mm transducer type. Verify the transducer type selection in the 3500 Rack Configuration Software matches the probe and proximitor combination. Incorrect transducer type selection will result in erroneous position readings and may trigger false alarms.

Q3: What pre-shipment testing is performed on this unit?
A: Each 330101-36-80-10-02-00 unit undergoes electrical continuity verification, insulation resistance testing, and functional output verification against a calibrated target at the nominal gap distance before shipment. A test record is available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.

Q4: What is the support terms coverage and lead time?
A: This unit is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and electrical performance under specified operating conditions. Stock is maintained for immediate dispatch; standard lead time for in-stock units is 1–3 business days. For bulk orders or long-term supply agreements, contact our sales team to discuss scheduled release programs.
