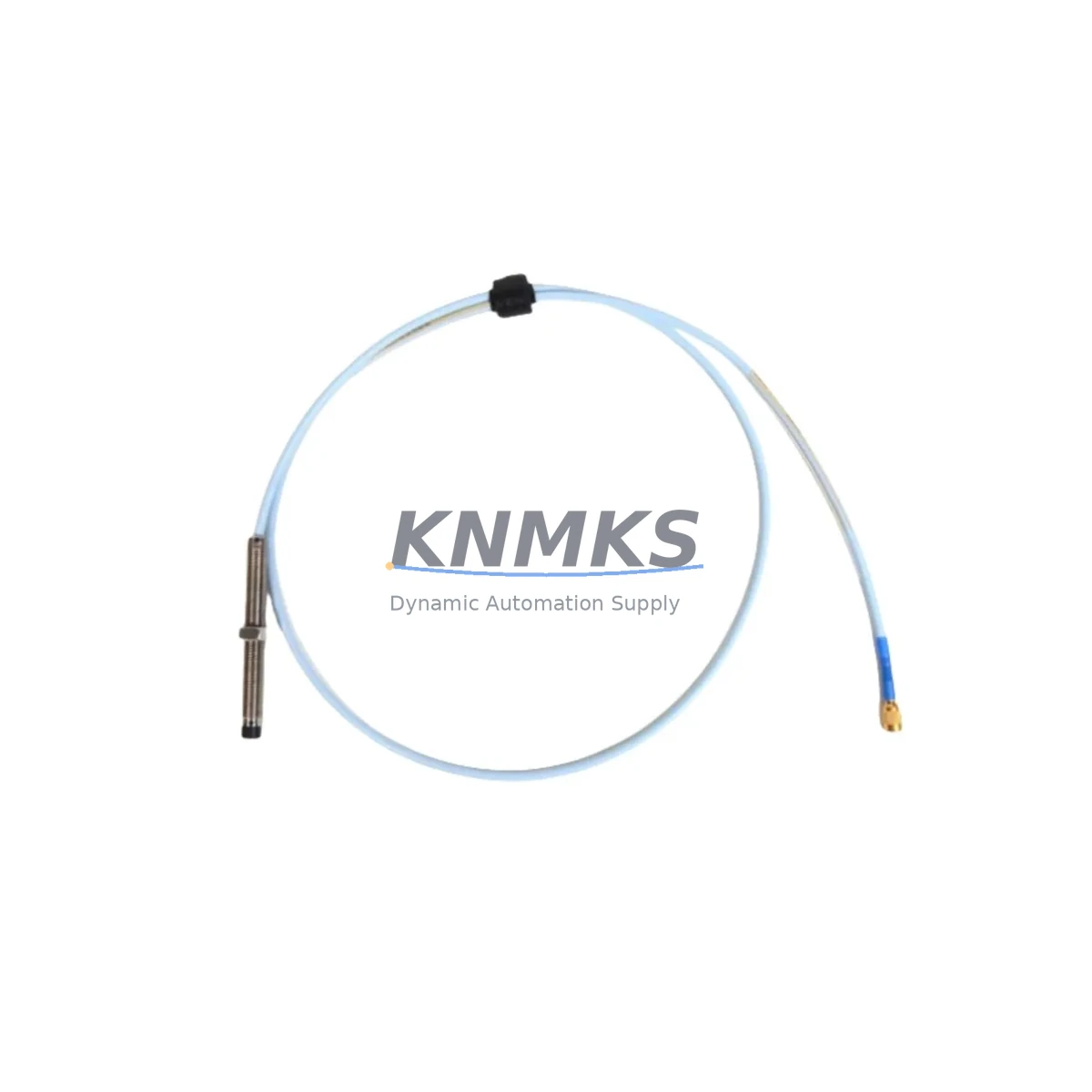

Bently Nevada 330101-33-66-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-33-66-10-02-05 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. Designed as a migration-ready replacement for legacy 3300 XL system installations, this probe supports direct drop-in substitution without requiring changes to existing conduit runs, terminal wiring, or Proximitor® driver configurations. For plants operating aging condition monitoring infrastructure, the 330101-33-66-10-02-05 provides a validated upgrade path that preserves original signal chain integrity while meeting current API 670 measurement standards.

When retrofitting from earlier Bently Nevada 7200 Series or 3300 NSv probes, engineers must verify the armored cable length suffix matches the original installation — the “-33-” segment in this SKU denotes a 33-inch (838 mm) integral cable, which must align with the existing junction box or field barrier distance. Substituting a mismatched cable length introduces signal attenuation errors that affect gap voltage calibration and vibration amplitude readings at the 3500 rack level.

This probe is fully compatible with the Bently Nevada 330130 Proximitor® extension cable and the 330180 series field barriers, allowing reuse of existing cable infrastructure during panel upgrades. When paired with the 3500/42M Proximitor®/Seismic Monitor module, the 330101-33-66-10-02-05 delivers the ±200 mV/mil (±7.87 V/mm) sensitivity required for direct integration into 3500 rack-based protection systems without reconfiguring scale factor parameters in System 1 software.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330101-33-66-10-02-05 begins with a systematic audit of the existing probe installation. Before removing the legacy sensor, record the gap voltage at the Proximitor® output — typically between −10 VDC and −18 VDC for a properly gapped 8mm probe. This baseline reading confirms whether the existing Proximitor® driver, such as the 3300 XL 8mm Proximitor® module, is still within its operating range and can be reused without replacement.

Terminal wiring at the junction box should be documented before disconnection. The 330101-33-66-10-02-05 uses the standard Bently Nevada three-conductor shielded cable convention: shield drain, center conductor (signal), and outer conductor (common). When the 330130 extension cable is retained from the previous installation, verify that the field connector is free of moisture ingress and that the cable armor is intact — damaged armor on extension cables is a common source of intermittent gap voltage drift that is frequently misdiagnosed as probe failure.

For installations where the 3500 rack houses a 3500/20 Power Supply module alongside the 3500/42M monitor, confirm that the rack’s total current budget accommodates the probe load without triggering the power supply’s overload protection. In multi-channel racks also running 3500/40M Proximitor®/Seismic Monitor modules or 3500/50 Tachometer modules, the cumulative probe current draw must be calculated against the 3500/20’s rated output capacity before adding replacement probes to additional channels.

Where the legacy installation includes a 3300 RAM Rack Adapter Module for backplane signal routing, verify that the adapter’s channel mapping is preserved after probe replacement. Incorrect channel reassignment at the RAM level can cause the 3500 rack to report vibration data on the wrong machine train bearing position, leading to false alarm conditions in the System 1 condition monitoring platform. If the plant’s HMI displays are configured with fixed tag references tied to rack slot addresses, coordinate with the control room team to confirm that no tag remapping is required before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity probe replacement requires pre-staging all replacement components before the maintenance window opens. For the 330101-33-66-10-02-05, this means having the replacement probe, a calibrated gap-setting tool, and a verified 330130 extension cable available at the work site before the machine is taken offline. Pre-shipment functional testing — performed on every unit before dispatch — eliminates the risk of receiving a defective probe that cannot be commissioned within the planned outage window.

The original program logic stored in the 3500 rack’s non-volatile memory is not affected by probe replacement, as the 3500 system stores alarm setpoints, scale factors, and channel configuration independently of the physical sensor. This means that after gapping the new 330101-33-66-10-02-05 to the correct gap voltage and reconnecting the extension cable, the rack will resume normal monitoring without requiring a configuration download from the System 1 workstation — provided no channel parameters were altered during the maintenance activity.

For plants where the proximity probe feeds a safety instrumented function via a 3500/33 16-Channel Relay Module, the SIS bypass procedure must be activated before probe removal and deactivated only after the replacement probe has been verified at gap and the rack has confirmed a healthy channel status. Bypassing the relay output prevents a spurious trip signal from reaching the emergency shutdown system during the brief period when the probe is disconnected. Document the bypass activation and deactivation times in the maintenance record to satisfy functional safety audit requirements.

Retrofit Support FAQ

Q1: Is the 330101-33-66-10-02-05 a direct replacement for the 7200 Series 8mm proximity probe?
Yes. The 330101-33-66-10-02-05 is dimensionally and electrically compatible with 7200 Series 8mm probes when used with the corresponding 3300 XL or 330180 Proximitor® driver. The M10 × 1 mounting thread and standard three-conductor cable convention are identical. Verify the integral cable length suffix matches your existing installation before ordering.

Q2: What commissioning steps are required after installation?
After mechanical installation, adjust the probe gap to achieve the target gap voltage specified for your Proximitor® driver — typically −12 VDC ±0.5 VDC at mid-range for 8mm probes. Confirm the gap voltage at the Proximitor® output terminal using a calibrated voltmeter. Check that the 3500 rack channel status indicator shows a healthy (green) state before releasing the bypass and returning the machine to service.

Q3: Can the existing 330130 extension cable be reused?
In most cases, yes. Inspect the field connector for corrosion or moisture damage and verify cable armor continuity before reuse. If the extension cable shows signs of insulation degradation or the connector body is cracked, replace it with a new 330130 cable of matching length to avoid introducing measurement errors caused by impedance mismatch.

Q4: What support terms and stock availability applies to this unit?
Every 330101-33-66-10-02-05 unit supplied by KNMKS carries a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional performance. Units are pre-shipment tested before dispatch. Stock is maintained for immediate availability — contact the sales team to confirm current lead time and reserve quantity for planned maintenance programs.
