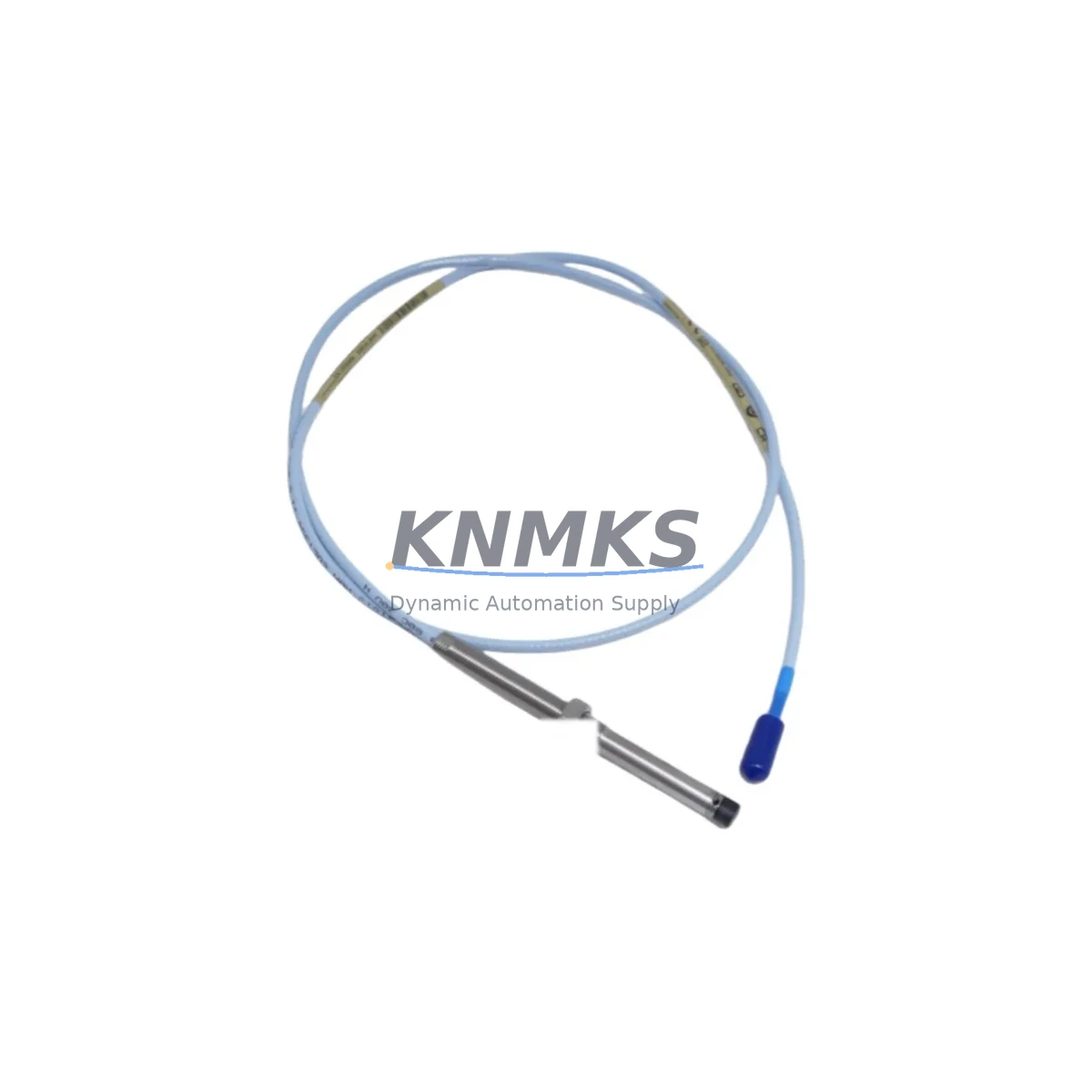

Bently Nevada 330101-32-70-10-12-05 Fail-Safe Proximity Sensor: Critical Industrial Control Reliability

The Bently Nevada 330101-32-70-10-12-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Whether deployed in rotating machinery protection systems, critical interlock loops, or high-EMI control cabinets, this transducer delivers the signal integrity and environmental resilience that safety-critical operations demand. Its robust construction and precision calibration make it a trusted choice for maintenance engineers and reliability teams managing assets in petrochemical, power generation, mining, water treatment, metallurgy, port logistics, marine, and continuous manufacturing facilities worldwide.

Designed to operate reliably across wide temperature ranges and in the presence of dust, moisture, vibration, and electromagnetic interference, the 330101-32-70-10-12-05 minimizes the risk of signal drift, false trips, and unplanned shutdowns. Every unit shipped by KNMKS undergoes pre-delivery functional testing to verify output linearity, gap sensitivity, and insulation integrity — ensuring field-ready performance from day one.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-32-70-10-12-05 proximity transducer operates as the primary sensing element within a complete vibration monitoring chain. It pairs directly with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05), which conditions the raw eddy-current signal into a clean, calibrated DC voltage suitable for the monitoring system’s analog input cards. This signal chain feeds into the Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which performs real-time vibration analysis, alarm threshold comparison, and relay-based trip output for emergency shutdown interlock activation.

To protect the entire monitoring loop from power-line disturbances and voltage surges — a common risk in heavy industrial environments with large motor drives, arc furnaces, or high-frequency switching equipment — the cabinet design should incorporate a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply or equivalent DIN-rail unit with active buffer capability. Pairing this with a Weidmüller DEK 6 surge protection terminal block on the signal input side further reduces the risk of transient-induced measurement errors or sensor damage.

For facilities operating in classified hazardous areas (Zone 1 or Zone 2), the proximity transducer signal must be routed through an MTL 7787+ Zener barrier or equivalent galvanic isolator before entering the safe-area monitoring rack. This ensures intrinsic safety compliance and prevents ignition risk from fault currents. Additionally, integrating a Bently Nevada 3500/22M Transient Data Interface module alongside the standard monitoring rack enables high-resolution waveform capture during machinery upset events — providing the forensic data needed for root-cause analysis after a trip or near-miss event.

Critical Industrial Safety Applications

The 330101-32-70-10-12-05 is deployed across a broad spectrum of safety-critical industrial applications where continuous, uninterrupted machinery monitoring is non-negotiable:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor feed pumps, and turbine expanders, this transducer provides the radial vibration and axial position data required by API 670-compliant protection systems. In these environments, a single undetected bearing failure or shaft rub can escalate to a catastrophic release event. The 330101-32-70-10-12-05’s IP67 rating and high EMI immunity ensure reliable signal output even in the presence of high-voltage cable trays, variable-frequency drives, and process fluid ingress.

Power Generation: Steam turbines, gas turbines, and large synchronous generators rely on proximity transducer arrays to monitor shaft eccentricity, differential expansion, and thrust position. The 3300 XL Series transducer’s wide operating temperature range and API 670 compliance make it suitable for both the hot end (near bearing housings) and the cold end (near coupling guards) of large turbine trains.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme vibration, heavy dust loading, and frequent water washdown. The IP67-rated 330101-32-70-10-12-05 withstands these conditions without signal degradation, providing the continuous shaft monitoring data needed to prevent catastrophic bearing failures that would halt production for days or weeks.

Water & Wastewater Treatment: High-speed centrifugal blowers and vertical turbine pumps in water treatment facilities require continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing wear before they progress to failure. The transducer’s corrosion-resistant construction and sealed connector system make it well-suited for the humid, chemically aggressive atmosphere of these facilities.

Metallurgy & Steel: Rolling mill drives, continuous casters, and large induction furnace cooling pumps operate under extreme thermal and mechanical stress. The 330101-32-70-10-12-05’s ability to maintain calibration accuracy across a –35°C to +121°C range ensures reliable monitoring even in the high-radiant-heat environment near furnace taphole equipment.

Marine & Port Logistics: Shipboard propulsion systems, bow thrusters, and large crane hoist drives increasingly incorporate API 670-style vibration monitoring for predictive maintenance. The transducer’s compact 8mm format and robust cable assembly make it suitable for installation in the confined machinery spaces typical of vessel engine rooms and offshore platform equipment modules.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-32-70-10-12-05?
The KNMKS support terms confirmed by quotation cover manufacturing defects, calibration drift beyond published specifications, and premature component failure under normal operating conditions. Support requests are supported by our technical team with replacement dispatch within 5 business days of confirmed fault diagnosis. The confirmed support period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-32-70-10-12-05 unit undergoes a full functional test protocol before dispatch: output linearity verification across the full gap range, sensitivity check at 200 mV/mil nominal, insulation resistance measurement, and connector integrity inspection. A test report is available upon request for quality-critical procurement processes.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL Proximitor systems?
Yes. The 330101-32-70-10-12-05 is a direct-fit replacement for all standard 3300 XL Series Proximitor / transducer systems. It maintains full backward compatibility with existing cable assemblies, connector types, and signal conditioner input specifications. No recalibration of the Proximitor is required when replacing a like-for-like unit.

Q4: Can KNMKS support long-term or blanket-stock supply for maintenance programs?
Yes. KNMKS maintains regional warehouse stock of the 330101-32-70-10-12-05 and related 3300 XL Series components to support planned maintenance shutdowns, annual turnarounds, and emergency replacement requirements. Blanket purchase orders and consignment stock arrangements are available for facilities with recurring demand. Contact our sales team to discuss a supply agreement tailored to your maintenance schedule.
