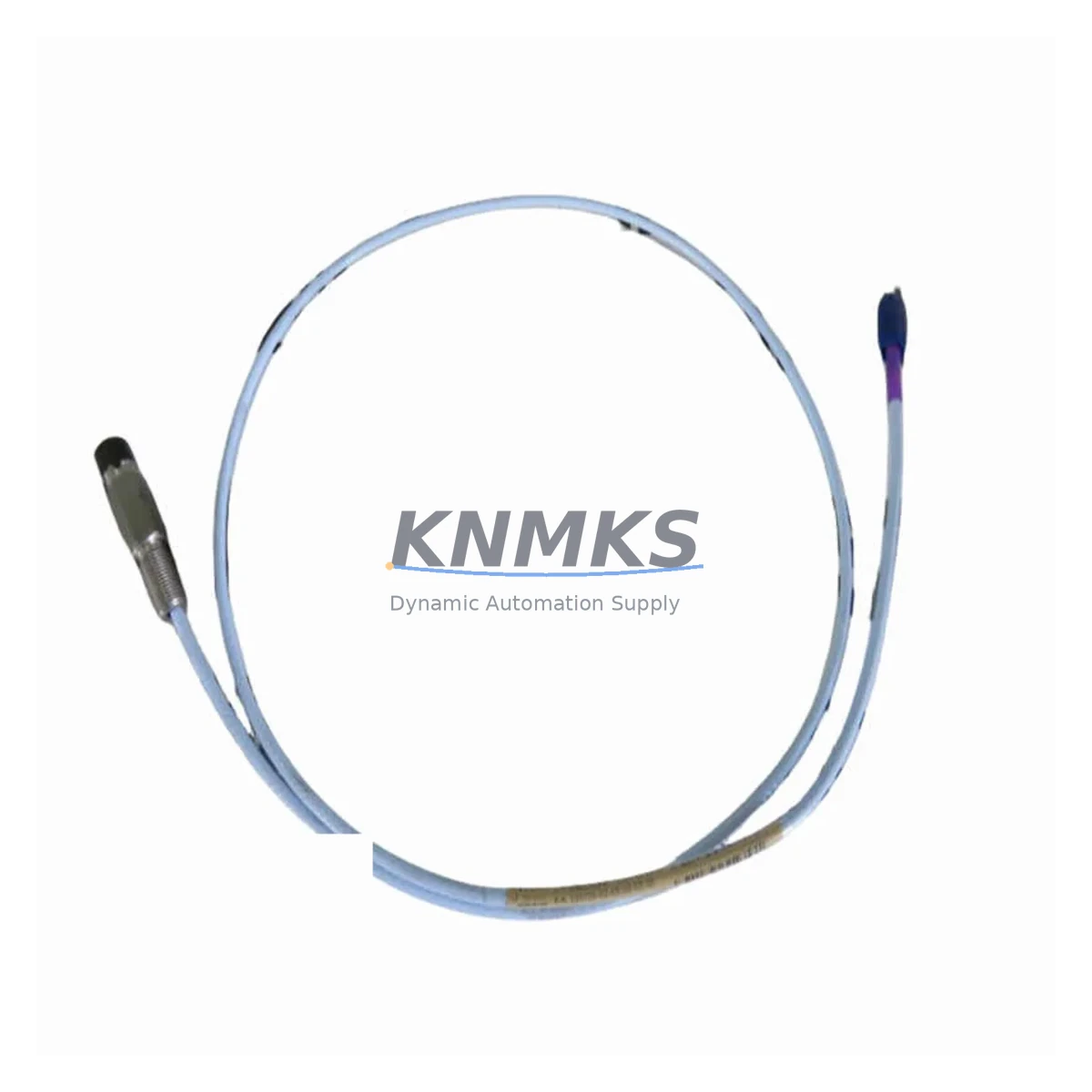

Bently Nevada 330101-30-63-10-02-00 Fail-Safe Extension Cable

Overview

Bently Nevada 330101-30-63-10-02-00 Fail-Safe Extension Cable: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-30-63-10-02-00 is a precision-engineered proximity transducer extension cable designed for the Bently Nevada 3300 XL series vibration monitoring system. In continuous production environments where unplanned downtime carries severe operational and safety consequences, this extension cable serves as a critical link between the proximity transducer and the signal conditioning module — ensuring signal integrity is maintained even under the most demanding industrial conditions.

Engineered to operate within the 3300 XL proximity measurement chain, the 330101-30-63-10-02-00 provides a shielded, low-capacitance signal path that minimizes signal drift and attenuation across extended cable runs. Its ruggedized construction resists the effects of high electromagnetic interference (EMI), mechanical vibration, thermal cycling, and exposure to moisture, dust, and industrial chemicals — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, and heavy manufacturing environments.

In safety-critical applications such as turbine shaft monitoring, compressor vibration protection, and pump bearing surveillance, any degradation in the extension cable’s electrical characteristics can result in false alarms, missed fault detection, or — in worst-case scenarios — undetected machinery failure. The 330101-30-63-10-02-00 is built to eliminate these risks by maintaining stable impedance and shielding effectiveness throughout its service life, supporting the reliable operation of the Bently Nevada 3300 XL 8mm Proximity Transducer and its associated 3300 XL Signal Conditioner.

Within a complete vibration monitoring cabinet, this extension cable integrates seamlessly with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and the 3500 Rack Interface Module (RIM), forming a fully coordinated protection loop. When paired with the Bently Nevada 3300 XL Proximitor Sensor and routed through properly grounded cable trays, the system achieves the signal-to-noise performance required for API 670-compliant machinery protection. The cable’s double-shielded design also reduces susceptibility to ground loop interference — a common source of spurious trips in high-voltage industrial switchgear rooms and motor control centers.

For installations in hazardous areas, the 330101-30-63-10-02-00 supports intrinsically safe circuit configurations when used in conjunction with approved Zener barriers or galvanic isolators, making it suitable for Zone 1 and Zone 2 classified locations in oil and gas upstream and downstream facilities. Its temperature rating accommodates the thermal extremes found in steel mill auxiliary drives, cement kiln drive systems, and offshore platform machinery spaces.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust vibration monitoring cabinet built around the Bently Nevada 3300 XL platform requires more than a single high-quality component — it demands a coordinated assembly of protection-grade hardware. The 330101-30-63-10-02-00 extension cable anchors the field-side signal chain, connecting the proximity transducer to the Bently Nevada 3300 XL Proximitor Sensor mounted at the cabinet entry point. From there, conditioned signals feed into the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which provides real-time vibration amplitude and phase data to the plant DCS or safety instrumented system (SIS).

To protect the cabinet’s power supply rail from voltage transients and surge events — particularly in facilities with large motor starts or nearby lightning exposure — the installation should incorporate a dedicated DC power conditioner or surge protection device rated for the 24 VDC supply used by the 3300 XL system. The Bently Nevada 3500 Rack Interface Module provides the communication backbone, enabling Modbus or proprietary protocol integration with the plant historian and alarm management system. For installations requiring redundant monitoring, a secondary 3300 XL Signal Conditioner can be configured in a hot-standby arrangement, ensuring that a single component failure does not interrupt the protection function.

Cable routing discipline is equally critical: the 330101-30-63-10-02-00 should be routed in dedicated instrumentation cable trays, physically separated from power cables, and terminated with proper shield grounding at a single point to prevent circulating currents. This practice, combined with the cable’s inherent double-shielding, delivers the sub-millivolt noise floor required for reliable gap voltage measurement in high-speed rotating machinery applications.

Critical Industrial Safety Applications

The 330101-30-63-10-02-00 extension cable is deployed across a wide range of safety-critical industrial sectors where continuous machinery availability is non-negotiable:

Petrochemical and Refining: In crude distillation units and catalytic cracker compressor trains, proximity transducer systems provide the primary shaft vibration and position signals that trigger automatic shutdown before catastrophic bearing failure. The extension cable’s chemical resistance and EMI shielding ensure reliable signal transmission in environments saturated with hydrocarbon vapors and high-frequency electrical noise from variable frequency drives.

Power Generation: Steam turbine and gas turbine protection systems rely on eddy-current proximity measurements for shaft eccentricity, differential expansion, and thrust position monitoring. Any signal interruption in the extension cable path can mask developing faults, making cable quality a direct safety variable in power plant operations.

Mining and Mineral Processing: Ball mill and SAG mill drive systems operate in extreme dust and vibration environments. The ruggedized construction of the 330101-30-63-10-02-00 maintains measurement integrity even when subjected to the mechanical shock and abrasive contamination typical of mineral processing facilities.

Water and Wastewater Treatment: Large pump stations and blower systems in municipal water infrastructure require continuous vibration monitoring to prevent unplanned outages that could affect public health. The cable’s moisture resistance supports reliable long-term installation in wet, humid pump rooms.

Metallurgy and Steel Production: Rolling mill main drives and continuous casting machine drives generate intense electromagnetic fields. The double-shielded design of this extension cable provides the isolation necessary to maintain clean proximity signals in these high-interference environments.

Port and Marine Applications: Shipboard machinery monitoring systems and port crane drive systems demand components that withstand salt air, condensation, and continuous vibration. The 330101-30-63-10-02-00 meets these requirements, supporting reliable condition monitoring in marine-grade installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-30-63-10-02-00?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects, electrical performance deviations, and shielding integrity failures. Support requests are processed with priority to minimize customer downtime.

Q2: What pre-shipment testing is performed on each cable?
Every 330101-30-63-10-02-00 unit undergoes full electrical continuity testing, insulation resistance measurement (IR test), and coaxial shielding integrity verification before dispatch. Test records are available upon request for quality audit purposes.

Q3: Is this cable compatible with all Bently Nevada 3300 XL proximity transducer configurations?
Yes. The 330101-30-63-10-02-00 is designed specifically for the Bently Nevada 3300 XL 8mm proximity measurement system and is compatible with the full range of 3300 XL transducers and Proximitor sensors. Customers should verify the cable length and connector configuration against their specific installation requirements before ordering.

Q4: Can long-term supply continuity be guaranteed for this part number?
We maintain dedicated stock of the 330101-30-63-10-02-00 to support both immediate replacement needs and planned maintenance programs. For customers with multi-unit or annual procurement requirements, framework supply agreements are available to ensure priority allocation and stable lead times.
