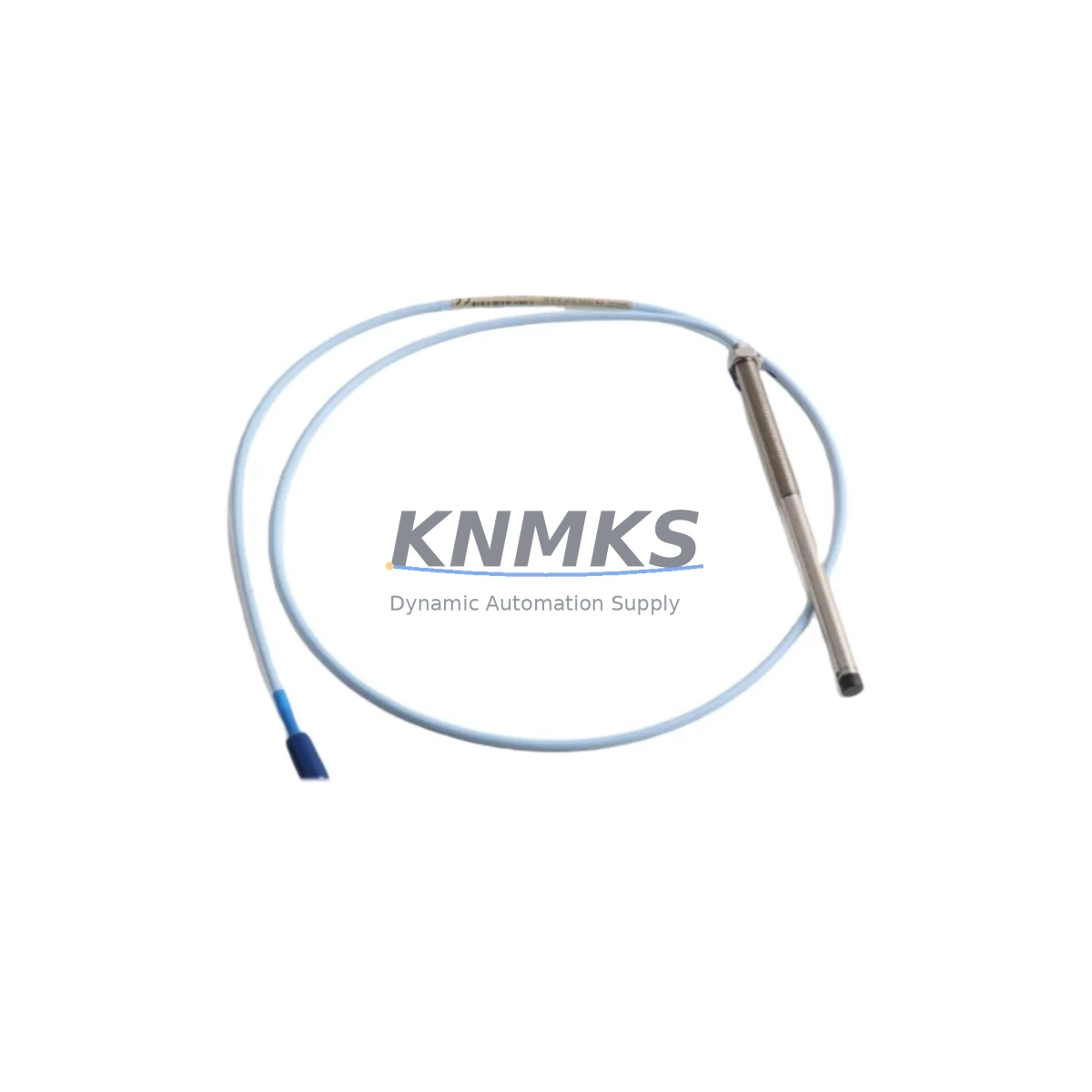

Bently Nevada 330101-30-60-90-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-30-60-90-02-05 Fail-Safe Proximity Probe: Critical Fault Protection and Industrial Field Reliability

The Bently Nevada 330101-30-60-90-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate without interruption in the most demanding industrial environments, this probe delivers fail-safe shaft displacement and vibration measurement for rotating machinery protection. Its robust construction and precision signal output make it a cornerstone component in safety instrumented systems (SIS), critical interlock loops, and machinery protection panels across petrochemical, power generation, mining, and heavy manufacturing facilities.

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the 330101-30-60-90-02-05 provides the measurement integrity required to sustain reliable control. Its eddy-current sensing principle is inherently immune to contamination from oil mist, dust, and condensation — common hazards in compressor halls, turbine enclosures, and pump stations. The probe maintains stable gap voltage output even under high electromagnetic interference (EMI) generated by variable frequency drives (VFDs), large motor starters, and high-current bus bars in the same control cabinet or field junction box.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection panel, the 330101-30-60-90-02-05 proximity probe does not operate in isolation. It forms part of a tightly integrated measurement chain that begins at the shaft surface and terminates at the safety logic solver or DCS input card. The probe connects to a Bently Nevada 330130 Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated -18 VDC output suitable for direct input to the Bently Nevada 3300/16 Dual Vibration Monitor. This monitor continuously evaluates radial vibration amplitude and provides relay-based trip and alarm outputs to the plant’s emergency shutdown system (ESD).

Power supply stability is equally critical. The Proximitor® Sensor and monitor cards are typically powered by a Bently Nevada 3300/05 Power Supply or equivalent redundant 24 VDC rail within the machinery protection cabinet. Any voltage sag or transient on this rail can cause false trips or, more dangerously, missed alarms. Surge protection devices and EMI filters installed at the cabinet entry point — such as those compatible with the Phoenix Contact TRABTECH series — are recommended to protect the signal and power circuits from field-induced transients.

For installations requiring full API 670 compliance, the probe system is often paired with a Bently Nevada 3500 Series Rack for centralized monitoring of multiple machine trains. In such architectures, the 330101-30-60-90-02-05 serves as the field sensing element for radial shaft position, while complementary probes — including Bently Nevada 330103 (axial thrust) and 330180 (key phasor) models — complete the full vibration and position measurement suite. Together, these components provide the redundant, cross-validated signal coverage required for safe machinery operation in critical service.

Critical Industrial Safety Applications

The 330101-30-60-90-02-05 is deployed across a wide range of critical industrial sectors where rotating machinery failure carries unacceptable safety and production risk:

Petrochemical and Refining: Installed on centrifugal compressors, reactor charge pumps, and steam turbine-driven blowers in continuous process units. The probe’s resistance to hydrocarbon vapors and high ambient temperatures ensures reliable shaft displacement monitoring in environments where a missed vibration alarm could trigger a safety incident or unplanned unit shutdown.

Power Generation: Used on boiler feed pumps, induced draft fans, and gas turbine auxiliary systems. In combined-cycle plants, the probe supports the machinery protection system that guards against catastrophic bearing failure during load-following operation, where shaft dynamics change rapidly with power output.

Mining and Mineral Processing: Applied to large ball mill pinion bearings, slurry pump drives, and crusher main shafts. The probe’s non-contact measurement principle eliminates wear-related drift that would affect contact-type sensors in high-dust, high-vibration mining environments.

Water and Wastewater Treatment: Monitors vertical turbine pumps and blower trains in water intake and aeration stations. Continuous vibration data from the 330101-30-60-90-02-05 enables condition-based maintenance scheduling, reducing emergency repair costs and service interruptions to municipal water supply.

Metallurgy and Steel: Protects rolling mill main drives, continuous caster pinch rolls, and converter fan systems. The probe’s high-temperature tolerance and vibration immunity are essential in steel plant environments where ambient temperatures and mechanical shock loads are extreme.

Port and Marine: Installed on ship propulsion shaft lines, crane hoist drives, and terminal conveyor gearboxes. The sealed, corrosion-resistant construction of the 330101-30-60-90-02-05 withstands salt-laden air and humidity in coastal and offshore installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-30-60-90-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support terms support includes replacement or repair, with technical assistance available throughout the coverage period. Contact [email protected] for support requests and RMA processing.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-30-60-90-02-05 probe undergoes functional verification prior to dispatch, including gap voltage output check, cable continuity and insulation resistance test, and connector integrity inspection. Units are shipped in original or equivalent protective packaging to prevent transit damage to the probe tip and coaxial cable assembly.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330101-30-60-90-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor, 3300/16 Dual Vibration Monitor, and 3500 Series rack-based monitoring systems. It is a direct replacement for equivalent 8mm probes in the 330101 family. Verify cable length configuration (probe + extension) matches your installation gap and routing requirements before ordering.

Q4: Can long-term supply and spare part availability be guaranteed?
KNMKS maintains dedicated stock of the 330101-30-60-90-02-05 and related 3300 XL series components to support planned maintenance programs, turnaround spares kits, and emergency replacement requirements. Long-term supply agreements and blanket order arrangements are available for facilities with recurring demand. Contact our team to discuss stocking programs tailored to your maintenance schedule.
