Bently Nevada 330101-30-60-90-02-00 Maintenance-Proven Spare Part for Factory Uptime

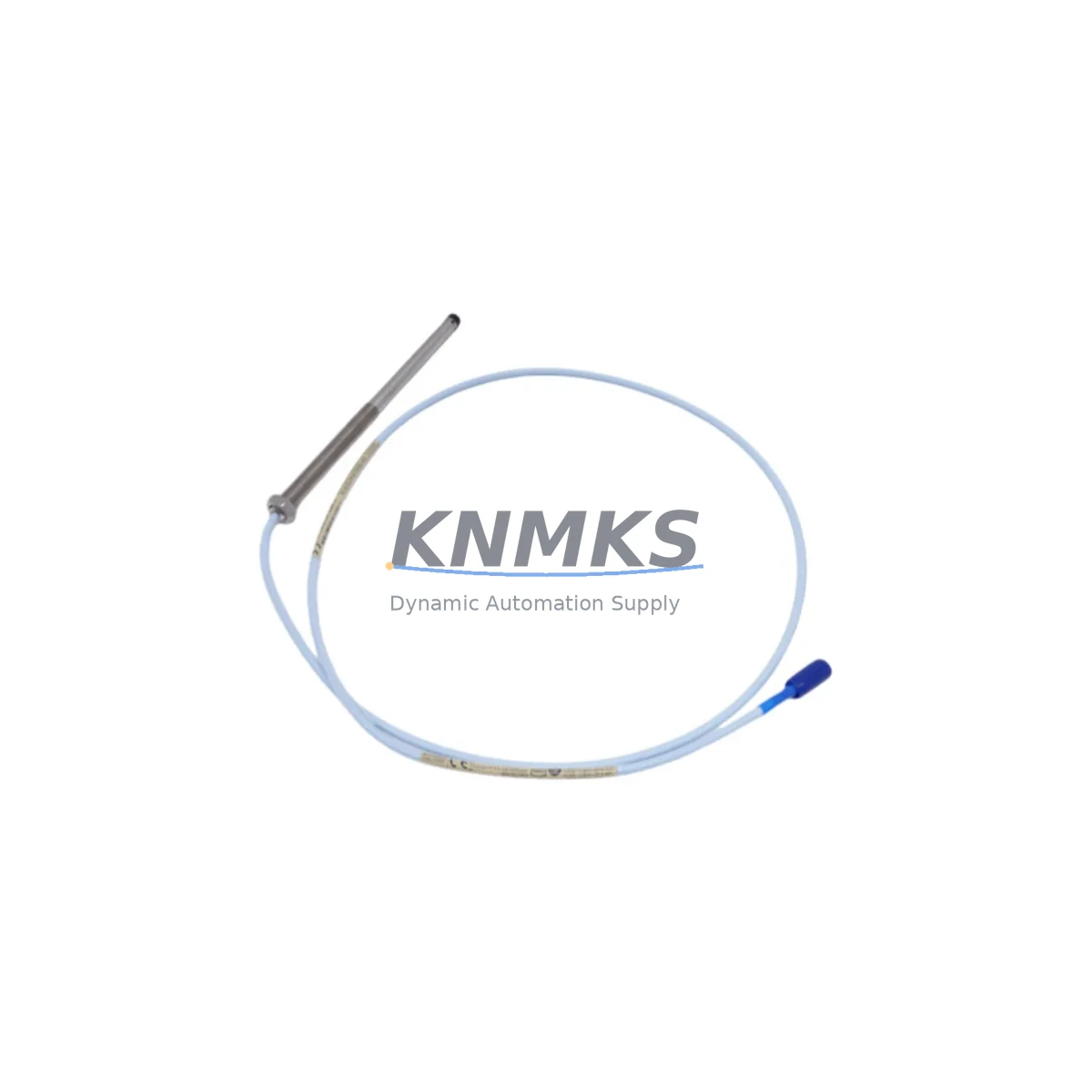

The Bently Nevada 330101-30-60-90-02-00 is an 8mm proximity transducer engineered for continuous vibration and position monitoring within the 3300 XL machinery protection system. Designed for rotating equipment in turbines, compressors, pumps, and motors, this transducer delivers reliable non-contact measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for preventing catastrophic machinery failure and maintaining plant uptime.

As a maintenance-proven original spare, the 330101-30-60-90-02-00 is a direct replacement for aging or failed transducers in existing 3300 XL installations. It maintains full backward compatibility with Bently Nevada signal conditioning hardware, ensuring zero re-engineering effort during emergency or scheduled replacement. Each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams confidence in both performance and supply continuity.

Whether you are responding to a vibration alarm, executing a planned annual overhaul, or building a critical-spares inventory buffer, the 330101-30-60-90-02-00 is a high-priority line item. Its long-term availability through authorized distribution channels reduces the procurement risk associated with discontinued or allocation-constrained OEM parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-30-60-90-02-00 proximity transducer, a disciplined maintenance engineer will treat the replacement as an opportunity to audit the entire vibration monitoring loop — not just the probe itself. The transducer operates as part of a matched system: the probe, the 330130-080-00-00 extension cable, and the 330180-X0-05 Proximitor® sensor must all be verified for continuity, insulation resistance, and gap voltage calibration before the machine is returned to service.

Beyond the transducer loop, the control cabinet housing the 3300 XL rack should be inspected for related components that are subject to the same thermal and vibration stress cycles. The 3300/20 Radial Vibration Monitor module in the rack should be checked for alarm setpoint integrity and relay output function. If the installation includes axial position monitoring, the companion 330101-30-60-90-02-00 axial probe and its dedicated monitor channel should be verified simultaneously to avoid a second unplanned outage.

Power supply integrity is a frequently overlooked failure mode in proximity transducer systems. The -24 VDC power supply module feeding the Proximitor® sensor should be load-tested and its output voltage verified within ±0.5 V of nominal. A degraded power supply will cause erratic gap voltage readings that mimic probe failure, leading to unnecessary transducer replacements. Including a spare 3300/05 Power Supply module in the critical-spares kit eliminates this diagnostic ambiguity.

For installations where the 3300 XL rack communicates with a DCS or safety system via the 3300/55 Communication Gateway or hardwired 4–20 mA outputs, verify that the signal isolation barriers and terminal blocks on the I/O marshalling panel are clean, torqued to specification, and free of corrosion. Loose terminal connections on the signal output side are a common source of nuisance trips that are misattributed to transducer failure. A set of spare Phoenix Contact or Weidmüller terminal blocks appropriate to the marshalling panel design should be maintained on-site.

Finally, if the machine is part of an API 670-compliant protection system, document the replacement in the machinery history log and retain the calibration certificate issued with the 330101-30-60-90-02-00 unit. This record supports both insurance compliance and future root-cause analysis if a machinery event occurs within the confirmed support period.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a hot-work or cold-work permit as required by site safety procedures. Isolate the monitor channel in bypass mode via the 3300 XL front-panel bypass switch to suppress spurious trips during probe removal. Do not de-energize the rack unless required by site procedure — maintaining rack power preserves the gap voltage reference for the adjacent channels.

Step 2 — Gap Voltage Baseline: Before removing the old probe, record the existing gap voltage using a calibrated voltmeter at the Proximitor® sensor output terminals. A nominal gap voltage of -10.0 V ±0.5 V at the recommended installation gap (1.27 mm / 50 mil for 8mm probes) confirms the target shaft surface is within specification. Deviation from this baseline may indicate shaft wear or target material change rather than probe failure.

Step 3 — Probe Removal and Inspection: Unthread the 330101-30-60-90-02-00 probe from the mounting bracket. Inspect the probe tip for physical damage, contamination, or oil carbonization. Inspect the extension cable connector for pin corrosion or bent contacts. If the extension cable shows any jacket damage or connector wear, replace it simultaneously with the 330130-080-00-00 matched extension cable to maintain system calibration.

Step 4 — New Probe Installation: Install the replacement 330101-30-60-90-02-00 at the correct gap per the Bently Nevada installation drawing. Use a non-metallic feeler gauge to set the initial gap. Reconnect the extension cable and Proximitor® sensor. Apply thread-locking compound to the probe locknut per OEM specification.

Step 5 — Gap Voltage Verification and Return to Service: With the rack energized, verify the gap voltage at the Proximitor® output is within the nominal range. Confirm alarm and danger setpoints are active. Remove the bypass, verify the monitor channel is in normal operating mode, and close the work permit. Update the machinery history record with the replacement date, new probe serial number, and measured gap voltage.

This workflow minimizes downtime to under two hours for a single-channel replacement on an accessible machine, and eliminates the risk of re-work caused by incorrect gap setting or mismatched cable length — the two most common installation errors with 3300 XL proximity systems.

Spare Parts Support FAQ

Q1: Is the 330101-30-60-90-02-00 compatible with both 3300 XL and 3500 series monitors?
The 330101-30-60-90-02-00 is natively designed for the 3300 XL 8mm Proximitor® sensor system. It can be used with 3500 series monitors when paired with the appropriate 3500/42M or 3500/44M monitor module and a compatible Proximitor® sensor. Always verify the monitor module’s input configuration and sensitivity setting (200 mV/mil) before installation in a 3500 rack to ensure alarm setpoints remain valid.

Q2: What is the recommended spare parts inventory strategy for this transducer?
For critical rotating equipment (turbines, compressors) operating in continuous-process environments, industry best practice is to maintain a minimum of two spare 330101-30-60-90-02-00 probes per machine train, plus one matched extension cable set. For plants with five or more monitored machines of the same type, a pooled inventory of four to six probes reduces per-machine carrying cost while maintaining adequate emergency coverage. KNMKS supports blanket-stock programs with scheduled quarterly replenishment to maintain your on-site buffer without capital lock-up.

Q3: How is each unit tested before shipment?
Every 330101-30-60-90-02-00 unit supplied by KNMKS undergoes pre-shipment functional verification including gap voltage output measurement, cable continuity and insulation resistance testing, and connector integrity inspection. Units that do not meet Bently Nevada OEM output specifications are quarantined and not shipped. A test record is available upon request and accompanies units supplied under formal purchase orders requiring documentation.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions as defined by the Bently Nevada installation specification. It does not cover damage resulting from incorrect gap setting, mismatched extension cable, electrical overstress, or physical impact. To initiate a support terms claim, contact KNMKS with the original purchase order number, shipment date, and a description of the failure mode. KNMKS will arrange return shipping and provide a replacement unit or credit note within the agreed lead time. Support requests are processed directly — no OEM registration is required.
