Bently Nevada 330101-30-60-05-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-30-60-05-01-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

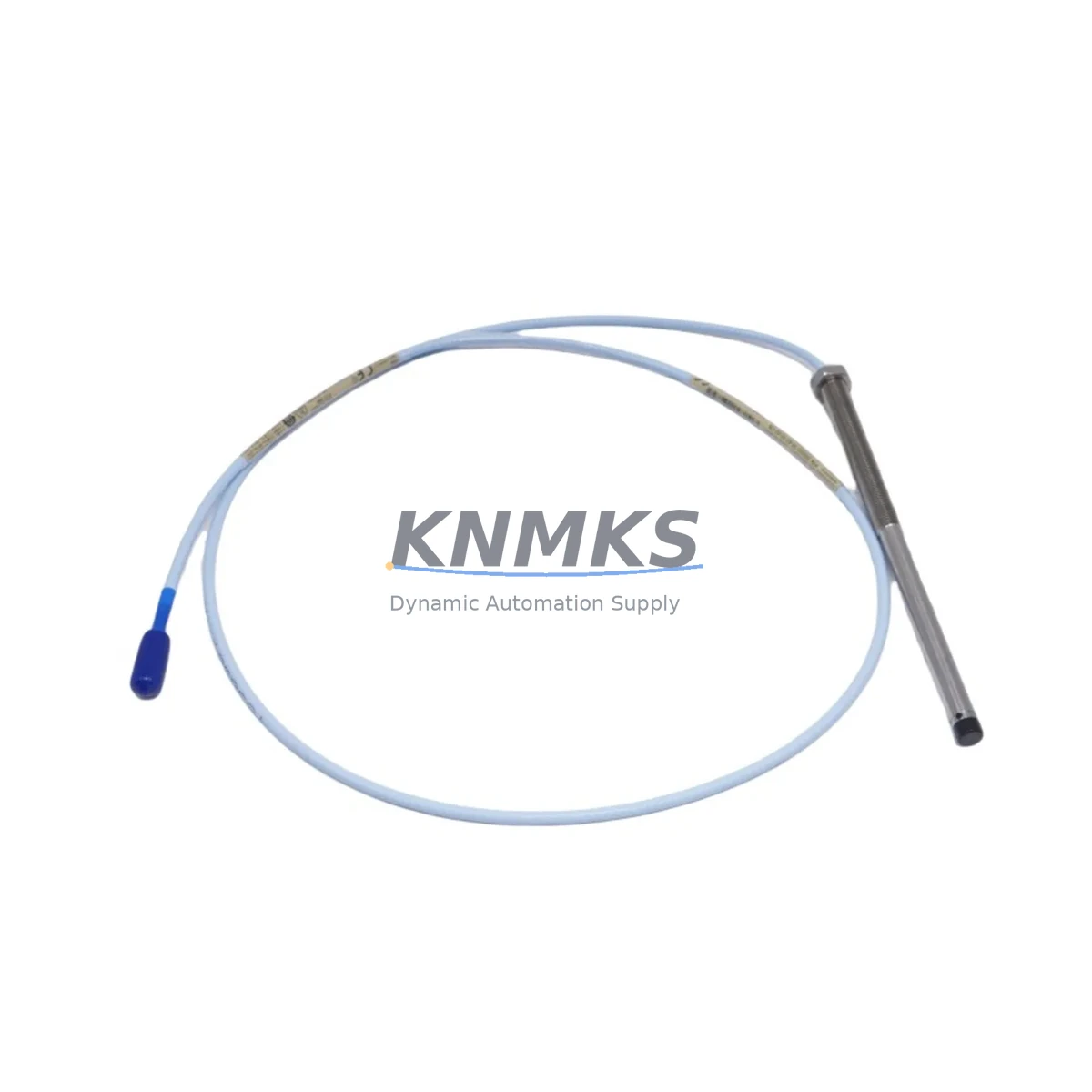

The Bently Nevada 330101-30-60-05-01-05 is an 8mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. As a core component of the Bently Nevada 3300 XL Series, this probe delivers exceptional signal stability, immunity to electromagnetic interference, and robust mechanical integrity — making it the preferred choice for critical machinery protection systems where unplanned downtime is not an option.

Designed to operate reliably in high-vibration, high-temperature, and chemically aggressive environments, the 330101-30-60-05-01-05 provides continuous non-contact measurement of shaft radial vibration, axial position, and differential expansion. Its fail-safe architecture ensures that any cable break, connector fault, or power anomaly is immediately detected and reported — preventing false-safe conditions that could mask developing machinery faults in rotating equipment such as steam turbines, gas compressors, centrifugal pumps, and large induction motors.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-30-60-05-01-05 probe does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain. The probe connects via a matched Bently Nevada 330130 extension cable to a 3300 XL Proximitor® Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for the Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module.

Within the control cabinet, signal integrity is protected by proper grounding discipline and shielded cable routing, preventing ground loops and capacitive coupling from variable-frequency drives or high-current motor starters. Surge protection devices — such as the Bently Nevada 02120028 transient suppressor — are recommended at cabinet entry points to absorb voltage spikes from nearby switching equipment or lightning-induced transients on field cable runs exceeding 30 meters.

Power supply stability is equally critical. The 3300 XL Proximitor® Sensor requires a stable –24 VDC supply; any ripple or dropout directly affects the probe gap voltage and can trigger nuisance trips or, worse, mask real vibration events. Pairing the monitoring loop with a dedicated Bently Nevada 3500/15 Power Supply module ensures clean, regulated power with redundant input capability, eliminating power-related signal drift. For installations requiring SIL 2 loop integrity, the entire chain — probe, extension cable, Proximitor® sensor, and rack monitor — must be validated as a complete functional safety loop per IEC 61511.

In high-dust or high-humidity enclosures, the probe tip and cable connector should be inspected and cleaned during scheduled maintenance windows. The IP67-rated construction of the 330101-30-60-05-01-05 provides robust protection, but connector integrity at the junction box remains the most common field failure point. Using Bently Nevada-approved armored extension cables with stainless steel conduit fittings significantly extends mean time between maintenance interventions in coal handling, cement, and mineral processing environments.

Critical Industrial Safety Applications

The 330101-30-60-05-01-05 proximity probe is deployed across a wide range of critical industrial sectors where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery facilities, it monitors radial vibration on process gas compressors and reactor charge pumps operating under API 670 protection requirements. Any shaft displacement exceeding the danger setpoint triggers an automatic shutdown interlock, preventing catastrophic seal failure and hydrocarbon release.

In thermal and combined-cycle power generation, the probe tracks turbine shaft eccentricity and differential expansion during startup and load transients — conditions where thermal gradients create the highest risk of rub events between rotating and stationary components. Early detection of abnormal shaft centerline migration allows operators to reduce load or initiate a controlled shutdown before blade contact occurs.

In mining and mineral processing operations, large ball mills, SAG mills, and slurry pumps operate in environments with extreme dust loading, vibration, and temperature cycling. The 330101-30-60-05-01-05’s robust construction and high EMI immunity make it reliable in these conditions, where proximity to large variable-speed drives and high-current bus bars would compromise lesser sensors.

In water and wastewater treatment plants, the probe monitors vertical turbine pumps and blower trains in humid, corrosive atmospheres. Continuous vibration trending enables condition-based maintenance scheduling, replacing time-based overhaul intervals and reducing unnecessary downtime.

In steel and aluminum smelting facilities, the probe is used on rolling mill drive trains and continuous caster pinch roll assemblies, where bearing failure can cause product defects, roll damage, and extended production outages. The fail-safe output architecture ensures that a probe or cable fault is never interpreted as a healthy machine condition.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-30-60-05-01-05?
The support terms confirmed by quotation cover all manufacturing defects, calibration failures, and functional faults under normal operating conditions. If the probe fails to meet its specified scale factor or exhibits open/short-circuit faults within the confirmed support period, we provide a replacement unit or documented resolution support. Support requests are processed within 5 business days of receiving the returned unit.

Q2: How is the probe tested before shipment?
Every 330101-30-60-05-01-05 unit undergoes pre-shipment functional verification including gap voltage linearity check across the full measurement range, insulation resistance test on the coaxial cable, and connector continuity verification. Units that do not meet Bently Nevada OEM specifications are quarantined and not shipped. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor® Sensors and 3500 rack monitors?
Yes. The 330101-30-60-05-01-05 is fully compatible with the Bently Nevada 3300 XL extension cable and Proximitor® Sensor family, and integrates directly with 3500 Series rack monitors including the 3500/42M, 3500/40M, and 3500/45. No recalibration of the monitor is required when replacing a like-for-like probe, provided the extension cable length and target material remain unchanged.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
We maintain dedicated buffer stock of the 330101-30-60-05-01-05 to support blanket purchase orders and annual maintenance contracts. For facilities with multiple machines using this probe model, we recommend establishing a consignment or scheduled replenishment agreement to eliminate lead-time risk during unplanned outages. Contact our team to discuss volume pricing and guaranteed availability terms.
