Bently Nevada 330101-28-43-10-12-05 Migration-Ready Proximity Probe

Overview

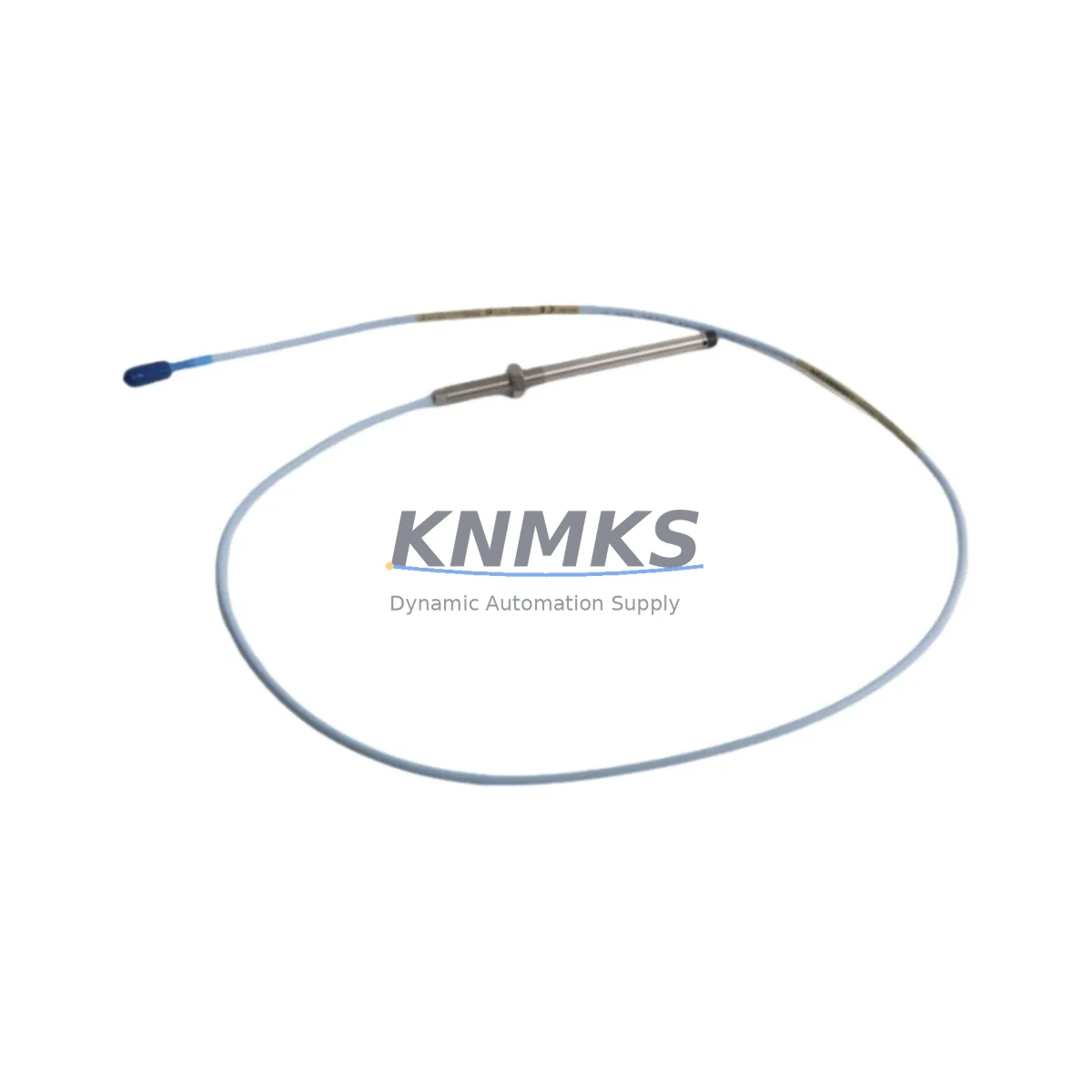

Bently Nevada 330101-28-43-10-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-28-43-10-12-05 is a migration-ready eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life and OEM support windows close, this probe remains one of the most requested direct-replacement components for turbines, compressors, pumps, and gearboxes operating under API 670-compliant monitoring architectures. With verified dimensional compatibility, calibrated output sensitivity, and a support terms confirmed by quotation backed by pre-shipment functional testing, the 330101-28-43-10-12-05 is the preferred choice for maintenance engineers executing planned retrofits or emergency spare replacements on existing installations.

This probe is designed to interface directly with the Bently Nevada 3300 XL proximitor/driver system. Its 28-inch (711 mm) probe cable length, 43-inch (1092 mm) extension cable, and 10-mil (0.254 mm) linear range make it suitable for shaft radial vibration and axial position measurement on steel targets. Before installation, engineers should confirm target material (steel vs. non-ferrous), gap voltage at mid-range (typically –10 VDC), and proximitor supply voltage (–24 VDC nominal) to ensure the replacement probe operates within the calibrated range of the existing 3300 XL proximitor module.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-28-43-10-12-05 into an existing rotating machinery protection system requires a structured pre-outage planning process. The probe itself is a passive eddy-current transducer, but its performance is inseparable from the condition of the surrounding measurement chain — including the 3300 XL proximitor/driver, the extension cable assembly, the monitor card, and the rack power supply.

Begin by auditing the existing proximitor. The Bently Nevada 3300 XL Proximitor/Seismic Interface (commonly the 3300/05 or 3300/10 proximitor module) must be confirmed operational before the new probe is installed. A failed or drifting proximitor will produce erroneous gap voltage readings even with a new probe in place. If the proximitor has not been replaced within the last 10 years or shows output voltage deviation beyond ±0.5 VDC from nominal, plan for simultaneous replacement to avoid a repeat outage.

Next, inspect the extension cable. The 43-inch extension cable supplied with the 330101-28-43-10-12-05 connects the probe to the proximitor via TNC connectors. In high-vibration or high-temperature environments, extension cable insulation degrades over time. If the existing extension cable shows cracking, moisture ingress, or connector corrosion, replace it as part of the same maintenance window. Reusing a degraded extension cable with a new probe is a common source of post-retrofit signal noise and nuisance trips.

For installations where the 3300 XL rack is being partially upgraded — for example, adding a Bently Nevada 3500 Series monitor card alongside legacy 3300 XL cards — verify that the rack backplane power distribution is adequate. The 3500 Series rack power supply (such as the 3500/15 Power Supply module) has different current draw characteristics than the 3300 XL power supply, and mixed-rack configurations require careful load calculation to avoid undervoltage conditions that affect probe measurement accuracy.

If the retrofit involves migrating from a 3300 XL platform to a 3500 Series platform entirely, the 330101-28-43-10-12-05 probe remains compatible with 3500 Series monitors when used with the appropriate 3500/42M Proximitor Monitor or 3500/40M Proximitor/Seismic Monitor. This cross-series compatibility is a key advantage for phased migration strategies where the probe infrastructure is retained while the monitor rack is upgraded. In such cases, update the channel configuration in the 3500 Rack Configuration Manager to reflect the probe’s 200 mV/mil sensitivity and 10-mil linear range.

For facilities running Bently Nevada System 1 condition monitoring software, the channel tag, engineering unit scaling, and alarm setpoints associated with the replaced probe must be reviewed and updated in the System 1 database after installation. Failure to update the database can result in incorrect trend data or masked alarm conditions during the post-retrofit monitoring period. If the plant HMI displays vibration data sourced from System 1 via OPC-DA or OPC-UA, verify that the HMI tag mapping remains valid after the channel update.

Finally, for installations involving I/O signal routing to a DCS or safety system — such as a Yokogawa CENTUM VP or Emerson DeltaV — confirm that the 4–20 mA or relay output from the 3300 XL or 3500 monitor card is correctly mapped to the corresponding DCS input channel. Signal isolation barriers or Zener barriers in the field junction box should be inspected and tested as part of the retrofit commissioning procedure to ensure signal integrity across the full measurement chain.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation that begins well before the maintenance window opens. The 330101-28-43-10-12-05 is stocked and available for immediate dispatch, which eliminates the lead-time risk that frequently extends outage durations when sourcing discontinued or slow-moving spare parts through OEM channels.

Before the outage begins, document the existing probe gap voltage (typically recorded in the plant’s predictive maintenance database or on the monitor front panel), the proximitor serial number, and the current alarm and danger setpoints for the affected channel. This baseline data allows the commissioning technician to restore the channel to its pre-outage configuration quickly and verify that the new probe is performing within expected parameters before the machine is returned to service.

During the replacement, bypass the affected monitor channel in the 3300 XL or 3500 Series monitor to prevent spurious trips while the probe is disconnected. Most 3300 XL monitor cards support a maintenance bypass mode via front-panel DIP switch or software inhibit through the rack communication interface. Confirm the bypass procedure with the monitor card manual before disconnecting the probe to avoid inadvertent safety system activation.

After installing the 330101-28-43-10-12-05 and reconnecting the extension cable, set the probe gap to achieve the target gap voltage (–10 VDC ±0.5 VDC for a 10-mil linear range probe on a steel target). Use a calibrated digital voltmeter at the proximitor output terminals to measure gap voltage directly. Do not rely solely on the monitor front-panel display during initial commissioning, as display scaling errors can mask incorrect gap settings.

Once gap voltage is confirmed, remove the channel bypass, observe the vibration reading for a minimum of 5 minutes at operating speed, and compare the reading against the historical baseline. A reading within ±10% of the pre-replacement baseline confirms correct installation. Document the post-installation gap voltage, vibration reading, and commissioning technician sign-off in the plant maintenance management system before closing the work order.

Retrofit Support FAQ

Q1: Is the 330101-28-43-10-12-05 a direct drop-in replacement for the original Bently Nevada part of the same SKU?
Yes. The 330101-28-43-10-12-05 is manufactured to the original Bently Nevada dimensional and electrical specification. It is a direct replacement for the same SKU installed in 3300 XL systems. No mechanical modification or recalibration of the monitor card is required, provided the target material and gap setting are verified during installation.

Q2: Can this probe be used with a Bently Nevada 3500 Series monitor during a phased platform migration?
Yes. The 330101-28-43-10-12-05 is compatible with 3500 Series Proximitor Monitor cards (3500/42M, 3500/40M) when configured for 200 mV/mil sensitivity and 10-mil linear range. Update the 3500 Rack Configuration Manager channel settings to match the probe specification before commissioning.

Q3: What pre-shipment testing is performed, and is a test report available?
Each unit undergoes functional verification prior to dispatch, including output sensitivity check and connector integrity inspection. A pre-shipment test report is available on request. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q4: What is the typical lead time, and is stock available for urgent replacement requirements?
Stock is maintained for immediate dispatch. For urgent replacement requirements driven by unplanned outages, contact the sales team directly to confirm available inventory and arrange priority shipping. Global logistics support is available for energy, petrochemical, and manufacturing facilities requiring expedited delivery.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-28-43-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-28-43-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
