Bently Nevada 330101-25-44-10-02-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-25-44-10-02-05 Maintenance-Proven Spare Part for Factory Uptime

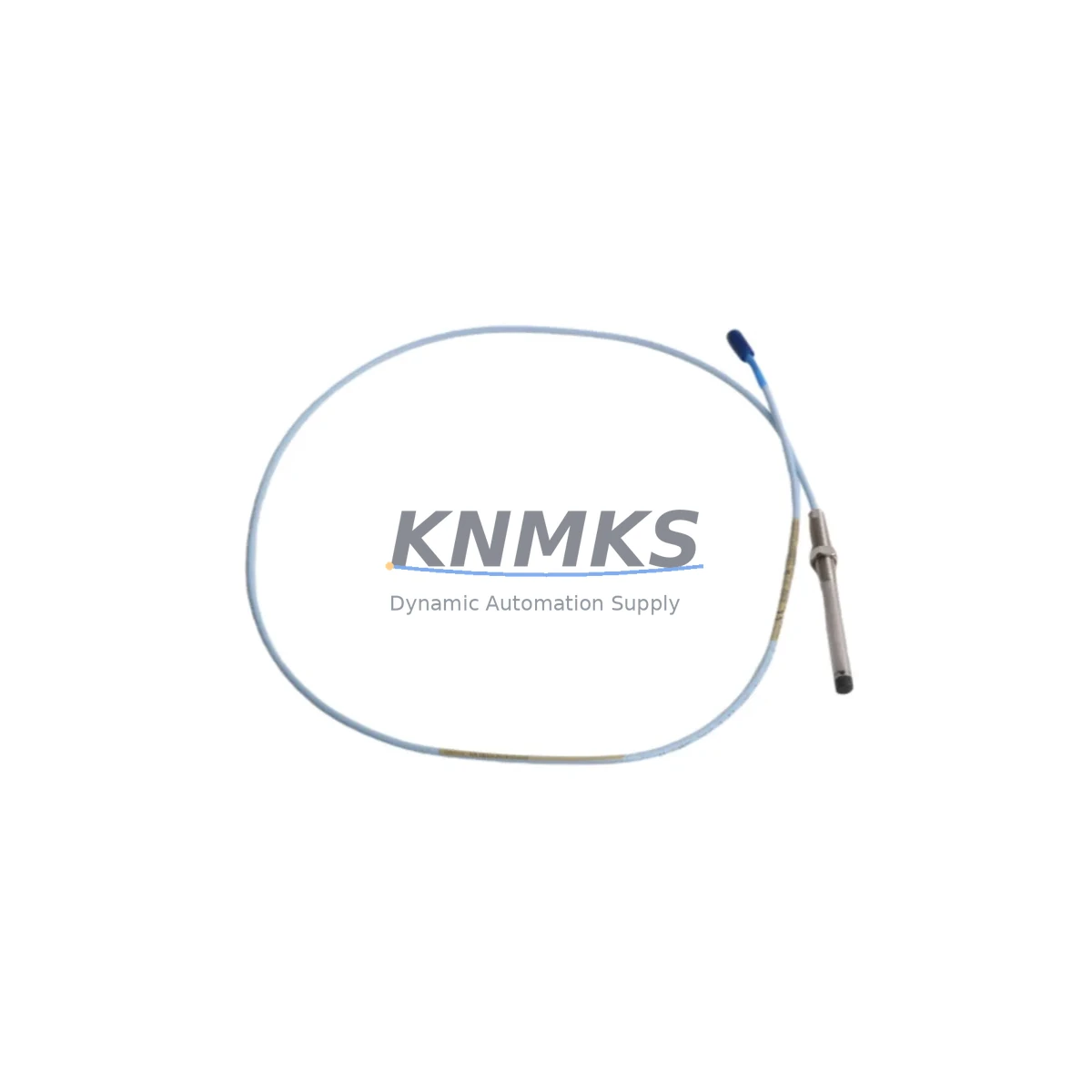

The Bently Nevada 330101-25-44-10-02-05 is an eddy-current proximity transducer engineered for the 3300 XL continuous vibration monitoring system. Designed to measure radial shaft vibration, axial position, and differential expansion on rotating machinery, this transducer is a critical component in turbine protection, compressor monitoring, and pump condition assessment programs across oil & gas, power generation, petrochemical, and heavy industrial facilities.

Sourced as an original-specification spare, the 330101-25-44-10-02-05 is verified against Bently Nevada’s 3300 XL system architecture to ensure drop-in compatibility with existing monitor racks, extension cables, and signal conditioning modules. Each unit undergoes pre-shipment functional testing covering output voltage linearity, gap sensitivity, and cable continuity before dispatch. A support terms confirmed by quotation is included with every shipment, supporting your maintenance budget and procurement risk controls.

Whether you are replenishing a rotating equipment spare parts kit, responding to an unplanned vibration trip, or executing a scheduled annual overhaul, the 330101-25-44-10-02-05 is available for immediate dispatch from regional stock to minimize your downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Rotating machinery protection depends on the integrity of the entire vibration monitoring loop — not just the transducer probe. When replacing the 330101-25-44-10-02-05 during a planned outage or emergency callout, maintenance engineers should treat the replacement as an opportunity to audit the full signal chain and associated cabinet components.

Begin with the 3300 XL proximitor/driver module paired to this transducer. Driver modules accumulate operating hours alongside the probe and are a common source of drift in gap voltage output. If the transducer is being replaced due to a vibration trip or erratic reading, the driver should be bench-tested or swapped simultaneously to rule out a compound fault. Keep at least one spare driver module — such as the Bently Nevada 3300/16-02-01-00-00-00-00 or equivalent 3300 XL driver — in your rotating equipment spare parts cabinet.

Inspect the extension cable assembly between the probe and driver. Armored cables in high-vibration or high-temperature zones are prone to jacket cracking, connector corrosion, and shield continuity loss. A damaged cable will produce the same symptoms as a failed transducer — erratic gap voltage, high noise floor, or a full-scale trip — making cable integrity verification a mandatory step before condemning the probe itself.

At the monitor rack level, verify the 3300 XL monitor card channel assigned to this transducer. Check the OK relay output, the buffered output BNC connector, and the channel configuration in the rack’s system software. If your facility uses a Bently Nevada 3500 series rack in parallel or as a migration path, confirm that the transducer’s sensitivity and gap range are correctly entered in the 3500 rack configuration to avoid false trips during the transition period.

For facilities running turbine or compressor trains, the 330101-25-44-10-02-05 is typically installed alongside thrust position transducers (axial channel probes) and Keyphasor transducers — both of which share the same 3300 XL signal conditioning infrastructure. A comprehensive annual inspection should include all three transducer types, their cables, and the associated junction boxes and terminal strips inside the local instrument enclosure.

Finally, review the power supply module feeding the 3300 XL rack. An unstable −24 VDC rail will cause system-wide gap voltage drift across all channels simultaneously, which can be misdiagnosed as multiple transducer failures. Confirm supply voltage tolerance is within ±1 VDC of nominal before replacing individual transducers.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the existing transducer’s gap voltage reading at the monitor rack buffered output. A reading outside the −10 to −18 VDC OK range (for standard 200 mV/mil sensitivity) indicates a fault in the probe, cable, or driver. Document the as-found gap voltage and vibration reading before disconnecting.

Step 2 — Isolation and removal: Inhibit the channel at the monitor rack to prevent a spurious trip during replacement. Disconnect the extension cable at the driver module. Unthread the probe from the mounting bracket using the correct spanner — avoid applying torque to the cable jacket. Record the as-found probe gap (number of turns from flush) for reference during reinstallation.

Step 3 — New transducer installation: Install the 330101-25-44-10-02-05 replacement to the same thread depth as the removed unit. Reconnect the extension cable. Verify connector seating and locking ring engagement. Apply anti-seize compound to the probe threads if specified by the OEM installation drawing.

Step 4 — Gap setting and commissioning: With the shaft stationary, adjust the probe gap to the target voltage specified in the machine’s vibration monitoring specification (typically −10 to −12 VDC for mid-range gap). Use a calibrated digital voltmeter at the driver output. Confirm the OK LED illuminates on the monitor card.

Step 5 — Return to service: Remove the channel inhibit. Monitor the vibration reading during machine run-up. Confirm the reading is consistent with historical baseline data. Log the replacement in the equipment maintenance record, including the new transducer serial number, gap voltage as-left, and date of installation.

This workflow supports a back-to-back compatible replacement that maintains system integrity, avoids reconfiguration of the monitor rack, and minimizes total downtime from fault identification to return-to-service.

Spare Parts Support FAQ

Q1: Is the 330101-25-44-10-02-05 a direct drop-in replacement for older 3300 XL proximity transducers?
Yes. The 330101-25-44-10-02-05 is designed to the 3300 XL system specification and is a direct replacement for same-series probes with matching probe length, cable length, and sensitivity. Always verify the probe length (25 mm), cable length (44 in), and sensitivity code (10 = 200 mV/mil) against your installation drawing before ordering. If your existing installation uses a non-standard target material or a custom calibration, contact our technical team to confirm compatibility.

Q2: What is included in the support terms confirmed by quotation, and what does it cover?
The support terms confirmed by quotation cover manufacturing defects, output sensitivity deviation beyond OEM tolerance, and functional failure under normal operating conditions. It does not cover physical damage from improper installation, cable damage from mechanical impact, or failure caused by operation outside the specified temperature or voltage range. Support requests are supported with a replacement unit dispatched after fault confirmation — no extended RMA delays.

Q3: How do you verify the transducer before shipment, and what documentation is provided?
Each 330101-25-44-10-02-05 unit undergoes pre-shipment testing covering output voltage at reference gap, linearity across the operating gap range, cable continuity, and connector integrity. A test report is available on request. Units are shipped in anti-static packaging with physical protection for the probe tip and connector. Country of origin documentation and commercial invoice are included for customs clearance.

Q4: Can you support long-term or blanket stock programs for this SKU?
Yes. For facilities with multiple machines running 3300 XL monitoring systems, we support blanket purchase orders and scheduled release programs to ensure stock availability without requiring repeated spot purchases. Regional warehouse stock in Asia, Europe, and the Americas supports short lead times for emergency callouts. Contact [email protected] or +86 18359268345 to discuss volume pricing and consignment stock arrangements.
