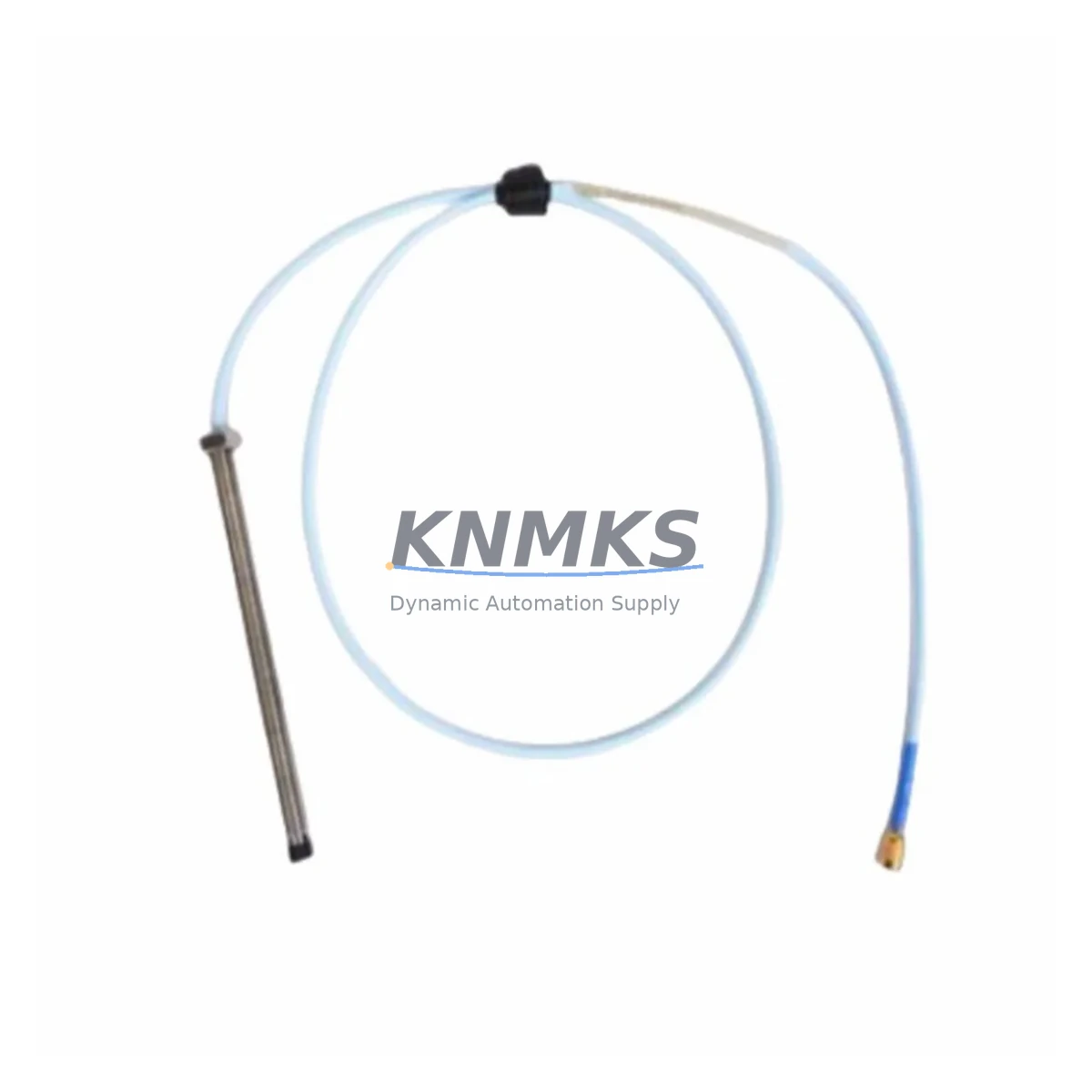

Bently Nevada 330101-23-41-10-02-05 Maintenance Spare Part

Overview

Bently Nevada 330101-23-41-10-02-05 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330101-23-41-10-02-05 is an 8mm proximity probe designed for the 3300 XL Series continuous machinery monitoring system — one of the most widely deployed vibration and position monitoring platforms in rotating equipment applications across petrochemical, power generation, compressor stations, and turbine control environments. Maintaining a verified stock of this probe is a foundational element of any predictive maintenance program where unplanned downtime carries significant operational and financial risk.

This probe is engineered to deliver precise non-contact displacement measurement, making it critical for shaft vibration, axial position, differential expansion, and eccentricity monitoring on steam turbines, gas turbines, centrifugal compressors, and large induction motors. When a probe fails or drifts out of calibration tolerance, the entire monitoring loop — from field sensor to the 3300 XL rack — must be restored quickly to avoid running machinery blind. Having a pre-tested, shelf-ready 330101-23-41-10-02-05 eliminates the lead time risk that often extends unplanned outages by days or weeks.

From a maintenance engineering perspective, the 330101-23-41-10-02-05 is not an isolated component. It operates as part of a complete proximity transducer system that includes the extension cable (typically a 330130-series cable) and the proximitor/oscillator driver (commonly the 3300 XL 8mm Proximitor, such as the 330180-series). When replacing this probe during a scheduled outage or emergency callout, maintenance teams should simultaneously inspect the mating extension cable for connector corrosion, jacket abrasion, or impedance drift, and verify that the proximitor output voltage falls within the –10 to –18 VDC linear range before returning the loop to service.

For procurement engineers managing multi-unit facilities or aging 3300 XL installations, stocking the 330101-23-41-10-02-05 alongside complementary components — including the 3300 XL monitor cards, I/O modules, and rack power supplies — reduces the risk of a single-point failure cascading into a full system outage. Facilities running legacy Bently Nevada 7200 Series systems transitioning to 3300 XL architecture should also evaluate probe compatibility during migration planning, as cable lengths and gap voltage specifications may differ between generations.

All units supplied by KNMKS are sourced from verified channels, individually inspected, and subjected to pre-shipment functional testing to confirm gap voltage linearity, cable continuity, and connector integrity. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and performance deviations under normal operating conditions. Global logistics support is available for urgent site requirements, with expedited dispatch options for critical shutdown recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL proximity monitoring loop requires treating the 330101-23-41-10-02-05 probe as one node in a broader system. During annual outage preparation or control cabinet inspections, maintenance teams should audit the full transducer chain. The 330130-series extension cable should be checked for jacket integrity and connector pin condition — a degraded cable is a common source of intermittent gap voltage alarms that are often misdiagnosed as probe failure. The 330180-series proximitor should be verified for correct bias voltage output and confirmed to be within its calibrated operating range.

At the rack level, the 3300 XL monitor cards — including dual-channel vibration monitors and axial position monitors — should be inspected for firmware currency and I/O terminal tightness. Loose field wiring at the terminal blocks is a leading cause of spurious trip signals in high-vibration environments. The rack power supply modules should be load-tested if the installation is more than five years old, as capacitor aging can introduce voltage ripple that affects measurement accuracy across all channels.

For facilities with Modbus or FOUNDATION Fieldbus integration, the communication interface cards within the 3300 XL rack should be included in the inspection cycle. Signal isolation barriers between the proximity loop and the DCS input cards are also worth stocking as spares, particularly in installations where ground loops have historically caused measurement noise. Fuse holders and fuse elements on the field power distribution panel feeding the proximitor supply rails should be replaced on a scheduled basis rather than reactively.

Procurement teams managing multi-site spare parts programs should consider a minimum stock level of two 330101-23-41-10-02-05 probes per monitored machine train, with additional buffer stock for facilities running continuous 24/7 operations where scheduled access windows are limited.

Site Replacement Workflow

When replacing a failed or suspect 330101-23-41-10-02-05 in the field, begin by isolating the affected monitoring channel at the 3300 XL rack and confirming the machine is in a safe state for probe access. Document the existing gap voltage reading before disconnecting the probe — this baseline is essential for validating the replacement installation. Disconnect the extension cable at the probe connector, noting the cable routing and any support clamps that must be reinstalled.

Install the replacement 330101-23-41-10-02-05 and set the probe gap to the manufacturer-specified distance (typically 1.0–1.5mm for 8mm probes, confirmed against the machine OEM specification). Reconnect the extension cable and verify the proximitor output voltage falls within the –10 to –18 VDC linear range at the set gap. Compare the new gap voltage reading against the documented baseline and the historical trend data in the condition monitoring system before returning the channel to active monitoring.

For legacy installations migrating from older Bently Nevada 7200 Series probes, confirm that the 3300 XL proximitor is compatible with the cable length in use, as the 3300 XL system has specific cable length constraints that differ from earlier generations. Where cable lengths must be changed, update the system configuration in the 3300 XL monitor card accordingly. This workflow minimizes downtime, preserves measurement traceability, and ensures the monitoring loop is restored to a validated state before the machine returns to service.

Spare Parts Support FAQ

Q: How long is the support terms on the 330101-23-41-10-02-05, and what does it cover?
A: Each unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects and performance deviations under normal operating conditions. Units that fail functional testing upon receipt should be reported within 30 days for replacement or credit.

Q: Is the 330101-23-41-10-02-05 compatible with all 3300 XL monitor cards?
A: The 330101-23-41-10-02-05 is designed for use with the 3300 XL 8mm Proximitor system. Compatibility with specific monitor card channels depends on the configured measurement type (radial vibration, axial position, etc.) and the cable length used. Always verify the proximitor part number and cable length against the machine’s original loop documentation before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every 330101-23-41-10-02-05 unit undergoes gap voltage linearity verification, cable continuity testing, and connector integrity inspection before dispatch. Test records are available upon request for quality documentation purposes.

Q: Can KNMKS support long-term or blanket purchase orders for this part?
A: Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for the 330101-23-41-10-02-05 and related 3300 XL system components. Contact [email protected] or +86 18359268345 to discuss volume pricing, lead time commitments, and consignment stock options for critical spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-23-41-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-23-41-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
