Bently Nevada 330101-23-39-10-12-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-23-39-10-12-05 Maintenance-Proven Spare Part for Factory Uptime

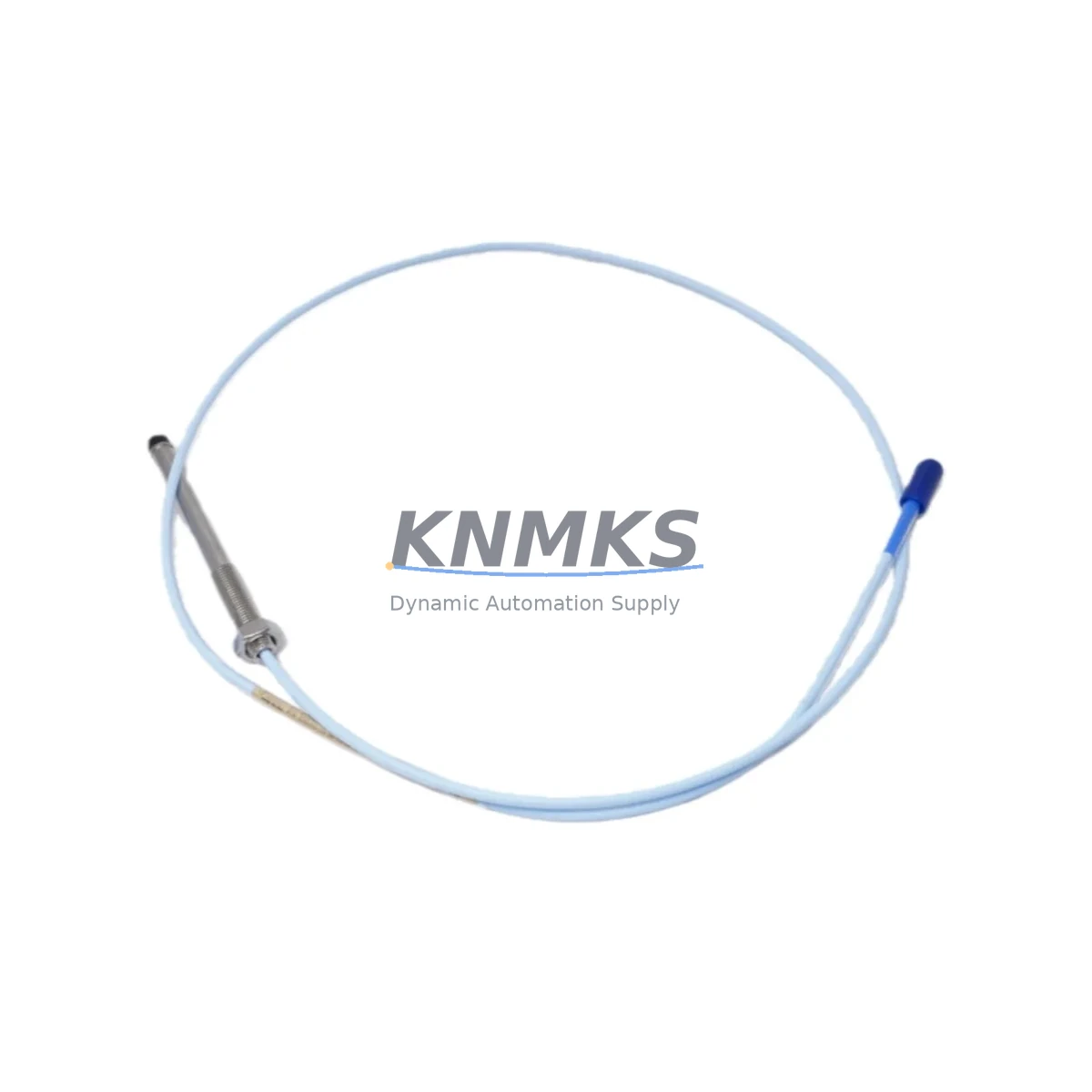

The Bently Nevada 330101-23-39-10-12-05 is an 8mm proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core component of the 3300 XL Series monitoring system, this probe delivers reliable eddy-current sensing performance in demanding industrial environments including turbines, compressors, pumps, and gearboxes. Maintaining a verified stock of this spare part is a fundamental requirement for any maintenance team operating rotating equipment under API 670 standards.

For maintenance engineers managing critical rotating assets, unplanned downtime caused by a failed proximity probe can cascade into hours of lost production. The 330101-23-39-10-12-05 is a direct OEM-equivalent replacement that restores full monitoring capability without requiring recalibration of the 3300 XL rack or modification of existing cable routing. Each unit shipped from KNMKS is individually tested and verified against original Bently Nevada specifications before dispatch, with a support terms confirmed by quotation covering manufacturing defects and performance conformance.

Procurement engineers sourcing this part for planned maintenance shutdowns or emergency restocking will find that KNMKS maintains long-term supply commitments for the 3300 XL series, including both active and legacy configurations. Our inventory supports single-unit emergency orders as well as bulk procurement for annual maintenance budgets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-23-39-10-12-05 proximity probe during a scheduled outage or emergency intervention, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure measurement integrity.

Begin with the 330130 series extension cable connecting the probe to the Proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in high-vibration or high-temperature zones. A probe replacement that overlooks a compromised extension cable will result in erratic gap voltage readings and false alarms within weeks of restart.

The 3300 XL 8mm Proximitor (330180 series) should be inspected for output voltage stability and connector integrity. If the Proximitor has been in service for more than five years or has experienced supply voltage fluctuations, consider replacing it alongside the probe to restore the full calibrated system performance.

Check the -24 VDC power supply feeding the Proximitor module. Voltage sag or ripple on the DC bus can introduce noise into the proximity signal, causing false vibration trips. A dedicated, regulated DC power supply with adequate current headroom is required for stable 3300 XL operation.

Inspect the 3300 XL monitor rack and I/O terminal blocks for loose wiring, oxidized terminals, and correct channel assignment. Verify that the channel configuration in the monitor matches the probe system sensitivity (200 mV/mil) and that the OK relay output is functioning correctly before returning the machine to service.

For facilities running System 1 or System 1 Evolution condition monitoring software, confirm that the channel tag, engineering units, and alarm setpoints are correctly mapped after the probe replacement. A mismatch between the physical probe gap and the software baseline can mask developing faults during the post-maintenance run-in period.

Where the rotating machine is also equipped with 330500 series velocity transducers or 330900 series temperature sensors in the same bearing housing, inspect those instruments during the same access window. Combining multiple sensor checks into a single planned outage minimizes total downtime and reduces the risk of repeat access within a short interval.

Finally, verify the barrier or signal isolator in the hazardous area installation (if applicable). Zener barriers and galvanic isolators in the proximity probe circuit can degrade over time and introduce impedance that affects the probe’s linear range and OK status threshold.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Record the existing probe gap voltage (typically -10V to -18V at operating gap) and compare against the as-found baseline. Document the current vibration and position readings from the 3300 XL monitor before de-energizing.

Step 2 — Safe Isolation: Follow site LOTO procedures. De-energize the Proximitor supply and disconnect the extension cable at the field junction box. Do not pull the probe cable under tension.

Step 3 — Probe Removal and Installation: Remove the existing 330101-23-39-10-12-05 probe from the bracket. Install the replacement probe, setting the gap to the OEM-specified value (typically 1.0 mm / 40 mil for radial vibration applications) using a non-ferrous feeler gauge. Torque the locknut to specification.

Step 4 — System Reconnection and Gap Verification: Reconnect the extension cable and restore Proximitor power. Measure the output voltage at the Proximitor OK terminal. Confirm the gap voltage is within the linear range (-10V to -18V). Verify the OK LED is illuminated on the 3300 XL monitor.

Step 5 — Functional Test and Return to Service: Confirm vibration and position readings are within expected baseline values. Clear any latched alarms in the monitor. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is compatible with direct replacement of legacy 330101 series probes in existing 3300 XL installations without requiring rack reconfiguration or software changes, minimizing total outage duration.

Spare Parts Support FAQ

Q1: Is the 330101-23-39-10-12-05 compatible with older 3300 series monitors (non-XL)?
The 330101-23-39-10-12-05 is designed for the 3300 XL 8mm system. Compatibility with earlier 3300 (non-XL) monitors depends on the Proximitor version installed. Verify the Proximitor model number before ordering. KNMKS technical support can assist with compatibility confirmation based on your rack configuration.

Q2: How is each unit tested before shipment?
Every 330101-23-39-10-12-05 unit shipped by KNMKS undergoes electrical continuity verification, gap voltage output testing against the 200 mV/mil sensitivity specification, and visual inspection for connector and cable integrity. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS maintains dedicated inventory for the Bently Nevada 3300 XL series to support annual maintenance contracts, shutdown planning, and emergency restocking. Long-term supply agreements with agreed lead times and pricing are available for facilities managing multiple rotating assets. Contact [email protected] to discuss your annual consumption requirements.

Q4: What is the recommended spare holding quantity for a typical rotating machinery installation?
Industry best practice under API 689 recommends holding a minimum of one spare probe per monitored bearing plane, plus one additional unit per machine train as a critical spare. For facilities with multiple identical machines, a pooled spare strategy with a minimum of two to three units per probe model is recommended to cover simultaneous failures during unplanned outages.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-23-39-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-23-39-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
