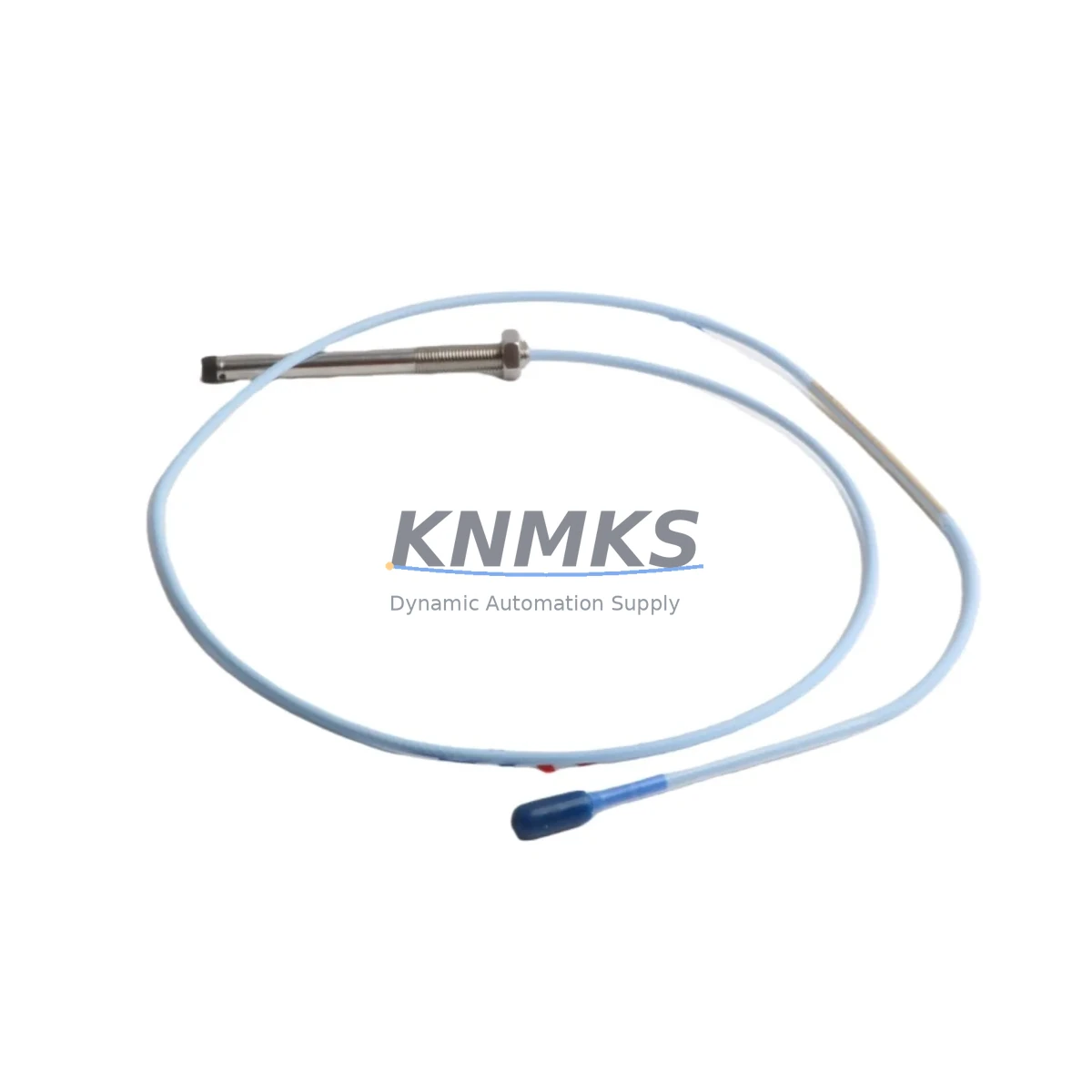

Bently Nevada 330101-23-34-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-23-34-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-23-34-10-02-05 is an eddy-current proximity probe engineered for continuous vibration, position, and speed monitoring in rotating machinery applications. As legacy 3300 XL monitoring systems approach end-of-support milestones and original spare parts become increasingly difficult to source through standard distribution channels, plant engineers and reliability teams are under growing pressure to identify verified, drop-in replacements that preserve existing wiring infrastructure, signal conditioning chains, and machinery protection logic without triggering a full system overhaul.

This migration-ready unit is a direct functional replacement for the discontinued 330101-23-34-10-02-05 probe. It maintains the same 8 mm tip diameter, 5-metre integral cable length, and –24 VDC driver compatibility required by the 3300 XL proximitor/driver ecosystem. The probe is factory-tested against Bently Nevada signal output specifications before shipment, ensuring that field teams can complete a like-for-like swap with minimal recalibration effort and no changes to existing DCS or safety system tag configurations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-23-34-10-02-05 begins well before the maintenance window opens. The first step is a thorough review of the existing 3300 XL rack layout to confirm available slot positions and verify that the associated 3300 XL Proximitor/Driver module — typically a 330180 or 330130 series driver — is still serviceable. If the driver module itself is approaching end-of-life, sourcing a replacement driver in parallel with the probe avoids a second unplanned outage.

Terminal block wiring should be documented and photographed before disconnection. The 330101-23-34-10-02-05 uses a shielded, armoured integral cable; the shield drain wire termination point at the proximitor input card must be preserved to maintain signal integrity and avoid ground loop interference on the vibration channel. Where the existing cable conduit is shared with power conductors, confirm that separation distances comply with the site’s EMC requirements.

For plants running a System 1 Evolution or System 1 Classic condition monitoring platform, the probe replacement does not require any database reconfiguration provided the transducer type and sensitivity settings remain unchanged. Engineers should, however, verify that the gap voltage reading — typically between –10 VDC and –18 VDC at the nominal air gap — falls within the proximitor’s linear range before returning the machine to service. A 3300 XL Field Calibrator or equivalent signal simulator can be used to confirm the output chain without spinning the shaft.

In broader retrofit projects where the 3300 XL rack is being migrated toward a 3500 Series machinery protection system, the 330101-23-34-10-02-05 probe remains compatible with 3500/42M and 3500/44M monitor cards when paired with the appropriate 3500 series proximitor. This migration path allows plants to upgrade the monitoring electronics while retaining the existing probe installations, significantly reducing the civil and mechanical work scope. Companion components commonly addressed in the same project scope include the 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication, the 3500/15 Power Supply Module to confirm rack power budget after adding new monitor cards, and the 3500/92 Communication Gateway where integration with a Honeywell Experion PKS or Emerson DeltaV DCS is required.

Where I/O expansion is part of the upgrade scope, the 3300 XL I/O Module and associated terminal blocks should be inspected for corrosion and contact wear, particularly in high-humidity or offshore environments. Signal isolators — such as a DIN-rail mounted galvanic isolator on the vibration channel — are recommended when the cable run from the probe to the rack exceeds 30 metres or crosses areas with high electrical noise from variable frequency drives.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window, the replacement 330101-23-34-10-02-05 unit should be bench-verified using a calibrated driver and a target disc of the correct material (typically AISI 4140 steel) to confirm sensitivity and linear range. This pre-verification step eliminates the risk of discovering a defective spare during the outage itself.

The original program logic in the DCS or safety instrumented system (SIS) does not require modification for a like-for-like probe swap. However, the alarm management system should be placed in maintenance override for the affected vibration channel during the swap to prevent spurious trip signals from reaching the emergency shutdown system. The override should be time-limited and logged in the site’s management of change (MOC) system.

Gap setting is the most time-sensitive commissioning step. Using a pre-set gap tool or a depth micrometer to achieve the nominal 1.0 mm to 1.5 mm air gap before tightening the locknut reduces the time spent on fine adjustment at the machine. Once the gap is set, the output voltage should be read at the proximitor terminal and compared against the calibration chart before the maintenance override is lifted.

For critical machinery where continuous monitoring is mandatory, a temporary portable vibration analyser connected to the proximitor output can maintain surveillance during the brief period when the permanent monitoring channel is in override. This approach preserves control continuity and satisfies most site safety requirements for uninterrupted machinery protection during planned maintenance activities. After the replacement probe is commissioned and alarm setpoints are verified, the channel should be returned to normal monitoring mode and the event logged in the CMMS with the new probe serial number and gap voltage reading.

Retrofit Support FAQ

Q1: Is the 330101-23-34-10-02-05 a direct replacement for the original Bently Nevada part with the same SKU?
Yes. This unit is a migration-ready functional equivalent manufactured to the same dimensional and electrical specifications as the original 330101-23-34-10-02-05. It is compatible with the 3300 XL Proximitor/Driver system and does not require changes to existing wiring, DCS tag configurations, or alarm setpoints. A gap re-setting and output voltage verification are recommended as standard commissioning practice after any probe replacement.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe-to-target air gap to the value specified in the original machine documentation (typically 1.0 mm to 1.5 mm for 8 mm probes). Measure the DC gap voltage at the proximitor output terminals and confirm it falls within the linear range. Verify that the vibration channel output responds correctly to a simulated shaft displacement before lifting the maintenance override in the DCS or SIS. Document the gap voltage and probe serial number in the site CMMS.

Q3: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Every unit undergoes factory functional testing against Bently Nevada output specifications prior to shipment. A test certificate is included with each order. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits.

Q4: What is the typical lead time and stock availability?
Stock is maintained across regional warehouses to support urgent maintenance requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity blanket orders or multi-site procurement programmes, contact the sales team to discuss reserved stock arrangements and volume pricing. Express air freight is available for critical shutdown situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-23-34-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-23-34-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
