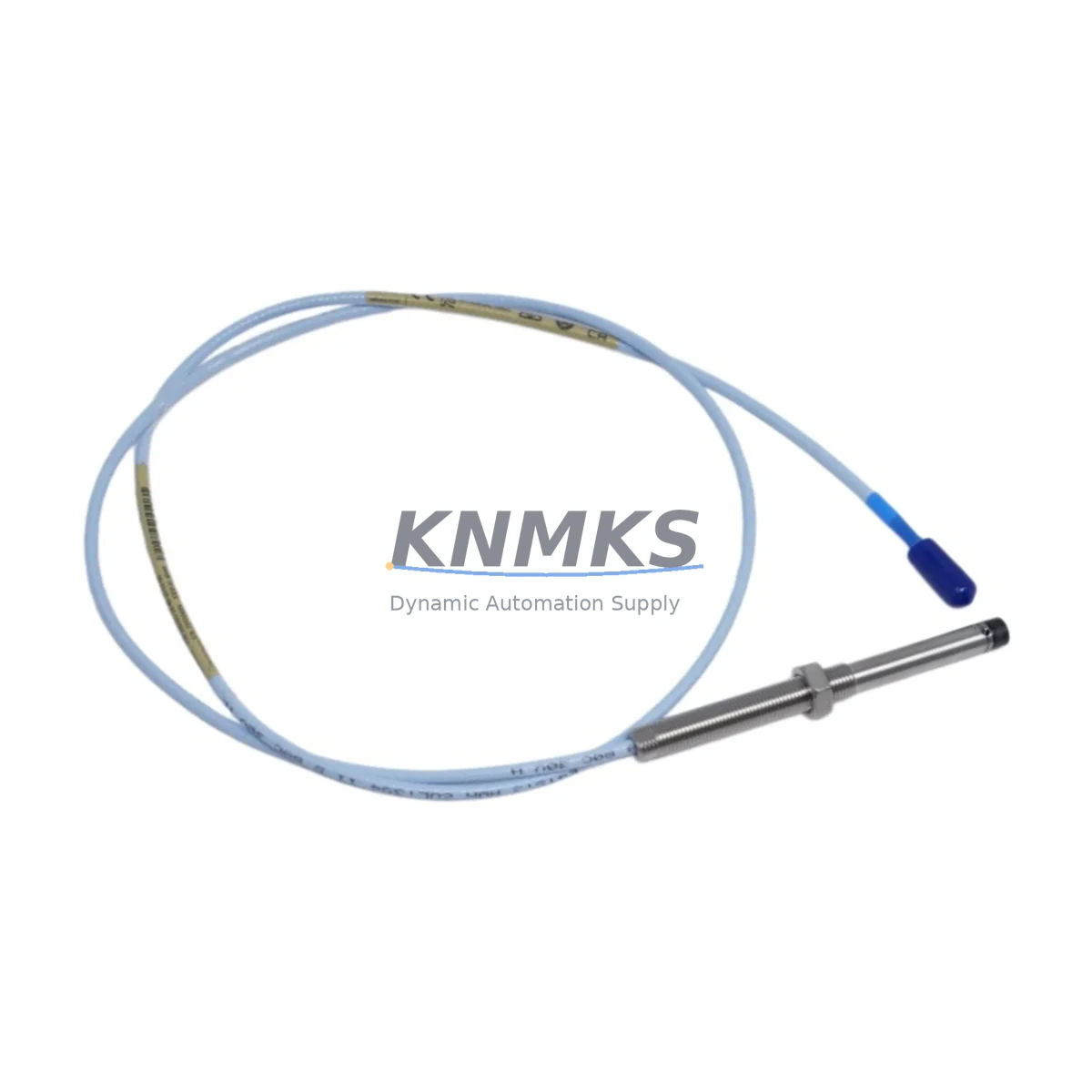

Bently Nevada 330101-15-27-05-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-15-27-05-02-05 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330101-15-27-05-02-05 is a 5mm eddy current proximity probe from the industry-leading 3300 XL Series, engineered to deliver fail-safe vibration and position monitoring in the most demanding industrial environments. Designed in full compliance with API 670 machinery protection standards and certified to ATEX directives for hazardous area deployment, this probe is the cornerstone of any critical rotating machinery protection system — from high-speed turbines and compressors to pumps, fans, and gearboxes operating under continuous load.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical mills, port cranes, and marine propulsion systems — unplanned downtime caused by undetected shaft vibration, rotor displacement, or bearing wear can result in catastrophic equipment failure, safety incidents, and multi-million dollar production losses. The 330101-15-27-05-02-05 eliminates these risks by providing real-time, non-contact measurement of shaft radial vibration, axial position, and differential expansion with micron-level precision, even under extreme electromagnetic interference (EMI), high ambient temperatures, mechanical vibration, dust ingress, and moisture exposure.

With an IP67 ingress protection rating, this probe withstands total dust exclusion and temporary immersion, making it fully suitable for outdoor installations, wash-down environments, and humid tropical climates. Its robust stainless steel housing and armored cable construction resist mechanical shock and vibration-induced fatigue — critical in high-cycle compressor trains and reciprocating machinery where probe longevity directly impacts maintenance intervals and safety system availability.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-15-27-05-02-05 probe does not operate in isolation — it is the sensing front-end of a tightly integrated machinery protection architecture. In a typical critical control cabinet, the probe connects via a matched Bently Nevada 330130-045-00-00 Extension Cable to a 3300 XL Proximitor® Sensor (such as the 330180-X1-05), which conditions the raw eddy current signal into a calibrated analog voltage output. This signal is then fed into a Bently Nevada 3500 Series Rack — the industry-standard modular machinery protection system — where dedicated monitor cards such as the 3500/42M Proximitor®/Seismic Monitor perform real-time alarm and danger threshold evaluation.

Within the same protection loop, power supply integrity is maintained by redundant 3500/15 Power Supply modules, ensuring that a single power rail failure does not compromise the entire protection system. For facilities operating under IEC 61511 functional safety requirements, the 3300 XL probe system integrates seamlessly with safety instrumented system (SIS) architectures, providing the field-level sensing layer for SIL-rated interlock loops. In high-EMI environments — such as variable frequency drive (VFD) motor control centers, arc furnace control rooms, or high-voltage switchgear panels — the probe’s shielded coaxial cable and the Proximitor’s differential signal processing architecture provide robust rejection of common-mode electrical noise, preventing spurious trips and missed alarms that could compromise both production continuity and personnel safety.

For installations in dusty, humid, or chemically aggressive atmospheres — common in cement plants, fertilizer production, offshore platforms, and pulp and paper mills — the IP67-rated probe body and corrosion-resistant stainless steel construction ensure long-term measurement stability without signal drift or mechanical degradation. Paired with a Bently Nevada 3300 XL Proximitor® junction box for field termination, the complete probe-cable-driver system forms a sealed, interference-immune measurement chain from the rotating shaft to the control room monitor.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units, ethylene crackers, and compressor trains handling flammable hydrocarbons, the 330101-15-27-05-02-05 provides the vibration and position data required to trigger emergency shutdown (ESD) systems before bearing failure or rotor rub causes a seal breach. ATEX Zone 1 certification ensures safe operation in the presence of explosive gas atmospheres without requiring additional intrinsic safety barriers in most configurations.

Power Generation: Steam turbine-generator sets and gas turbines in baseload and peaking power plants rely on API 670-compliant proximity probe systems for continuous shaft monitoring. The 3300 XL probe’s wide frequency response (DC to 10 kHz) captures both low-speed rotor bow and high-frequency blade-pass events, enabling early fault detection and planned maintenance scheduling that prevents forced outages.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, gold, and iron ore processing operate in extreme dust and vibration environments. The IP67 rating and robust mechanical construction of the 330101-15-27-05-02-05 ensure reliable operation in these conditions, where probe failure would halt the entire processing circuit and result in significant revenue loss per hour of downtime.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in municipal water treatment plants require continuous vibration monitoring to comply with reliability-centered maintenance (RCM) programs. The non-contact measurement principle of the eddy current probe eliminates wear-related drift, providing stable, long-term baseline data for condition monitoring programs.

Metallurgy & Steel: Rolling mill drives, continuous casters, and blast furnace blowers operate under extreme thermal and mechanical stress. The 330101-15-27-05-02-05’s operating temperature range of -35°C to +177°C and its resistance to thermal shock make it suitable for installation close to high-temperature process equipment where conventional sensors would fail prematurely.

Marine & Port Equipment: Ship propulsion systems, bow thrusters, and port crane hoisting drives benefit from the probe’s compact 5mm tip diameter, which allows installation in space-constrained bearing housings typical of marine machinery. The corrosion-resistant stainless steel construction withstands salt spray and high-humidity marine environments without protective coatings.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-15-27-05-02-05?
The support terms confirmed by quotation cover all manufacturing defects, calibration failures, and functional anomalies under normal operating conditions as specified in the Bently Nevada 3300 XL product documentation. Support requests are supported with full technical documentation and replacement dispatch within agreed lead times. The confirmed support period begins from the date of shipment.

Q2: How is the probe tested before shipment?
Every 330101-15-27-05-02-05 unit undergoes a complete pre-shipment functional verification, including scale factor calibration check, insulation resistance test, cable continuity verification, and physical inspection for housing integrity. Test records are available upon request and accompany each shipment to support incoming inspection at the customer’s facility.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330101-15-27-05-02-05 is fully compatible with all existing Bently Nevada 3300 XL Proximitor® Sensors, 330130 series extension cables, and 3500 Series monitor racks without requiring recalibration of the monitor system, provided the target material is standard AISI 4140 steel. For non-standard target materials, a field calibration adjustment may be required per API 670 Annex D procedures.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain dedicated inventory of the 330101-15-27-05-02-05 and related 3300 XL series components to support critical spare parts programs, planned turnaround (TAR) events, and emergency replacement requirements. Customers operating under reliability-centered maintenance (RCM) or asset integrity management (AIM) frameworks are encouraged to contact our technical sales team to establish a consignment or blanket order arrangement that guarantees availability without capital commitment.
