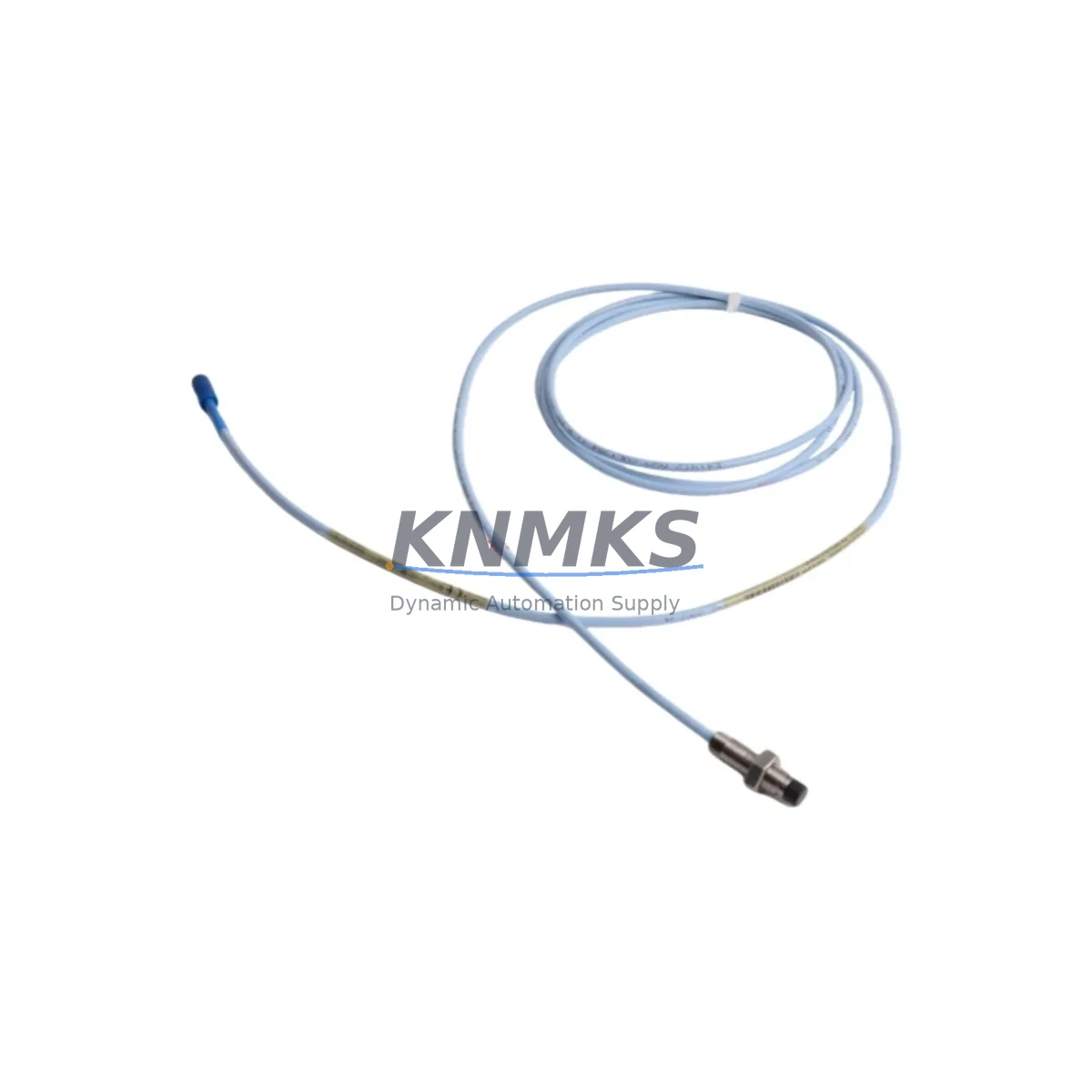

Bently Nevada 330101-13-37-10-12-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-13-37-10-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-13-37-10-12-05 is an 8mm eddy-current proximity probe from the 3300 XL series, engineered for continuous vibration and position monitoring in rotating machinery protection systems. As legacy Bently Nevada 3300 series installations approach end-of-support milestones, maintenance engineers and reliability teams are increasingly required to source migration-ready replacements that preserve signal integrity, mechanical fit, and system compatibility without triggering a full platform overhaul.

This unit is a direct retrofit replacement for the original 330101-13-37-10-12-05, maintaining the same 8mm probe tip diameter, 5-metre integral cable configuration, and -24 VDC driver supply compatibility. It is designed to interface with the Bently Nevada 3300 XL proximitor/driver — including the 330180 series proximitor — without requiring recalibration of the gap voltage baseline or modification of the existing conduit and junction box layout. Engineers replacing worn or damaged probes in turbine bearing housings, compressor shaft monitoring positions, or pump seal proximity applications will find this unit drop-in compatible with existing probe holders and armoured cable runs.

Before installation, field teams should confirm the following parameters against the existing system documentation: driver supply voltage (nominally -24 VDC from the 3300 XL proximitor), gap voltage setpoint (typically -10 VDC at the nominal air gap for 8mm probes), cable extension length if a 330130 series extension cable is in use, and the armour termination method at the junction box. Where the original installation used a 330130-080-00-00 extension cable, the same cable can be reused with this replacement probe provided the connector seating and locking collar are inspected for corrosion or mechanical damage.

For sites running the System 1 condition monitoring platform or interfacing with a 3500 series rack via a 3500/42M proximitor monitor card, the 330101-13-37-10-12-05 output signal is fully compatible with the expected -24 VDC supply and voltage-output format. No firmware changes are required at the monitor card level. However, engineers should verify that the 3500/42M channel configuration reflects the correct probe type (8mm) and scale factor before returning the channel to active monitoring status after probe replacement.

Sites that are executing a broader migration from the 3300 XL platform to the 3500 series should note that the probe itself is common across both platforms. The primary migration effort in such projects involves replacing the 3300 XL proximitor with a 3500/42M or 3500/42E monitor card, updating the rack backplane wiring, and reconfiguring alert and danger setpoints in the System 1 database. The 330101-13-37-10-12-05 probe can remain in service throughout this transition, reducing the scope of mechanical work during the cutover window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful probe replacement within a live machinery protection system requires more than a like-for-like part swap. Retrofit planning for the 330101-13-37-10-12-05 should begin with a review of the full measurement chain: from the probe tip through the 330130 series extension cable, into the 330180 proximitor, and terminating at the monitor card input — whether that is a 3300 XL monitor or a 3500/42M proximitor monitor in a 3500 series rack.

Where the existing installation uses a 3300 XL rack with a 3300/16 dual-channel monitor card, engineers should confirm that the rack backplane slot assignment and channel address have not been modified since the original commissioning documentation was produced. Incorrect channel addressing is a common source of false alerts during probe replacement if the System 1 database record does not match the physical rack layout.

For installations that include a 3500/20 rack interface module or a 3500/92 communication gateway, the probe replacement window should be coordinated with the control room to suppress the relevant channel alarm in the DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — to prevent a spurious machinery trip during the gap voltage re-establishment period. The suppression window should be documented and time-limited, with a defined restoration checkpoint before the machine is returned to service.

Where the probe is installed in a hazardous area classified zone, the armoured cable and junction box sealing arrangement must be inspected and restored to the original certified configuration after probe replacement. Any modification to the cable gland or conduit seal requires re-certification documentation before the area can be returned to normal classification status.

Sites that are simultaneously upgrading their HMI from an older Wonderware InTouch or iFIX-based operator station to a current System 1 Evolution interface should note that the probe signal data path is independent of the HMI layer. Probe replacement can proceed without interrupting the HMI migration, provided the monitor card channel remains in bypass or suppressed state during the mechanical work.

Downtime Control During System Migration

Minimising unplanned downtime during probe replacement requires a structured pre-outage checklist and a clearly defined restoration sequence. For the 330101-13-37-10-12-05, the recommended sequence is as follows: first, obtain a signed work permit and confirm machinery isolation with the operations team; second, suppress the relevant channel in the machinery protection system and document the suppression in the control room log; third, remove the existing probe and extension cable connector, inspect the probe holder bore for wear or contamination, and install the replacement unit to the specified torque; fourth, re-establish the gap voltage by adjusting the probe position until the proximitor output reads within the specified range (typically -9.5 to -10.5 VDC for an 8mm probe at nominal gap); fifth, restore the channel from suppression and confirm that the System 1 trend display shows a stable, noise-free signal before releasing the machine for restart.

The entire replacement sequence, from isolation to channel restoration, can typically be completed within a two-to-four hour maintenance window on a well-documented installation. Sites with poor as-built documentation or corroded cable connectors should budget additional time for connector inspection and potential extension cable replacement. Keeping a spare 330130 series extension cable and a replacement 330180 proximitor in the site spares inventory significantly reduces the risk of an extended outage if secondary components are found to be degraded during the probe replacement.

All units supplied are functionally tested prior to shipment. The support terms confirmed by quotation cover manufacturing defects and provides a defined return path if a unit is found to be non-conforming after installation. Support requests require the original shipment documentation and a description of the fault condition observed during commissioning.

Retrofit Support FAQ

Q: Is the 330101-13-37-10-12-05 a direct replacement for the original Bently Nevada part of the same number?
A: Yes. This unit is a migration-ready replacement that maintains the same mechanical dimensions, cable length, connector type, and electrical output characteristics as the original Bently Nevada 330101-13-37-10-12-05. It is compatible with the 330180 series proximitor and the 3500/42M monitor card without modification.

Q: Do I need to recalibrate the gap voltage after replacing the probe?
A: Yes. Gap voltage must always be re-established after a probe replacement, even when using a like-for-like part. The nominal gap voltage for an 8mm probe is -10 VDC at the specified air gap. Adjust the probe axial position until the proximitor output is within the specified range before restoring the channel to active monitoring.

Q: What is the lead time and do you hold stock for this part?
A: Stock is maintained across regional warehouses to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact [email protected] or call +86 18359268345 to confirm current availability before raising a purchase order.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects identified within 12 months of the shipment date. Each unit undergoes a pre-shipment functional test. Support requests must be accompanied by the original shipment documentation and a written description of the fault condition. Physical damage caused by incorrect installation or gap voltage adjustment outside the specified range is not covered.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-13-37-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-13-37-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
