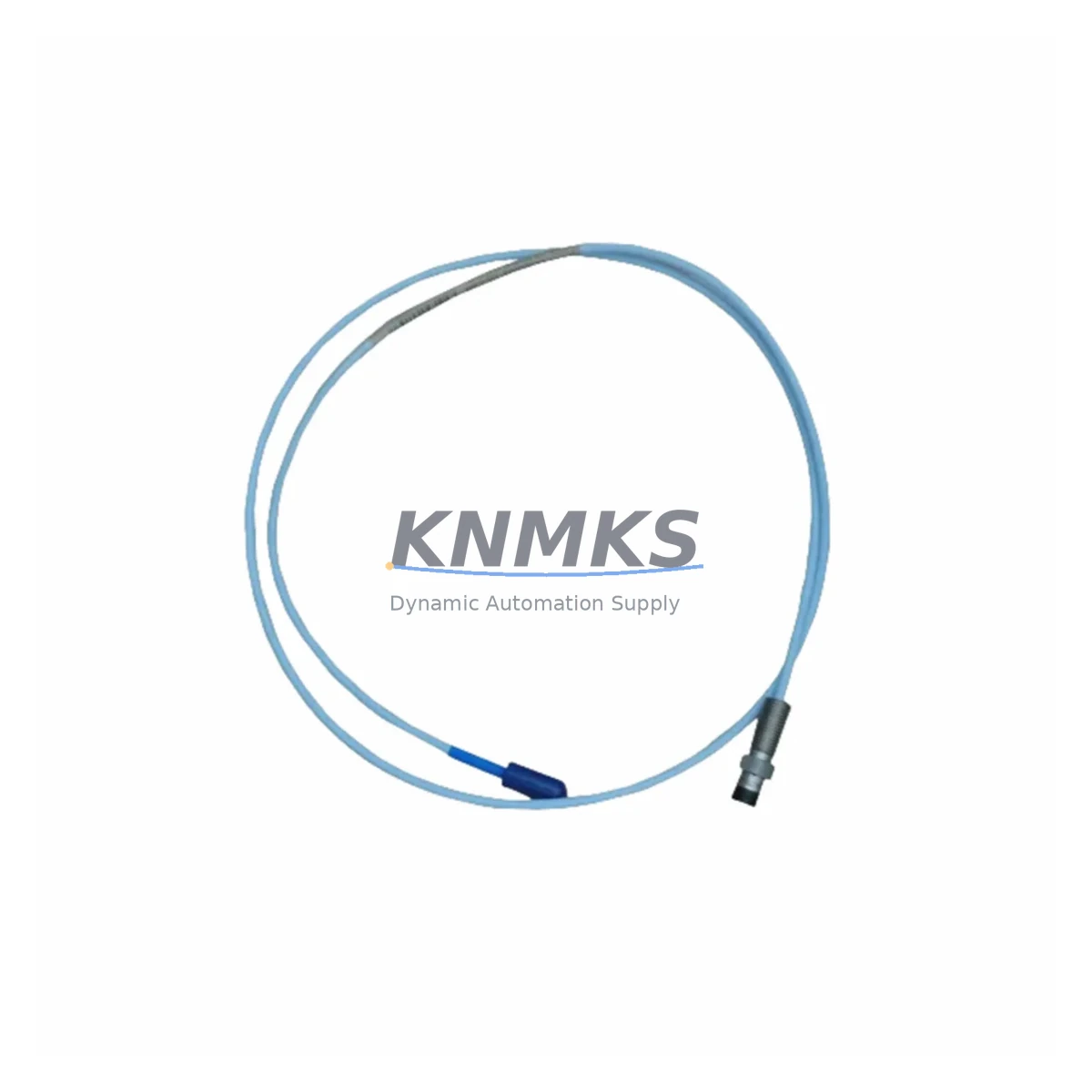

Bently Nevada 330101-12-30-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-12-30-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-12-30-10-02-05 is an 8mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration, position, and eccentricity measurement in rotating machinery. As legacy vibration monitoring infrastructure reaches end-of-life across refineries, power generation facilities, and petrochemical plants, this probe serves as a direct migration-ready replacement for discontinued 3300 Series predecessors, enabling facilities to restore full monitoring capability without redesigning existing cable routing, junction box layouts, or Bently Nevada 3500 rack configurations.

When planning a retrofit from an older 3300 Series probe to the 330101-12-30-10-02-05, engineers must verify several critical parameters before committing to a swap. The probe operates with a standard 5-metre armoured extension cable — typically the Bently Nevada 330130-045-00-00 — and requires a compatible proximitor/driver such as the 3300 XL 8mm Proximitor (330180-X1-05). Confirming that the existing proximitor in the field cabinet accepts the 330101 probe’s output characteristics is the first checkpoint; mismatched proximitor-probe pairs will produce erroneous gap voltage readings and trigger false alarms on the 3500/40M or 3500/42M monitor modules housed in the 3500 rack.

Terminal wiring at the junction box must be reviewed against the original installation drawing. The 330101-12-30-10-02-05 uses a standard coaxial connector at the probe tip and a MIL-C-5015 style connector at the extension cable junction. If the legacy installation used an earlier 7200 Series probe with a different connector body, an adapter or full cable replacement may be required. Technicians should also confirm the probe mounting thread — 3/8-24 UNF — matches the existing bracket or bearing housing boss before installation to avoid machining delays during a planned outage.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 330101-12-30-10-02-05 typically involves coordinating several interdependent components within the Bently Nevada ecosystem. The probe itself is only one element of a three-part measurement chain: probe body, extension cable, and proximitor/driver. When replacing a failed or end-of-life probe, facilities should simultaneously audit the condition of the paired 330130-045-00-00 extension cable. Armoured extension cables in high-vibration environments are subject to jacket cracking and connector corrosion; replacing the probe while retaining a degraded cable introduces a new failure point within weeks of restart.

The proximitor module — commonly the 330180-X1-05 mounted inside the local field enclosure or control cabinet — converts the probe’s eddy-current signal into a calibrated DC voltage that feeds the 3500 rack. If the existing proximitor is a non-XL variant, it must be replaced alongside the probe to maintain system calibration. Technicians should record the existing gap voltage (typically between -10 VDC and -18 VDC at the nominal air gap of 1.0 mm to 2.0 mm) before removal, and re-establish the same gap voltage after installation using a calibrated gap tool.

Within the 3500 rack, the 3500/40M proximitor I/O module or 3500/42M Proximitor Monitor processes the incoming signal. Before the retrofit, the I/O module’s channel configuration — including full-scale range, alert and danger setpoints, and Keyphasor assignments — should be exported from the 3500 Rack Configuration Software and archived. After probe replacement, the same configuration file can be reloaded, eliminating manual re-entry errors. If the rack also houses a 3500/22M Transient Data Interface or a 3500/92 Communication Gateway, verify that the channel mapping in the DCS historian or SCADA system remains consistent with the new probe’s channel address.

For facilities running a Honeywell Experion PKS or Emerson DeltaV DCS, the vibration data from the 3500 rack is typically transmitted via Modbus TCP or OPC DA to the process historian. No protocol reconfiguration is required when replacing a like-for-like 3300 XL probe, but the DCS tag database should be reviewed to confirm that engineering unit scaling and alarm limits remain valid after the swap. Where the retrofit involves upgrading from a 7200 Series probe to the 3300 XL platform, a full I/O loop check and historian tag update will be necessary.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation sequence. Before the maintenance window opens, the replacement 330101-12-30-10-02-05 should be bench-tested against a known-good proximitor to confirm output linearity across the full gap range. This pre-shipment verification — which is standard practice for units supplied through KNMKS — eliminates the risk of installing a defective spare and discovering the fault only after the machine is back online.

During the outage, the original probe should be removed without disturbing the extension cable connector at the junction box if the cable is being retained. The new probe body should be threaded into the bearing housing boss by hand first, then torqued to the manufacturer’s specification using a calibrated torque wrench. Gap setting should be performed with the shaft stationary, using a non-ferrous feeler gauge or a digital gap meter connected to the proximitor output. The target gap voltage should match the value recorded before removal.

Once the probe is installed and gapped, the 3500 rack should be taken out of bypass mode and the channel brought back online in the Rack Configuration Software. The first 15 minutes of machine run-up should be monitored closely for any deviation in the 1X and 2X vibration vectors compared to the historical baseline stored in the System 1 condition monitoring software. If the vectors are within ±5% of the pre-outage baseline, the installation can be considered successful. Any significant deviation warrants a re-check of the gap setting, cable continuity, and proximitor calibration before returning the machine to full load.

Maintaining a documented retrofit record — including the replaced probe serial number, installation date, gap voltage at commissioning, and the technician’s sign-off — supports both the support terms confirmed by quotation claim process and the facility’s predictive maintenance audit trail.

Retrofit Support FAQ

Q1: Is the 330101-12-30-10-02-05 a direct replacement for all 3300 Series 8mm probes?
It is a direct replacement for other 3300 XL 8mm probes sharing the same cable length and connector configuration. Replacement of earlier 3300 non-XL or 7200 Series probes requires verification of the proximitor model and connector compatibility. In most cases, replacing the proximitor with a 330180-X1-05 and using a new 330130 extension cable resolves any interface mismatch.

Q2: What wiring checks are required before installation?
Verify coaxial cable continuity from the probe connector to the proximitor input terminal. Check for shield grounding at one end only (typically at the proximitor enclosure) to avoid ground loops. Confirm that the junction box terminal block is rated for the signal voltage range and that no moisture ingress has occurred in the conduit run.

Q3: How is compatibility with the 3500 rack monitor confirmed?
Open the 3500 Rack Configuration Software and navigate to the channel configuration for the affected slot. Confirm that the transducer type is set to “3300 XL 8mm” and that the full-scale range matches the probe’s calibrated output. If the rack firmware is below Rev D, a firmware update should be scheduled before commissioning the new probe.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability confirmed?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Each unit is pre-shipment tested for output linearity and connector integrity before dispatch. Stock availability for the 330101-12-30-10-02-05 can be confirmed directly with KNMKS prior to order placement. Emergency orders with expedited dispatch are supported for critical machinery applications.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-12-30-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-12-30-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
