Bently Nevada 330101-10-44-05-02-05 Spare Part

Overview

Bently Nevada 330101-10-44-05-02-05 Maintenance-Proven Spare Part for Factory Uptime

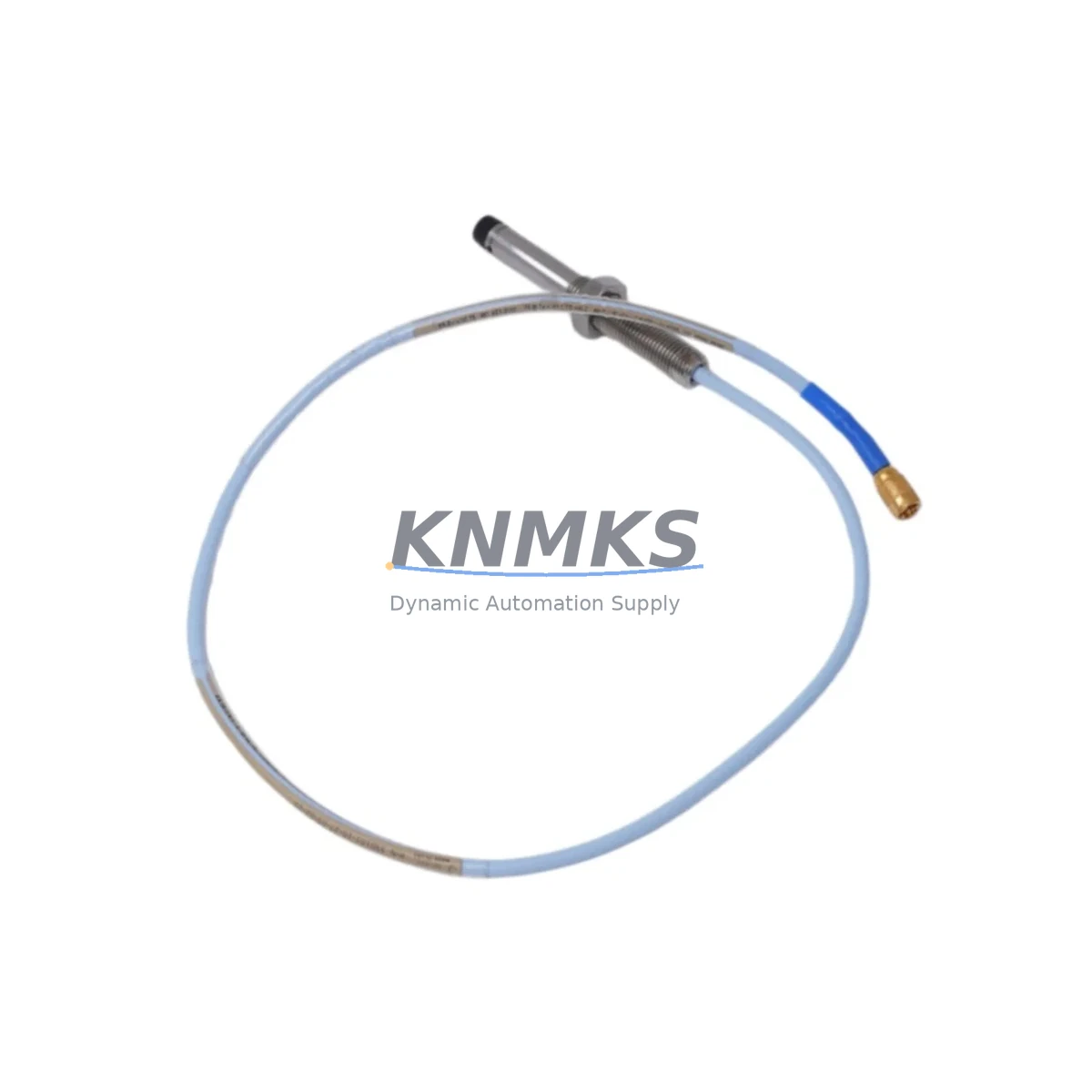

The Bently Nevada 330101-10-44-05-02-05 is an 8mm proximity transducer engineered for continuous vibration and position monitoring within the 3300 XL Series machinery protection system. Designed to deliver reliable, non-contact measurement of shaft radial vibration, axial position, and differential expansion, this transducer is a critical spare component for rotating machinery installations in power generation, oil & gas, petrochemical, and heavy manufacturing environments. Maintaining a verified stock of this part directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled and emergency maintenance events.

Each unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Our inventory is maintained to support both emergency replacement orders and planned annual overhaul procurement cycles, ensuring your maintenance team is never left waiting for a critical sensor during a production-critical shutdown window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-10-44-05-02-05 proximity transducer is flagged during a routine control cabinet inspection or machinery protection audit, experienced maintenance engineers know that replacing the transducer alone is rarely sufficient to restore full system integrity. A comprehensive replacement workflow should include verification of the paired 330180 Proximitor® Sensor (the signal conditioning driver), since transducer and driver are calibrated as a matched system — substituting one without confirming the other’s health introduces measurement error that can trigger nuisance trips or, worse, mask genuine shaft excursions.

The 3300 XL Monitor input card should be inspected for connector pin corrosion, proper seating, and correct gap voltage reading (typically –10 VDC ±0.5 VDC at the nominal air gap). If the monitor card shows erratic readings or fails self-test after transducer replacement, the 3300/20-series I/O module or the relevant channel’s signal conditioning board may require attention. Maintenance planners should also verify the integrity of the 330130 extension cable — the interconnecting cable between transducer and Proximitor — as cable jacket damage, connector corrosion, or impedance mismatch from field repairs are common root causes of false vibration alarms.

For installations where the 3300 XL rack feeds into a DCS or safety instrumented system, confirm that the 4–20 mA output signal from the monitor is reaching the marshalling cabinet terminal blocks without interruption. Loose terminal connections, corroded DIN rail terminal blocks, or a degraded signal isolator in the loop can introduce noise that mimics a failing transducer. In high-vibration environments, it is also advisable to inspect the proximity probe mounting bracket and locknut torque, as mechanical loosening shifts the air gap and corrupts the baseline measurement.

Annual overhaul procurement lists for 3300 XL-equipped machinery should routinely include the 330101-10-44-05-02-05 transducer alongside the 330180 Proximitor, extension cables, and a spare 3300/16-channel monitor card to cover the most common single-point failure modes. Facilities operating legacy turbine trains or compressor strings with extended OEM support timelines benefit most from maintaining at least one cold-spare transducer per critical measurement plane, reducing mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the machinery protection channel at the 3300 XL monitor. Note the existing gap voltage and vibration baseline from the DCS historian before disconnecting.

Step 2 — Transducer Removal: Loosen the locknut and carefully unthread the 330101-10-44-05-02-05 from the probe holder. Inspect the probe tip for impact damage or contamination. Disconnect the extension cable at the Proximitor end.

Step 3 — Cable & Proximitor Inspection: Visually inspect the 330130 extension cable for jacket damage, connector corrosion, and continuity. Verify the 330180 Proximitor output voltage with a calibrated multimeter before reinstalling.

Step 4 — New Transducer Installation: Thread the replacement 330101-10-44-05-02-05 into the probe holder. Set the air gap per the OEM specification (typically 1.0–1.5 mm for 8mm probes). Torque the locknut to specification and reconnect the extension cable.

Step 5 — System Verification: Restore power to the monitor channel. Confirm gap voltage is within the –10 VDC ±0.5 VDC acceptance window. Verify that the DCS receives a clean, stable vibration signal and that no alarms are active before releasing the equipment to operations.

Step 6 — Documentation: Record the replacement in the CMMS, update the spare parts inventory, and log the as-found gap voltage for trend analysis. Schedule the next inspection interval per your predictive maintenance program.

Spare Parts Support FAQ

Q1: Is the 330101-10-44-05-02-05 compatible with all 3300 XL monitor variants?
The 330101-10-44-05-02-05 is designed for use within the Bently Nevada 3300 XL machinery protection system and is compatible with the full range of 3300 XL monitor cards when paired with the correct 330180 Proximitor® Sensor. Always confirm the system’s configured sensitivity and gap voltage range against the transducer datasheet before installation to ensure channel calibration is maintained.

Q2: What is your inventory policy for long-term and emergency supply?
KNMKS maintains buffer stock of high-demand Bently Nevada spare parts, including the 330101-10-44-05-02-05, to support both planned annual overhaul procurement and emergency same-day dispatch requirements. For facilities with critical uptime obligations, we recommend establishing a blanket order or consignment arrangement to guarantee availability without capital lock-up.

Q3: How is each unit tested before shipment?
Every 330101-10-44-05-02-05 unit undergoes pre-shipment functional verification including output linearity check, insulation resistance test, and connector integrity inspection. Units are shipped with individual test records. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment.

Q4: Can this transducer replace older or discontinued Bently Nevada proximity probe models?
The 330101-10-44-05-02-05 follows the standard Bently Nevada 3300 XL system architecture and can serve as a direct replacement for earlier 330100-series probes in many installations, provided the air gap, cable length, and Proximitor model are compatible. KNMKS technical support can assist with cross-reference verification and compatibility confirmation before order placement to eliminate procurement risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-10-44-05-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-10-44-05-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
